15A to 60A Din Rail Mount Solid State Relay/Contactor
- High frequency dc solid state relay, the application and features you may know.
- Plug in AC switching Solid State Relays
- Low voltage drop DC SSR, charging and discharging DC SSR launched.

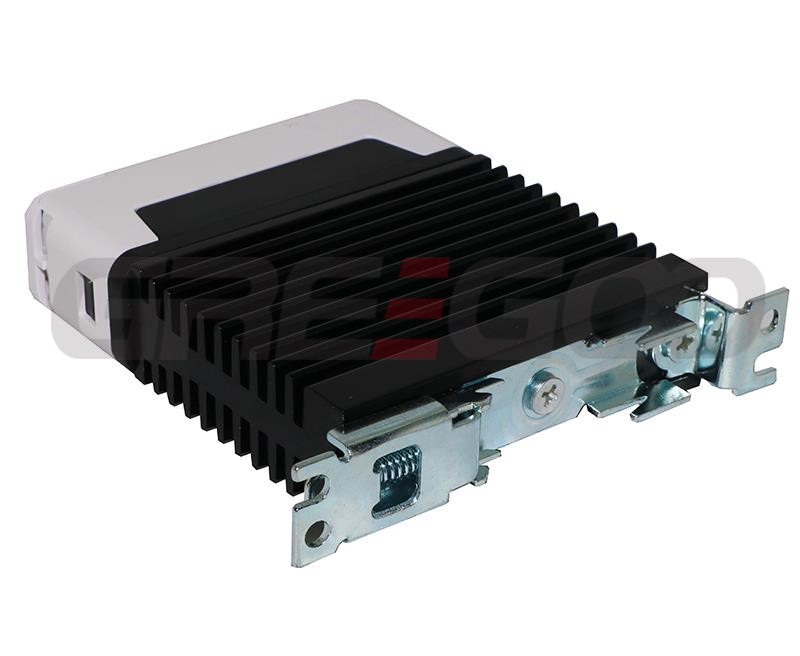

This slimline solid state contactors present a unique opportunity for panel space savings thanks to their very slim footprint. The DIN rail mount solid state relay is the ready-to-use range that is provided with an integrated heatsink with DIN rail clamps. The radiator is oxidized black and the surface is mirror-finished. The smallest footprint occupies only a width of 17.5 mm with ratings up to 60A. The power and control terminals allow for safe looping of cables. Spring loaded pluggable control terminals are an option when faster installation time is required.
Benefits:
- Panel space savings.
- Less maintenance costs.
- Low machine downtime.
- Ease of use.
- Fast wiring.
- Protection against SSR overheat.
Applications
Plastic injection machines, Extrusion machines, Blow moulding machines, Dryers, Electrical ovens, Fryers, Shrink tunnels, Air handling units, Climatic chambers, Ovens and furnaces, Ambient heating.
Main features
- Ratings: 15A, 25A, 40A and 60A
- Output voltage: 480Vac and 600Vac
- Control voltage: 4-32Vdc, 90-280Vac
- Integrated IP20 touch-safe removable covers
- Din rail mount
- Zero cross or instantaneous/random switching (resistive or inductive loads)

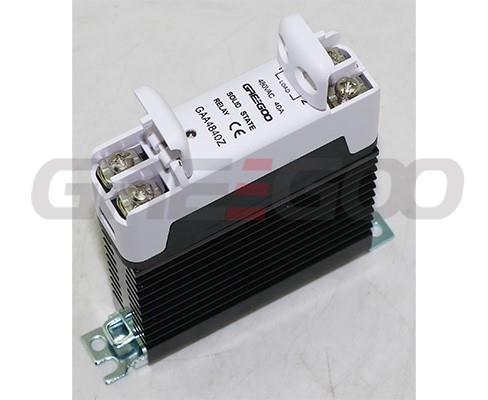

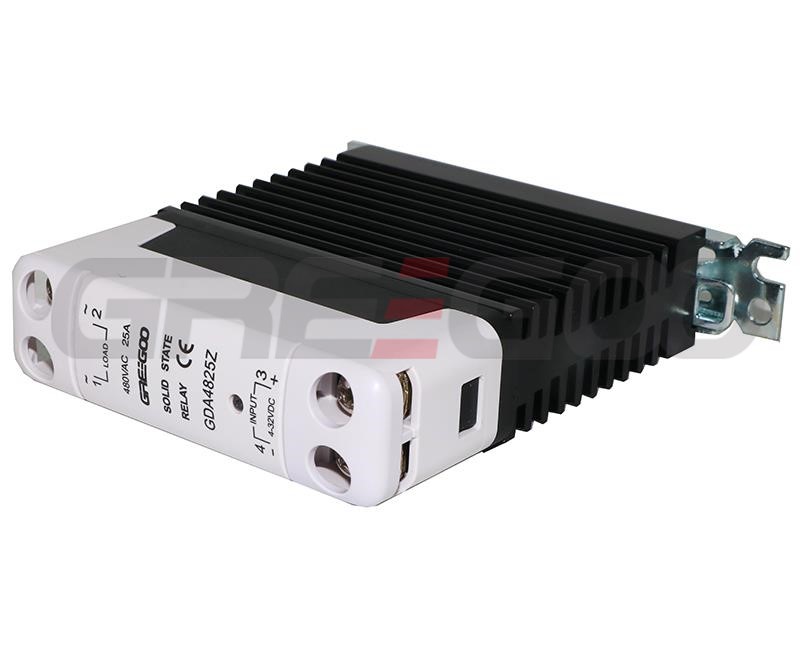

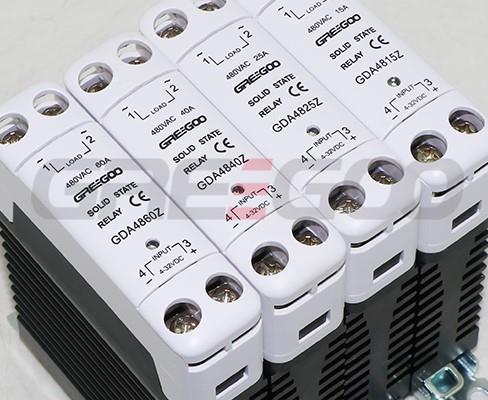

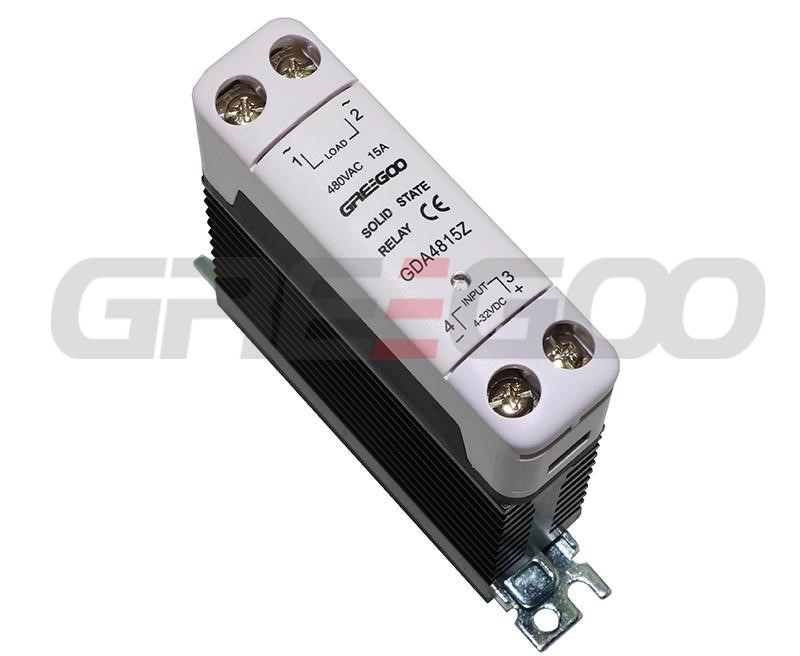

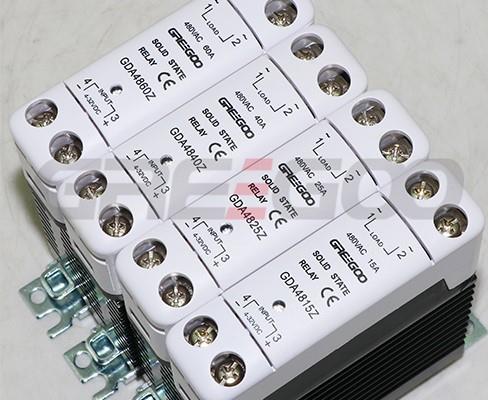

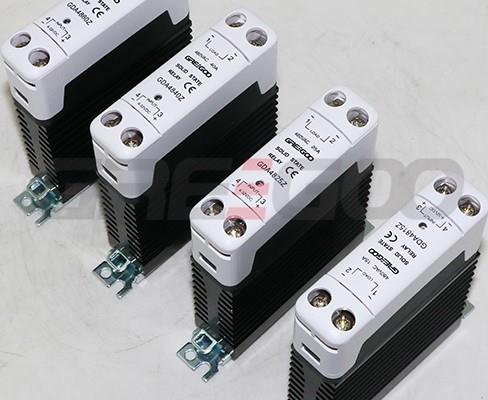

Solid State Relay with Heatsink
Model explanation

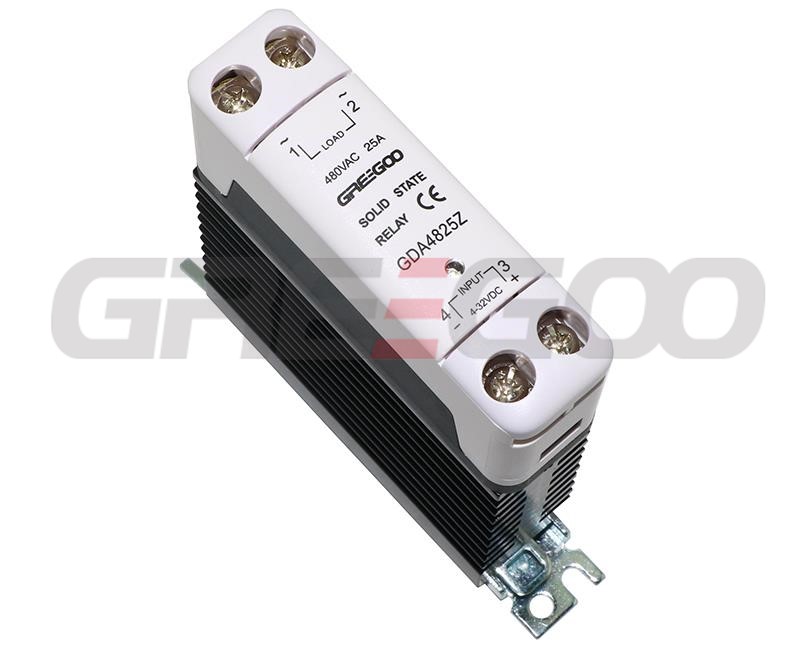

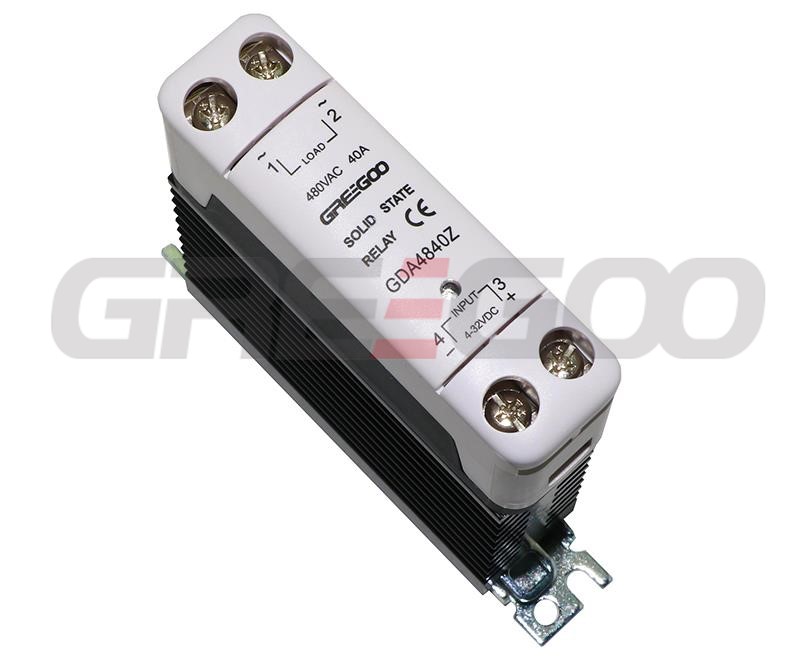

GDA4840Z
G - Greegoo
DA - DC to AC, AA - AC to AC (Control Voltage: DC:4-32VDC; AC: 90-280VAC)
48 - 480VAC; 60 - 600VAC
40 - 40A; 15 - 15A; 25 - 25A; 60 - 60A
Z - Zero crossing switching; R - Random switching
Model Selection
Control Voltage | Load Votlage | Control Method | Rated operational current | |||
15A | 25A | 40A | 60A | |||
4-32VDC | 480VAC | Zero crossing | GDA4815Z | GDA4825Z | GDA4840Z | GDA4860Z |
Random switching | GDA4815R | GDA4825R | GDA4840R | GDA4860R | ||
600VAC | Zero crossing | GDA6015Z | GDA6025Z | GDA6040Z | GDA6060Z | |
Random switching | GDA6015R | GDA6025R | GDA6040R | GDA6060R | ||
90-280VAC | 480VAC | Zero crossing | GAA4815Z | GAA4825Z | GAA4840Z | GAA4860Z |
Random switching | GAA4815R | GAA4825R | GAA4840R | GAA4860R | ||
600VAC | Zero crossing | GAA6015Z | GAA6025Z | GAA6040Z | GAA6060Z | |
Random switching | GAA6015R | GAA6025R | GAA6040R | GAA6060R |
