Thyristor Module MT3/MT4/MT5

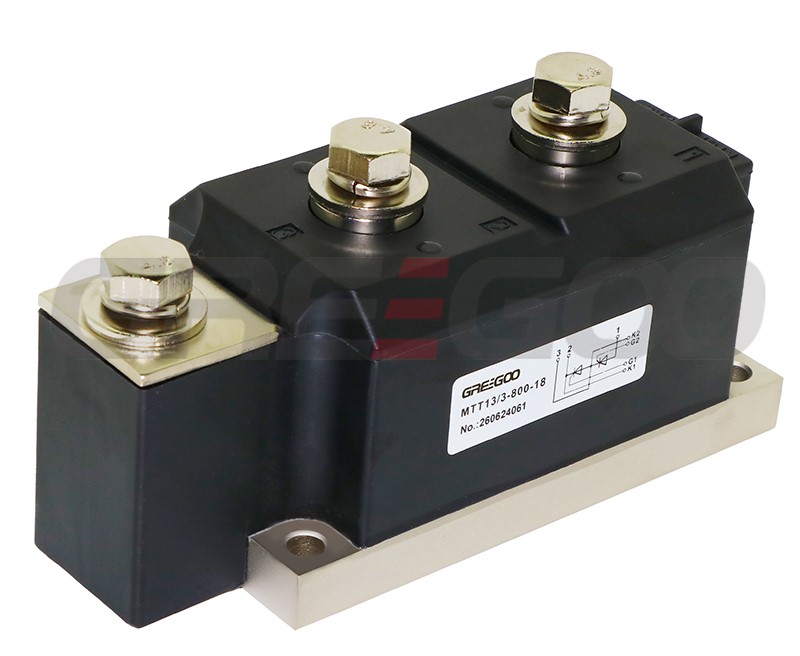

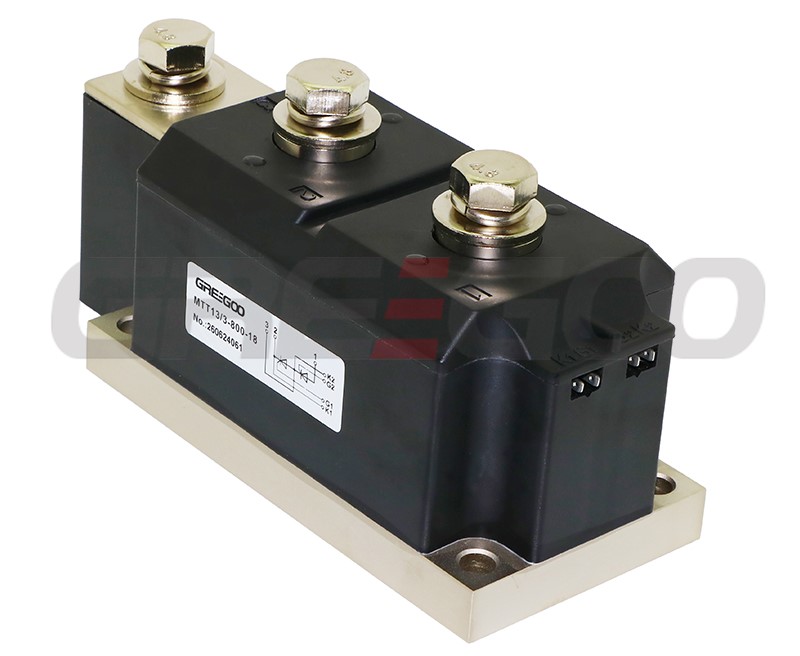

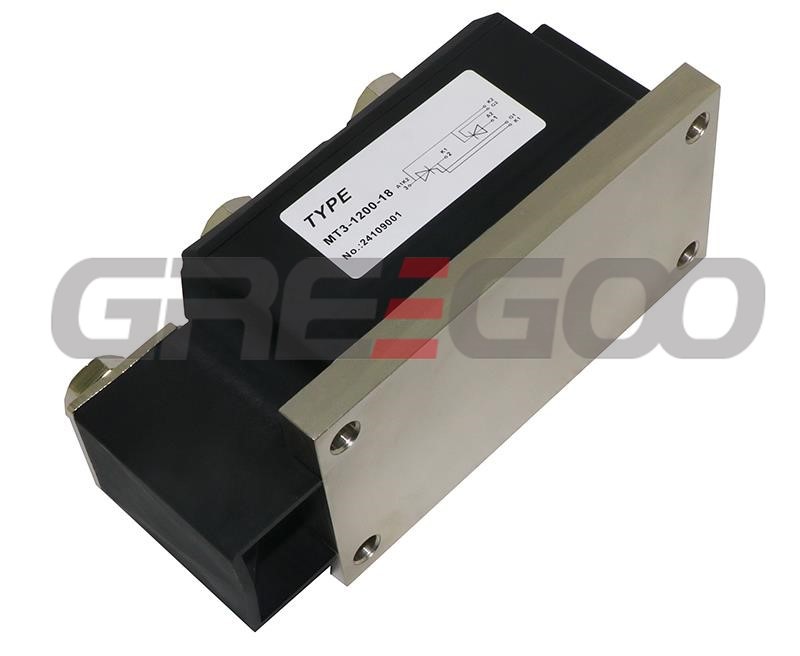

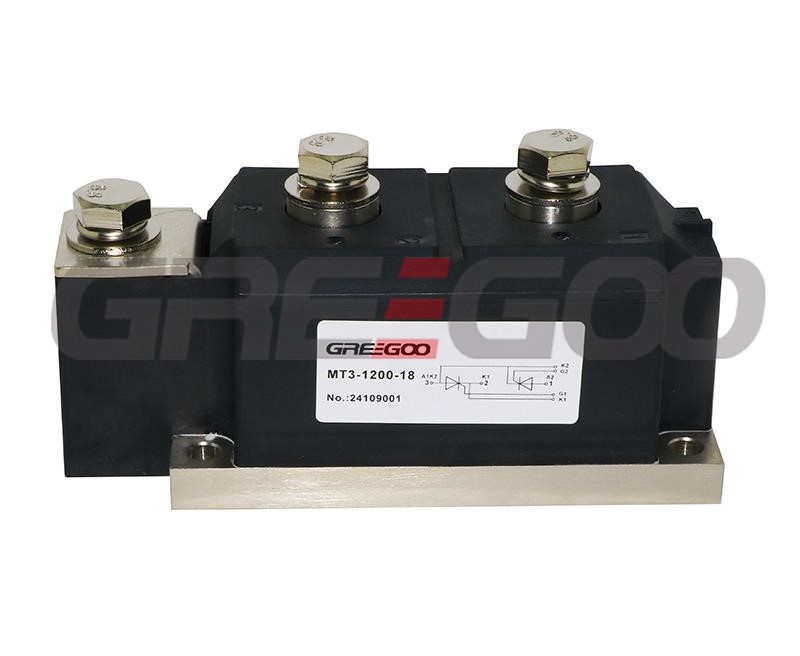

Thyristor modules are designed for energy converters and other DC and AC systems of various power electrical installations. This module has an industry-standard A2-type housing with baseplate size of 60x124 mm. All thyristor modules have a pressure-contact design that ensures high resistance to cyclic loads and easy mounting.

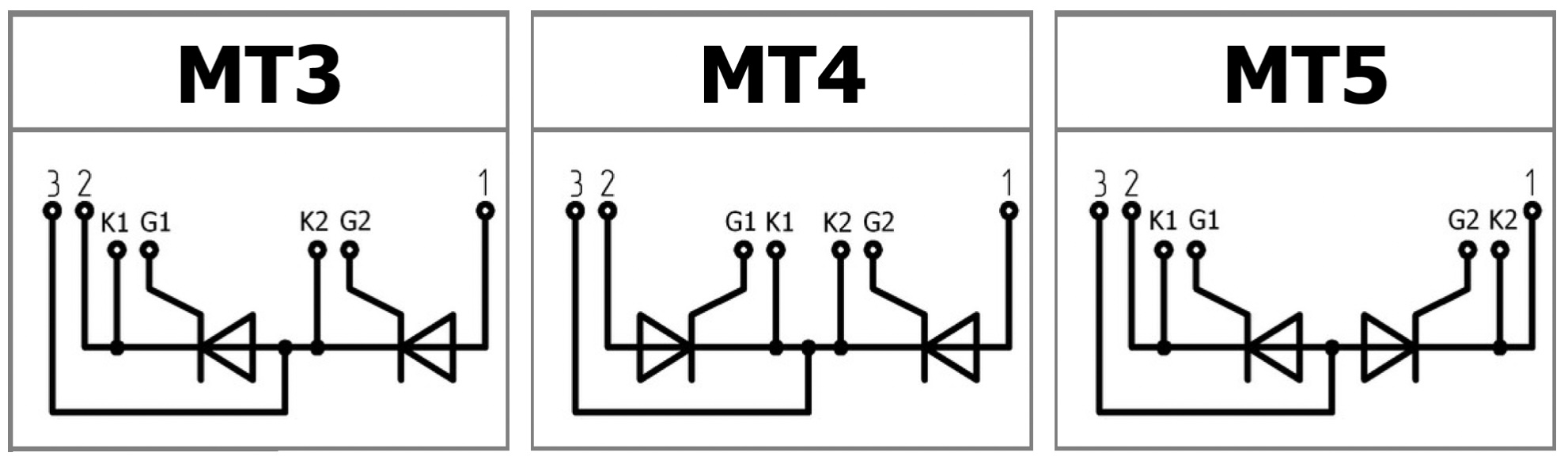

The modules have an electrically insulated copper baseplate that ensures optimal heat distribution and dissolving. Besides, it is possible to mount several modules on the same heatsink without any additional insulation, significantly reducing the assembly size. The modules have a high electric and thermal cycling capability meaning high reliability and long lifetime in intensive operation modes. Dual-component thyristor modules can have several circuit schemes designated as MT3, MT4 or MT5 in the product number. Electric layout of the modules is shown in attached datasheets.
