Product Details

Dual Thyristor Modules in series

Series IT(AV)(TC) VDRM
VRRM 		 ITSM I²t  dv/dt di/dt IDRM
 IRRM		 IGT VGT IH VTM
ITM		 VT(TO) rT Rth(j-c) Tjmax W  Outline
   A(°C) V  kA kA²·s V/µs A/µs mA mA V mA V/A V mΩ °C/W °C g
MTC26-10 26 (85) 1000 0.65 2.1 800 50 8 100 2.5 120 1.69/80 0.85 9.68 0.95 125 115 92×20×30
MTC26-12 26 (85) 1200 0.65 2.1 800 50 8 100 2.5 120 1.69/80 0.85 9.68 0.95 125 115 92×20×30
MTC26-14 26 (85) 1400 0.65 2.1 800 50 8 100 2.5 120 1.69/80 0.85 9.68 0.95 125 115 92×20×30
MTC26-16 26 (85) 1600 0.65 2.1 800 50 8 100 2.5 120 1.69/80 0.85 9.68 0.95 125 115 92×20×30
MTC26-18 26 (85) 1800 0.65 2.1 800 50 8 100 2.5 120 1.69/80 0.85 9.68 0.95 125 115 92×20×30
MTC26-19 26 (85) 1900 0.65 2.1 800 50 10 100 2.5 120 1.82/80 0.85 9.68 0.95 125 115 92×20×30
MTC26-22 26 (85) 2200 0.65 2.1 800 50 10 100 2.5 120 1.82/80 0.85 9.68 0.95 125 115 92×20×30
MTC26-25 26 (85) 2500 0.65 2.1 800 50 10 100 2.5 120 1.82/80 0.85 9.68 0.95 125 115 92×20×30
MTC40-10 40 (85) 1000 1.15 6.6 800 50 8 100 2.5 120 1.60/120 0.85 5.57 0.65 125 115 92×20×30
MTC40-12 40 (85) 1200 1.15 6.6 800 50 8 100 2.5 120 1.60/120 0.85 5.57 0.65 125 115 92×20×30
MTC40-14 40 (85) 1400 1.15 6.6 800 50 8 100 2.5 120 1.60/120 0.85 5.57 0.65 125 115 92×20×30
MTC40-16 40 (85) 1600 1.15 6.6 800 50 8 100 2.5 120 1.60/120 0.85 5.57 0.65 125 115 92×20×30
MTC40-18 40 (85) 1800 1.15 6.6 800 50 8 100 2.5 120 1.60/120 0.85 5.57 0.65 125 115 92×20×30
MTC40-19 40 (85) 1900 1.15 6.6 800 50 10 100 2.5 150 1.85/120 0.85 5.57 0.65 125 115 92×20×30
MTC40-22 40 (85) 2200 1.15 6.6 800 50 10 100 2.5 150 1.85/120 0.85 5.57 0.65 125 115 92×20×30
MTC40-25 40 (85) 2500 1.15 6.6 800 50 10 100 2.5 150 1.85/120 0.85 5.57 0.65 125 115 92×20×30
MTC55-10 55 (85) 1000 1.5 11.3 800 50 8 100 2.5 120 1.50/170 0.85 3.47 0.53 125 115 92×20×30

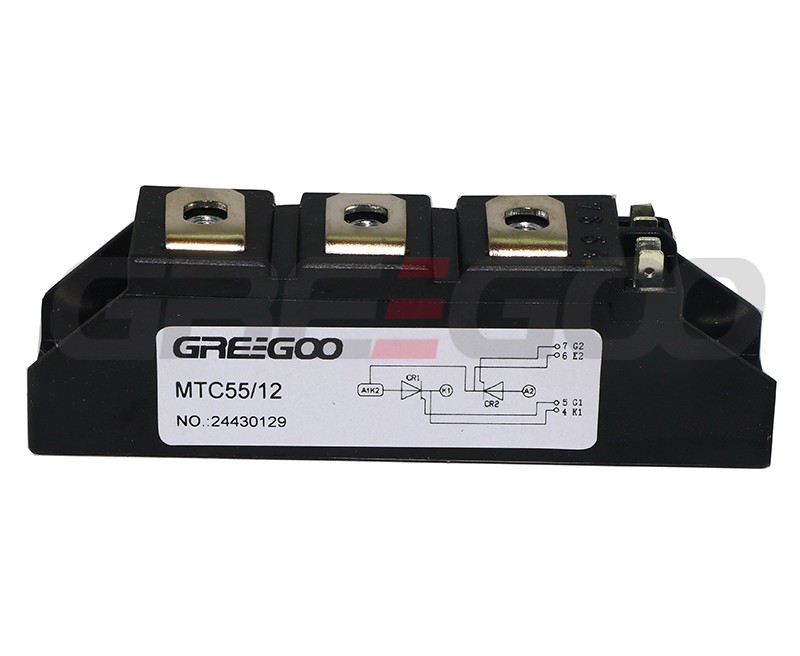

MTC55-12 55 (85) 1200 1.5 11.3 800 50 8 100 2.5 120 1.50/170 0.85 3.47 0.53 125 115 92×20×30
MTC55-14 55 (85) 1400 1.5 11.3 800 50 8 100 2.5 120 1.50/170 0.85 3.47 0.53 125 115 92×20×30
MTC55-16 55 (85) 1600 1.5 11.3 800 50 8 100 2.5 120 1.50/170 0.85 3.47 0.53 125 115 92×20×30
MTC55-18 55 (85) 1800 1.5 11.3 800 50 8 100 2.5 120 1.50/170 0.85 3.47 0.53 125 115 92×20×30
MTC55-19 55 (85) 1900 1.5 11.3 800 50 10 100 2.5 150 1.96/170 0.85 4.8 0.49 125 115 92×20×30
MTC55-22 55 (85) 2200 1.5 11.3 800 50 10 100 2.5 150 1.96/170 0.85 4.8 0.49 125 115 92×20×30
MTC55-25 55 (85) 2500 1.5 11.3 800 50 10 100 2.5 150 1.96/170 0.85 4.8 0.49 125 115 92×20×30
MTC70-10 70 (85) 1000 1.7 14.5 800 50 10 100 2.5 120 1.48/210 0.8 2.64 0.41 125 115 92×20×30
MTC70-12 70 (85) 1200 1.7 14.5 800 50 10 100 2.5 120 1.48/210 0.8 2.64 0.41 125 115 92×20×30
MTC70-14 70 (85) 1400 1.7 14.5 800 50 10 100 2.5 120 1.48/210 0.8 2.64 0.41 125 115 92×20×30
MTC70-16 70 (85) 1600 1.7 14.5 800 50 10 100 2.5 120 1.48/210 0.8 2.64 0.41 125 115 92×20×30
MTC70-18 70 (85) 1800 1.7 14.5 800 50 10 100 2.5 120 1.48/210 0.8 2.64 0.41 125 115 92×20×30
MTC70-19 70 (85) 1900 1.7 14.5 800 50 12 100 2.5 150 1.93/210 0.85 3.5 0.39 125 115 92×20×30
MTC70-22 70 (85) 2200 1.7 14.5 800 50 12 100 2.5 150 1.93/210 0.85 3.5 0.39 125 115 92×20×30
MTC70-25 70 (85) 2500 1.7 14.5 800 50 12 100 2.5 150 1.93/210 0.85 3.5 0.39 125 115 92×20×30
MTC90-10 90 (85) 1000 2.25 25 800 50 10 100 2.5 120 1.70/270 0.8 3.01 0.28 125 160 94×25×35
MTC90-12 90 (85) 1200 2.25 25 800 50 10 100 2.5 120 1.70/270 0.8 3.01 0.28 125 160 94×25×35
MTC90-14 90 (85) 1400 2.25 25 800 50 10 100 2.5 120 1.70/270 0.8 3.01 0.28 125 160 94×25×35
MTC90-16 90 (85) 1600 2.25 25 800 50 10 100 2.5 120 1.70/270 0.8 3.01 0.28 125 160 94×25×35
MTC90-18 90 (85) 1800 2.25 25 800 50 10 100 2.5 120 1.70/270 0.8 3.01 0.28 125 160 94×25×35
MTC90-19 90 (85) 1900 2.25 25 800 100 12 100 2.5 150 2.12/270 0.85 3.26 0.28 125 160 94×25×35
MTC90-22 90 (85) 2200 2.25 25 800 100 12 100 2.5 150 2.12/270 0.85 3.26 0.28 125 160 94×25×35
MTC90-25 90 (85) 2500 2.25 25 800 100 12 100 2.5 150 2.12/270 0.85 3.26 0.28 125 160 94×25×35
MTC110-10 110 (85) 1000 2.8 39 800 100 12 100 2.5 120 1.69/330 0.8 2.29 0.25 125 160 94×25×35
MTC110-12 110 (85) 1200 2.8 39 800 100 12 100 2.5 120 1.69/330 0.8 2.29 0.25 125 160 94×25×35
MTC110-14 110 (85) 1400 2.8 39 800 100 12 100 2.5 120 1.69/330 0.8 2.29 0.25 125 160 94×25×35
MTC110-16 110 (85) 1600 2.8 39 800 100 12 100 2.5 120 1.69/330 0.8 2.29 0.25 125 160 94×25×35
MTC110-18 110 (85) 1800 2.8 39 800 100 12 100 2.5 120 1.69/330 0.8 2.29 0.25 125 160 94×25×35
MTC110-19 110 (85) 1900 2.8 39 800 100 15 100 2.5 150 1.95/330 0.85 2.25 0.25 125 160 94×25×35
MTC110-22 110 (85) 2200 2.8 39 800 100 15 100 2.5 150 1.95/330 0.85 2.25 0.25 125 160 94×25×35
MTC110-25 110 (85) 2500 2.8 39 800 100 15 100 2.5 150 1.95/330 0.85 2.25 0.25 125 160 94×25×35
MTC110-26 110 (85) 2600 2.8 39 800 100 18 100 2.5 150 2.68/330 1.15 2.88 0.19 125 320 94×36×30
MTC110-28 110 (85) 2800 2.8 39 800 100 18 100 2.5 150 2.68/330 1.15 2.88 0.19 125 320 94×36×30
MTC110-30 110 (85) 3000 2.8 39 800 100 18 100 2.5 150 2.68/330 1.15 2.88 0.19 125 320 94×36×30
MTC110-32 110 (85) 3200 2.8 39 800 100 18 100 2.5 150 2.68/330 1.15 2.88 0.19 125 320 94×36×30
MTC110-34 110 (85) 3400 2.8 39 800 100 18 100 2.5 150 2.68/330 1.15 2.88 0.19 125 320 94×36×30
MTC110-36 110 (85) 3600 2.8 39 800 100 18 100 2.5 150 2.68/330 1.15 2.88 0.19 125 320 94×36×30
MTC135-10 135 (85) 1000 3.6 65 800 100 15 150 2.5 150 1.75/410 0.8 2.85 0.2 125 320 94×36×30
MTC135-12 135 (85) 1200 3.6 65 800 100 15 150 2.5 150 1.75/410 0.8 2.85 0.2 125 320 94×36×30
MTC135-14 135 (85) 1400 3.6 65 800 100 15 150 2.5 150 1.75/410 0.8 2.85 0.2 125 320 94×36×30
MTC135-16 135 (85) 1600 3.6 65 800 100 15 150 2.5 150 1.75/410 0.8 2.85 0.2 125 320 94×36×30
MTC135-18 135 (85) 1800 3.6 65 800 100 15 150 2.5 150 1.75/410 0.8 2.85 0.2 125 320 94×36×30
MTC135-19 135 (85) 1900 3.6 65 800 100 25 150 2.5 150 1.96/410 0.85 1.91 0.2 125 320 94×36×30
MTC135-22 135 (85) 2200 3.6 65 800 100 25 150 2.5 150 1.96/410 0.85 1.91 0.2 125 320 94×36×30
MTC135-25 135 (85) 2500 3.6 65 800 100 25 150 2.5 150 1.96/410 0.85 1.91 0.2 125 320 94×36×30
MTC135-26 135 (85) 2600 3.6 65 800 100 25 150 2.5 150 2.35/410 0.94 2.4 0.17 125 320 94×36×30
MTC135-28 135 (85) 2800 3.6 65 800 100 25 150 2.5 150 2.35/410 0.94 2.4 0.17 125 320 94×36×30
MTC135-30 135 (85) 3000 3.6 65 800 100 25 150 2.5 150 2.35/410 0.94 2.4 0.17 125 320 94×36×30
MTC135-32 135 (85) 3200 3.6 65 800 100 25 150 2.5 150 2.35/410 0.94 2.4 0.17 125 320 94×36×30
MTC135-34 135 (85) 3400 3.6 65 800 100 25 150 2.5 150 2.35/410 0.94 2.4 0.17 125 320 94×36×30
MTC135-36 135 (85) 3600 3.6 65 800 100 25 150 2.5 150 2.35/410 0.94 2.4 0.17 125 320 94×36×30
MTC160-10 160 (85) 1000 6 180 800 100 15 150 2.5 150 1.70/480 0.8 1.69 0.17 125 320 94×36×30
MTC160-12 160 (85) 1200 6 180 800 100 15 150 2.5 150 1.70/480 0.8 1.69 0.17 125 320 94×36×30
MTC160-14 160 (85) 1400 6 180 800 100 15 150 2.5 150 1.70/480 0.8 1.69 0.17 125 320 94×36×30
MTC160-16 160 (85) 1600 6 180 800 100 15 150 2.5 150 1.70/480 0.8 1.69 0.17 125 320 94×36×30
MTC160-18 160 (85) 1800 6 180 800 100 15 150 2.5 150 1.70/480 0.8 1.69 0.17 125 320 94×36×30
MTC160-19 160 (85) 1900 6 180 800 100 25 150 2.5 150 1.90/480 0.85 1.53 0.17 125 320 94×36×30
MTC160-22 160 (85) 2200 6 180 800 100 25 150 2.5 150 1.90/480 0.85 1.53 0.17 125 320 94×36×30
MTC160-25 160 (85) 2500 6 180 800 100 25 150 2.5 150 1.90/480 0.85 1.53 0.17 125 320 94×36×30
MTC182-10 182 (85) 1000 7 245 800 100 20 150 2.5 150 1.62/550 0.8 1.26 0.16 125 320 94×36×30
MTC182-12 182 (85) 1200 7 245 800 100 20 150 2.5 150 1.62/550 0.8 1.26 0.16 125 320 94×36×30
MTC182-14 182 (85) 1400 7 245 800 100 20 150 2.5 150 1.62/550 0.8 1.26 0.16 125 320 94×36×30
MTC182-16 182 (85) 1600 7 245 800 100 20 150 2.5 150 1.62/550 0.8 1.26 0.16 125 320 94×36×30
MTC182-18 182 (85) 1800 7 245 800 100 20 150 2.5 150 1.62/550 0.8 1.26 0.16 125 320 94×36×30
MTC182-19 182 (85) 1900 7 245 800 100 25 150 2.5 150 1.84/550 0.85 1.21 0.16 125 320 94×36×30
MTC182-20 182 (85) 2000 7 245 800 100 25 150 2.5 150 1.84/550 0.85 1.21 0.16 125 320 94×36×30
MTC182-22 182 (85) 2200 7 245 800 100 25 150 2.5 150 1.84/550 0.85 1.21 0.16 125 320 94×36×30
MTC182-24 182 (85) 2400 7 245 800 100 25 150 2.5 150 1.84/550 0.85 1.21 0.16 125 320 94×36×30
MTC200-10 200 (85) 1000 8 320 800 100 25 180 2.5 180 1.65/600 0.8 1.27 0.14 125 860 92×50×50
MTC200-12 200 (85) 1200 8 320 800 100 25 180 2.5 180 1.65/600 0.8 1.27 0.14 125 860 92×50×50
MTC200-14 200 (85) 1400 8 320 800 100 25 180 2.5 180 1.65/600 0.8 1.27 0.14 125 860 92×50×50
MTC200-16 200 (85) 1600 8 320 800 100 25 180 2.5 180 1.65/600 0.8 1.27 0.14 125 860 92×50×50
MTC200-18 200 (85) 1800 8 320 800 100 25 180 2.5 180 1.65/600 0.8 1.27 0.14 125 860 92×50×50
MTC200-19 200 (85) 1900 8 320 800 100 35 180 2.5 150 1.90/600 0.85 1.14 0.14 125 860 92×50×50
MTC200-20 200 (85) 2000 8 320 800 100 35 180 2.5 150 1.90/600 0.85 1.14 0.14 125 860 92×50×50
MTC200-22 200 (85) 2200 8 320 800 100 35 180 2.5 150 1.90/600 0.85 1.14 0.14 125 860 92×50×50
MTC200-24 200 (85) 2400 8 320 800 100 35 180 2.5 150 1.90/600 0.85 1.14 0.14 125 860 92×50×50
MTC200-26 200 (85) 2600 8 320 800 100 35 180 2.5 150 2.55/600 0.96 1.3 0.12 125 860 92×50×50
MTC200-28 200 (85) 2800 8 320 800 100 35 180 2.5 150 2.55/600 0.96 1.3 0.12 125 860 92×50×50
MTC200-30 200 (85) 3000 8 320 800 100 35 180 2.5 150 2.55/600 0.96 1.3 0.12 125 860 92×50×50
MTC200-32 200 (85) 3200 8 320 800 100 35 180 2.5 150 2.55/600 0.96 1.3 0.12 125 860 92×50×50
MTC200-34 200 (85) 3400 8 320 800 100 35 180 2.5 150 2.55/600 0.96 1.3 0.12 125 860 92×50×50
MTC200-36 200 (85) 3600 8 320 800 100 35 180 2.5 150 2.55/600 0.96 1.3 0.12 125 860 92×50×50
MTC250-10 250 (85) 1000 9 405 800 100 25 180 2.5 180 1.57/750 0.8 0.85 0.12 125 860 92×50×50
MTC250-12 250 (85) 1200 9 405 800 100 25 180 2.5 180 1.57/750 0.8 0.85 0.12 125 860 92×50×50
MTC250-14 250 (85) 1400 9 405 800 100 25 180 2.5 180 1.57/750 0.8 0.85 0.12 125 860 92×50×50

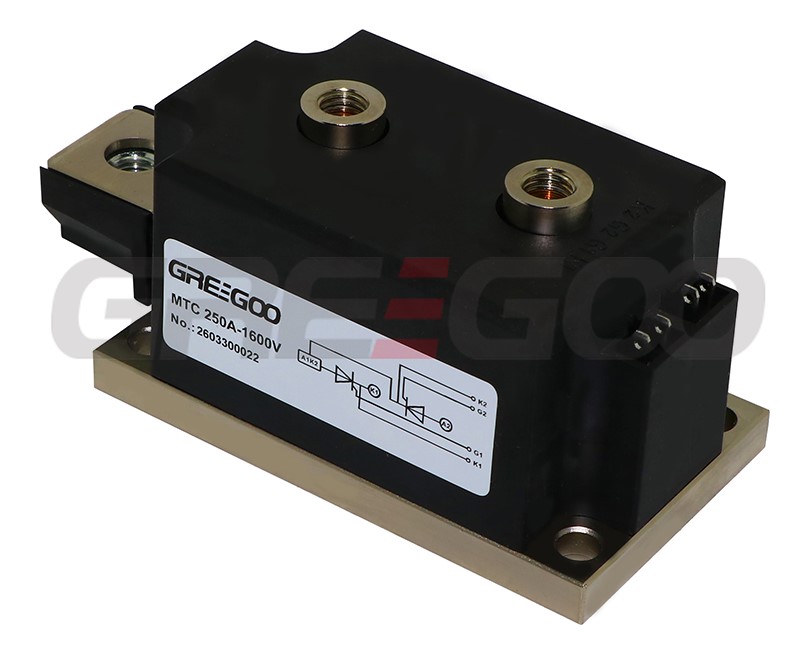

MTC250-16 250 (85) 1600 9 405 800 100 25 180 2.5 180 1.57/750 0.8 0.85 0.12 125 860 92×50×50
MTC250-18 250 (85) 1800 9 405 800 100 25 180 2.5 180 1.57/750 0.8 0.85 0.12 125 860 92×50×50
MTC250-19 250 (85) 1900 9 405 800 100 35 180 2.5 150 1.73/750 0.8 0.85 0.12 125 860 92×50×50
MTC250-22 250 (85) 2200 9 405 800 100 35 180 2.5 150 1.73/750 0.8 0.85 0.12 125 860 92×50×50
MTC250-24 250 (85) 2400 9 405 800 100 35 180 2.5 150 1.73/750 0.8 0.85 0.12 125 860 92×50×50
MTC250-26 250 (85) 2600 9 405 800 100 35 180 2.5 150 2.63/750 0.91 0.9 0.11 125 860 92×50×50
MTC250-28 250 (85) 2800 9 405 800 100 35 180 2.5 150 2.63/750 0.91 0.9 0.11 125 860 92×50×50
MTC250-30 250 (85) 3000 9 405 800 100 35 180 2.5 150 2.63/750 0.91 0.9 0.11 125 860 92×50×50
MTC250-32 250 (85) 3200 9 405 800 100 35 180 2.5 150 2.63/750 0.91 0.9 0.11 125 860 92×50×50
MTC250-34 250 (85) 3400 9 405 800 100 35 180 2.5 150 2.63/750 0.91 0.9 0.11 125 860 92×50×50
MTC250-36 250 (85) 3600 9 405 800 100 35 180 2.5 150 2.63/750 0.91 0.9 0.11 125 860 92×50×50
MTC285-10 285 (85) 1000 9.1 414 800 100 25 180 2.5 180 1.45/750 0.8 0.53 0.12 125 860 92×50×50
MTC285-12 285 (85) 1200 9.1 414 800 100 25 180 2.5 180 1.45/750 0.8 0.53 0.12 125 860 92×50×50
MTC285-14 285 (85) 1400 9.1 414 800 100 25 180 2.5 180 1.45/750 0.8 0.53 0.12 125 860 92×50×50
MTC285-16 285 (85) 1600 9.1 414 800 100 25 180 2.5 180 1.45/750 0.8 0.53 0.12 125 860 92×50×50
MTC285-18 285 (85) 1800 9.1 414 800 100 25 180 2.5 180 1.45/750 0.8 0.53 0.12 125 860 92×50×50
MTC300-10 300 (85) 1000 9.2 450 800 100 30 200 2.5 200 1.58/900 0.8 0.48 0.11 125 860 92×50×50
MTC300-12 300 (85) 1200 9.2 450 800 100 30 200 2.5 200 1.58/900 0.8 0.48 0.11 125 860 92×50×50
MTC300-14 300 (85) 1400 9.2 450 800 100 30 200 2.5 200 1.58/900 0.8 0.48 0.11 125 860 92×50×50
MTC300-16 300 (85) 1600 9.2 450 800 100 30 200 2.5 200 1.58/900 0.8 0.48 0.11 125 860 92×50×50
MTC300-18 300 (85) 1800 9.2 450 800 100 30 200 2.5 200 1.58/900 0.8 0.48 0.11 125 860 92×50×50
MTC300-19 300 (85) 1900 9.2 450 800 100 35 200 2.5 180 1.68/900 0.85 0.45 0.11 125 860 92×50×50
MTC300-22 300 (85) 2200 9.2 450 800 100 35 200 2.5 180 1.68/900 0.85 0.45 0.11 125 860 92×50×50
MTC300-24 300 (85) 2400 9.2 450 800 100 35 200 2.5 180 1.68/900 0.85 0.45 0.11 125 860 92×50×50
MTC300-26 300 (85) 2600 9.2 450 800 100 35 200 2.5 180 2.45/900 0.93 0.48 0.1 125 860 92×50×50
MTC300-28 300 (85) 2800 9.2 450 800 100 35 200 2.5 180 2.45/900 0.93 0.48 0.1 125 860 92×50×50
MTC300-30 300 (85) 3000 9.2 450 800 100 35 200 2.5 180 2.45/900 0.93 0.48 0.1 125 860 92×50×50
MTC300-32 300 (85) 3200 9.2 450 800 100 35 200 2.5 180 2.45/900 0.93 0.48 0.1 125 860 92×50×50
MTC300-34 300 (85) 3400 9.2 450 800 100 35 200 2.5 180 2.45/900 0.93 0.48 0.1 125 860 92×50×50
MTC300-36 300 (85) 3600 9.2 450 800 100 35 200 2.5 180 2.45/900 0.93 0.48 0.1 125 860 92×50×50
MTC350-10 350 (85) 1000 11 551 800 100 35 220 2.5 220 1.45/1050 0.95 0.42 0.1 125 860 92×50×50
MTC350-12 350 (85) 1200 11 551 800 100 35 220 2.5 220 1.45/1050 0.95 0.42 0.1 125 860 92×50×50
MTC350-14 350 (85) 1400 11 551 800 100 35 220 2.5 220 1.45/1050 0.95 0.42 0.1 125 860 92×50×50
MTC350-16 350 (85) 1600 11 551 800 100 35 220 2.5 220 1.45/1050 0.95 0.42 0.1 125 860 92×50×50
MTC350-18 350 (85) 1800 11 551 800 100 35 220 2.5 220 1.45/1050 0.95 0.42 0.1 125 860 92×50×50
MTC350-19 350 (85) 1900 11 551 800 100 40 220 2.5 200 1.89/1050 0.84 0.39 0.1 125 860 92×50×50
MTC350-22 350 (85) 2200 11 551 800 100 40 220 2.5 200 1.89/1050 0.84 0.39 0.1 125 860 92×50×50
MTC350-24 350 (85) 2400 11 551 800 100 40 220 2.5 200 1.89/1050 0.84 0.39 0.1 125 860 92×50×50
MTC400-10 400 (85) 1000 12.5 720 800 100 40 250 2.5 250 1.52/1200 0.8 0.36 0.09 125 860 92×50×50
MTC400-12 400 (85) 1200 12.5 720 800 100 40 250 2.5 250 1.52/1200 0.8 0.36 0.09 125 860 92×50×50
MTC400-14 400 (85) 1400 12.5 720 800 100 40 250 2.5 250 1.52/1200 0.8 0.36 0.09 125 860 92×50×50
MTC400-16 400 (85) 1600 12.5 720 800 100 40 250 2.5 250 1.52/1200 0.8 0.36 0.09 125 860 92×50×50
MTC400-18 400 (85) 1800 12.5 720 800 100 40 250 2.5 250 1.52/1200 0.8 0.36 0.09 125 860 92×50×50
MTC400-19 400 (85) 1900 12.5 720 800 100 45 250 2.5 220 1.94/1200 0.83 0.34 0.09 125 860 92×50×50
MTC400-22 400 (85) 2200 12.5 720 800 100 45 250 2.5 220 1.94/1200 0.83 0.34 0.09 125 860 92×50×50
MTC400-24 400 (85) 2400 12.5 720 800 100 45 250 2.5 220 1.94/1200 0.83 0.34 0.09 125 860 92×50×50
MTC400-26 400 (85) 2600 12.5 720 800 100 45 250 2.5 220 2.35/1200 0.8 0.36 0.08 125 860 92×50×50
MTC400-28 400 (85) 2800 12.5 720 800 100 45 250 2.5 220 2.35/1200 0.94 0.36 0.08 125 860 92×50×50
MTC400-30 400 (85) 3000 12.5 720 800 100 45 250 2.5 220 2.35/1200 0.94 0.36 0.08 125 860 92×50×50
MTC400-32 400 (85) 3200 12.5 720 800 100 45 250 2.5 220 2.35/1200 0.98 0.36 0.08 125 860 92×50×50
MTC400-34 400 (85) 3400 12.5 720 800 100 45 250 2.5 220 2.35/1200 0.98 0.36 0.08 125 860 92×50×50
MTC400-36 400 (85) 3600 12.5 720 800 100 45 250 2.5 220 2.35/1200 0.98 0.36 0.08 125 860 92×50×50
MTC400-10-W 400 (85) 1000 12.5 720 800 100 40 250 2.5 250 1.90/1200 0.8 0.36 0.09 125 860 92×50×50
MTC400-12-W 400 (85) 1200 12.5 720 800 100 40 250 2.5 250 1.90/1200 0.8 0.36 0.09 125 860 92×50×50
MTC400-14-W 400 (85) 1400 12.5 720 800 100 40 250 2.5 250 1.90/1200 0.8 0.36 0.09 125 860 92×50×50
MTC400-16-W 400 (85) 1600 12.5 720 800 100 40 250 2.5 250 1.90/1200 0.8 0.36 0.09 125 860 92×50×50
MTC400-18-W 400 (85) 1800 12.5 720 800 100 40 250 2.5 250 1.90/1200 0.8 0.36 0.09 125 860 92×50×50
MTC400-19-W 400 (85) 1900 12.5 720 800 100 45 250 2.5 220 1.94/1200 0.82 0.34 0.09 125 860 92×50×50
MTC400-20-W 400 (85) 2000 12.5 720 800 100 45 250 2.5 220 1.94/1200 0.82 0.34 0.09 125 860 92×50×50
MTC400-22-W 400 (85) 2200 12.5 720 800 100 45 250 2.5 220 1.94/1200 0.82 0.34 0.09 125 860 92×50×50
MTC400-24-W 400 (85) 2400 12.5 720 800 100 45 250 2.5 220 1.94/1200 0.82 0.34 0.09 125 860 92×50×50
MTC400-26-W 400 (85) 2600 12.5 720 800 100 45 250 2.5 220 2.35/1200 1.12 0.36 0.08 125 860 92×50×50
MTC400-28-W 400 (85) 2800 12.5 720 800 100 45 250 2.5 220 2.35/1200 1.12 0.36 0.08 125 860 92×50×50
MTC400-30-W 400 (85) 3000 12.5 720 800 100 45 250 2.5 220 2.35/1200 1.12 0.36 0.08 125 860 92×50×50
MTC400-32-W 400 (85) 3200 12.5 720 800 100 45 250 2.5 220 2.35/1200 1.12 0.36 0.08 125 860 92×50×50
MTC400-34-W 400 (85) 3400 12.5 720 800 100 45 250 2.5 220 2.35/1200 1.12 0.36 0.08 125 860 92×50×50
MTC400-36-W 400 (85) 3600 12.5 720 800 100 45 250 2.5 220 2.35/1200 1.12 0.36 0.08 125 860 92×50×50
MTC500-10 500 (85) 1000 14.5 1051 800 100 35 200 3 200 1.44/1500 0.8 0.34 0.065 125 2040 124×66×84
MTC500-12 500 (85) 1200 14.5 1051 800 100 35 200 3 200 1.44/1500 0.8 0.34 0.065 125 2040 124×66×84
MTC500-14 500 (85) 1400 14.5 1051 800 100 35 200 3 200 1.44/1500 0.8 0.34 0.065 125 2040 124×66×84
MTC500-16 500 (85) 1600 14.5 1051 800 100 35 200 3 200 1.44/1500 0.8 0.34 0.065 125 2040 124×66×84
MTC500-18 500 (85) 1800 14.5 1051 800 100 35 200 3 200 1.44/1500 0.8 0.34 0.065 125 2040 124×66×84
MTC500-19 500 (85) 1900 14.5 1051 800 100 45 200 3 200 1.92/1500 0.85 0.39 0.06 125 2300 135×78×82
MTC500-20 500 (85) 2000 14.5 1051 800 100 45 200 3 200 1.92/1500 0.85 0.39 0.06 125 2300 135×78×82
MTC500-22 500 (85) 2200 14.5 1051 800 100 45 200 3 200 1.92/1500 0.85 0.39 0.06 125 2300 135×78×82
MTC500-24 500 (85) 2400 14.5 1051 800 100 45 200 3 200 1.92/1500 0.85 0.39 0.06 125 2300 135×78×82
MTC500-10-W 500 (85) 1000 14.5 1051 800 100 35 200 3 200 1.90/1500 0.8 0.64 0.087 125 1820 108×62×88
MTC500-12-W 500 (85) 1200 14.5 1051 800 100 35 200 3 200 1.90/1500 0.8 0.64 0.087 125 1820 108×62×88
MTC500-14-W 500 (85) 1400 14.5 1051 800 100 35 200 3 200 1.90/1500 0.8 0.64 0.087 125 1820 108×62×88
MTC500-16-W 500 (85) 1600 14.5 1051 800 100 35 200 3 200 1.90/1500 0.8 0.64 0.087 125 1820 108×62×88
MTC500-18-W 500 (85) 1800 14.5 1051 800 100 35 200 3 200 1.90/1500 0.8 0.64 0.087 125 1820 108×62×88
MTC500-19-W 500 (85) 1900 14.5 1051 800 100 45 200 3 200 2.15/1500 0.87 0.78 0.073 125 1820 108×62×88
MTC500-20-W 500 (85) 2000 14.5 1051 800 100 45 200 3 200 2.15/1500 0.87 0.78 0.073 125 1820 108×62×88
MTC500-22-W 500 (85) 2200 14.5 1051 800 100 45 200 3 200 2.15/1500 0.87 0.78 0.073 125 1820 108×62×88
MTC500-24-W 500 (85) 2400 14.5 1051 800 100 45 200 3 200 2.15/1500 0.87 0.78 0.073 125 1820 108×62×88
MTC500-26-W 500 (85) 2600 14.5 1051 800 100 50 200 3 200 2.95/1500 1.09 1.19 0.054 125 2600 135×78×82
MTC500-28-W 500 (85) 2800 14.5 1051 800 100 50 200 3 200 2.95/1500 1.09 1.19 0.054 125 2600 135×78×82
MTC500-30-W 500 (85) 3000 14.5 1051 800 100 50 200 3 200 2.95/1500 1.09 1.19 0.054 125 2600 135×78×82
MTC500-32-W 500 (85) 3200 14.5 1051 800 100 50 200 3 200 2.95/1500 1.09 1.19 0.054 125 2600 135×78×82
MTC500-34-W 500 (85) 3400 14.5 1051 800 100 50 200 3 200 2.95/1500 1.09 1.19 0.054 125 2600 135×78×82
MTC500-36-W 500 (85) 3600 14.5 1051 800 100 50 200 3 200 2.95/1500 1.09 1.19 0.054 125 2600 135×78×82
MTC570-10 570 (85) 1000 15 1125 800 100 35 200 3 200 1.45/1600 0.8 0.2 0.065 125 1300 124×60×81
MTC570-12 570 (85) 1200 15 1125 800 100 35 200 3 200 1.45/1600 0.8 0.2 0.065 125 1300 124×60×81
MTC570-14 570 (85) 1400 15 1125 800 100 35 200 3 200 1.45/1600 0.8 0.2 0.065 125 1300 124×60×81
MTC570-16 570 (85) 1600 15 1125 800 100 35 200 3 200 1.45/1600 0.8 0.2 0.065 125 1300 124×60×81
MTC570-18 570 (85) 1800 15 1125 800 100 35 200 3 200 1.45/1600 0.8 0.2 0.065 125 1300 124×60×81
MTC600-10 600 (85) 1000 16 1280 800 100 45 200 3 200 1.45/1800 0.8 0.28 0.054 125 2300 135×76×82
MTC600-12 600 (85) 1200 16 1280 800 100 45 200 3 200 1.45/1800 0.8 0.28 0.054 125 2300 135×76×82
MTC600-14 600 (85) 1400 16 1280 800 100 45 200 3 200 1.45/1800 0.8 0.28 0.054 125 2300 135×76×82
MTC600-16 600 (85) 1600 16 1280 800 100 45 200 3 200 1.45/1800 0.8 0.28 0.054 125 2300 135×76×82
MTC600-18 600 (85) 1800 16 1280 800 100 45 200 3 200 1.45/1800 0.8 0.28 0.054 125 2300 135×76×82
MTC600-19 600 (85) 1900 16 1280 800 100 50 200 3 200 1.80/1800 0.88 0.24 0.054 125 2300 135×76×82
MTC600-20 600 (85) 2000 16 1280 800 100 50 200 3 200 1.80/1800 0.88 0.24 0.054 125 2300 135×76×82
MTC600-22 600 (85) 2200 16 1280 800 100 50 200 3 200 1.80/1800 0.88 0.24 0.054 125 2300 135×76×82
MTC600-24 600 (85) 2400 16 1280 800 100 50 200 3 200 1.80/1800 0.88 0.24 0.054 125 2300 135×76×82
MTC600-10-W 600 (85) 1000 16 1280 800 100 45 200 3 200 1.90/1800 0.8 0.53 0.073 125 1820 108×62×88
MTC600-12-W 600 (85) 1200 16 1280 800 100 45 200 3 200 1.90/1800 0.8 0.53 0.073 125 1820 108×62×88
MTC600-14-W 600 (85) 1400 16 1280 800 100 45 200 3 200 1.90/1800 0.8 0.53 0.073 125 1820 108×62×88
MTC600-16-W 600 (85) 1600 16 1280 800 100 45 200 3 200 1.90/1800 0.8 0.53 0.073 125 1820 108×62×88
MTC600-18-W 600 (85) 1800 16 1280 800 100 45 200 3 200 1.90/1800 0.8 0.53 0.073 125 1820 108×62×88
MTC600-19-W 600 (85) 1900 16 1280 800 100 50 200 3 200 2.15/1800 0.89 0.83 0.054 125 2600 135×76×88
MTC600-20-W 600 (85) 2000 16 1280 800 100 50 200 3 200 2.15/1800 0.89 0.83 0.054 125 2600 135×76×88
MTC600-22-W 600 (85) 2200 16 1280 800 100 50 200 3 200 2.15/1800 0.89 0.83 0.054 125 2600 135×76×88
MTC600-24-W 600 (85) 2400 16 1280 800 100 50 200 3 200 2.15/1800 0.89 0.83 0.054 125 2600 135×76×88
MTC600-26-W 600 (85) 2600 16 1280 800 100 55 200 3 200 2.95/1800 1.02 0.95 0.048 125 2600 135×76×88
MTC600-28-W 600 (85) 2800 16 1280 800 100 55 200 3 200 2.95/1800 1.02 0.95 0.048 125 2600 135×76×88
MTC600-30-W 600 (85) 3000 16 1280 800 100 55 200 3 200 2.95/1800 1.02 0.95 0.048 125 2600 135×76×88
MTC600-32-W 600 (85) 3200 16 1280 800 100 55 200 3 200 2.95/1800 1.02 0.95 0.048 125 2600 135×76×88
MTC600-34-W 600 (85) 3400 16 1280 800 100 55 200 3 200 2.95/1800 1.02 0.95 0.048 125 2600 135×76×88
MTC600-36-W 600 (85) 3600 16 1280 800 100 55 200 3 200 2.95/1800 1.02 0.95 0.048 125 2600 135×76×88
MTC800-10 800 (85) 1000 22 2420 800 100 45 200 3 200 1.86/2400 0.8 0.2 0.042 125 3500 150×76×78
MTC800-12 800 (85) 1200 22 2420 800 100 45 200 3 200 1.86/2400 0.8 0.2 0.042 125 3500 150×76×78
MTC800-14 800 (85) 1400 22 2420 800 100 45 200 3 200 1.86/2400 0.8 0.2 0.042 125 3500 150×76×78
MTC800-16 800 (85) 1600 22 2420 800 100 45 200 3 200 1.86/2400 0.8 0.2 0.042 125 3500 150×76×78
MTC800-18 800 (85) 1800 22 2420 800 100 45 200 3 200 1.86/2400 0.8 0.2 0.042 125 3500 150×76×78
MTC800-10-W 800 (85) 1000 22 2420 800 100 45 200 3 200 1.95/1800 0.8 0.42 0.054 125 2600 135×76×88
MTC800-12-W 800 (85) 1200 22 2420 800 100 45 200 3 200 1.95/1800 0.8 0.42 0.054 125 2600 135×76×88
MTC800-14-W 800 (85) 1400 22 2420 800 100 45 200 3 200 1.95/1800 0.8 0.42 0.054 125 2600 135×76×88
MTC800-16-W 800 (85) 1600 22 2420 800 100 45 200 3 200 1.95/1800 0.8 0.42 0.054 125 2600 135×76×88
MTC800-18-W 800 (85) 1800 22 2420 800 100 45 200 3 200 1.95/1800 0.8 0.42 0.054 125 2600 135×76×88
MTC800-19-W 800 (85) 1900 22 2420 800 100 50 200 3 200 2.35/1800 0.88 0.47 0.048 125 2600 135×76×88
MTC800-20-W 800 (85) 2000 22 2420 800 100 50 200 3 200 2.35/1800 0.88 0.47 0.048 125 2600 135×76×88
MTC800-22-W 800 (85) 2200 22 2420 800 100 50 200 3 200 2.35/1800 0.88 0.47 0.048 125 2600 135×76×88
MTC800-24-W 800 (85) 2400 22 2420 800 100 50 200 3 200 2.35/1800 0.88 0.47 0.048 125 2600 135×76×88
MTC1000-10 1000 (85) 1000 28 3920 800 100 55 200 3 200 1.96/3000 0.8 0.15 0.034 125 3800 150×77×83
MTC1000-12 1000 (85) 1200 28 3920 800 100 55 200 3 200 1.96/3000 0.8 0.15 0.034 125 3800 150×77×83
MTC1000-14 1000 (85) 1400 28 3920 800 100 55 200 3 200 1.96/3000 0.8 0.15 0.034 125 3800 150×77×83
MTC1000-16 1000 (85) 1600 28 3920 800 100 55 200 3 200 1.96/3000 0.8 0.15 0.034 125 3800 150×77×83
MTC1000-18 1000 (85) 1800 28 3920 800 100 55 200 3 200 1.96/3000 0.8 0.15 0.034 125 3800 150×77×83
MTC1000-10-W 1000 (85) 1000 28 3920 800 100 55 200 3 200 1.95/3000 0.81 0.21 0.052 125 3600 150×76×78
MTC1000-12-W 1000 (85) 1200 28 3920 800 100 55 200 3 200 1.95/3000 0.81 0.21 0.052 125 3600 150×76×78
MTC1000-14-W 1000 (85) 1400 28 3920 800 100 55 200 3 200 1.95/3000 0.81 0.21 0.052 125 3600 150×76×78
MTC1000-16-W 1000 (85) 1600 28 3920 800 100 55 200 3 200 1.95/3000 0.81 0.21 0.052 125 3600 150×76×78
MTC1000-18-W 1000 (85) 1800 28 3920 800 100 55 200 3 200 1.95/3000 0.81 0.21 0.052 125 3600 150×76×78
MTC1200-10 1200 (85) 1000 34 5780 800 100 55 200 3 200 1.76/3000 0.8 0.09 0.031 125 3800 150×77×83
MTC1200-12 1200 (85) 1200 34 5780 800 100 55 200 3 200 1.76/3000 0.8 0.09 0.031 125 3800 150×77×83
MTC1200-14 1200 (85) 1400 34 5780 800 100 55 200 3 200 1.76/3000 0.8 0.09 0.031 125 3800 150×77×83
MTC1200-16 1200 (85) 1600 34 5780 800 100 55 200 3 200 1.76/3000 0.8 0.09 0.031 125 3800 150×77×83
MTC1200-18 1200 (85) 1800 34 5780 800 100 55 200 3 200 1.76/3000 0.8 0.09 0.031 125 3800 150×77×83
Copyright © Greegoo Electric Co., Ltd.
Privacy Policy | XML
Submit

Chat through WhatsApp Now

Chat through Wechat Now

GreegooChina@Gmail.com

Send an Enquiry

We value your privacy

We use cookies to enhance your browsing experience, serve personalized ads or content, and analyze our traffic. By clicking "Accept All", you consent to our use of cookies.

Consent Preferences

Consent Preferences
