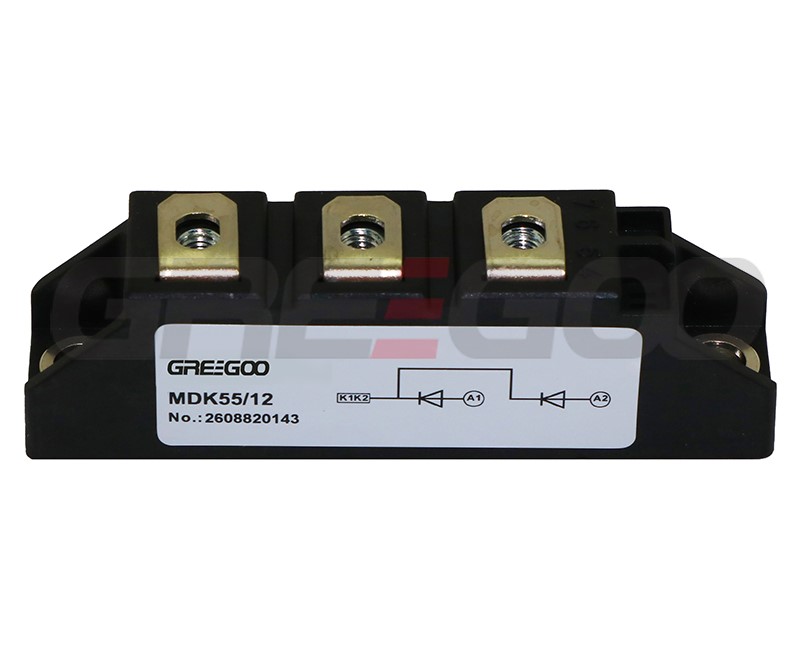

Common Cathod Dual Diode Modules MDK

Series	IF(AV) (TC)	VRRM	IFSM	I²t	IRRM	VFM IFM	V(TO)	rT	Rth(j-c)	Tjmax	W	Outline
Series	A (°C)	V	kA	kA²·s	mA	V/A	V	mΩ	°C/W	°C	g
MDK26-10	26 (100)	1000	0.65	2.1	8	1.65/80	0.8	6.8	1.3	150	115	92x20x30
MDK26-12	26 (100)	1200	0.65	2.1	8	1.65/80	0.8	6.8	1.3	150	115	92x20x30
MDK26-14	26 (100)	1900	0.65	2.1	8	1.53/80	0.85	5.94	1.3	150	115	92x20x30
MDK26-16	26 (100)	1600	0.65	2.1	8	1.53/80	0.85	5.94	1.3	150	115	92x20x30
MDK26-18	26 (100)	1800	0.65	2.1	8	1.53/80	0.85	5.94	1.3	150	115	92x20x30
MDK26-19	26 (100)	1900	0.65	2.1	8	1.53/80	0.85	5.94	1.3	150	115	92x20x30
MDK26-20	26 (100)	2000	0.65	2.1	8	1.53/80	0.85	5.94	1.3	150	115	92x20x30
MDK26-22	26 (100)	2200	0.65	2.1	8	1.53/80	0.85	5.94	1.3	150	115	92x20x30
MDK26-24	26 (100)	2400	0.65	2.1	8	1.53/80	0.85	5.94	1.3	150	115	92x20x30
MDK26-26	26 (100)	2600	0.65	2.1	8	1.53/80	0.85	5.94	1.3	150	115	92x20x30
MDK26-28	26 (100)	2800	0.65	2.1	8	1.53/80	0.85	5.94	1.3	150	115	92x20x30
MDK26-30	26 (100)	3000	0.65	2.1	8	1.53/80	0.85	5.94	1.3	150	115	92x20x30
MDK26-32	26 (100)	3200	0.65	2.1	8	1.53/80	0.85	5.94	1.3	150	115	92x20x30
MDK26-34	26 (100)	3400	0.65	2.1	8	1.53/80	0.85	5.94	1.3	150	115	92x20x30
MDK26-36	26 (100)	3600	0.65	2.1	8	1.53/80	0.85	5.94	1.3	150	115	92x20x30
MDK40-10	40 (100)	1000	1	5	8	1.55/120	0.8	5.57	0.9	150	115	92x20x30
MDK40-12	40 (100)	1200	1	5	8	1.59/120	0.85	4.5	0.9	150	115	92x20x30
MDK40-14	40 (100)	1400	1	5	8	1.59/120	0.85	4.5	0.9	150	115	92x20x30
MDK40-16	40 (100)	1600	1	5	8	1.59/120	0.85	4.5	0.9	150	115	92x20x30
MDK40-18	40 (100)	1800	1	5	8	1.59/120	0.85	4.5	0.9	150	115	92x20x30
MDK40-19	40 (100)	1900	1	5	8	1.59/120	0.85	4.5	0.9	150	115	92x20x30
MDK40-20	40 (100)	2000	1	5	8	1.59/120	0.85	4.5	0.9	150	115	92x20x30
MDK40-22	40 (100)	2200	1	5	8	1.59/120	0.85	4.5	0.9	150	115	92x20x30
MDK40-24	40 (100)	2400	1	5	8	1.59/120	0.85	4.5	0.9	150	115	92x20x30
MDK55-10	55 (100)	1000	1.3	8.45	8	1.45/170	0.8	3.47	0.7	150	115	92x20x30
MDK55-12	55 (100)	1200	1.3	8.45	8	1.45/170	0.8	3.47	0.7	150	115	92x20x30
MDK55-14	55 (100)	1400	1.3	8.45	8	1.55/170	0.85	3.76	0.68	150	115	92x20x30
MDK55-16	55 (100)	1600	1.3	8.45	8	1.55/170	0.85	3.76	0.68	150	115	92x20x30
MDK55-18	55 (100)	1800	1.3	8.45	8	1.55/170	0.85	3.76	0.68	150	115	92x20x30
MDK55-19	55 (100)	1900	1.3	8.45	8	1.55/170	0.85	3.76	0.68	150	115	92x20x30
MDK55-20	55 (100)	2000	1.3	8.45	8	1.55/170	0.85	3.76	0.68	150	115	92x20x30
MDK55-22	55 (100)	2200	1.3	8.45	8	1.55/170	0.85	3.76	0.68	150	115	92x20x30
MDK55-24	55 (100)	2400	1.3	8.45	8	1.55/170	0.85	3.76	0.68	150	115	92x20x30
MDK70-10	70 (100)	1000	1.8	16.2	8	1.40/210	0.8	2.5	0.57	150	115	92x20x30
MDK70-12	70 (100)	1200	1.8	16.2	8	1.40/210	0.8	2.5	0.57	150	115	92x20x30
MDK70-14	70 (100)	1400	1.8	16.2	8	1.50/210	0.85	2.73	0.55	150	115	92x20x30
MDK70-16	70 (100)	1600	1.8	16.2	8	1.50/210	0.85	2.73	0.55	150	115	92x20x30
MDK70-18	70 (100)	1800	1.8	16.2	8	1.50/210	0.85	2.73	0.55	150	115	92x20x30
MDK70-19	70 (100)	1900	1.8	16.2	8	1.50/210	0.85	2.73	0.55	150	115	92x20x30
MDK70-20	70 (100)	2000	1.8	16.2	8	1.50/210	0.85	2.73	0.55	150	115	92x20x30
MDK70-22	70 (100)	2200	1.8	16.2	8	1.50/210	0.85	2.73	0.55	150	115	92x20x30
MDK70-24	70 (100)	2400	1.8	16.2	8	1.50/210	0.85	2.73	0.55	150	115	92x20x30
MDK90-10	90 (100)	1000	2.3	26	8	1.33/270	0.8	1.7	0.47	150	115	92x20x30
MDK90-12	90 (100)	1200	2.3	26	8	1.33/270	0.8	1.7	0.47	150	115	92x20x30
MDK90-14	90 (100)	1400	2.3	26	8	1.33/270	0.8	1.7	0.47	150	115	92x20x30
MDK90-16	90 (100)	1600	2.3	26	8	1.33/270	0.8	1.7	0.47	150	115	92x20x30
MDK90-18	90 (100)	1800	2.3	26	8	1.33/270	0.8	1.7	0.47	150	115	92x20x30
MDK90-19	90 (100)	1900	2.3	26	8	1.43/270	0.85	1.88	0.45	150	115	92x20x30
MDK90-20	90 (100)	2000	2.3	26	8	1.43/270	0.85	1.88	0.45	150	115	92x20x30
MDK90-22	90 (100)	2200	2.3	26	8	1.43/270	0.85	1.88	0.45	150	115	92x20x30
MDK90-24	90 (100)	2400	2.3	26	8	1.43/270	0.85	1.88	0.45	150	115	92x20x30
MDK110-10	110 (100)	1000	2.6	33	8	1.45/330	0.8	1.74	0.35	150	115	92x20x30
MDK110-12	110 (100)	1200	2.6	33	8	1.45/330	0.8	1.74	0.35	150	115	92x20x30
MDK110-14	110 (100)	1400	2.6	33	8	1.55/330	0.85	1.88	0.33	150	115	92x20x30
MDK110-16	110 (100)	1600	2.6	33	8	1.55/330	0.85	1.88	0.33	150	115	92x20x30
MDK110-18	110 (100)	1800	2.6	33	8	1.55/330	0.85	1.88	0.33	150	115	92x20x30
MDK110-19	110 (100)	1900	2.6	33	8	1.55/330	0.85	1.88	0.33	150	115	92x20x30
MDK110-20	110 (100)	2000	2.6	33	8	1.55/330	0.85	1.88	0.33	150	115	92x20x30
MDK110-22	110 (100)	2200	2.6	33	8	1.55/330	0.85	1.88	0.33	150	115	92x20x30
MDK110-24	110 (100)	2400	2.6	33	8	1.55/330	0.85	1.88	0.33	150	115	92x20x30
MDK110-26	110 (100)	2600	2.6	33	20	2.25/330	0.95	1.76	0.31	150	320	94x36x30
MDK110-28	110 (100)	2800	2.6	33	20	2.25/330	0.95	1.76	0.31	150	320	94x36x30
MDK110-30	110 (100)	3000	2.6	33	20	2.25/330	0.95	1.76	0.31	150	320	94x36x30
MDK110-32	110 (100)	3200	2.6	33	20	2.25/330	0.95	1.76	0.31	150	320	94x36x30
MDK110-34	110 (100)	3400	2.6	33	20	2.25/330	0.95	1.76	0.31	150	320	94x36x30
MDK110-36	110 (100)	3600	2.6	33	20	2.25/330	0.95	1.76	0.31	150	320	94x36x30
MDK135-10	135 (100)	1000	3.9	76	12	1.38/410	0.8	1.18	0.31	150	320	94x36x30
MDK135-12	135 (100)	1200	3.9	76	12	1.38/410	0.8	1.18	0.31	150	320	94x36x30
MDK135-14	135 (100)	1400	3.9	76	12	1.38/410	0.8	1.18	0.31	150	320	94x36x30
MDK135-16	135 (100)	1600	3.9	76	12	1.38/410	0.8	1.18	0.31	150	320	94x36x30
MDK135-18	135 (100)	1800	3.9	76	12	1.38/410	0.8	1.18	0.31	150	320	94x36x30
MDK135-19	135 (100)	1900	3.9	76	12	1.48/410	0.83	1.23	0.3	150	320	94x36x30
MDK135-20	135 (100)	2000	3.9	76	12	1.48/410	0.83	1.23	0.3	150	320	94x36x30
MDK135-22	135 (100)	2200	3.9	76	12	1.48/410	0.83	1.23	0.3	150	320	94x36x30
MDK135-24	135 (100)	2400	3.9	76	12	1.48/410	0.83	1.23	0.3	150	320	94x36x30
MDK135-26	135 (100)	2600	3.9	76	20	1.98/410	0.85	1.01	0.29	150	320	94x36x30
MDK135-28	135 (100)	2800	3.9	76	20	1.98/410	0.85	1.01	0.29	150	320	94x36x30
MDK135-30	135 (100)	3000	3.9	76	20	1.98/410	0.85	1.01	0.29	150	320	94x36x30
MDK135-32	135 (100)	3200	3.9	76	20	1.98/410	0.85	1.01	0.29	150	320	94x36x30
MDK135-34	135 (100)	3400	3.9	76	20	1.98/410	0.85	1.01	0.29	150	320	94x36x30
MDK135-36	135 (100)	3600	3.9	76	20	1.98/410	0.85	1.01	0.29	150	320	94x36x30
MDK160-10	160 (100)	1000	4.6	106	12	1.56/480	0.8	1.35	0.23	150	320	94x36x30
MDK160-12	160 (100)	1200	4.6	106	12	1.56/480	0.8	1.35	0.23	150	320	94x36x30
MDK160-14	160 (100)	1400	4.6	106	12	1.56/480	0.8	1.35	0.23	150	320	94x36x30
MDK160-16	160 (100)	1600	4.6	106	12	1.56/480	0.8	1.35	0.23	150	320	94x36x30
MDK160-18	160 (100)	1800	4.6	106	12	1.56/480	0.8	1.35	0.23	150	320	94x36x30
MDK160-19	160 (100)	1900	4.6	105	12	1.66/480	0.84	1.31	0.23	150	320	94x36x30
MDK160-20	160 (100)	2000	4.6	105	12	1.66/480	0.84	1.31	0.23	150	320	94x36x30
MDK160-22	160 (100)	2200	4.6	105	12	1.66/480	0.84	1.31	0.23	150	320	94x36x30
MDK160-24	160 (100)	2400	4.6	105	12	1.66/480	0.84	1.31	0.23	150	320	94x36x30
MDK160-26	160 (100)	2600	4.8	106	25	1.98/480	0.95	0.9	0.23	150	320	94x36x30
MDK160-28	160 (100)	2800	4.8	106	25	1.98/480	0.95	0.9	0.23	150	320	94x36x30
MDK160-30	160 (100)	3000	4.8	106	25	1.98/480	0.95	0.9	0.23	150	320	94x36x30
MDK160-32	160 (100)	3200	4.8	106	25	1.98/480	0.95	0.9	0.23	150	320	94x36x30
MDK160-34	160 (100)	3400	4.8	106	25	1.98/480	0.95	0.9	0.23	150	320	94x36x30
MDK160-36	160 (100)	3600	4.8	106	25	1.98/480	0.95	0.9	0.23	150	320	94x36x30
MDK182-10	182 (100)	1000	6.4	205	12	1.43/550	0.8	0.96	0.22	150	320	94x36x30
MDK182-12	182 (100)	1200	6.4	205	12	1.43/550	0.8	0.96	0.22	150	320	94x36x30
MDK182-14	182 (100)	1400	6.4	205	12	1.43/550	0.8	0.96	0.22	150	320	94x36x30
MDK182-16	182 (100)	1600	6.4	205	12	1.43/550	0.8	0.96	0.22	150	320	94x36x30
MDK182-18	182 (100)	1800	6.4	205	12	1.43/550	0.8	0.96	0.22	150	320	94x36x30
MDK182-19	160 (100)	1900	6.4	204	12	1.73/550	0.88	1.05	0.2	150	320	94x36x30
MDK182-20	160 (100)	2000	6.4	204	12	1.73/550	0.88	1.05	0.2	150	320	94x36x30
MDK182-22	160 (100)	2200	6.4	204	12	1.73/550	0.88	1.05	0.2	150	320	94x36x30
MDK182-24	160 (100)	2400	6.4	204	12	1.73/550	0.88	1.05	0.2	150	320	94x36x30
MDK200-10	200 (100)	1000	7.5	281	12	1.38/600	0.75	0.88	0.21	150	320	94x36x30
MDK200-12	200 (100)	1200	7.5	281	12	1.38/600	0.75	0.88	0.21	150	320	94x36x30
MDK200-14	200 (100)	1400	7.5	281	12	1.38/600	0.75	0.88	0.21	150	320	94x36x30
MDK200-16	200 (100)	1600	7.5	281	12	1.38/600	0.75	0.88	0.21	150	320	94x36x30
MDK200-18	200 (100)	1800	7.5	281	12	1.38/600	0.75	0.88	0.21	150	320	94x36x30
MDK200-19	200 (100)	1900	7.5	281	12	1.48/600	0.82	0.96	0.18	150	320	94x36x30
MDK200-20	200 (100)	2000	7.5	281	12	1.48/600	0.82	0.96	0.18	150	320	94x36x30
MDK200-22	200 (100)	2200	7.5	281	12	1.48/600	0.82	0.96	0.18	150	320	94x36x30
MDK200-24	200 (100)	2400	7.5	281	12	1.48/600	0.82	0.96	0.18	150	320	94x36x30
MDK200-26	200 (100)	2600-3600	7.5	281	30	2.10/600	0.95	1.4	0.15	150	860	92x50x50
MDK200-28	200 (100)	2800	7.5	281	30	2.10/600	0.95	1.4	0.15	150	860	92x50x50
MDK200-30	200 (100)	3000	7.5	281	30	2.10/600	0.95	1.4	0.15	150	860	92x50x50
MDK200-32	200 (100)	3200	7.5	281	30	2.10/600	0.95	1.4	0.15	150	860	92x50x50
MDK200-34	200 (100)	3400	7.5	281	30	2.10/600	0.95	1.4	0.15	150	860	92x50x50
MDK200-36	200 (100)	3600	7.5	281	30	2.10/600	0.95	1.4	0.15	150	860	92x50x50
MDK250-10	250 (100)	1000	9.5	451	20	1.43/750	0.75	0.76	0.14	150	860	92x50x50
MDK250-12	250 (100)	1200	9.5	451	20	1.43/750	0.75	0.76	0.14	150	860	92x50x50
MDK250-14	250 (100)	1400	9.5	451	20	1.43/750	0.75	0.76	0.14	150	860	92x50x50
MDK250-16	250 (100)	1600	9.5	451	20	1.43/750	0.75	0.76	0.14	150	860	92x50x50
MDK250-18	250 (100)	1800	9.5	451	20	1.43/750	0.75	0.76	0.14	150	860	92x50x50
MDK250-19	250 (100)	1900	9.5	451	20	1.53/750	0.85	0.89	0.13	150	860	92x50x50
MDK250-20	250 (100)	2000	9.5	451	20	1.53/750	0.85	0.89	0.13	150	860	92x50x50
MDK250-22	250 (100)	2200	9.5	451	20	1.53/750	0.85	0.89	0.13	150	860	92x50x50
MDK250-24	250 (100)	2400	9.5	451	20	1.53/750	0.85	0.89	0.13	150	860	92x50x50
MDK250-26	250 (100)	2600	9.5	451	30	1.83/750	0.95	0.87	0.13	150	860	92x50x50
MDK250-28	250 (100)	2800	9.5	451	30	1.83/750	0.95	0.87	0.13	150	860	92x50x50
MDK250-30	250 (100)	3000	9.5	451	30	1.83/750	0.95	0.87	0.13	150	860	92x50x50
MDK250-32	250 (100)	3200	9.5	451	30	1.83/750	0.95	0.87	0.13	150	860	92x50x50
MDK250-34	250 (100)	3400	9.5	451	30	1.83/750	0.95	0.87	0.13	150	860	92x50x50
MDK250-36	250 (100)	3600	9.5	451	30	1.83/750	0.95	0.87	0.13	150	860	92x50x50
MDK285-10	285 (100)	1000	9.5	451	20	1.40/750	0.75	0.7	0.14	150	860	92x50x50
MDK285-12	285 (100)	1200	9.5	451	20	1.40/750	0.75	0.7	0.14	150	860	92x50x50
MDK285-14	285 (100)	1400	9.5	451	20	1.40/750	0.75	0.7	0.14	150	860	92x50x50
MDK285-16	285 (100)	1600	9.5	451	20	1.40/750	0.75	0.7	0.14	150	860	92x50x50
MDK285-18	285 (100)	1800	9.5	451	20	1.40/750	0.75	0.7	0.14	150	860	92x50x50
MDK300-10	300 (100)	1000	10	500	20	1.35/900	0.75	0.55	0.13	150	860	92x50x50
MDK300-12	300 (100)	1200	10	500	20	1.35/900	0.75	0.55	0.13	150	860	92x50x50
MDK300-14	300 (100)	1400	10	500	20	1.35/900	0.75	0.55	0.13	150	860	92x50x50
MDK300-16	300 (100)	1600	10	500	20	1.35/900	0.75	0.55	0.13	150	860	92x50x50
MDK300-18	300 (100)	1800	10	500	20	1.35/900	0.75	0.55	0.13	150	860	92x50x50
MDK300-19	300 (100)	1900	10	500	20	1.45/900	0.8	0.5	0.12	150	860	92x50x50
MDK300-20	300 (100)	2000	10	500	20	1.45/900	0.8	0.5	0.12	150	860	92x50x50
MDK300-22	300 (100)	2200	10	500	20	1.45/900	0.8	0.5	0.12	150	860	92x50x50
MDK300-24	300 (100)	2400	10	500	20	1.45/900	0.8	0.5	0.12	150	860	92x50x50
MDK300-26	300 (100)	2600	10	500	45	1.85/900	0.95	0.7	0.11	150	1350	108x62x52
MDK300-28	300 (100)	2800	10	500	45	1.85/900	0.95	0.7	0.11	150	1350	108x62x52
MDK300-30	300 (100)	3000	10	500	45	1.85/900	0.95	0.7	0.11	150	1350	108x62x52
MDK300-32	300 (100)	3200	10	500	45	1.85/900	0.95	0.7	0.11	150	1350	108x62x52
MDK300-34	300 (100)	3400	10	500	45	1.85/900	0.95	0.7	0.11	150	1350	108x62x52
MDK300-36	300 (100)	3600	10	500	45	1.85/900	0.95	0.7	0.11	150	1350	108x62x52
MDK350-10	350 (100)	1000	12	720	30	1.50/1050	0.75	0.61	0.11	150	1350	108x62x52
MDK350-12	350 (100)	1200	12	720	30	1.50/1050	0.75	0.61	0.11	150	1350	108x62x52
MDK350-14	350 (100)	1400	12	720	30	1.50/1050	0.75	0.61	0.11	150	1350	108x62x52
MDK350-16	350 (100)	1600	12	720	30	1.50/1050	0.75	0.61	0.11	150	1350	108x62x52
MDK350-18	350 (100)	1800	12	720	30	1.50/1050	0.75	0.61	0.11	150	1350	108x62x52
MDK350-19	350 (100)	1900	12	720	30	1.60/1050	0.8	0.56	0.11	150	1350	108x62x52
MDK350-20	350 (100)	2000	12	720	30	1.60/1050	0.8	0.56	0.11	150	1350	108x62x52
MDK350-22	350 (100)	2200	12	720	30	1.60/1050	0.8	0.56	0.11	150	1350	108x62x52
MDK350-24	350 (100)	2400	12	720	30	1.60/1050	0.8	0.56	0.11	150	1350	108x62x52
MDK400-10	400 (100)	1000	13	845	30	1.48/1200	0.75	0.5	0.1	150	1350	108x62x52
MDK400-12	400 (100)	1200	13	845	30	1.48/1200	0.75	0.5	0.1	150	1350	108x62x52
MDK400-14	400 (100)	1400	13	845	30	1.48/1200	0.75	0.5	0.1	150	1350	108x62x52
MDK400-16	400 (100)	1600	13	845	30	1.48/1200	0.75	0.5	0.1	150	1350	108x62x52
MDK400-18	400 (100)	1800	13	845	30	1.48/1200	0.75	0.5	0.1	150	1350	108x62x52
MDK400-19	400 (100)	1900	13	845	30	1.55/1200	0.85	0.49	0.09	150	1350	108x62x52
MDK400-20	400 (100)	2000	13	845	30	1.55/1200	0.85	0.49	0.09	150	1350	108x62x52
MDK400-22	400 (100)	2200	13	845	30	1.55/1200	0.85	0.49	0.09	150	1350	108x62x52
MDK400-24	400 (100)	2400	13	845	30	1.55/1200	0.85	0.49	0.09	150	1350	108x62x52
MDK400-26	400 (400)	2600	13	845	30	1.65/1200	0.95	0.72	0.075	150	2300	135x76x62
MDK400-28	400 (400)	2800	13	845	30	1.65/1200	0.95	0.72	0.075	150	2300	135x76x62
MDK400-30	400 (400)	3000	13	845	30	1.65/1200	0.95	0.72	0.075	150	2300	135x76x62
MDK400-32	400 (400)	3200	13	845	30	1.65/1200	0.95	0.72	0.075	150	2300	135x76x62
MDK400-34	400 (400)	3400	13	845	30	1.65/1200	0.95	0.72	0.075	150	2300	135x76x62
MDK400-36	400 (400)	3600	13	845	30	1.65/1200	0.95	0.72	0.075	150	2300	135x76x62
MDK400-10-W	400 (60)	1000	13	845	30	1.65/1200	0.75	0.15	0.15	125	1300	92x50x57
MDK400-12-W	400 (60)	1200	13	845	30	1.65/1200	0.75	0.15	0.15	125	1300	92x50x57
MDK400-14-W	400 (60)	1400	13	845	30	1.65/1200	0.75	0.15	0.15	125	1300	92x50x57
MDK400-16-W	400 (60)	1600	13	845	30	1.65/1200	0.75	0.15	0.15	125	1300	92x50x57
MDK400-18-W	400 (60)	1800	13	845	30	1.65/1200	0.75	0.15	0.15	125	1300	92x50x57
MDK400-19-W	400 (60)	1900	13	845	30	1.88/1200	0.85	0.14	0.14	125	1300	92x50x57
MDK400-20-W	400 (60)	2000	13	845	30	1.88/1200	0.85	0.14	0.14	125	1300	92x50x57
MDK400-22-W	400 (60)	2200	13	845	30	1.88/1200	0.85	0.14	0.14	125	1300	92x50x57
MDK400-24-W	400 (60)	2400	13	845	30	1.88/1200	0.85	0.14	0.14	125	1300	92x50x57
MDK400-26-W	400 (400)	2600	13	845	35	2.41/1200	0.95	0.11	0.11	125	1820	108x62x58
MDK400-28-W	400 (400)	2800	13	845	35	2.41/1200	0.95	0.11	0.11	125	1820	108x62x58
MDK400-30-W	400 (400)	3000	13	845	35	2.41/1200	0.95	0.11	0.11	125	1820	108x62x58
MDK400-32-W	400 (400)	3200	13	845	35	2.41/1200	0.95	0.11	0.11	125	1820	108x62x58
MDK400-34-W	400 (400)	3400	13	845	35	2.41/1200	0.95	0.11	0.11	125	1820	108x62x58
MDK400-36-W	400 (400)	3600	13	845	35	2.41/1200	0.95	0.11	0.11	125	1820	108x62x58
MDK500-10	500 (100)	1000	16	1280	40	1.45/1500	0.75	0.09	0.09	125	2300	135x76x62
MDK500-12	500 (100)	1200	16	1280	40	1.45/1500	0.75	0.09	0.09	125	2300	135x76x62
MDK500-14	500 (100)	1400	16	1280	40	1.45/1500	0.75	0.09	0.09	125	2300	135x76x62
MDK500-16	500 (100)	1600	16	1280	40	1.45/1500	0.75	0.09	0.09	125	2300	135x76x62
MDK500-18	500 (100)	1800	16	1280	40	1.45/1500	0.75	0.09	0.09	125	2300	135x76x62
MDK500-19	500 (100)	1900	16	1280	40	1.35/1500	0.85	0.075	0.075	125	2040	124x66x64
MDK500-20	500 (100)	2000	16	1280	40	1.35/1500	0.85	0.075	0.075	125	2040	124x66x64
MDK500-22	500 (100)	2200	16	1280	40	1.35/1500	0.85	0.075	0.075	125	2040	124x66x64
MDK500-24	500 (100)	2400	16	1280	40	1.35/1500	0.85	0.075	0.075	125	2040	124x66x64
MDK500-10-W	500 (60)	1000	16	1280	40	1.68/1500	0.75	0.51	0.13	150	1820	108x62x58
MDK500-12-W	500 (60)	1200	16	1280	40	1.68/1500	0.75	0.51	0.13	150	1820	108x62x58
MDK500-14-W	500 (60)	1400	16	1280	40	1.68/1500	0.75	0.51	0.13	150	1820	108x62x58
MDK500-16-W	500 (60)	1600	16	1280	40	1.68/1500	0.75	0.51	0.13	150	1820	108x62x58
MDK500-18-W	500 (60)	1800	16	1280	40	1.68/1500	0.75	0.51	0.13	150	1820	108x62x58
MDK500-19-W	500 (60)	1900	16	1280	40	1.68/1500	0.85	0.53	0.12	150	1820	108x62x58
MDK500-20-W	500 (60)	2000	16	1280	40	1.68/1500	0.85	0.53	0.12	150	1820	108x62x58
MDK500-22-W	500 (60)	2200	16	1280	40	1.68/1500	0.85	0.53	0.12	150	1820	108x62x58
MDK500-24-W	500 (60)	2400	16	1280	40	1.68/1500	0.85	0.53	0.12	150	1820	108x62x58
MDK500-26-W	500 (60)	2600	16	1280	45	2.83/1500	0.95	1.12	0.075	150	2600	135x76x68
MDK500-28-W	500 (60)	2800	16	1280	45	2.83/1500	0.95	1.12	0.075	150	2600	135x76x68
MDK500-30-W	500 (60)	3000	16	1280	45	2.83/1500	0.95	1.12	0.075	150	2600	135x76x68
MDK500-32-W	500 (60)	3200	16	1280	45	2.83/1500	0.95	1.12	0.075	150	2600	135x76x68
MDK500-34-W	500 (60)	3400	16	1280	45	2.83/1500	0.95	1.12	0.075	150	2600	135x76x68
MDK500-36-W	500 (60)	3600	16	1280	45	2.83/1500	0.95	1.12	0.075	150	2600	135x76x68
MDK57-10	570 (100)	1000	18	1620	40	1.45/1500	0.75	0.3	0.09	150	1300	124x60x51
MDK570-12	570 (100)	1200	18	1620	40	1.45/1500	0.75	0.3	0.09	150	1300	124x60x51
MDK570-14	570 (100)	1400	18	1620	40	1.45/1500	0.75	0.3	0.09	150	1300	124x60x51
MDK570-16	570 (100)	1600	18	1620	40	1.45/1500	0.75	0.3	0.09	150	1300	124x60x51
MDK570-18	570 (100)	1800	18	1620	40	1.45/1500	0.75	0.3	0.09	150	1300	124x60x51
MDK600-10	600 (100)	1000	19	1805	45	1.50/1800	0.75	0.28	0.065	150	2300	135x76x62
MDK600-12	600 (100)	1200	19	1805	45	1.50/1800	0.75	0.28	0.065	150	2300	135x76x62
MDK600-14	600 (100)	1400	19	1805	45	1.50/1800	0.75	0.28	0.065	150	2300	135x76x62
MDK600-16	600 (100)	1600	19	1805	45	1.50/1800	0.75	0.28	0.065	150	2300	135x76x62
MDK600-18	600 (100)	1800	19	1805	45	1.50/1800	0.75	0.28	0.065	150	2300	135x76x62
MDK600-19	600 (100)	1900	19	1805	40	1.53/1800	0.75	0.32	0.065	150	2300	135x76x62
MDK600-20	600 (100)	2000	19	1805	40	1.53/1800	0.75	0.32	0.065	150	2300	135x76x62
MDK600-22	600 (100)	2200	19	1805	40	1.53/1800	0.75	0.32	0.065	150	2300	135x76x62
MDK600-24	600 (100)	2400	19	1805	40	1.53/1800	0.75	0.32	0.065	150	2300	135x76x62
MDK600-10-W	600 (60)	1000	19	1805	40	1.70/1800	0.75	0.42	0.11	125	1820	108x62x58
MDK600-12-W	600 (60)	1200	19	1805	40	1.70/1800	0.75	0.42	0.11	125	1820	108x62x58
MDK600-14-W	600 (60)	1400	19	1805	40	1.70/1800	0.75	0.42	0.11	125	1820	108x62x58
MDK600-16-W	600 (60)	1600	19	1805	40	1.70/1800	0.75	0.42	0.11	125	1820	108x62x58
MDK600-18-W	600 (60)	1800	19	1805	40	1.70/1800	0.75	0.42	0.11	125	1820	108x62x58
MDK600-19-W	600 (60)	1900	19	1805	40	1.84/1800	0.85	0.44	0.1	125	1820	108x62x58
MDK600-20-W	600 (60)	2000	19	1805	40	1.84/1800	0.85	0.44	0.1	125	1820	108x62x58
MDK600-22-W	600 (60)	2200	19	1805	40	1.84/1800	0.85	0.44	0.1	125	1820	108x62x58
MDK600-24-W	600 (60)	2400	19	1805	40	1.84/1800	0.85	0.44	0.1	125	1820	108x62x58
MDK600-26-W	600 (60)	2600	19	1805	45	2.79/1800	0.95	0.91	0.065	125	2600	135x76x68
MDK600-28-W	600 (60)	2800	19	1805	45	2.79/1800	0.95	0.91	0.065	125	2600	135x76x68
MDK600-30-W	600 (60)	3000	19	1805	45	2.79/1800	0.95	0.91	0.065	125	2600	135x76x68
MDK600-32-W	600 (60)	3200	19	1805	45	2.79/1800	0.95	0.91	0.065	125	2600	135x76x68
MDK600-34-W	600 (60)	3400	19	1805	45	2.79/1800	0.95	0.91	0.065	125	2600	135x76x68
MDK600-36-W	600 (60)	3600	19	1805	45	2.79/1800	0.95	0.91	0.065	125	2600	135x76x68
MDK800-10	800 (100)	1000	22	2420	45	1.80/2400	0.72	0.18	0.058	150	3500	150x76x78
MDK800-12	800 (100)	1200	22	2420	45	1.80/2400	0.72	0.18	0.058	150	3500	150x76x78
MDK800-14	800 (100)	1400	22	2420	45	1.80/2400	0.72	0.18	0.058	150	3500	150x76x78
MDK800-16	800 (100)	1600	22	2420	45	1.80/2400	0.72	0.18	0.058	150	3500	150x76x78
MDK800-18	800 (100)	1800	22	2420	45	1.80/2400	0.72	0.18	0.058	150	3500	150x76x78
MDK800-19	800 (100)	1900	22	2420	45	1.38/2400	0.7	0.20	0.058	150	2300	135x76x62
MDK800-20	800 (100)	2000	22	2420	45	1.38/2400	0.7	0.20	0.058	150	2300	135x76x62
MDK800-22	800 (100)	2200	22	2420	45	1.38/2400	0.7	0.20	0.058	150	2300	135x76x62
MDK800-24	800 (100)	2400	22	2420	45	1.38/2400	0.7	0.20	0.058	150	2300	135x76x62
MDK800-10-W	800 (60)	1000	22	2420	40	1.72/2400	0.75	0.34	0.08	150	2600	135x76x68
MDK800-12-W	800 (60)	1200	22	2420	40	1.72/2400	0.75	0.34	0.08	150	2600	135x76x68
MDK800-14-W	800 (60)	1400	22	2420	40	1.72/2400	0.75	0.34	0.08	150	2600	135x76x68
MDK800-16-W	800 (60)	1600	22	2420	40	1.72/2400	0.75	0.34	0.08	150	2600	135x76x68
MDK800-18-W	800 (60)	1800	22	2420	40	1.72/2400	0.75	0.34	0.08	150	2600	135x76x68
MDK800-19-W	800 (60)	1900	22	2420	45	1.86/2400	0.8	0.36	0.075	150	2600	135x76x68
MDK800-20-W	800 (60)	2000	22	2420	45	1.86/2400	0.8	0.36	0.075	150	2600	135x76x68
MDK800-22-W	800 (60)	2200	22	2420	45	1.86/2400	0.8	0.36	0.075	150	2600	135x76x68
MDK800-24-W	800 (60)	2400	22	2420	45	1.86/2400	0.8	0.36	0.075	150	2600	135x76x68
MDK1000-10	1000 (100)	1000	28	3920	50	1.82/3000	0.71	0.10	0.052	150	3800	150x77x83
MDK1000-12	1000 (100)	1200	28	3920	50	1.82/3000	0.71	0.10	0.052	150	3800	150x77x83
MDK1000-14	1000 (100)	1400	28	3920	50	1.82/3000	0.71	0.10	0.052	150	3800	150x77x83
MDK1000-16	1000 (100)	1600	28	3920	50	1.82/3000	0.71	0.10	0.052	150	3800	150x77x83
MDK1000-18	1000 (100)	1800	28	3920	50	1.82/3000	0.71	0.10	0.052	150	3800	150x77x83
MDK1000-19	1000 (100)	1900	28	3920	50	1.21/3000	0.71	0.10	0.052	150	3800	150x77x83
MDK1000-20	1000 (100)	2000	28	3920	50	1.21/3000	0.71	0.10	0.052	150	3800	150x77x83
MDK1000-22	1000 (100)	2200	28	3920	50	1.21/3000	0.71	0.10	0.052	150	3800	150x77x83
MDK1000-24	1000 (100)	2400	28	3920	50	1.21/3000	0.71	0.10	0.052	150	3800	150x77x83
MDK1000-10-W	1000 (60)	1000	28	3920	40	1.82/3000	0.75	0.25	0.065	150	3600	150x76x78
MDK1000-12-W	1000 (60)	1200	28	3920	40	1.82/3000	0.75	0.25	0.065	150	3600	150x76x78
MDK1000-14-W	1000 (60)	1400	28	3920	40	1.82/3000	0.75	0.25	0.065	150	3600	150x76x78
MDK1000-16-W	1000 (60)	1600	28	3920	40	1.82/3000	0.75	0.25	0.065	150	3600	150x76x78
MDK1000-18-W	1000 (60)	1800	28	3920	40	1.82/3000	0.75	0.25	0.065	150	3600	150x76x78
MDK1000-19-W	1000 (60)	1900	28	3920	50	2.16/3000	0.82	0.38	0.048	150	3600	150x76x78
MDK1000-20-W	1000 (60)	2000	28	3920	50	2.16/3000	0.82	0.38	0.048	150	3600	150x76x78
MDK1000-22-W	1000 (60)	2200	28	3920	50	2.16/3000	0.82	0.38	0.048	150	3600	150x76x78
MDK1000-24-W	1000 (60)	2400	28	3920	50	2.16/3000	0.82	0.38	0.048	150	3600	150x76x78
MDK1200-10	1200 (100)	1000	34	5780	50	1.86/3000	0.71	0.11	0.04	150	3800	150x77x83
MDK1200-12	1200 (100)	1200	34	5780	50	1.86/3000	0.71	0.11	0.04	150	3800	150x77x83
MDK1200-14	1200 (100)	1400	34	5780	50	1.86/3000	0.71	0.11	0.04	150	3800	150x77x83
MDK1200-16	1200 (100)	1600	34	5780	50	1.86/3000	0.71	0.11	0.04	150	3800	150x77x83
MDK1200-18	1200 (100)	1800	34	5780	50	1.86/3000	0.71	0.11	0.04	150	3800	150x77x83
MDK1200-19	1200 (100)	1900	34	5780	50	1.20/3000	0.71	0	0.042	150	3800	150x77x83
MDK1200-20	1200 (100)	2000	34	5780	50	1.20/3000	0.71	0	0.042	150	3800	150x77x83
MDK1200-22	1200 (100)	2200	34	5780	50	1.20/3000	0.71	0	0.042	150	3800	150x77x83
MDK1200-24	1200 (100)	2400	34	5780	50	1.20/3000	0.71	0	0.042	150	3800	150x77x83

FAQ

Q:The MDK Common-Cathode Module: An Optimal Solution for PV Inverter Boost Converters

The MDK common-cathode module internally connects the cathodes of the switching transistor and the freewheeling diode together, which precisely matches the topology of the Boost converter circuit in photovoltaic inverters. This design allows a single module to replace two discrete devices, eliminating complex external wiring. This results in a more compact circuit, better heat dissipation, and higher reliability, perfectly meeting the demands of photovoltaic inverters for high power density and long-term stable operation.

Inquiry
