Product Details

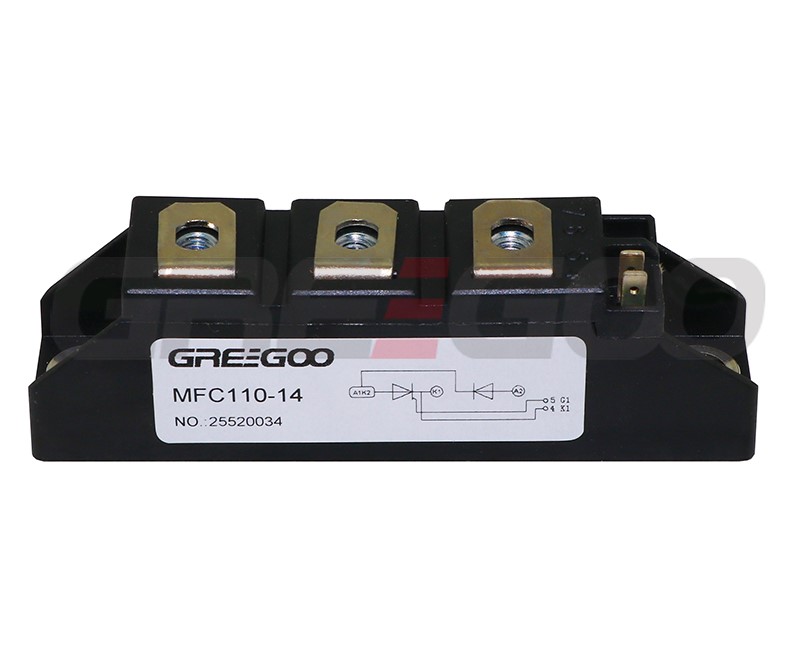

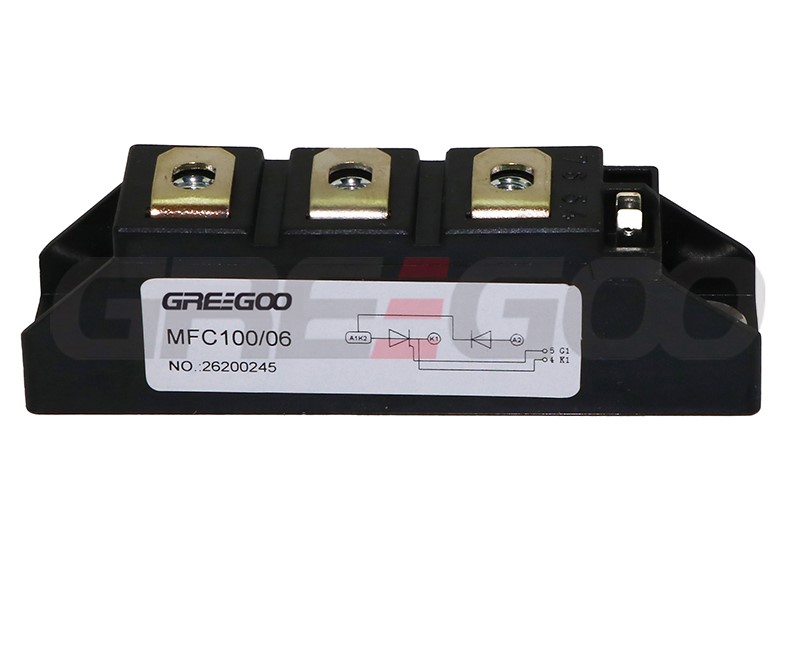

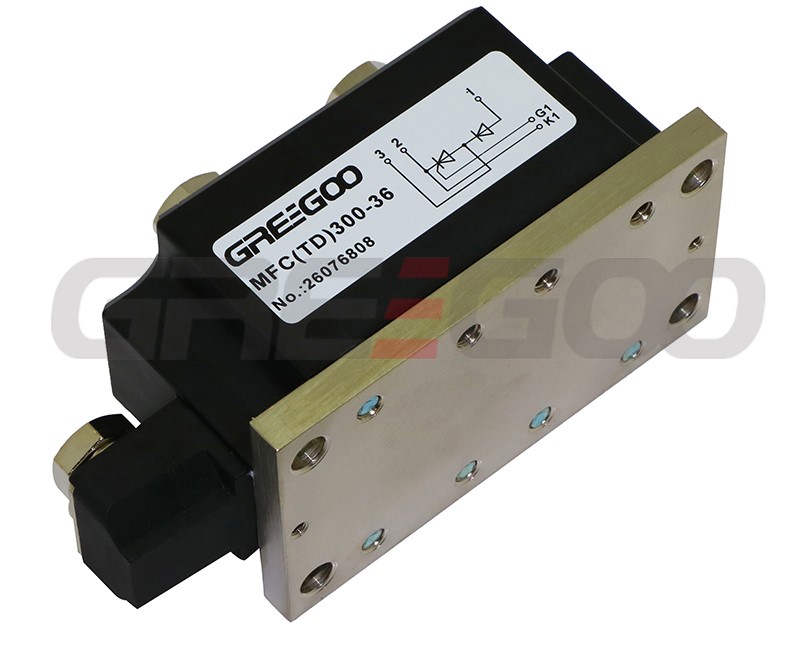

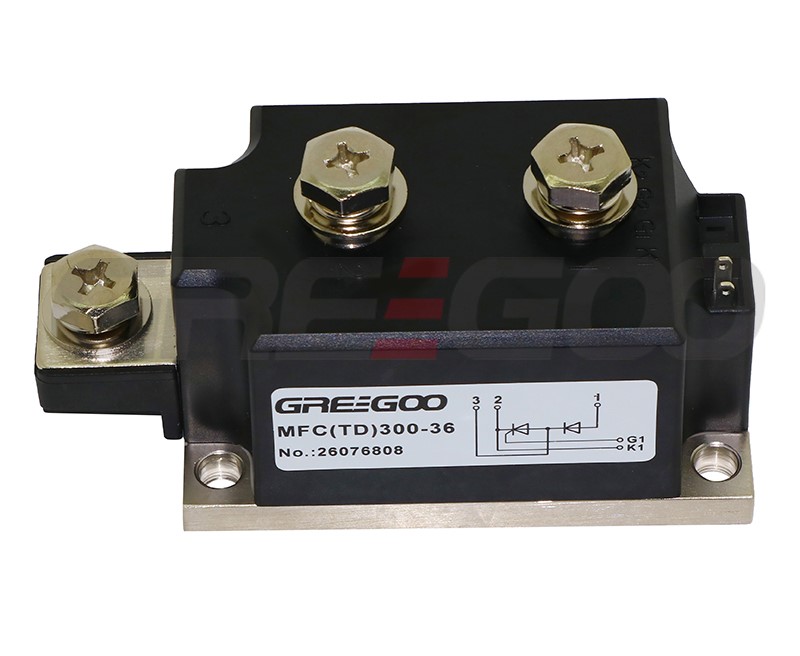

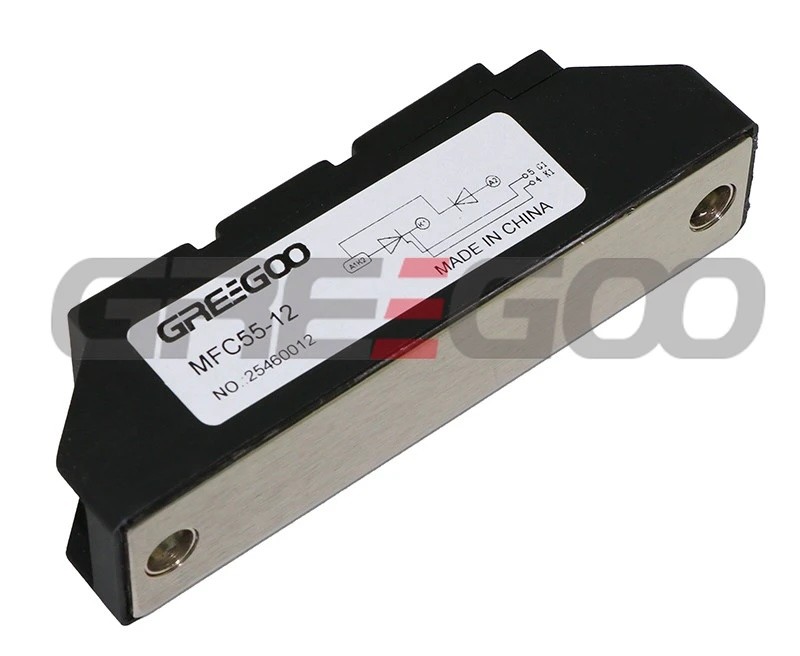

Thyristor Diode Modules

Feature

1.Isolated mounting base, 2500V~
2.International standard package
3.Pressure contact technology with increased power cycling capability
4.Air-cooling for up to 350A. for over 400A , air-cooling or water-cooling
5.Simple mounting and easy maintenance
6.Space and weight saving

Typical Application

1.AC/DC Motor drives
2.Various rectifiers
3.Heater controls
4.Lighting controls
5.Contactless switches
6.Soft start AC motor control
7.(TSC)SVC
8.Welding power supply
9.DC supply for PWM inverter
10.Battery DC chargers or dischargers
11.UPS

Type	VDRM	IT(AV)@Tc		ITSM	I2t	dv/dt	di/dt	IDRM	IGT	VGT	IH	VTM@ITM		VTO	rT	Rth(j-c)	Tjm	Viso
	VRRM	IT(AV)@Tc		ITSM	I2t	dv/dt	di/dt	IRRM	IGT	VGT	IH	VTM@ITM		VTO	rT	Rth(j-c)	Tjm	Viso
				10ms		125°C			25°C					125°C
	V	A	°C	kA	kA2s	V/μs	A/μs	mA	mA	V	mA	V	A	V	mΩ	°C/W	°C	V(A.C)
MFx26	600-1800	26	85	0.65	2.1	800	50	8	100	2.5	120	1.69	80	0.85	9.68	0.95	125	2500
MFx40	600-1800	40	85	1.15	6.6	800	50	8	100	2.5	120	1.6	120	0.85	5.57	0.65	125	2500
MFx55	600-1800	55	85	1.5	11.3	800	50	8	100	2.5	120	1.5	170	0.85	3.47	0.53	125	2500
MFx70	600-1800	70	85	1.7	14.5	800	50	10	100	2.5	120	1.48	210	0.8	2.64	0.41	125	2500
MFx90	600-1800	90	85	2.25	25	800	100	10	100	2.5	120	1.7	270	0.8	3.01	0.28	125	2500
MFx110	600-1800	110	85	2.8	39	800	100	12	100	2.5	120	1.69	330	0.8	2.29	0.25	125	2500
MFx135	600-1800	135	85	3.8	65	800	3.6	10	150	2.5	150	1.75	410	0.8	2.85	0.2	125	2500
MFx160	600-1800	160	85	6	180	800	100	15	150	2.5	150	1.7	480	0.8	1.69	0.17	125	2500
MFx182	600-1800	182	85	7	245	800	100	20	150	2.5	150	1.62	550	0.8	1.26	0.16	125	2500
MFx200	600-1800	200	85	8	320	800	100	25	180	2.5	180	1.65	600	0.8	1.27	0.14	125	2500
MFx250	600-1800	250	85	9	405	800	100	25	180	2.5	180	1.57	750	0.8	0.85	0.12	125	2500
MFx285	600-1800	285	85	9.1	414	800	100	25	180	3	180	1.45	750	0.8	0.53	0.12	125	2500
MFx300	600-1800	300	85	9.2	423	800	100	35	180	2.5	180	1.58	900	0.8	0.72	0.1	125	2500
MFx350	600-1800	350	85	11	605	800	100	35	180	2.5	180	1.45	1050	0.95	0.36	0.09	125	2500
MFx400	600-1800	400	85	12.5	781	800	100	35	200	3	200	1.52	1200	0.8	0.49	0.08	125	2500
MFx500	600-1800	500	85	14.5	1051	800	100	35	200	3	200	1.44	1500	0.8	0.34	0.065	125	2500
MFx570	600-1800	570	85	15	1125	800	100	35	200	3	200	1.45	1600	0.8	0.2	0.065	125	2500
MFx600	600-1800	600	85	16	1280	800	100	45	200	3	200	1.45	1800	0.8	0.28	0.064	125	2500
MFx800	600-1800	800	85	22	2420	800	100	45	200	3	200	1.86	2400	0.8	0.2	0.042	125	2500
MFx1000	600-1800	1000	85	28	3920	800	100	55	200	3	200	1.95	3000	0.8	0.15	0.034	125	2500
MFx1200	600-1800	1200	85	34	5780	800	100	55	200	3	200	1.76	3000	0.8	0.09	0.031	125	2500
MFx26	1900-2500	26	85	0.65	2.1	800	50	10	100	2.5	150	1.82	80	0.85	9.68	0.95	125	3000
MFx40	1900-2500	40	85	1.15	6.6	800	50	10	100	2.5	150	1.85	120	0.85	2.57	0.65	125	3000
MFx55	1900-2500	55	85	1.5	11.3	800	50	10	100	2.5	150	1.96	170	0.85	4.8	0.49	125	3000
MFx70	1900-2500	70	85	1.7	14.5	800	50	12	100	2.5	150	1.93	210	0.85	3.5	0.39	125	3000
MFx90	1900-2500	90	85	2.26	25	800	100	12	100	2.5	150	2.12	270	0.85	3.26	0.28	125	3000
MFx110	1900-2500	110	85	2.8	39	800	100	15	100	2.5	150	1.95	330	0.85	2.25	0.25	125	3000
MFx135	1900-2500	135	85	3.6	65	800	100	25	150	2.5	150	1.96	410	0.85	1.91	0.2	125	3000
MFx160	1900-2500	160	85	6	180	800	100	25	150	2.5	150	1.9	480	0.85	1.53	0.17	125	3000
MFx182	1900-2500	182	85	7	245	800	100	25	150	2.5	150	1.84	550	0.85	1.21	0.16	125	3000
MFx200	1900-2500	200	85	8	320	800	100	35	180	2.5	150	1.9	600	0.85	1.14	0.14	125	3000
MFx250	1900-2500	250	85	9	405	800	100	35	180	2.5	150	1.73	750	0.85	0.8	0.12	125	3000
MFx300	1900-2500	300	85	9.2	423	800	100	45	180	2.5	150	1.68	900	0.85	0.65	0.1	125	3000
MFx350	1900-2500	350	85	11	605	800	100	45	180	2.5	150	1.89	1050	0.84	0.5	0.09	125	3000
MFx400	1900-2500	400	85	12.5	781	800	100	45	200	3	200	1.94	1200	0.83	0.42	0.08	125	3000
MFx500	1900-2500	500	85	14.5	1051	800	100	45	200	3	200	1.92	1500	0.85	0.39	0.06	125	3000
MFx600	1900-2500	600	85	16	1280	800	100	50	200	3	200	1.8	1800	0.88	0.24	0.054	125	3000
MFx110	2600-3600	110	85	2.8	39	800	100	18	100	2.5	150	2.68	330	1.15	2.88	0.19	125	3600
MFx135	2600-3600	135	85	3.6	65	800	100	25	150	2.5	150	2.35	410	0.94	2.4	0.17	125	3600
MFx200	2600-3600	200	85	8	320	800	100	35	180	2.5	150	2.55	600	0.96	1.3	0.12	125	3600
MFx250	2600-3600	250	85	9	405	800	100	35	180	2.5	150	2.63	750	0.91	0.9	0.11	125	3600
MFx300	2600-3600	300	85	9.2	423	800	100	50	180	2.5	150	2.45	900	0.93	1	0.08	125	3600
MFc400	2600-3600	400	85	12.5	781	800	100	50	200	3	200	2.35	1200	0.98	0.88	`0.054	125	3600
*MFX400	600-1800	400	55	12.5	781	800	100	35	200	3	200	1.9	1200	0.8	0.8	0.11	125	2500
*MFx500	600-1800	500	55	14.5	1051	800	100	35	200	3	200	1.9	1500	0.8	0.64	0.087	125	2500
*MFx600	600-1800	600	55	16	1280	800	100	45	200	3	200	1.9	1800	0.8	0.53	0.073	125	2500
*MFx800	600-1800	800	55	22	2420	800	100	45	200	3	200	1.95	2400	0.8	0.42	0.054	125	2500
*MFx1000	600-1800	1000	55	28	3920	800	100	55	200	3	200	1.95	3000	0.8	0.21	0.052	125	2500
*MFx400	1900-2500	400	55	12.5	781	800	100	45	200	3	200	2.18	1200	0.82	0.79	0.11	125	3000
*MFx500	1900-2500	500	55	14.5	1051	80	100	45	200	3	200	2.15	1500	0.87	0.78	0.073	125	3000
*MFx600	1900-2500	600	55	16	1280	800	100	50	200	3	200	2.15	1800	0.89	0.83	0.054	125	3000
*MFx800	1900-2500	800	55	22	2420	800	100	50	200	3	200	2.35	2400	0.88	0.47	0.048	125	3000
*MFx400	2600-3600	400	55	12.5	781	800	100	50	200	3	200	2.85	1200	1.12	1.25	0.073	125	3600
*MFx500	2600-3600	500	55	14.5	1051	800	100	50	200	3	200	2.95	1500	1.09	1.19	0.054	125	3600
*MFx600	2600-3600	600	55	16	1280	800	100	55	200	3	200	2.95	1800	1.02	0.95	0.048	125	3600
