Thyristor Diode Modules

Feature

1.Isolated mounting base, 2500V~
2.International standard package
3.Pressure contact technology with increased power cycling capability
4.Air-cooling for up to 350A. for over 400A , air-cooling or water-cooling
5.Simple mounting and easy maintenance
6.Space and weight saving


Typical Application

1.AC/DC Motor drives
2.Various rectifiers
3.Heater controls
4.Lighting controls
5.Contactless switches
6.Soft start AC motor control
7.(TSC)SVC
8.Welding power supply
9.DC supply for PWM inverter
10.Battery DC chargers or dischargers
11.UPS


Type VDRM IT(AV)@Tc ITSM I2t dv/dt di/dt IDRM IGT VGT IH VTM@ITM VTO rT Rth(j-c) Tjm Viso
VRRM IRRM
10ms 125°C 25°C 125°C
V A °C kA kA2s V/μs A/μs mA mA V mA V A V mΩ °C/W °C V(A.C)
MFx26 600-1800 26 85 0.65 2.1 800 50 8 100 2.5 120 1.69 80 0.85 9.68 0.95 125 2500
MFx40 600-1800 40 85 1.15 6.6 800 50 8 100 2.5 120 1.6 120 0.85 5.57 0.65 125 2500
MFx55 600-1800 55 85 1.5 11.3 800 50 8 100 2.5 120 1.5 170 0.85 3.47 0.53 125 2500
MFx70 600-1800 70 85 1.7 14.5 800 50 10 100 2.5 120 1.48 210 0.8 2.64 0.41 125 2500
MFx90 600-1800 90 85 2.25 25 800 100 10 100 2.5 120 1.7 270 0.8 3.01 0.28 125 2500
MFx110 600-1800 110 85 2.8 39 800 100 12 100 2.5 120 1.69 330 0.8 2.29 0.25 125 2500
MFx135 600-1800 135 85 3.8 65 800 3.6 10 150 2.5 150 1.75 410 0.8 2.85 0.2 125 2500
MFx160 600-1800 160 85 6 180 800 100 15 150 2.5 150 1.7 480 0.8 1.69 0.17 125 2500
MFx182 600-1800 182 85 7 245 800 100 20 150 2.5 150 1.62 550 0.8 1.26 0.16 125 2500
MFx200 600-1800 200 85 8 320 800 100 25 180 2.5 180 1.65 600 0.8 1.27 0.14 125 2500
MFx250 600-1800 250 85 9 405 800 100 25 180 2.5 180 1.57 750 0.8 0.85 0.12 125 2500
MFx285 600-1800 285 85 9.1 414 800 100 25 180 3 180 1.45 750 0.8 0.53 0.12 125 2500
MFx300 600-1800 300 85 9.2 423 800 100 35 180 2.5 180 1.58 900 0.8 0.72 0.1 125 2500
MFx350 600-1800 350 85 11 605 800 100 35 180 2.5 180 1.45 1050 0.95 0.36 0.09 125 2500
MFx400 600-1800 400 85 12.5 781 800 100 35 200 3 200 1.52 1200 0.8 0.49 0.08 125 2500
MFx500 600-1800 500 85 14.5 1051 800 100 35 200 3 200 1.44 1500 0.8 0.34 0.065 125 2500
MFx570 600-1800 570 85 15 1125 800 100 35 200 3 200 1.45 1600 0.8 0.2 0.065 125 2500
MFx600 600-1800 600 85 16 1280 800 100 45 200 3 200 1.45 1800 0.8 0.28 0.064 125 2500
MFx800 600-1800 800 85 22 2420 800 100 45 200 3 200 1.86 2400 0.8 0.2 0.042 125 2500
MFx1000 600-1800 1000 85 28 3920 800 100 55 200 3 200 1.95 3000 0.8 0.15 0.034 125 2500
MFx1200 600-1800 1200 85 34 5780 800 100 55 200 3 200 1.76 3000 0.8 0.09 0.031 125 2500
MFx26 1900-2500 26 85 0.65 2.1 800 50 10 100 2.5 150 1.82 80 0.85 9.68 0.95 125 3000
MFx40 1900-2500 40 85 1.15 6.6 800 50 10 100 2.5 150 1.85 120 0.85 2.57 0.65 125 3000
MFx55 1900-2500 55 85 1.5 11.3 800 50 10 100 2.5 150 1.96 170 0.85 4.8 0.49 125 3000
MFx70 1900-2500 70 85 1.7 14.5 800 50 12 100 2.5 150 1.93 210 0.85 3.5 0.39 125 3000
MFx90 1900-2500 90 85 2.26 25 800 100 12 100 2.5 150 2.12 270 0.85 3.26 0.28 125 3000
MFx110 1900-2500 110 85 2.8 39 800 100 15 100 2.5 150 1.95 330 0.85 2.25 0.25 125 3000
MFx135 1900-2500 135 85 3.6 65 800 100 25 150 2.5 150 1.96 410 0.85 1.91 0.2 125 3000
MFx160 1900-2500 160 85 6 180 800 100 25 150 2.5 150 1.9 480 0.85 1.53 0.17 125 3000
MFx182 1900-2500 182 85 7 245 800 100 25 150 2.5 150 1.84 550 0.85 1.21 0.16 125 3000
MFx200 1900-2500 200 85 8 320 800 100 35 180 2.5 150 1.9 600 0.85 1.14 0.14 125 3000
MFx250 1900-2500 250 85 9 405 800 100 35 180 2.5 150 1.73 750 0.85 0.8 0.12 125 3000
MFx300 1900-2500 300 85 9.2 423 800 100 45 180 2.5 150 1.68 900 0.85 0.65 0.1 125 3000
MFx350 1900-2500 350 85 11 605 800 100 45 180 2.5 150 1.89 1050 0.84 0.5 0.09 125 3000
MFx400 1900-2500 400 85 12.5 781 800 100 45 200 3 200 1.94 1200 0.83 0.42 0.08 125 3000
MFx500 1900-2500 500 85 14.5 1051 800 100 45 200 3 200 1.92 1500 0.85 0.39 0.06 125 3000
MFx600 1900-2500 600 85 16 1280 800 100 50 200 3 200 1.8 1800 0.88 0.24 0.054 125 3000
MFx110 2600-3600 110 85 2.8 39 800 100 18 100 2.5 150 2.68 330 1.15 2.88 0.19 125 3600
MFx135 2600-3600 135 85 3.6 65 800 100 25 150 2.5 150 2.35 410 0.94 2.4 0.17 125 3600
MFx200 2600-3600 200 85 8 320 800 100 35 180 2.5 150 2.55 600 0.96 1.3 0.12 125 3600
MFx250 2600-3600 250 85 9 405 800 100 35 180 2.5 150 2.63 750 0.91 0.9 0.11 125 3600
MFx300 2600-3600 300 85 9.2 423 800 100 50 180 2.5 150 2.45 900 0.93 1 0.08 125 3600
MFc400 2600-3600 400 85 12.5 781 800 100 50 200 3 200 2.35 1200 0.98 0.88 `0.054 125 3600
*MFX400 600-1800 400 55 12.5 781 800 100 35 200 3 200 1.9 1200 0.8 0.8 0.11 125 2500
*MFx500 600-1800 500 55 14.5 1051 800 100 35 200 3 200 1.9 1500 0.8 0.64 0.087 125 2500
*MFx600 600-1800 600 55 16 1280 800 100 45 200 3 200 1.9 1800 0.8 0.53 0.073 125 2500
*MFx800 600-1800 800 55 22 2420 800 100 45 200 3 200 1.95 2400 0.8 0.42 0.054 125 2500
*MFx1000 600-1800 1000 55 28 3920 800 100 55 200 3 200 1.95 3000 0.8 0.21 0.052 125 2500
*MFx400 1900-2500 400 55 12.5 781 800 100 45 200 3 200 2.18 1200 0.82 0.79 0.11 125 3000
*MFx500 1900-2500 500 55 14.5 1051 80 100 45 200 3 200 2.15 1500 0.87 0.78 0.073 125 3000
*MFx600 1900-2500 600 55 16 1280 800 100 50 200 3 200 2.15 1800 0.89 0.83 0.054 125 3000
*MFx800 1900-2500 800 55 22 2420 800 100 50 200 3 200 2.35 2400 0.88 0.47 0.048 125 3000
*MFx400 2600-3600 400 55 12.5 781 800 100 50 200 3 200 2.85 1200 1.12 1.25 0.073 125 3600
*MFx500 2600-3600 500 55 14.5 1051 800 100 50 200 3 200 2.95 1500 1.09 1.19 0.054 125 3600
*MFx600 2600-3600 600 55 16 1280 800 100 55 200 3 200 2.95 1800 1.02 0.95 0.048 125 3600

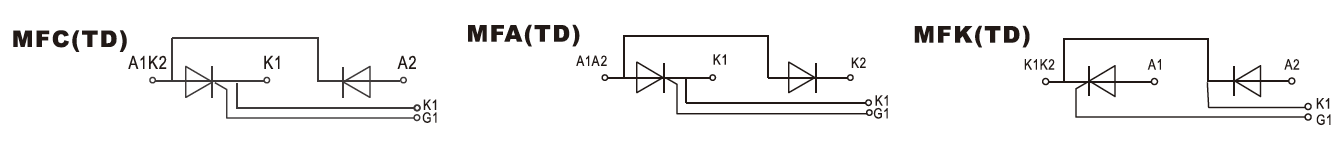

1.MFx shows any type of MFC / MFA / MFK/MFX 2.*water-cooling
IGT VGT VTM IH are for 25°C , others are for Tj=Tjm ,unless stated otherwise.
