T253 Phase Control Thyristor
Home Products Disc PCT and RectifierRecommend PCTT253 Phase Control Thyristor
Product Details

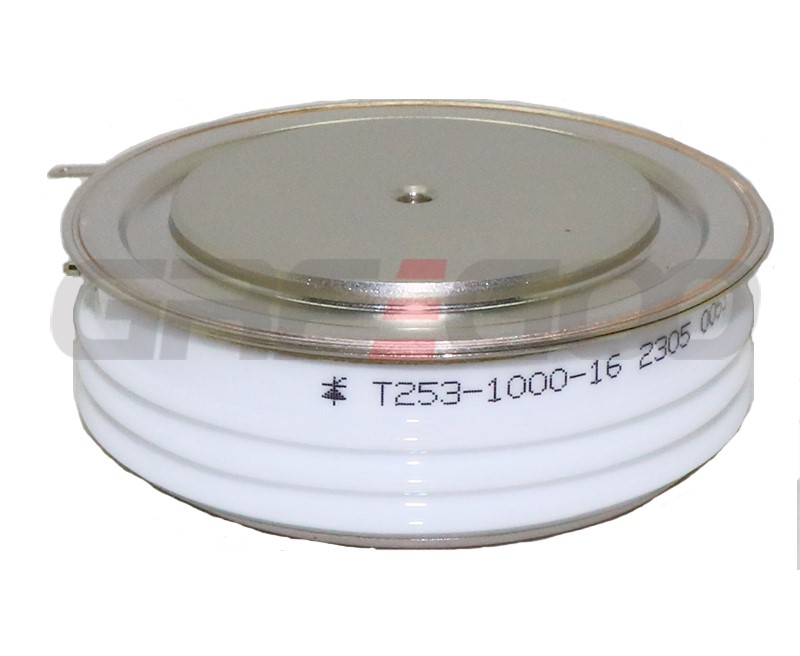

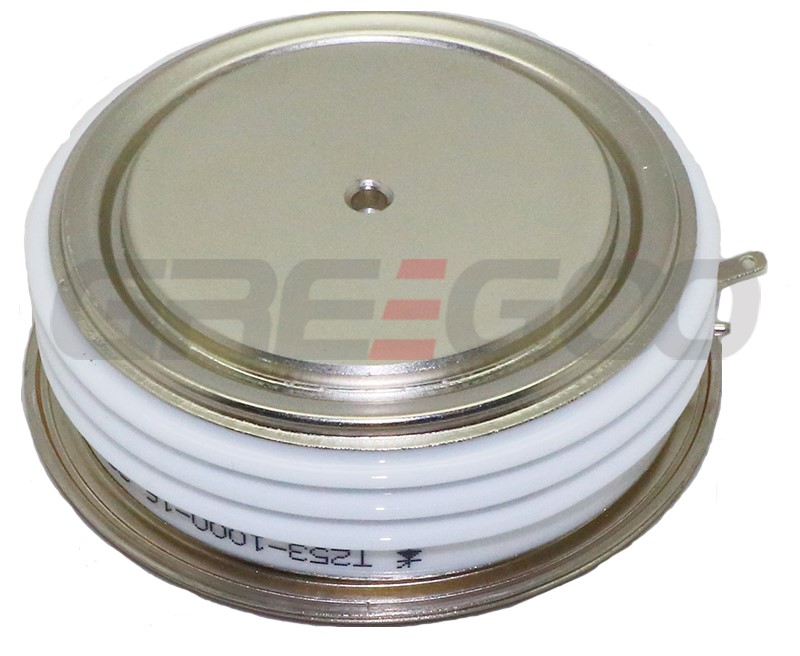

T253 Phase Control Thyristor
|
UDRM, URRM, V |
ITAV (Tc), A (°C) |
ITSM, kA |
UTM (ITM), V (A) |
(duD/dt)crit, V/µs |
tq, µs |
(diT/dt)crit, A/ µs |
Rthjc, °C/W |
T253-1000 |
800-1800 |
1000 (85) |
24,5 |
1,80 (3140) |
200 320 500 1000 1600 |
500 400 320 250 |
800 200 |
0,02 |

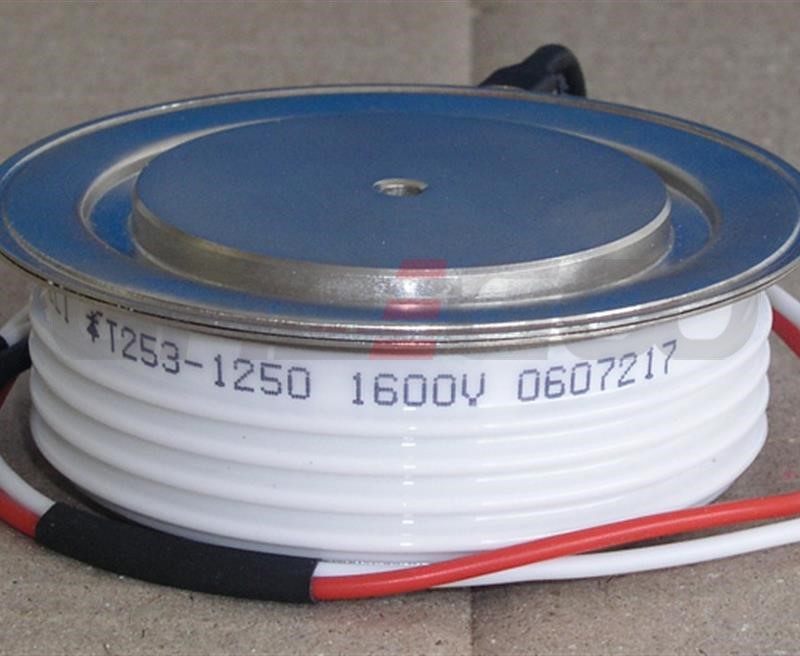

T253-1250 |
800-1800 |
1250 (85) |
28 |
1,60 (3920) |
200 320 500 1000 1600 |
500 400 320 250 |
800 200 |
0,018 |
T253-1600 |
200-1000 |
1600 (85) |
30 |
1,50 (5020) |
200 320 500 1000 1600 |
250 200 160 |
800 200 |
0,016 |
T253-2000 |
200-1000 |
2000 (85) |
36 |
1,45 (6280) |
200 320 500 1000 1600 |
250 200 160 |
800 200 |
0,016 |
