Avalanche diode
Home Products Discrete Thyristor & RectifierCapsule Rectifier DiodeAvalanche diode
Avalanche diode
URRM, V |
IFAV (Tc), A (°C) |
IFRMS, А |
IFSM, kA |
UFM (IFM), V (A) |
PRSM (t=100μs), kW |
Rthjc, °C/W |
|

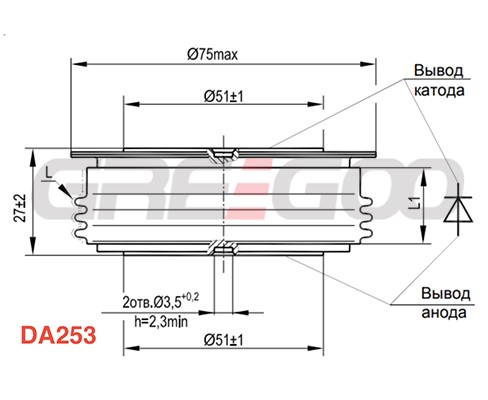

DA253-1600 |
2800-4200 |
1600 (85) |
2512 |
30 |
1,85 (5024) |
16 |
0,02 |
DA253-2000 |
1600-3800 |
2000 (85) |
3140 |
33 for 16-32 class; 30 for 34-38 class |
1,70 for 16-24 class; 1,80 for 26-38 class (6280) |
16 |
0,02 |
DA253-2500 |
1600-3600 |
2500 (85) |
3925 |
36 for 16-32 class; 33 for 34-36 class |
1,65 for 16-24 class; 1,70 for 26-36 class (7850) |
16 |
0,02 |
URRM, V |
IFAV (Tc), A (°C) |
IFRMS, А |
IFSM, kA |
UFM (IFM), V (A) |
PRSM (t=100μs), kW |
Rthjc, °C/W |
|

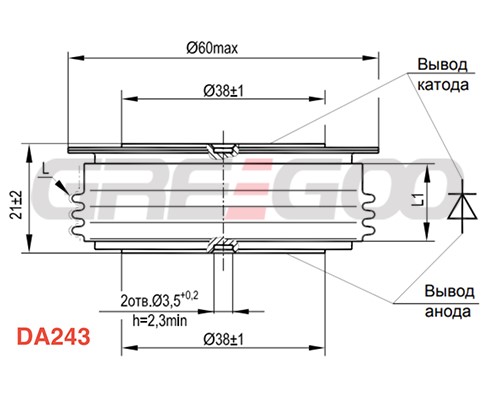

DA243-800 |
1800-2400 |
800 (110) |
1256 |
12 |
1,65 (2512) |
16 |
0,027 |
URRM, V |
IFAV (Tc), A (°C) |
IFRMS, А |
IFSM, kA |
UFM (IFM), V (A) |
PRSM (t=100μs), kW |
Rthjc, °C/W |
|

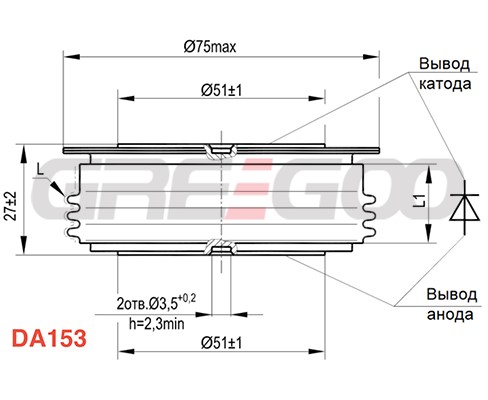

DA153-1250 |
2200-3200 |
1250 (100) |
1960 |
26 |
1,95 (3925) |
16 |
0,02 |
