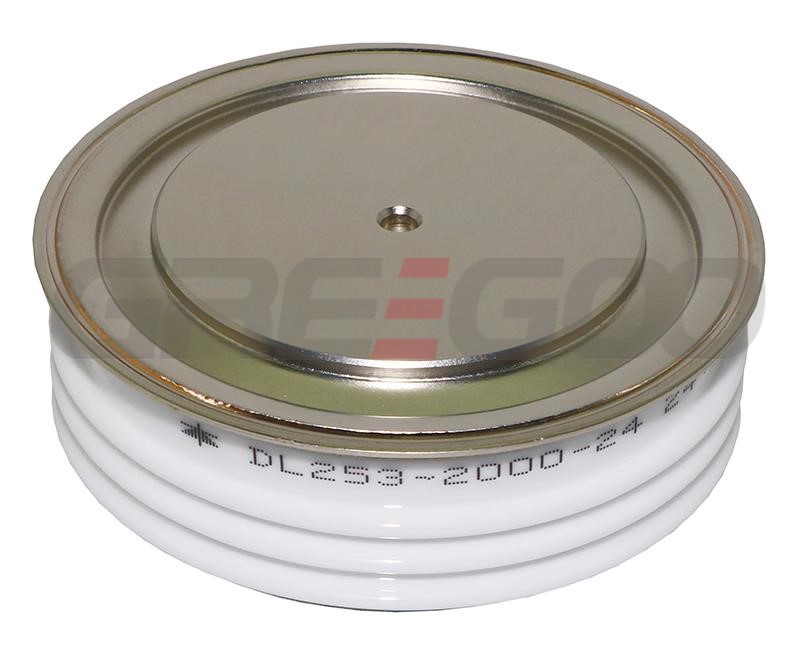

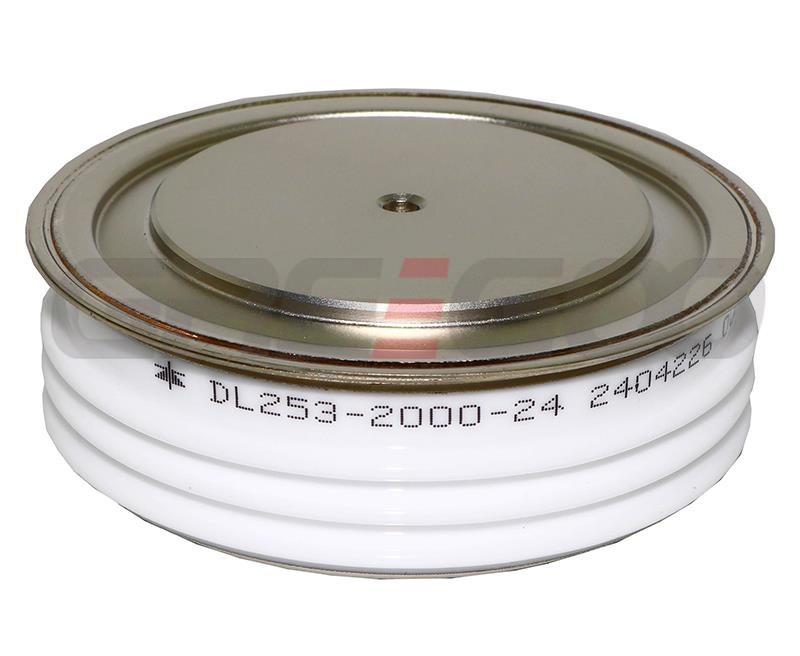

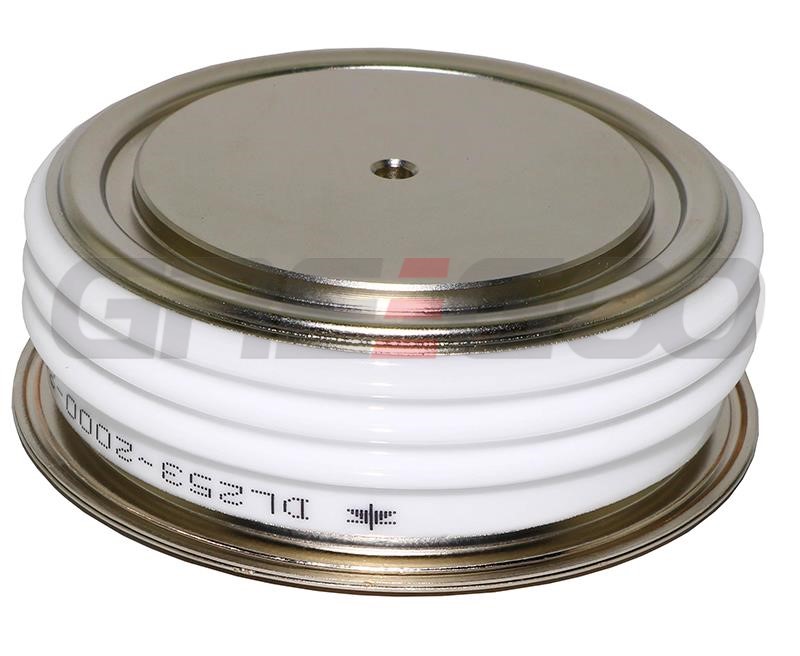

DL253-2000 Capsule version avalanche rectifier diode
Features
-

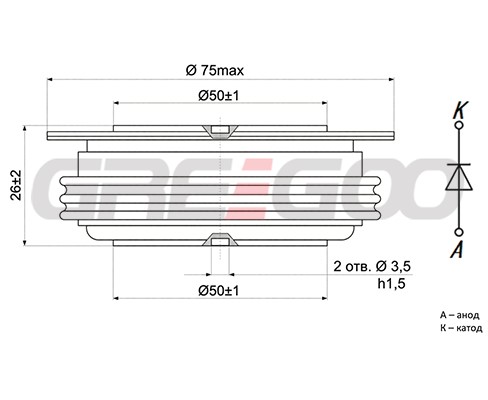

Metal case with ceramic insulator
-
High surge current capabilities
-
High power cycling capability
-
Low on-state and switching losses
Typical Applications
-
AC/DC Converters
-
DC Power supplies
-
Machine tool controls

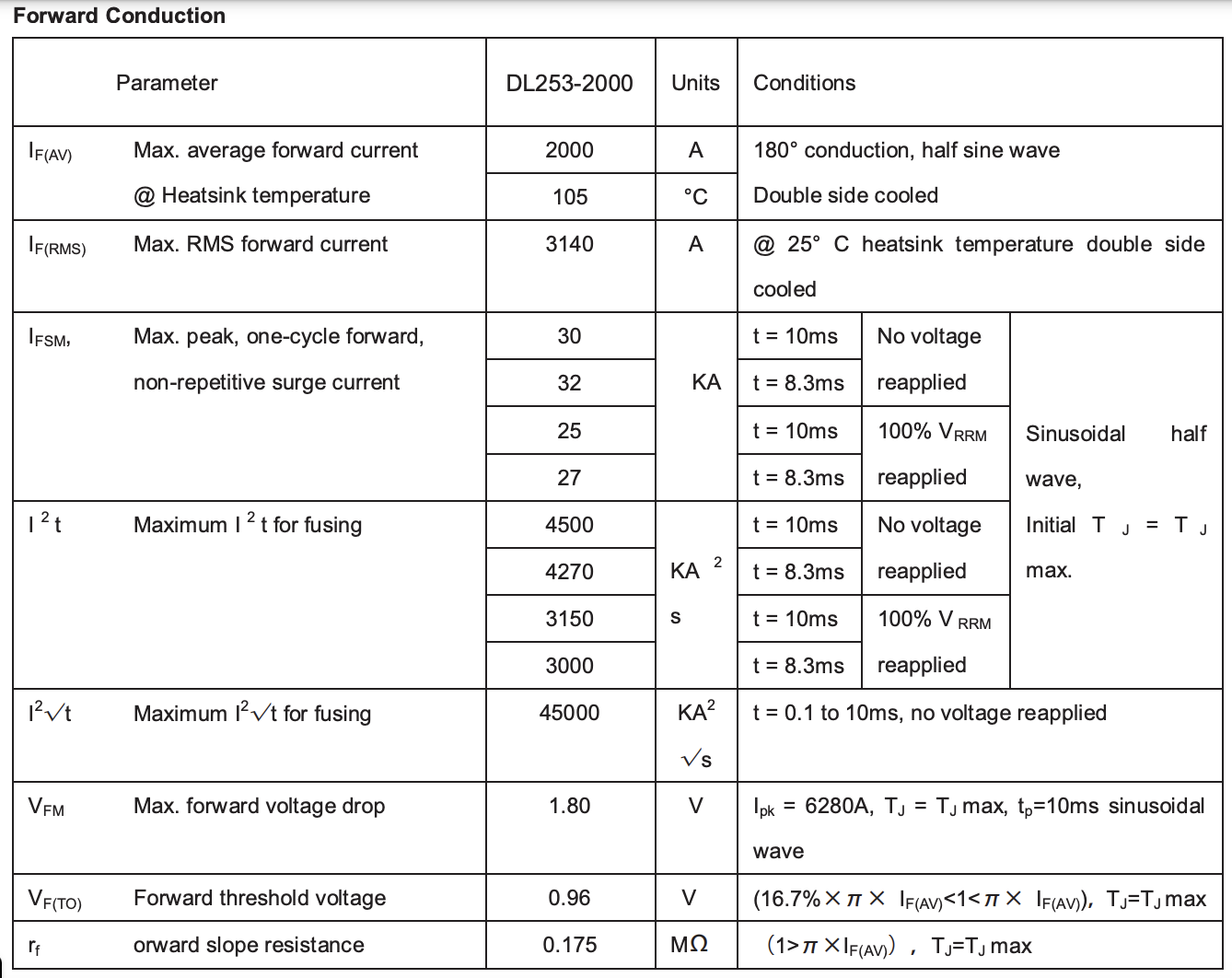

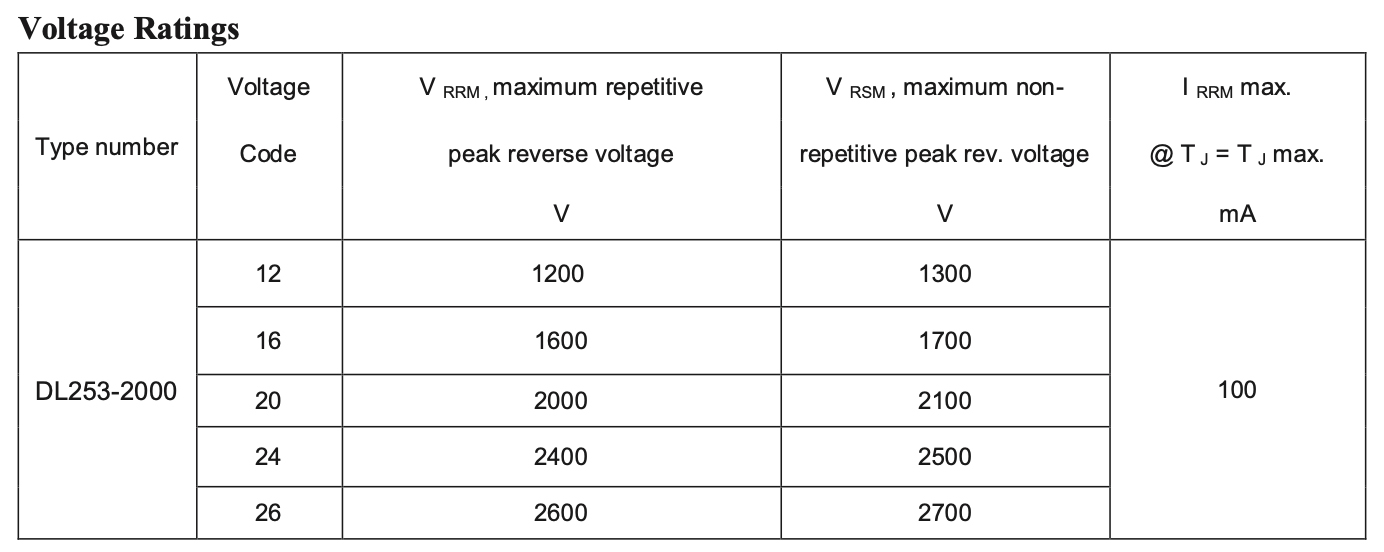

URRM, V |
IFAV (Tc), A (°C) |
IFRMS, А |
IFSM, kA |
UFM (IFM), V (A) |
PRSM (t=100μs), kW |
Rthjc, °C/W |
|
DA253-1600 DL253-1600 |
2800-4200 |
1600 (85) |
2512 |
30 |
1,85 (5024) |
16 |
0,02 |
DA253-2000 DL253-2000 |
1600-3800 |
2000 (85) |
3140 |
33 for 16-32 class; 30 for 34-38 class |
1,70 for 16-24 class; 1,80 for 26-38 class (6280) |
16 |
0,02 |
DA253-2500 DL253-2500 |
1600-3600 |
2500 (85) |
3925 |
36 for 16-32 class; 33 for 34-36 class |
1,65 for 16-24 class; 1,70 for 26-36 class (7850) |
16 |
0,02 |
