Standard Recovery Diode 30/40/50/60/70/85F(R)
| Type | IF(AV) | VFM/IFM | IFRMS | VRRM | IRRM | Rjc | M2 | Wt | Outline | |
| THS55℃ | 25℃ | |||||||||
| A | V | A | A | V | mA | ℃/W | N/m | kg | ||

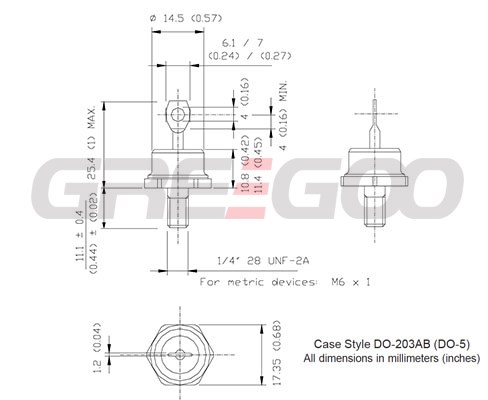

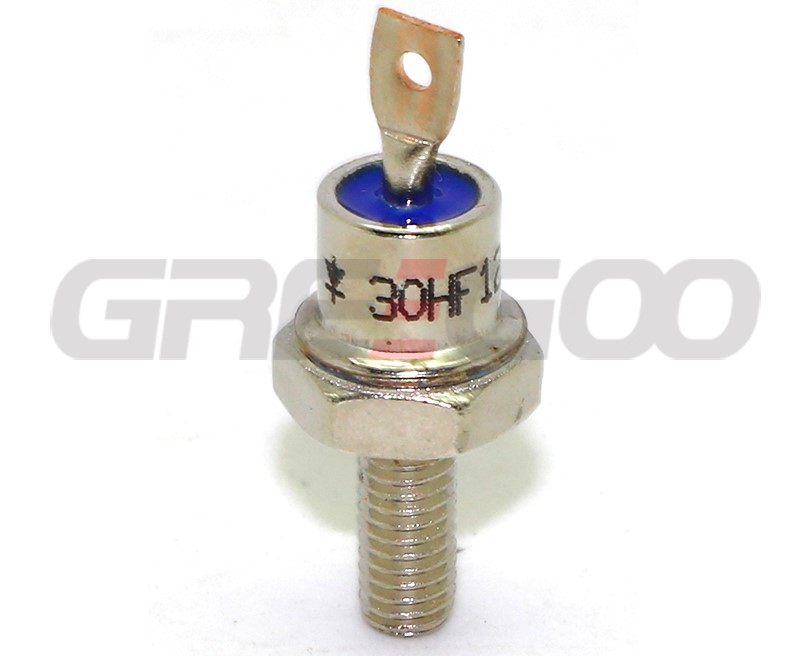

| 30HF(R) | 30 | 1.3 | 90 | 48 | 200-1200 | ≤10 | ≤0.8 | ≤2.0 | 0.02 | DO-5 |

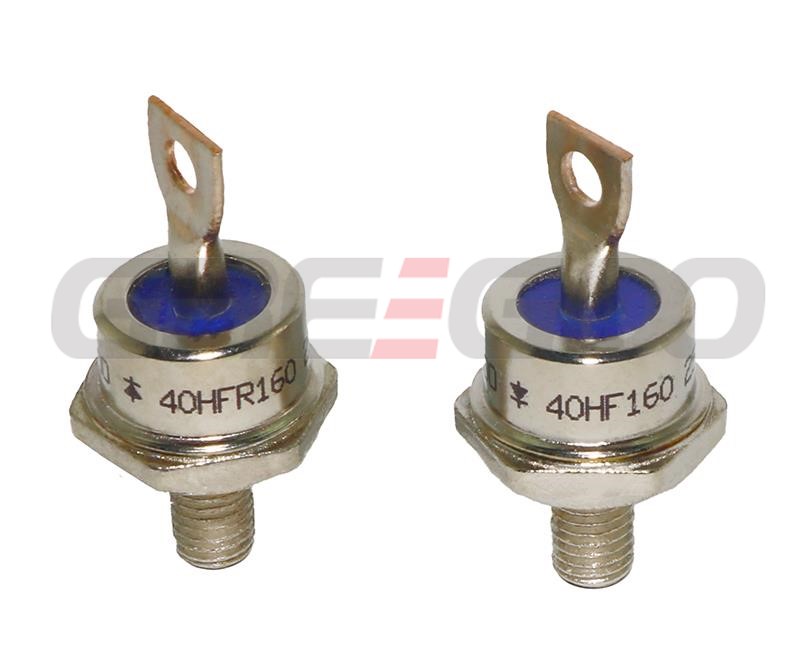

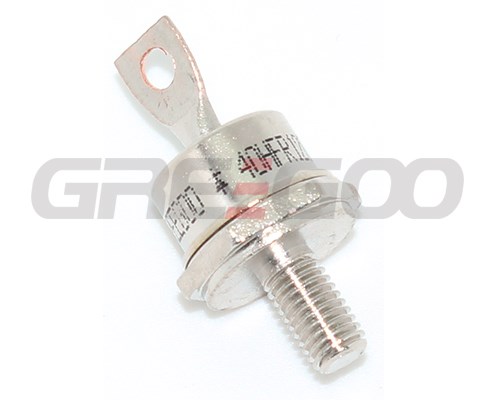

| 40HF(R) | 40 | 1.3 | 120 | 64 | 200-1200 | ≤10 | ≤0.8 | ≤2.0 | 0.02 | |

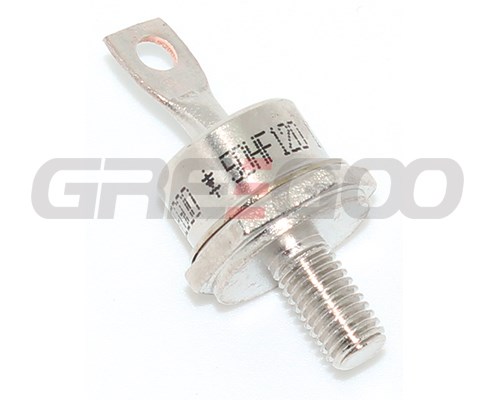

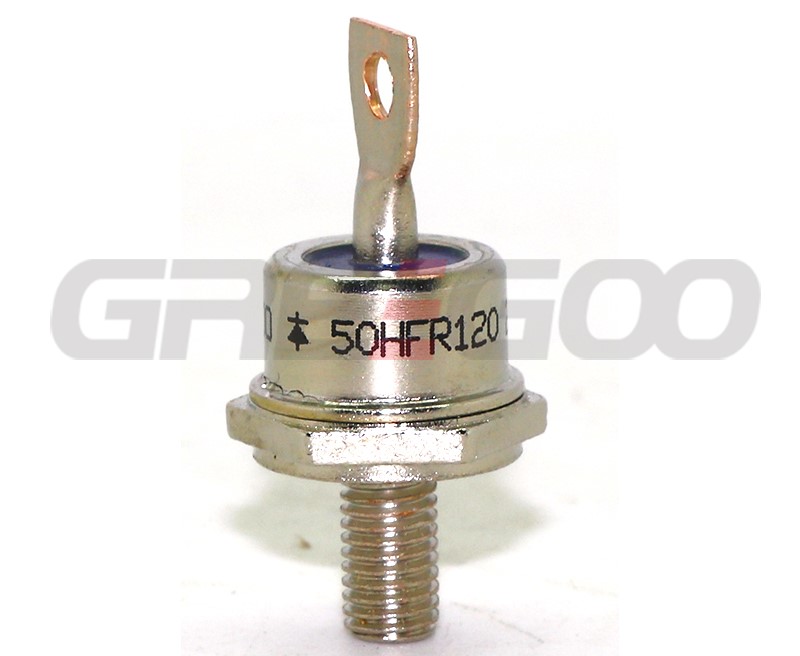

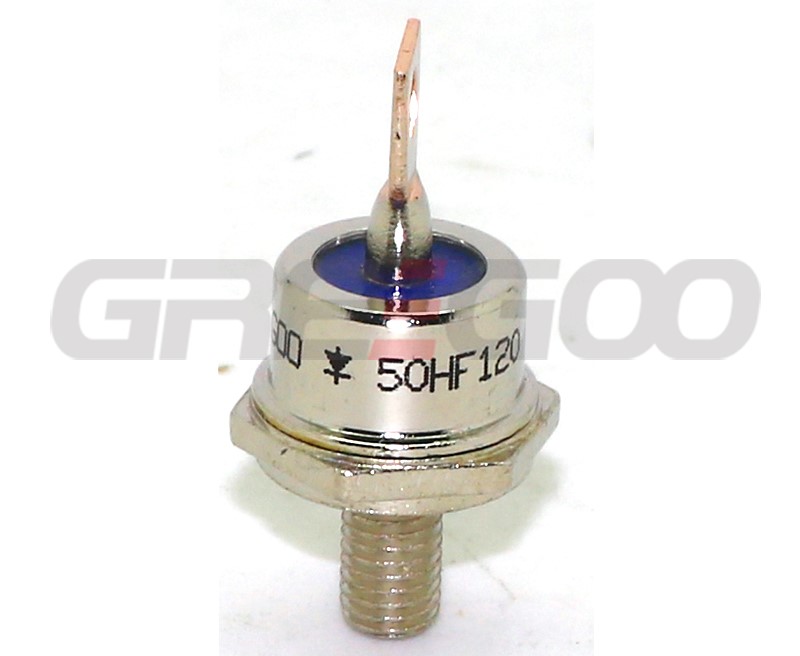

| 50HF(R) | 50 | 1.4 | 150 | 80 | 200-1200 | ≤10 | ≤0.8 | ≤2.0 | 0.02 | |

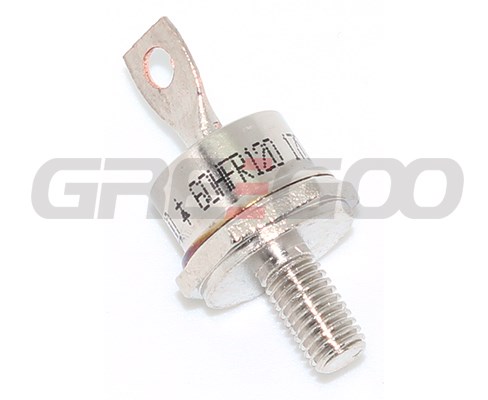

| 60HF(R) | 60 | 1.4 | 180 | 96 | 200-1200 | ≤12 | ≤0.6 | ≤2.0 | 0.02 | |

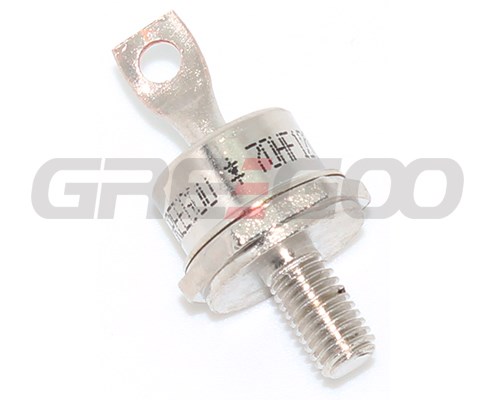

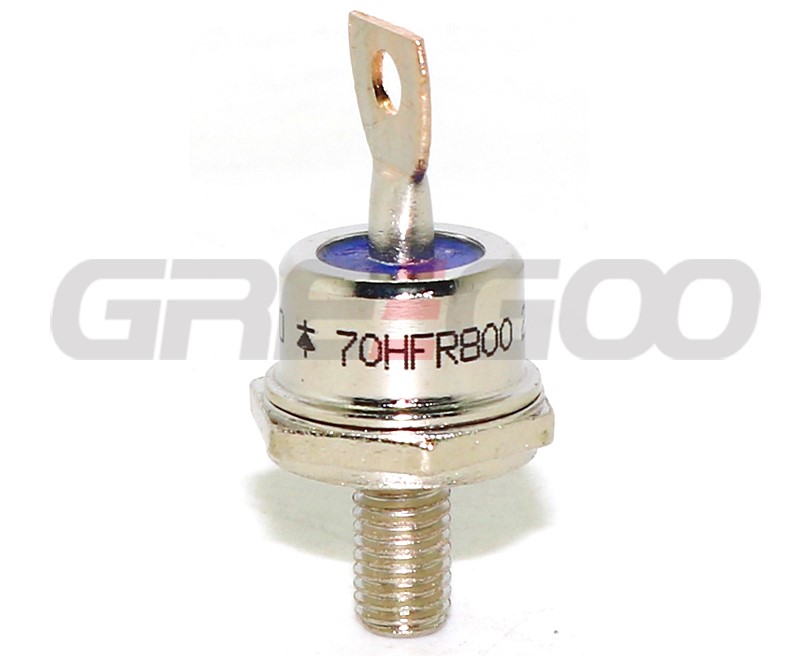

| 70HF(R) | 70 | 1.45 | 210 | 112 | 200-1600 | ≤12 | ≤0.5 | ≤2.0 | 0.02 | |

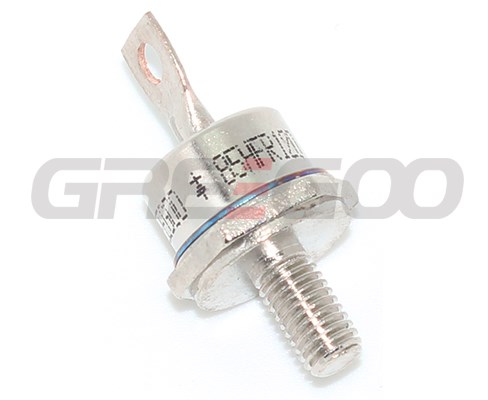

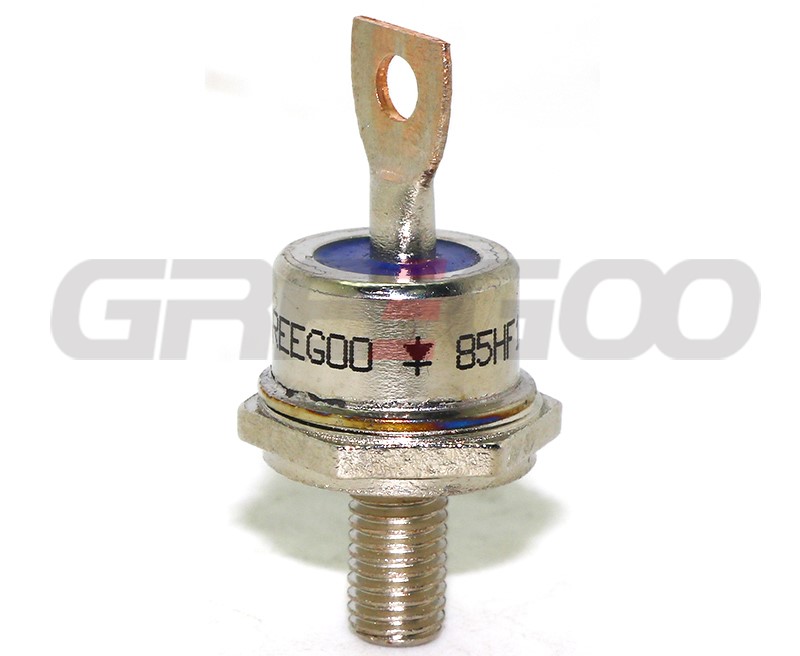

| 85HF(R) | 85 | 1.45 | 255 | 136 | 200-1600 | ≤12 | ≤0.4 | ≤2.0 | 0.02 | |
