Standard Recovery Diode 200/250/300U(R)
Home Products Stud Rectifier DiodeVishay Stud DiodeStandard Recovery Diode 200/250/300U(R)
Product Details

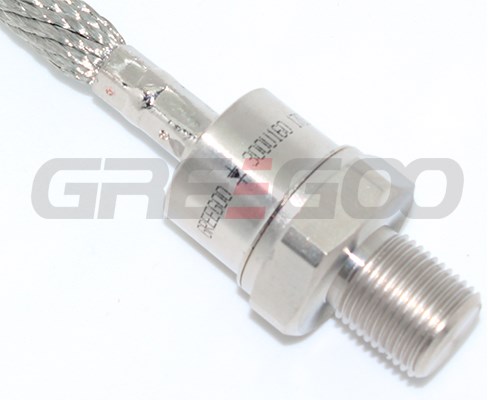

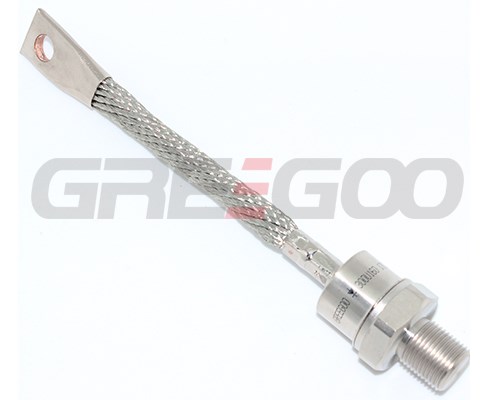

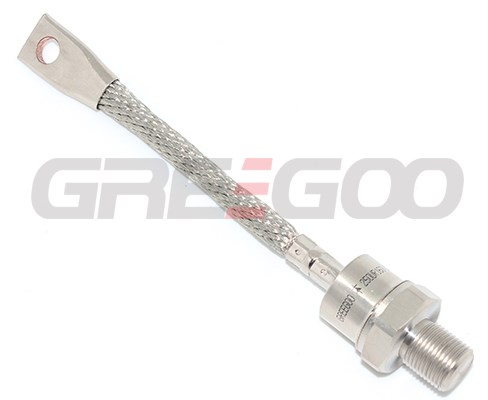

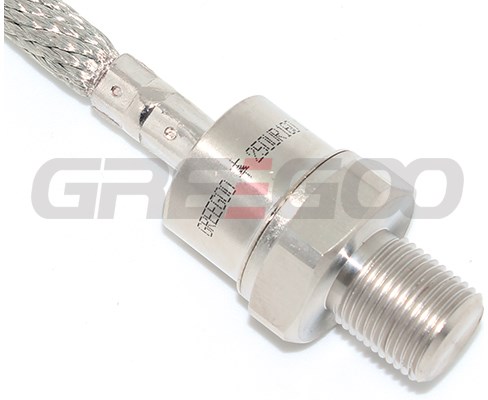

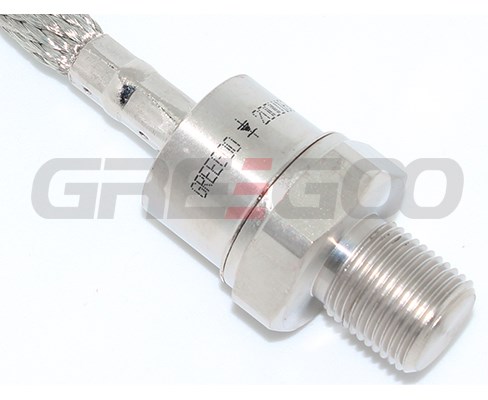

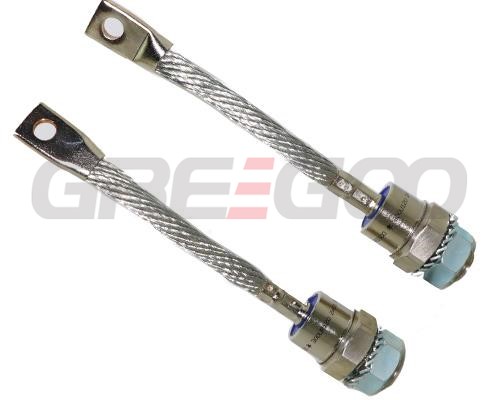

Standard Recovery Diode 200/250/300U(R)
| Type | IF(AV) | VFM/IFM | IFRMS | VRRM | IRRM | Rjc | M2 | Wt | Outline | |
| THS55℃ | 25℃ | |||||||||
| A | V | A | A | V | mA | ℃/W | N/m | kg | ||

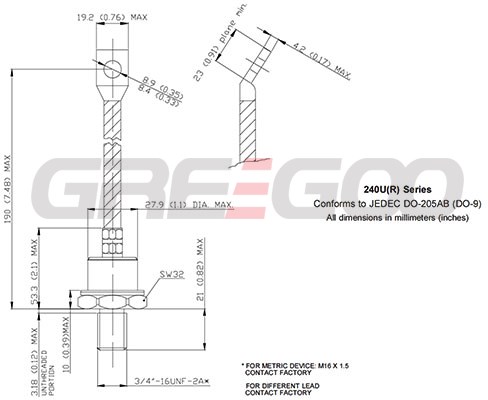

| 200U(R) | 200 | 1.3 | 600 | 320 | 200-1800 | ≤20 | ≤0.2 | ≤12 | 0.25 | DO-9 |
| 250U(R) | 250 | 1.35 | 750 | 400 | 200-1800 | ≤20 | ≤0.15 | ≤25 | 0.25 | |
| 300U(R) | 300 | 1.35 | 900 | 480 | 200-1800 | ≤20 | ≤0.15 | ≤25 | 0.25 | |
