Standard Recovery Diode 6/12/16/25F(R)
Home Products Stud Rectifier DiodeVishay Stud DiodeStandard Recovery Diode 6/12/16/25F(R)
Product Details
Standard Recovery Diode 6/12/16/25F(R)
| Type | IF(AV) | VFM/IFM | IFRMS | VRRM | IRRM | Rjc | M2 | Wt | Outline | |
| THS55℃ | 25℃ | |||||||||
| A | V | A | A | V | mA | ℃/W | N/m | kg | ||

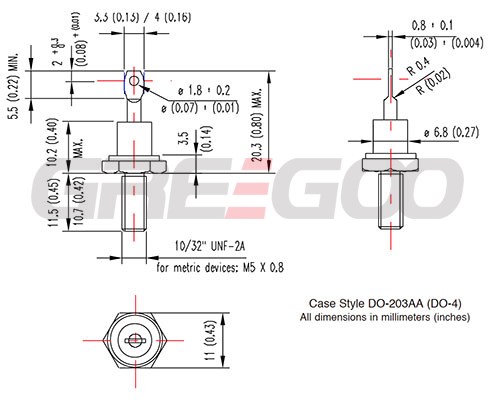

| 6F(R) | 6 | 1.1 | 18 | 9 | 200-1200 | ≤6 | ≤2.0 | ≤1.0 | 0.008 | DO-4 |

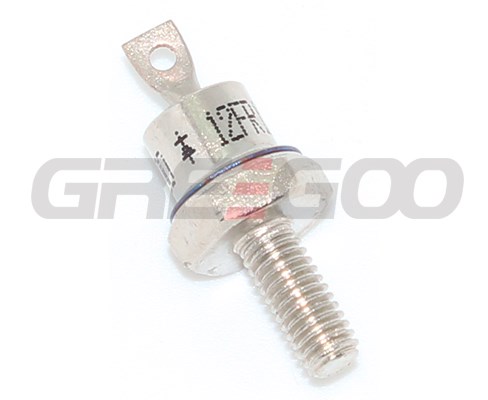

| 12F(R) | 12 | 1.25 | 36 | 190 | 200-1200 | ≤6 | ≤1.2 | ≤1.0 | 0.008 | |

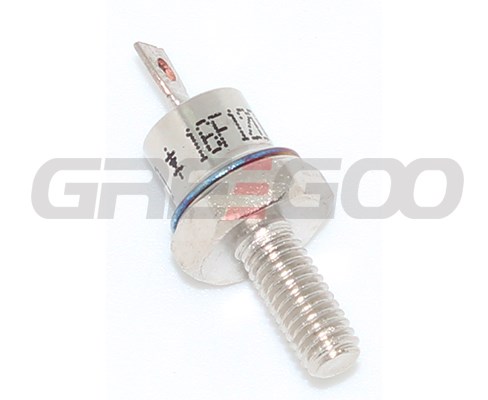

| 16F(R) | 16 | 1.25 | 48 | 25 | 200-1200 | ≤12 | ≤1.2 | ≤1.0 | 0.008 | |

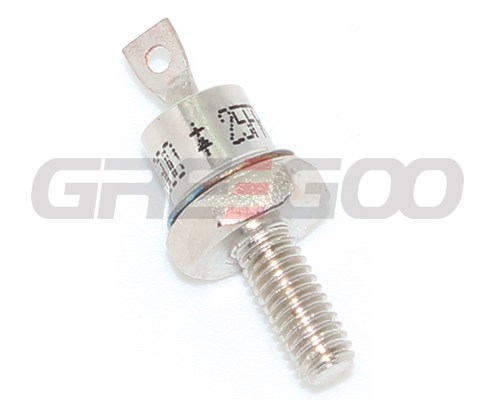

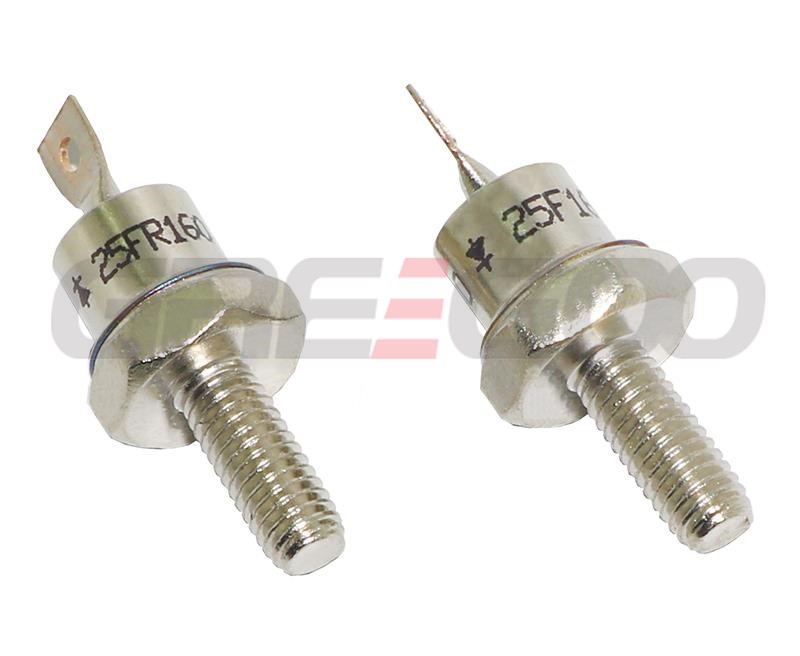

| 25F(R) | 25 | 1.1 | 75 | 40 | 200-1200 | ≤12 | ≤1.2 | ≤1.0 | 0.008 | |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
Related Products
Standard Recovery Diode 100/150U(R)L
Standard Recovery Diode 100/150U(R)L
View More
Standard Recovery Diode 30/40/50/60/70/85F(R)
Standard Recovery Diode 30/40/50/60/70/85F(R)
View More

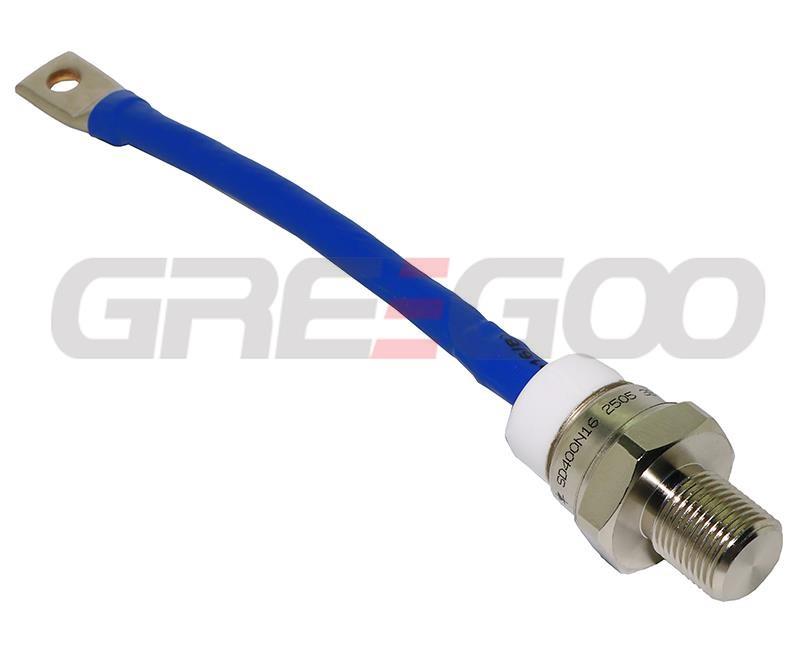

Standard Recovery Diode SD400/500/600N(R)
