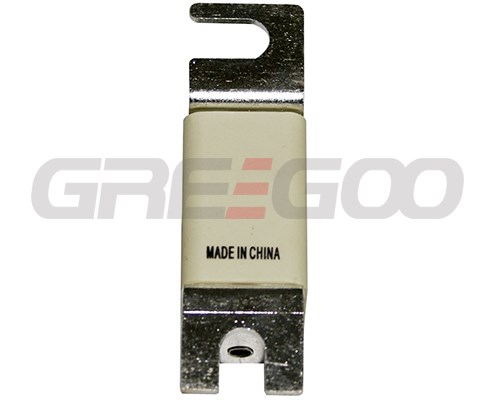

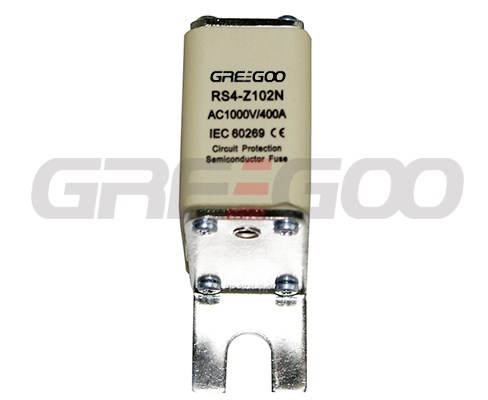

RS4 Semiconductor Fuse
Home Products Stud Screw Fit ThyristorSemiconductor FusesRS4 Semiconductor Fuse
Product Details
RS4 Semiconductor Fuse
Specification
| Model | Rated voltage(V) | Rated current(A) | Breaking capacity(KA) | Cooling mode |
| RS4-□/□ -L100N | 380,800 | 25,32,40,50,63,80,100,125 | ≥100 | self cooling |
| RS4-□/□ -L101N | 380, 600,1000 | 100,125,160,210,250 | ||
| RS4-□/□ -P101N | 500, 800, 1000, 1500 | 32,40,50,63,80,100,105,160,200,250,280,315,355 | ||
| RS4-□/□ -Z102N | 380, 660,1000 | 200,250,280,315,355,1000 | ||
| RS4-□/□ -Z103N | 380, 660,1000 | 355,400,450,500,560,1000 | ||
| RS4-□/□ -Z104N | 500, 800,1000 | 450, 500, 560,630,700,750,800,900,1000 |
Download
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
