Product Details

A25-250V/100A~800A Semiconductor Fuse

Usage and range

A25(T25) Series stud-connection fuse is applicable for AC 50Hz or 60Hz, rated voltage 250V, rated current 800A and the below industrial electrical device, which for over-load and short-circuit protection.

Specification

Model	Rated voltage (V)	Rated current (A)	Rated breaking capacity	Rated consumption power (W)	Rated frequency

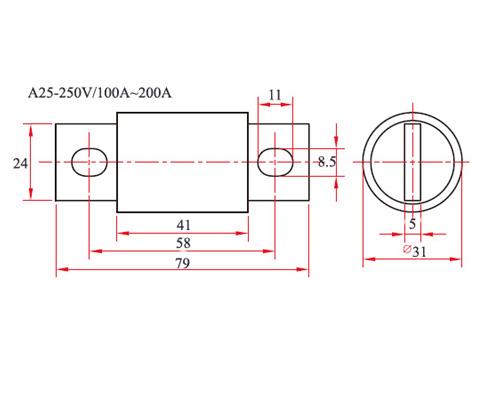

A25-250V/100A	AC 250V	100, 150, 200	100 KA	≤12	50Hz or 60Hz
A25-250V/150A
A25-250V/200A

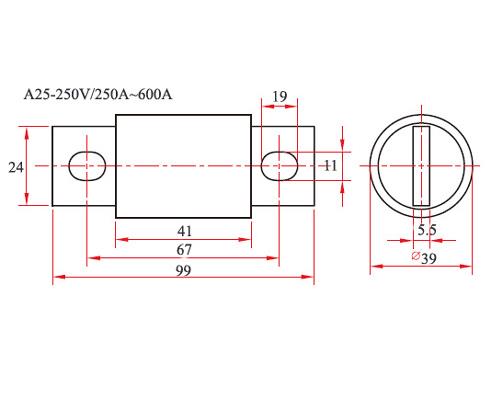

A25-250V/250A		250, 300, 350, 400, 450,500, 600		≤45
A25-250V/300A
A25-250V/350A
A25-250V/400A
A25-250V/450A
A25-250V/500A
A25-250V/600A

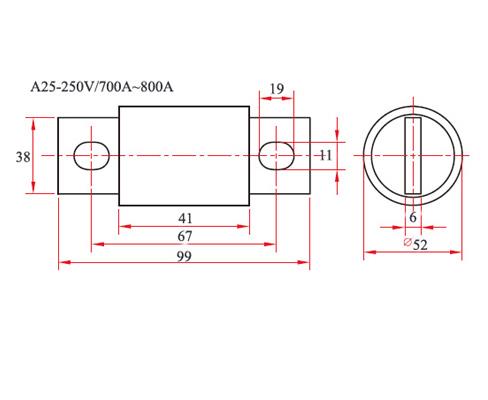

A25-250V/700A		700, 800		≤60
A25-250V/800A
