High Frequency Inverter Thyristors
High Frequency Inverter Thyristors, High Frequency Thyristor
Features:
• All diffused structure
• Distributed gate design
• Excellent dynamic performance
• Excellent high frequency performance, 2.5KHz-10kHz
• Fast switching performance
• Low switching loss
Applications:
• Inverter
• Chopper
• Induction heating
• All kinds of forced converters
| Type | VDRMVRRM | IT(AV) | tq | ITSM | I2t | di/dt | IDRM IRRM |
IGT | VTM/ITM | VTO | rT | Rth(j-hs) | Mounting Force |
Outline |
| THS 55℃ |
100℃ | 10ms | 115℃ | 25℃ | 115℃ | |||||||||
| V | A | us | KA | KA2s | A/us | mA | mA | V/A |
V |
m.ohm | ℃/W | KN | ||
| G30KAC | 800-1100 | 200 | 8-10 | 2.4 | 29 | 200 | 30 | 30-200 | 3.2/600 | 1.45 | 1.12 | 0.055 | 5.3-10 | 25/42/14.6 |
| G30KAD | 1200-1400 | 200 | 10-14 | 2.4 | 29 | 200 | 30 | 30-200 | 3.2/600 | 1.67 | 1.32 | 0.055 | 5.3-10 | 25/42/14.6 |
| G38KAB | 600-1000 | 600 | 6-8 | 6.0 | 180 | 200 | 40 | 30-250 | 3.2/1200 | 1.40 | 0.48 | 0.035 | 10-20 | 34/58.5/26.5 |
| G38KAC | 800-1100 | 600 | 8-10 | 4.8 | 115 | 200 | 40 | 30-250 | 3.2/1200 | 1.48 | 0.67 | 0.035 | 10-20 | 34/58.5/26.5 |

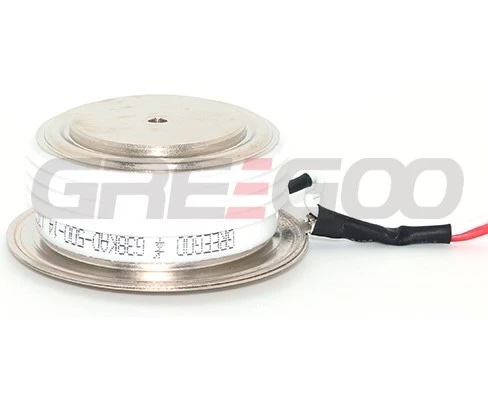

| G38KAD | 1200-1400 | 500 | 10-14 | 3.6 | 65 | 200 | 40 | 30-250 | 3.2/900 | 1.50 | 0.88 | 0.035 | 10-20 | 34/58.5/26.5 |
| G40KAD | 1200-1400 | 500 | 10-14 | 6.0 | 180 | 200 | 50 | 30-250 | 3.2/1500 | 1.70 | 0.48 | 0.032 | 15-20 | 42/66/26.5 |
| G40KAC | 800-1100 | 600 | 8-10 | 7.2 | 260 | 250 | 50 | 30-250 | 3.2/1800 | 1.43 | 0.50 | 0.032 | 15-20 | 42/66/26.5 |
| G45KAD | 1200-1400 | 600 | 12-16 | 7.2 | 260 | 250 | 60 | 30-250 | 3.2/1800 | 1.61 | 0.45 | 0.030 | 18-25 | 45/69/26.9 |
| G45KAC | 800-1100 | 800 | 8-15 | 9.6 | 461 | 250 | 60 | 30-250 | 3.2/2400 | 1.41 | 0.45 | 0.030 | 18-25 | 45/69/26.9 |
| G50KAD | 1200-1400 | 800 | 12-16 | 9.6 | 461 | 250 | 80 | 30-250 | 3.2/2400 | 1.65 | 0.36 | 0.024 | 19-26 | 47/74/26.9 |
| G50KAC | 800-1100 | 1000 | 8-15 | 12 | 720 | 250 | 80 | 30-300 | 3.2/3000 | 1.32 | 0.32 | 0.024 | 19-26 | 47/74/26.9 |
| G55KAD | 1200-1400 | 1000 | 12-16 | 12 | 720 | 250 | 100 | 30-300 | 3.2/3000 | 1.63 | 0.25 | 0.022 | 21-30 | 55/84/26.9 |
| G55KAC | 800-1100 | 1200 | 8-15 | 14 | 980 | 250 | 100 | 30-300 | 3.2/3000 | 1.27 | 0.23 | 0.022 | 21-30 | 55/84/26.9 |
Note:dv/dt:200V/us Tjm:115℃ VGT:0.8-3.0(G30KAC,G30KAD:0.8-2.5)
Dimension = Contact OD/Flange OD/Height(mm)
