High Voltage High Current Thyristors

Home Products Capsule Power SemiconductorsCapsule Phase Control ThyristorHigh Voltage High Current Thyristors

Product details

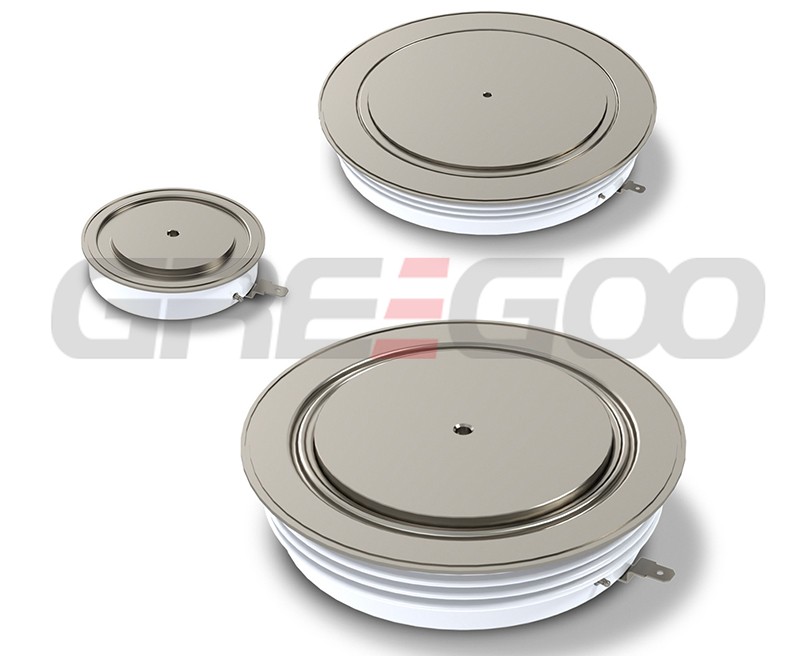

High Voltage High Current Thyristors

Type	IT(AV) (TC=70ºC)	VDRM VRRM	ITSM	I²t	VT0	rT	Tvj max	Rth(j-c)	W	Dimensions ØDxØdxH
Type	A	V	kA	kA²·s	V	mΩ	ºC	K/W	g	mm
G24KPA	550	200-600	8	320	0.75	0.36	125	0.08	60	42x19x14
G30KPA	860	200-600	12	720	0.73	0.33	125	0.045	80	42x25x15
G38KPA	1300	200-600	18	1620	0.76	0.14	125	0.035	250	58.5x34x26
G50KPA	2150	200-600	32	5120	0.75	0.1	125	0.02	170	74x47x26
G24KPC	450	400-1000	5	125	0.75	0.7	125	0.08	60	42x19x13
G30KPC	850	400-1000	9	405	0.7	0.35	125	0.045	80	42x25x15
G35KPC	920	400-1000	11	605	0.8	0.4	125	0.035	240	58.5x34x26
G38KPC	960	400-1000	13	845	0.8	0.35	125	0.035	250	58.5x34x26
G40KPC	1150	400-1000	15	1125	0.85	0.3	125	0.028	320	66x42x26
G45KPC	1340	400-1000	20	2000	0.88	0.25	125	0.024	380	69x45x26
G50KPC	1900	400-1000	30	4500	0.89	0.12	125	0.02	440	74x47x26
G60KPC	2160	400-1000	33	5445	0.95	0.12	125	0.016	640	84x55x26
G65KPC	2500	400-1000	35	6125	0.75	0.11	125	0.013	650	100x63x26
G70KPC	3170	400-1000	38	7220	0.82	0.08	125	0.012	880	100x63x26
G76KPC	3700	400-1000	60	18000	0.85	0.07	125	0.01	1100	110x73x26
G89KPC	4900	400-1000	66	21780	0.88	0.06	125	0.007	1390	118x84x26
G100KPC	6400	400-1000	74	27380	0.85	0.055	125	0.005	2000	142x100x26
G24KPE	360	1100-1800	4.65	108	0.85	1.2	125	0.08	60	42x19x14
G30KPE	600	1100-1800	7.5	281	0.88	0.8	125	0.04	80	42x25x14
G38KPE	890	1100-1800	11	605	0.85	0.42	125	0.035	250	58.5x34x26
G40KPE	1070	1100-1800	12	720	0.91	0.35	125	0.028	320	66x42x26

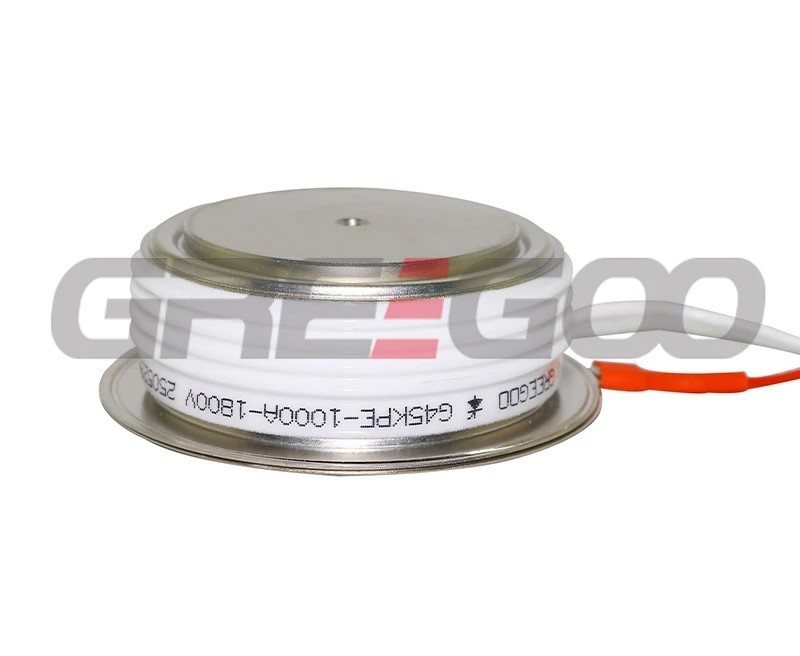

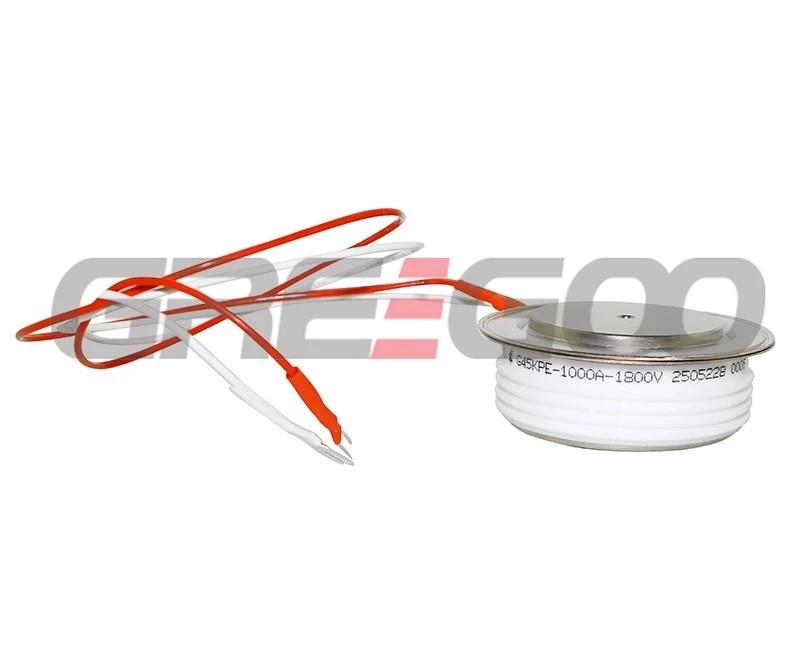

G45KPE	1250	1100-1800	13	845	0.93	0.29	125	0.024	380	69x45x26
G50KPE	1540	1100-1800	24	2880	0.91	0.23	125	0.02	440	74x47x26
G55KPE	1760	1100-1800	26	3380	0.95	0.18	125	0.018	590	84x55x26
G60KPE	2000	1100-1800	30	4500	0.98	0.15	125	0.016	640	84x55x26
G65KPE	2460	1100-1800	35	6125	0.87	0.14	125	0.013	820	100x63x26
G70KPE	2670	1100-1800	38	7220	0.8	0.14	125	0.012	880	100x63x26
G76KPE	3440	1100-1800	51	13005	0.84	0.09	125	0.01	1100	110x73x27
G38KPH	897	1900-3000	10	500	1.2	0.78	125	0.028	320	66x42x26
G50KPH	1240	1900-3000	20	2000	1.11	0.36	125	0.02	440	74x47x27
G55KPH	1430	1900-3000	18	1620	0.97	0.27	125	0.018	590	84x55x27
G65KPH	1800	1900-3000	23.6	2785	0.98	0.21	125	0.016	640	84x55x27
G70KPH	2070	1900-3000	28	3920	1.07	0.19	125	0.012	880	100x63x27
G76KPH	2530	1900-3000	32	5120	1.05	0.18	125	0.01	1100	110x73x27
G89KPH	3860	1900-3000	44	9680	0.99	0.11	125	0.007	1390	118x84x27
G100KPH	5290	1900-3000	65	21125	0.91	0.09	125	0.005	2000	142x100x27
G38KPJ	510	3100-4200	7	245	1.18	1.5	125	0.035	250	58.5x34x26
G50KPJ	1050	3100-4200	13	845	1.14	0.57	125	0.02	440	74x47x27
G65KPJ	1640	3100-4200	20	2000	1.17	0.35	125	0.013	820	100x63x27
G76KPJ	2110	3100-4200	27	3645	1.15	0.28	125	0.01	1100	110x73x27
G89KPJ	3230	3100-4200	40	8000	1	0.18	125	0.007	1390	118x84x27
G100KPJ	4790	3100-4200	60	18000	0.88	0.12	125	0.005	2000	142x100x27
G38KPM	530	4300-5200	4.5	101	1.45	1.15	125	0.035	250	58.5x34x26
G50KPM	930	4300-5200	10	500	1.04	0.84	125	0.02	440	74x47x27
G65KPM	1330	4300-5200	17	1445	1.3	0.58	125	0.013	820	100x63x27
G76KPM	1880	4300-5200	24	2880	1.3	0.35	125	0.01	1100	110x73x27
G89KPM	2840	4300-5200	34	5780	1.09	0.24	125	0.007	1390	118x84x27
G100KPM	3650	4300-5200	45	10125	1.13	0.21	125	0.005	2000	142x100x27
H38KPJ	520	3600-4500	6	180	1.1	1.3	125	0.035	240	58x34x26
H50KPJ	1100	3600-4500	15	1125	1	0.5	125	0.02	440	74x47x26
H38KPN	400	4500-5500	4.5	101	1.08	1.92	125	0.045	300	58.5x34x35
H38KPN	440	4500-5500	4.5	101	1.08	1.92	125	0.035	250	58.5x34x26
H50KPN	850	4500-5500	12	703	1.07	0.83	125	0.022	560	74x47x35
H50KPN	920	4500-5500	12	703	1.07	0.83	125	0.02	440	74x47x26
H76KPN	1800	4500-5500	22	2420	1.01	0.36	125	0.011	1140	110x63x35
H76KPN	1920	4500-5500	22	2420	1.01	0.36	125	0.01	880	101x63x26
H89KPN	2300	4500-5500	32	5120	1.03	0.25	125	0.009	1920	118x78x36
H100KPN	3500	4500-5500	45	10130	1.02	0.21	125	0.0057	2500	142.3x100x35
H125KPN	5010	4500-5500	72	25920	1.02	0.14	125	0.004	3420	170x110x35
H38KPR	350	5600-6500	4.5	101	1.25	2.2	125	0.045	300	58.5x34x35
H38KPR	420	5600-6500	4.5	101	1.25	2.2	125	0.035	250	58.5x34x26
G50KPR	720	5600-6500	11.8	696	1.25	1.03	125	0.022	560	74x47x35
H50KPR	830	5600-6500	11.8	696	1.25	1.03	125	0.02	440	74x47x26
G65KPR	1000	5600-6500	18	1620	1.21	0.7	125	0.014	1100	98.5x63x35
H65KPR	1150	5600-6500	18	1620	1.21	0.7	125	0.013	820	100x63x26
G76KPR	1800	5600-6500	22	2420	1.2	0.628	125	0.011	1140	110x63x35
H89KPR	1800	5600-6500	32	5120	1.22	0.42	125	0.009	1920	118x78x35
H100KPR	2800	5600-6500	45	10130	1.14	0.27	125	0.0057	2500	142.3x100x35
H125KPR	4200	5600-6500	71	25500	1.15	0.17	125	0.004	3420	170x110x35
H38KPS	320	6600-7200	4	80	1.13	3.1	125	0.045	300	58.5x34x35
H50KPS	650	6600-7200	6.4	205	1.28	1.32	125	0.022	560	74x47x36
