Gate Turn-Off Thyristor GTO Thyristor
Home Products Capsule Power SemiconductorsCapsule Phase Control ThyristorGate Turn-Off Thyristor GTO Thyristor
Gate Turn-Off Thyristor GTO Thyristor
Features:
• The positive or negative pulse signal triggers the device to turn on or turn off.
• Mainly used for high-power application beyond megawatt level.
• High withstand voltage, high current, strong surge resistance
Applications:
• Inverter of electric locomotive
• Dynamic reactive power compensation of power grid
• High power DC chopper speed regulation
| TYPE | VDRM | VRRM | IT(AV) | ITGQM @CS | ITSM | VTM | VTO | rT | TVJM | RthJC | Outline | |
| V | V | @80℃ | A / µF | @10ms | V | V | mΩ | ℃ | ℃/W | |||
| A | kA | |||||||||||

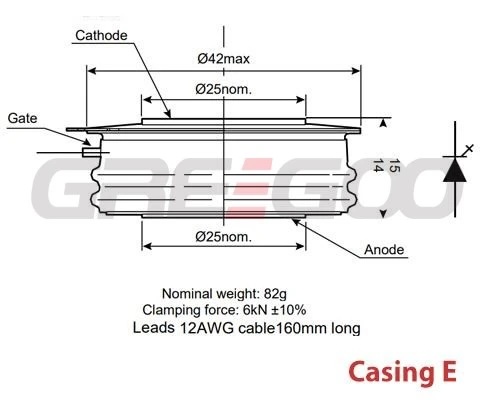

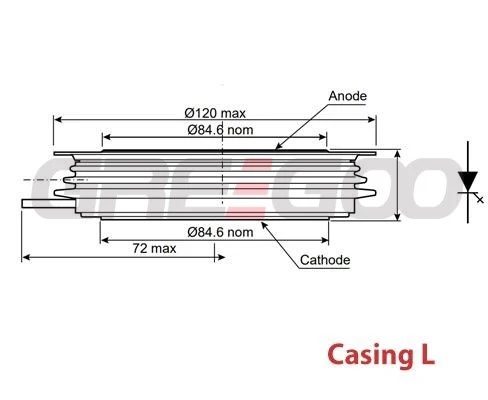

| SG07E1400 | 1400 | 100 | 250 | 700 | 2 | 4 | 2.2 | 1.2 | 0.5 | 125 | 0.075 | E |
| SG07E1700 | 1700 | 100 | 240 | 700 | 2 | 4 | 2.5 | 1.2 | 0.5 | 125 | 0.075 | E |
| SG05E2000 | 2000 | 100 | 200 | 500 | 1 | 4 | 2.5 | 1.3 | 0.57 | 125 | 0.065 | E |
| SG05D2500 | 2500 | 17 | 260 | 600 | 2 | 3 | 2.8 | 1.3 | 0.57 | 125 | 0.075 | D |

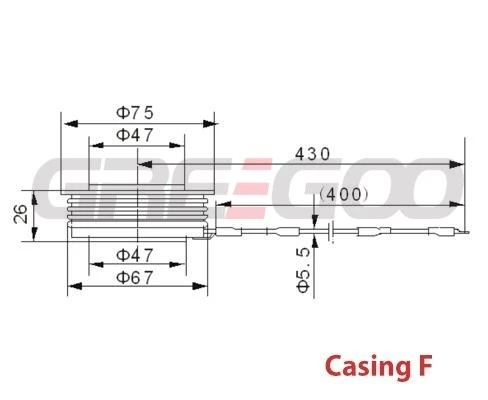

| SG10F2500 | 2500 | 17 | 830 | 1000 | 2 | 12 | 2.5 | 1.66 | 0.57 | 125 | 0.017 | F |
| SG15F2500 | 2500 | 17 | 570 | 1500 | 3 | 10 | 2.8 | 1.5 | 0.9 | 125 | 0.027 | F |

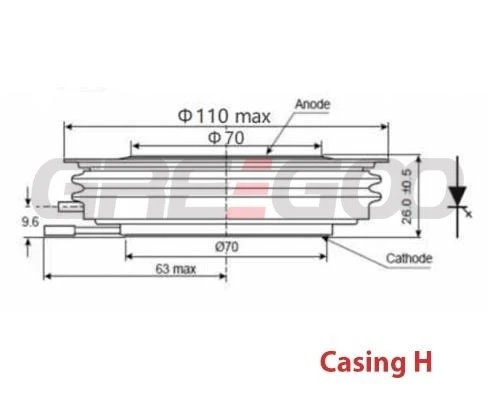

| SG20H2500 | 2500 | 17 | 830 | 2000 | 4 | 16 | 2.8 | 1.66 | 0.57 | 125 | 0.017 | H |
| SG25H2500 | 2500 | 17 | 867 | 2500 | 6 | 16 | 3.1 | 1.66 | 0.57 | 125 | 0.017 | H |

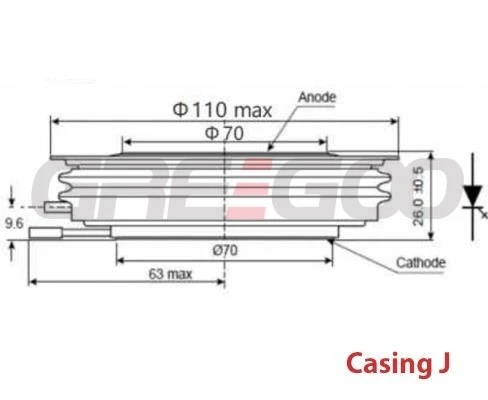

| SG30J2500 | 2500 | 17 | 1300 | 3000 | 5 | 30 | 2.5 | 1.5 | 0.33 | 125 | 0.012 | J |
| SG40L2500 | 2500 | 18 | 1380 | 4000 | 6 | 32 | 3 | 2 | 0.58 | 125 | 0.011 | L |
| SG06D4500 | 4500 | 17 | 260 | 600 | 1 | 3 | 4 | 1.9 | 0.5 | 125 | 0.05 | D |
| SG10F4500 | 4500 | 17 | 400 | 1000 | 1 | 6.5 | 4 | 1.9 | 0.35 | 125 | 0.03 | F |
| SG20H4500 | 4500 | 17 | 710 | 2000 | 4 | 13 | 3.5 | 1.8 | 0.85 | 125 | 0.017 | H |
| SG30J4500 | 4500 | 17 | 930 | 3000 | 6 | 24 | 4 | 2.2 | 0.6 | 125 | 0.012 | J |
| SG40L4500 | 4500 | 17 | 1000 | 4000 | 6 | 25 | 4.4 | 2.1 | 0.58 | 125 | 0.011 | L |

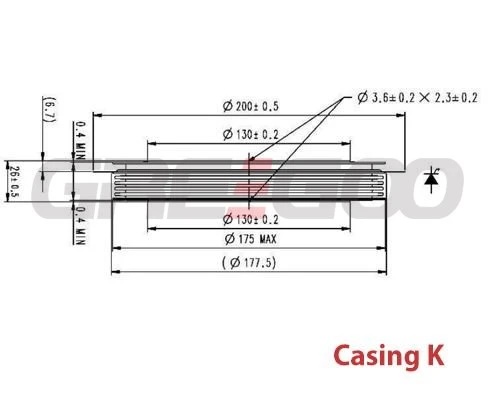

| SG60K6000 | 6000 | 22 | 1500 | 6000 | 6 | 40 | 6 | 3 | 0.85 | 125 | 0.011 | K |
Need more information?
Contact us to request pricing, availability and customization options.
