Fast thyristor 300A to 4000A 1200V to 4500V (TF series)
Fast Thyristors
For applications with frequencies higher than the domestic AC mains supply (e.g. 50 Hz or 60 Hz), thyristors with lower values of tq are required. Fast Thyristors have optimized turn-off parameters and are designed for general power switching applications, it is also called fast switching thyristors.
Features
- Double-side cooling
- Low switching loss
- Shorter turn-off time
Applications
- M.F. Inductive heating systems
- DC choppers
- Pulse electrical power supplies
| Type= VRRM/100 |
IT(AV)@ Tc=55oC |
VDRM VRRM | ITSM@ TVJM& 10ms |
VTM@ITM & TC=TVJM |
TVJM | RthJC | RthCH | tq@ TVJM |
F±10% | Outline | |
| A | V | kA | A | V | oC | K/W | K/W | K/W | kN | ||
| UP to 1200V | |||||||||||
| TF806-300 | 320 | 800-1200 | 4.1 | 600 | 2.35 | 125 | 0.08 | 0.02 | 20 | 5 | 19/42/13 |
| TF808-800 | 850 | 800-1200 | 10.7 | 1500 | 2.08 | 125 | 0.035 | 0.008 | 25 | 15 | 34/58/26 |

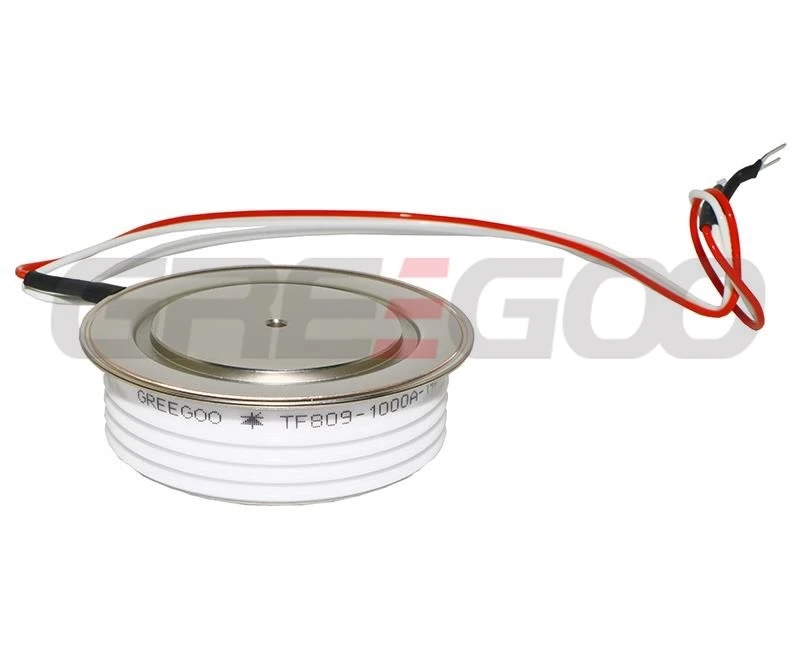

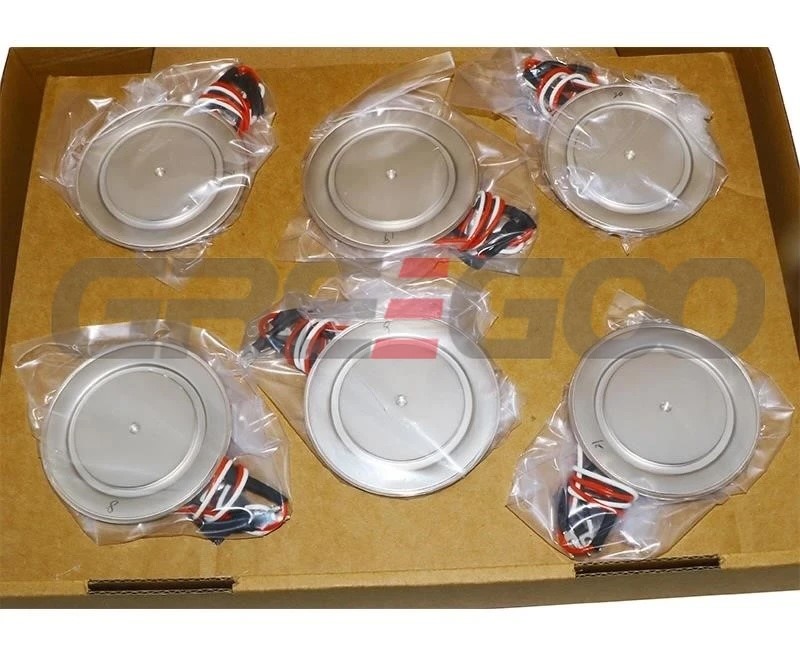

| TF809-1300 | 1380 | 800-1200 | 17.4 | 2000 | 1.85 | 125 | 0.02 | 0.005 | 25 | 22 | 47/75/26 |
| TF804-1600 | 1680 | 800-1200 | 21.1 | 2000 | 1.75 | 125 | 0.018 | 0.005 | 25 | 30 | 53/85/26 |
| TF811-2100 | 2190 | 800-1200 | 27.5 | 3000 | 2 | 125 | 0.0124 | 0.004 | 25 | 45 | 63/100/26 |
| TF822-2900 | 2950 | 800-1200 | 31.6 | 4000 | 1.8 | 125 | 0.01 | 0.003 | 25 | 56 |
73/110/26 |
| UP to 1400V | |||||||||||
| TF806-300 | 310 | 1200-1400 | 4 | 600 | 2.45 | 125 | 0.08 | 0.02 | 30 | 5 | 19/42/13 |
| TF808-700 | 750 | 1200-1400 | 9.5 | 1500 | 2.45 | 125 | 0.035 | 0.008 | 35 | 15 | 34/58/26 |
| TF809-1200 | 1270 | 1200-1400 | 16 | 2000 | 2 | 125 | 0.02 | 0.005 | 35 | 22 | 47/75/26 |
| TF804-1600 | 1600 | 1200-1400 | 20.2 | 2000 | 1.85 | 125 | 0.018 | 0.005 | 35 | 30 | 53/85/26 |
| TF811-2100 | 2110 | 1200-1400 | 26.6 | 3000 | 2.15 | 125 | 0.0124 | 0.004 | 35 | 45 | 63/100/26 |
| TF822-2900 | 2900 | 1200-1400 | 30.9 | 4000 | 1.9 | 125 | 0.01 | 0.003 | 35 | 56 | 73/110/26 |
| UP to 2000V | |||||||||||
| TF806-300 | 300 | 1600-2000 | 3.8 | 600 | 2.6 | 125 | 0.08 | 0.02 | 40 | 5 | 19/42/13 |
| TF808-600 | 680 | 1600-2000 | 8.6 | 1500 | 2.8 | 125 | 0.035 | 0.008 | 50 | 15 | 34/58/26 |
| TF809-1200 | 1200 | 1600-2000 | 15.1 | 2000 | 2.15 | 125 | 0.02 | 0.005 | 50 | 22 | 47/75/26 |
| TF804-1500 | 1510 | 1600-2000 | 19 | 2000 | 2 | 125 | 0.018 | 0.005 | 50 | 30 | 53/85/26 |

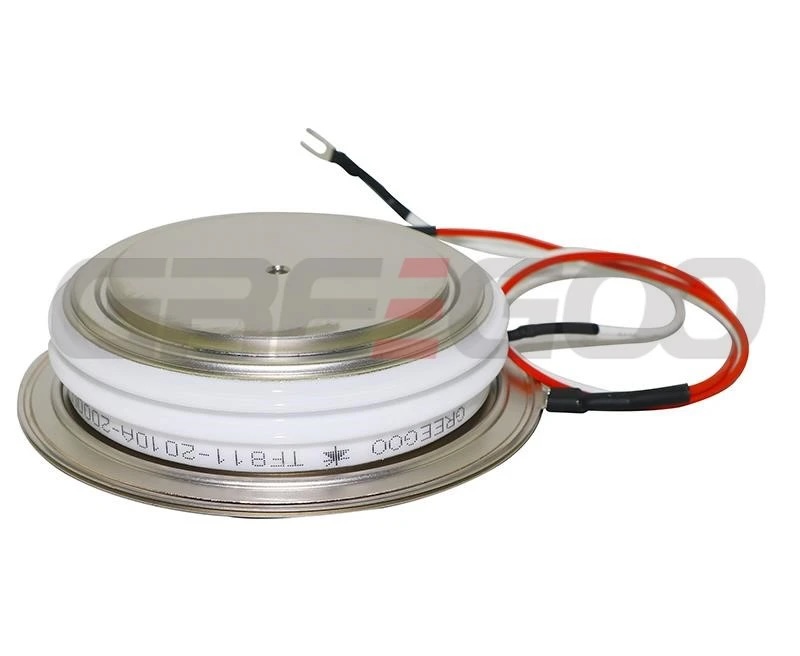

| TF811-2000 | 2010 | 1600-2000 | 25.3 | 3000 | 2.35 | 125 | 0.0124 | 0.004 | 50 | 45 | 63/100/26 |
| TF822-2700 | 2740 | 1600-2000 | 28.9 | 4000 | 2.15 | 125 | 0.01 | 0.003 | 50 | 56 | 73/110/26 |
| UP to 2800V | |||||||||||
| TF811-2000 | 2000 | 2200-2500 | 25.2 | 3000 | 2.47 | 125 | 0.0124 | 0.004 | 65 | 45 | 63/100/26 |
| TF822-2500 | 2520 | 2200-2500 | 26.4 | 4000 | 2.8 | 125 | 0.01 | 0.003 | 65 | 56 | 73/110/26 |
| TF822-2500 | 2500 | 2600-2800 | 26.2 | 4000 | 3 | 125 | 0.01 | 0.003 | 80 | 56 | 73/110/26 |
| UP to 4500V | |||||||||||
| TF812-3000 | 3000 | 2500-3000 | 32.2 | 4000 | 2.8 | 125 | 0.007 | 0.002 | 100 | 70 | 73/110/26 |
| TF816-4000 | 4000 | 2500-3000 | 42.3 | 6000 | 2.8 | 125 | 0.0057 | 0.002 | 100 | 90 | 100/150/35 |
| TF816-3500 | 3510 | 3500-4500 | 37.6 | 4000 | 2.5 | 125 | 0.0057 | 0.002 | 200 | 90 | 100/150/35 |
