APPLICATION

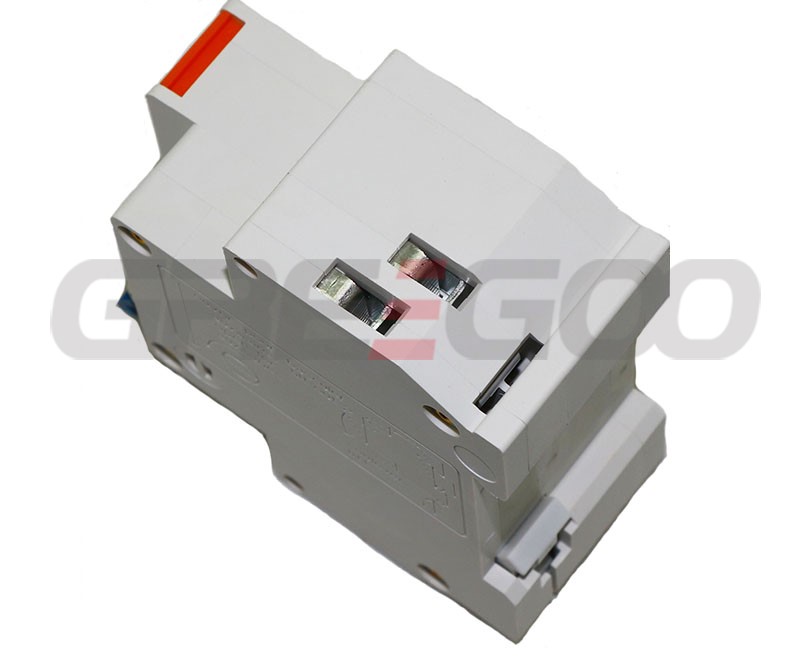

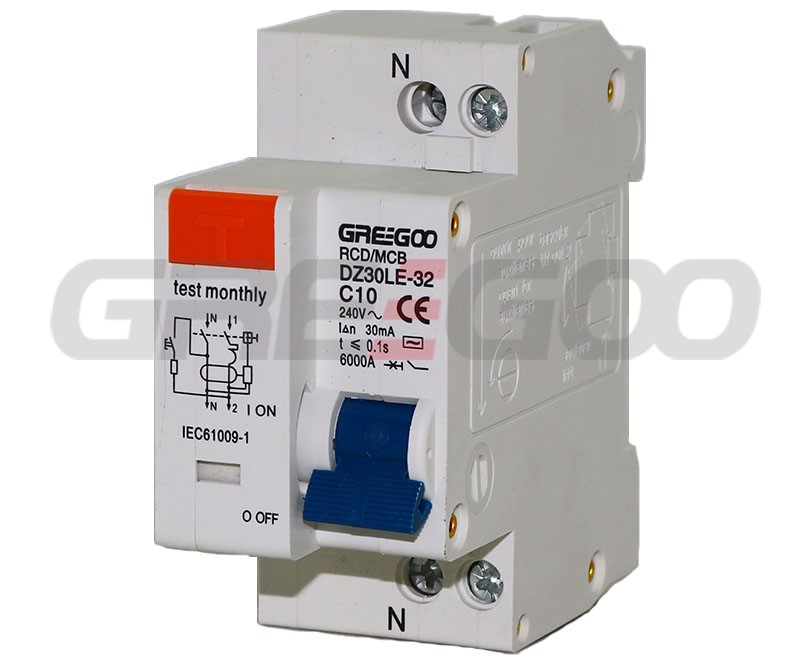

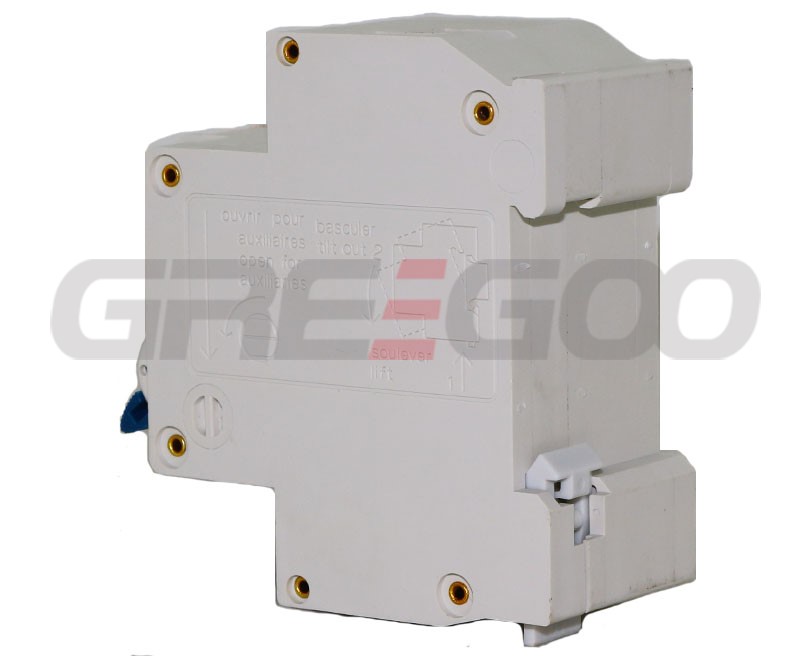

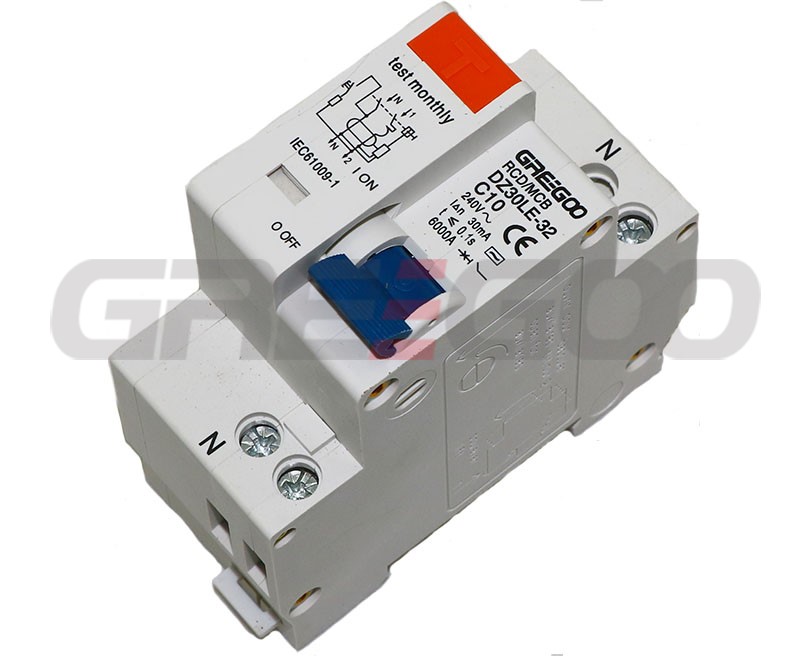

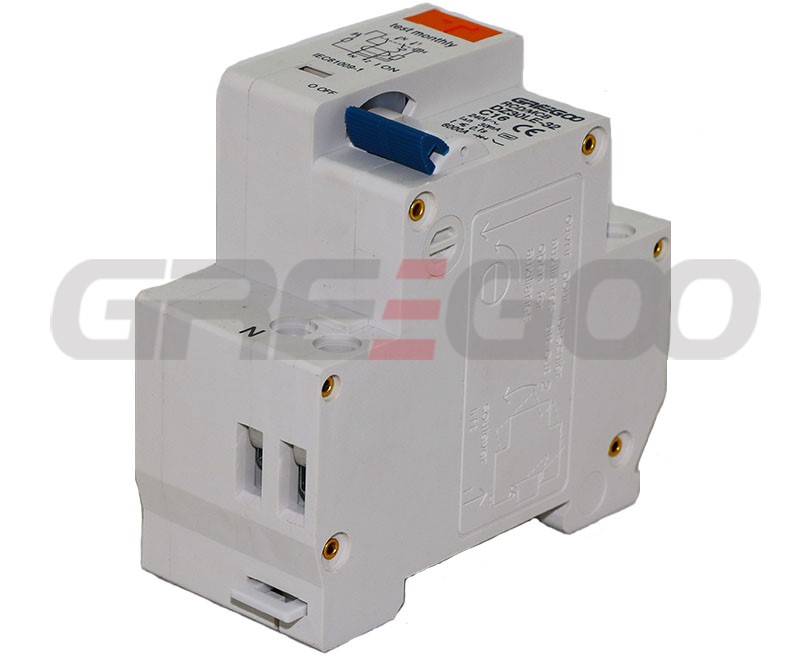

DZ30LE-32(phase line+neutral line leakage) series residual circuit breaker is suitable to the single phase residual circuit of 50/60Hz, rated voltage 230V, as the current leakage protection and protect the civil electrical circuit from over load and short circuit and it has the features of volume small, breaking capacity high. Null/live wire is cut at the same time, and even the wire is reverse connection, it still has current leakage protection.The product conforms to standards IEC1009.1.
TECHNICAL PARAMETER
| Model | Rated Voltage(V) | Pole | Shell-level rated current(A) | Rated Current In(A) | Rated breaking residuaf current(mA) | Rated Not breaking residuaf current(mA) | Breaking time of rated residul current(s) | Breaking Capacity (A) | Breaking value of over-voltage(V) |
| DZ30LE-32 | 230 | 1P+N | 32A | 6,10,16,20,25,32 | 30 | 15 | ≤0.1 | 3000 |
280V±5V |
TRIPPING CHARACTERISTICS
|
Test current (A) |
Rated Voltage(V) |
Requested time |
Result | Start station |
| 1.13In | All | t≥1h | Don't trip | Cool |
| 1.45In | All | t<1h | trip | Heat |
| 2.55In | All | Is<t<60S | trip | Cool |
| 5In | All | t≥0.1S | Don't trip | Cool |
| 10In | All | t<0.1S | trip | Cool |
