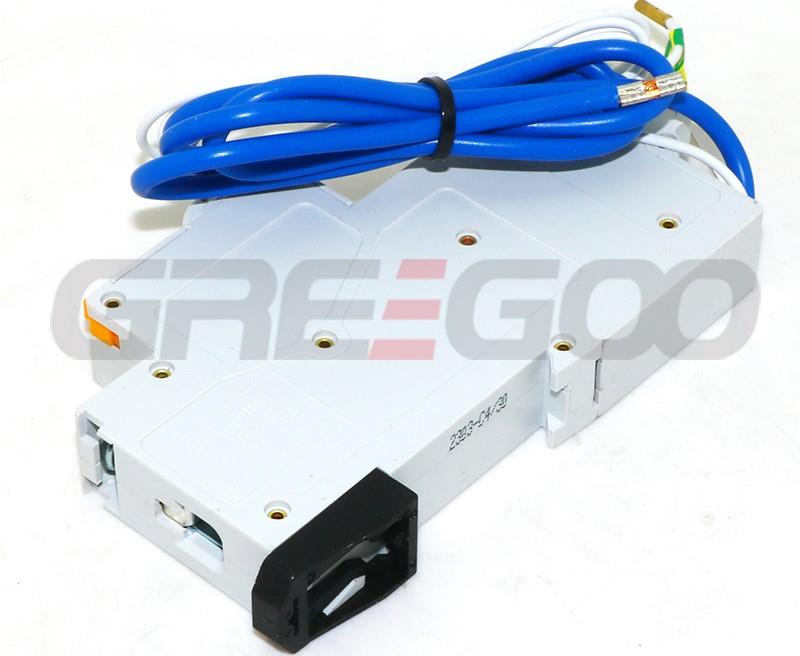

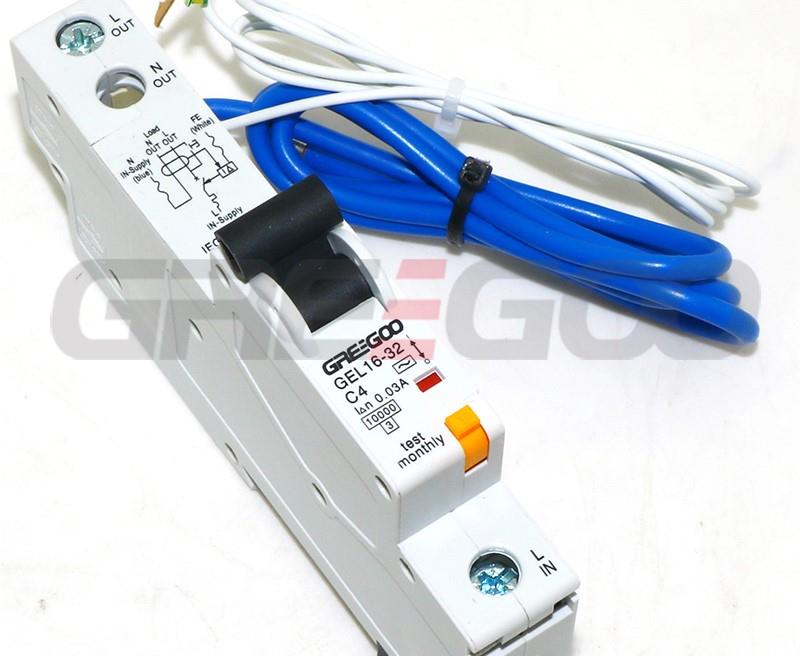

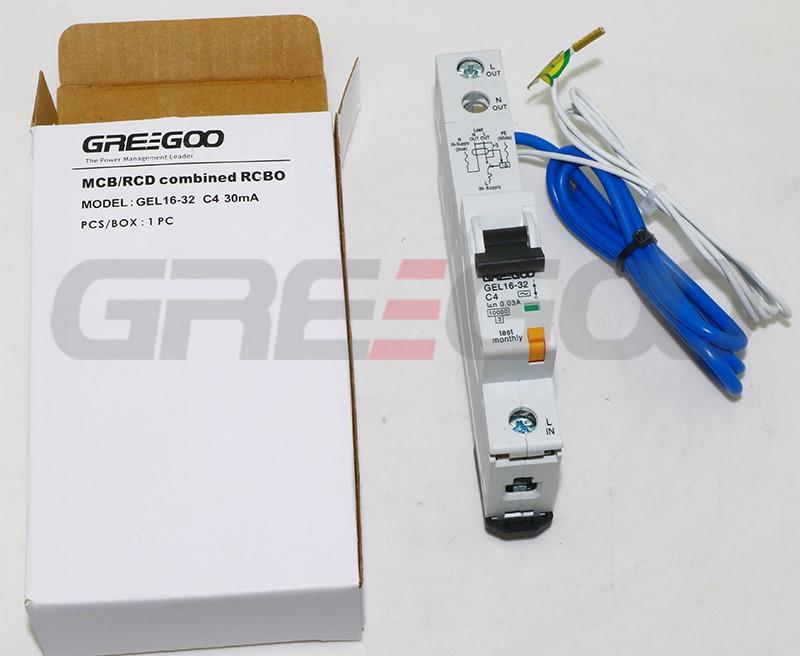

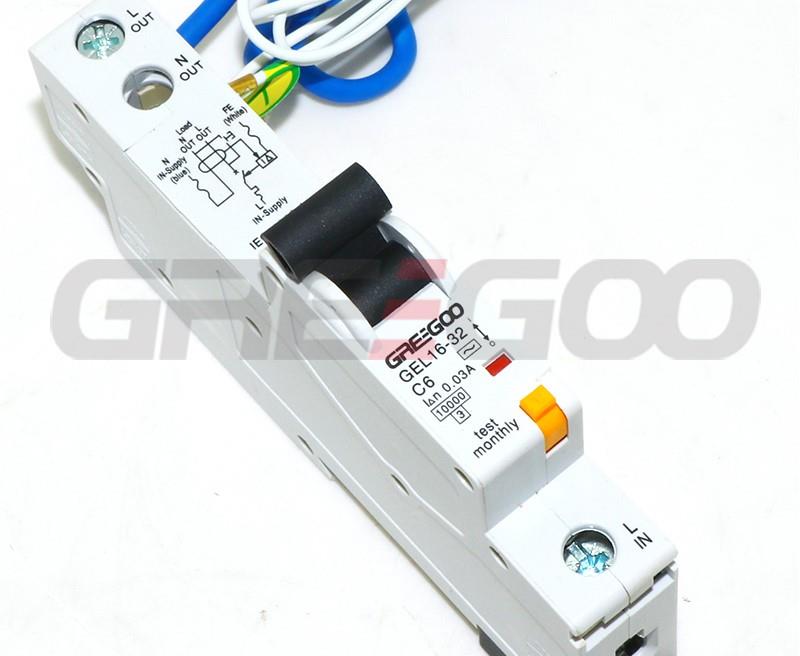

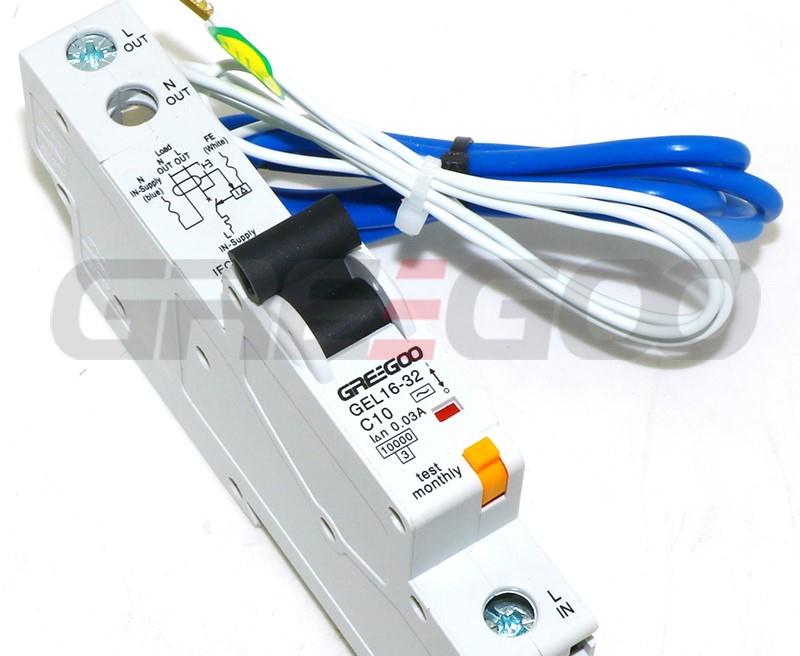

GEL16-32 single pole RCBO
Home Products RCCB MCB RCBORCBOGEL16-32 single pole RCBO
Product Details
GEL16-32 single pole RCBO
Model Number | GEL16-32 RCBO | |
Tripping Mode | ELECTRONIC TYPE | |
Pole No. | Pole | 1P |
Standard Conformity | IEC 61009-1 | |
Tripping Characteristic | B/C | |
Rated Current (In) | A | 6, 10, 16, 20, 25, 32, 40 |
Sensitivity (I △ n) | mA | 30, 100, 300 |
Residual Tripping Current Range | 0.5I △ n~1I △ n | |
Rated Voltage (Un) | Vac | 230/240 |
Rated Insulation Voltage (Ui) | V | 660 |
Rated Frequency | Hz | 50/60 |
Type | AC/A | |
Tripping Time | S | ≤0.1 |
Shortcircuit Withstand Capacity | kA | 6 |
Ambient Temperature | oC | -25 to 40 |
Electrical Mechanical Operation | cycles | 4000 |
Mounting | Din Rail (35 * 7.5) mm | |
Degree of Protection | IP 20 | |
Terminal Capacity (max) | mm2 | 10~16 |
Connection Terminals | Screw Terminals 2.0Nm | |
Certificate | CE |
