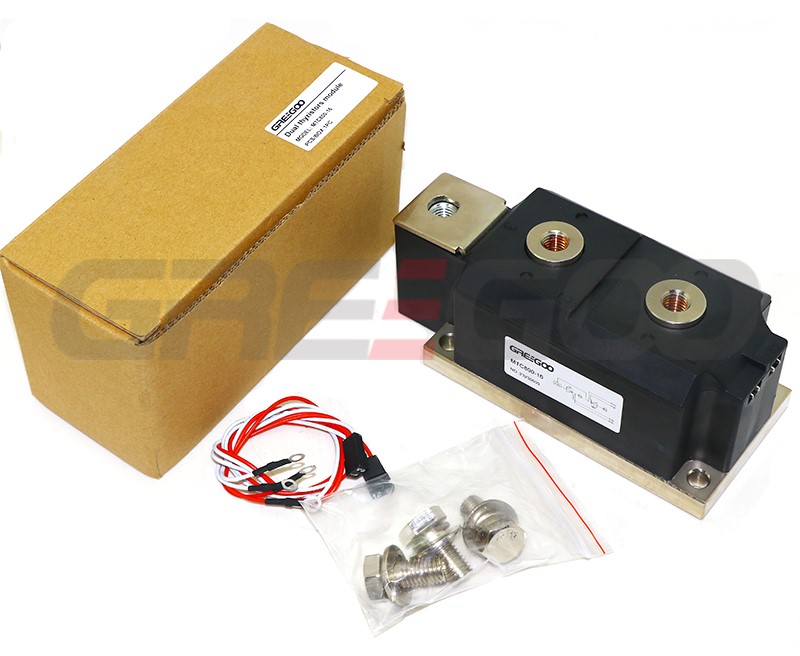

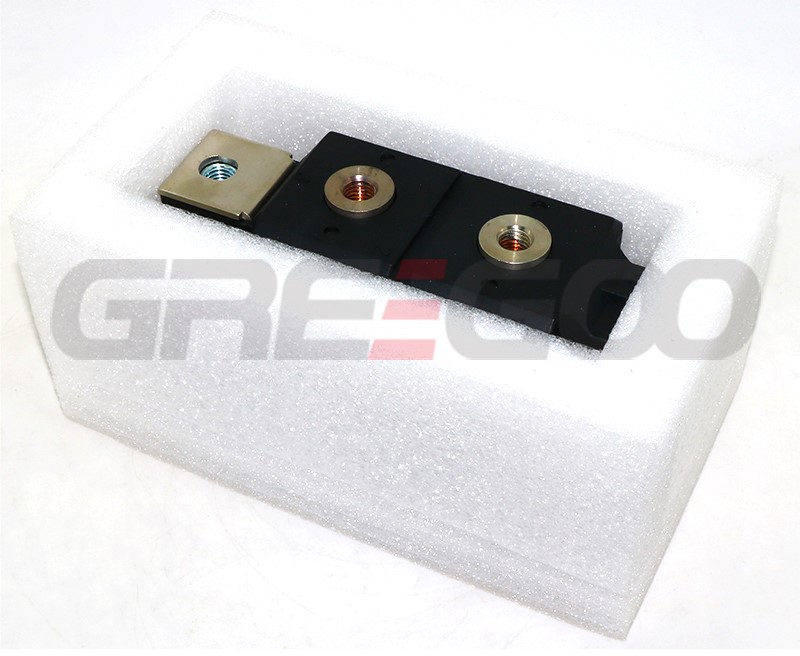

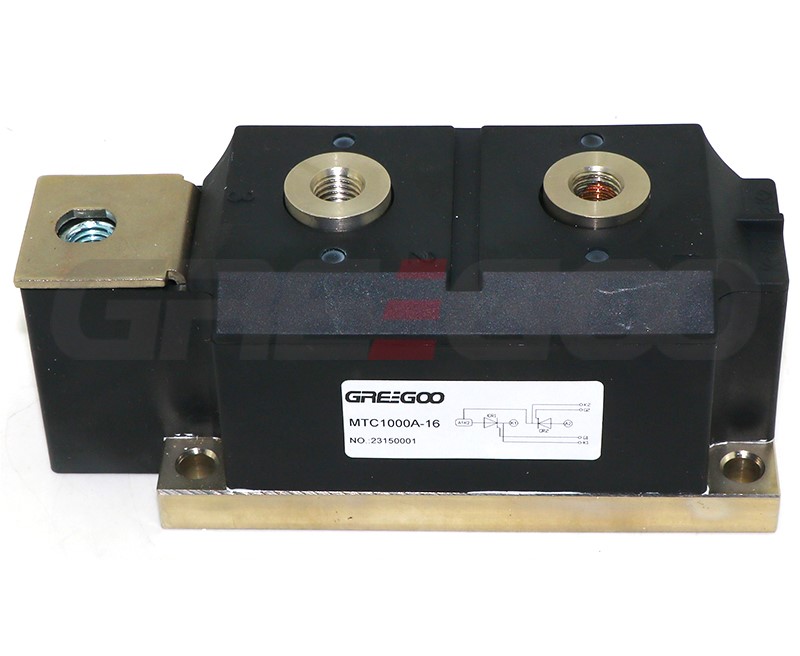

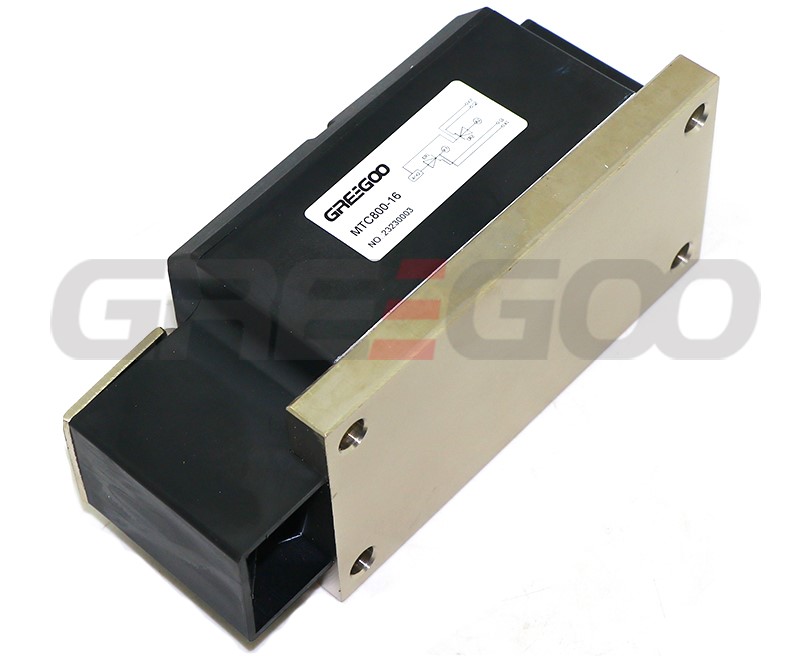

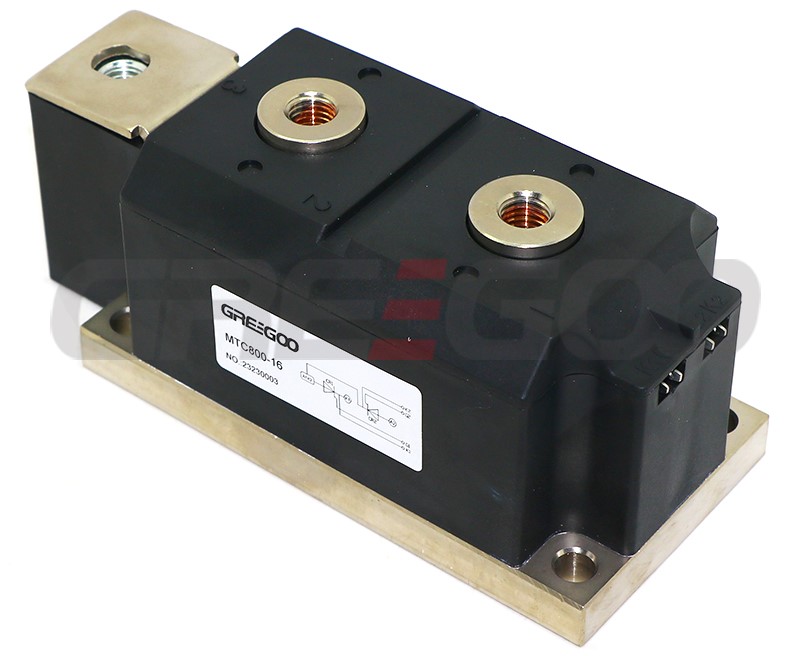

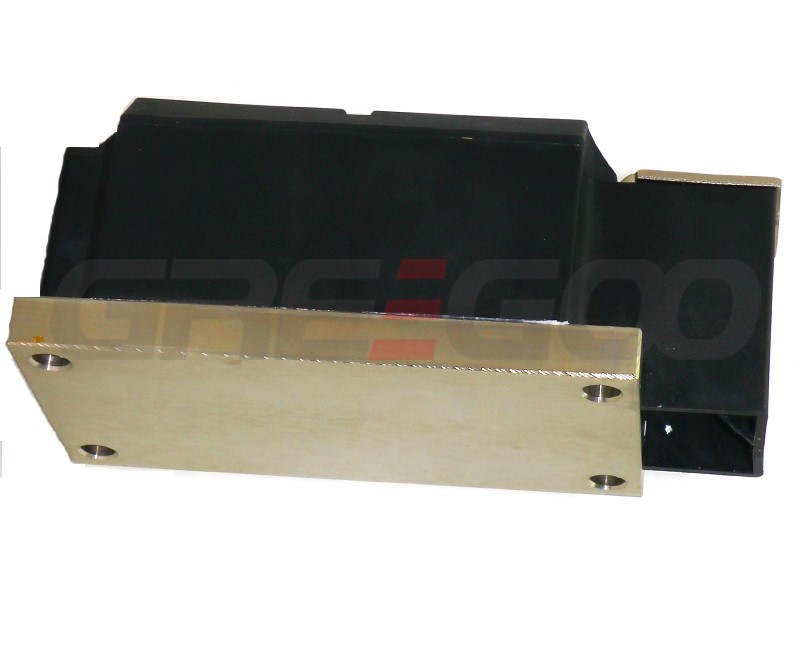

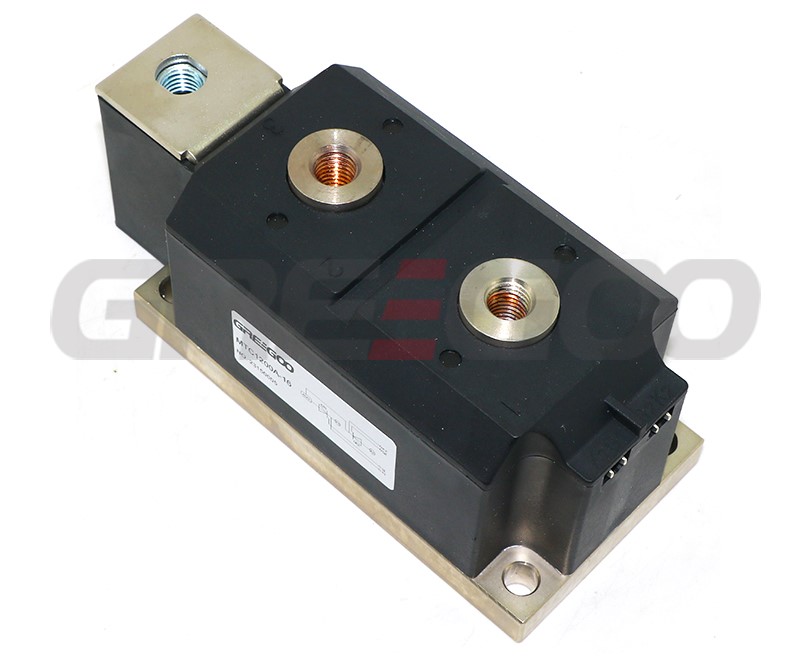

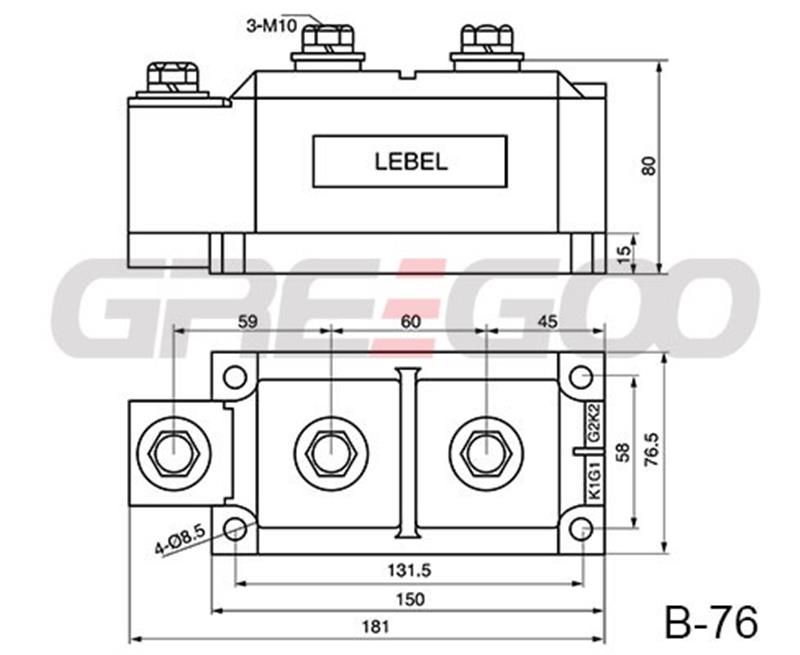

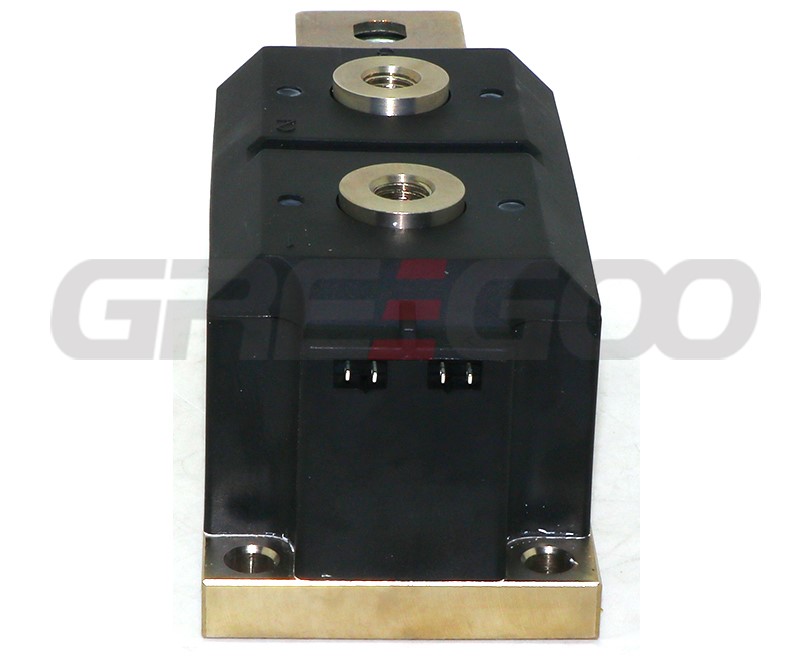

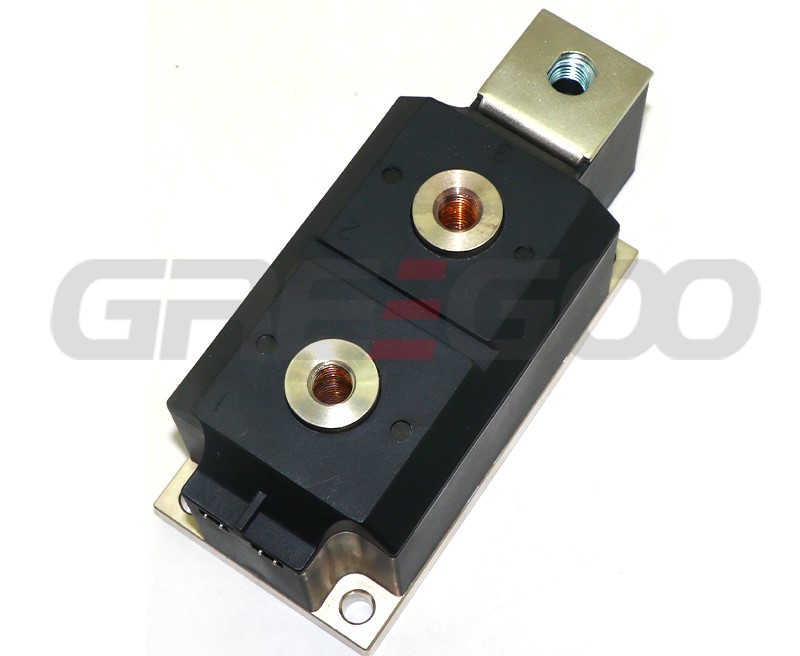

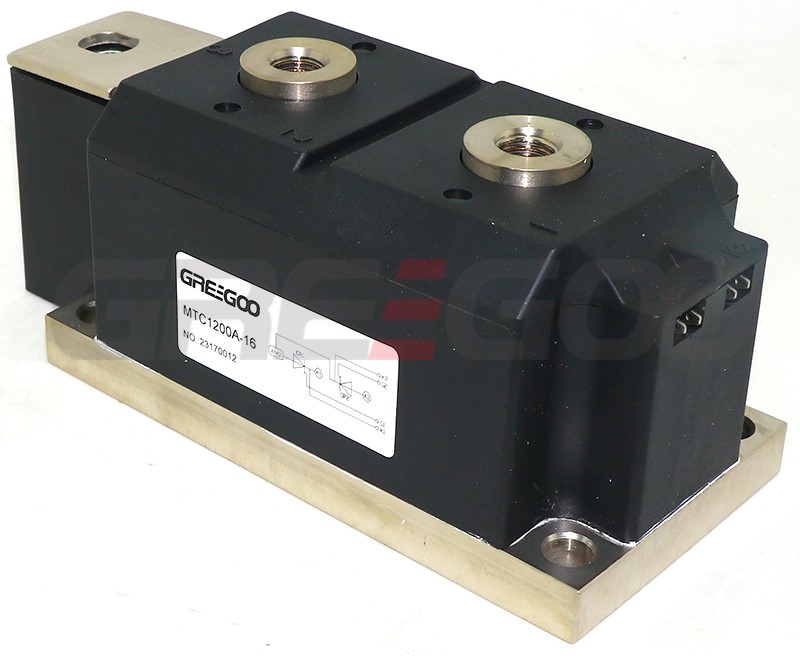

Dual thyristor module 800A 1000A 1200A
| Symbol | Meaning |
| M | Module |
| T | Phase control thyristor |
| C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
| 26 | Average current |
| 12 | Voltage code: code x 100 = VRRM |
| Eg. | MTC26-12, Dual thyristor module, in series connection, 26A, 1600V. |
| Type | VDRMVRRM | IT(AV) | ITSM | dv/dt | di/dt | IDRM | IGT | VGT | IH | VTM/ITM | VTO | rT | Rjc |
| IRRM | |||||||||||||
| V | TC= | KA | V/us | A/us | mA | mA | V | mA | V /A | V | mΩ | ℃/W | |
| 85℃ A | |||||||||||||
| MTC800,MTA800,MTK800,MTX800 | 600-1800 | 800 | 16 | 800 | 100 | 40 | 200 | 3 | 100 | 1.86/2400 | 0.8 | 0.42 | 0.054 |
| MTC1000,MTA1000,MTK1000,MTX1000 | 600-1800 | 1000 | 20 | 800 | 100 | 60 | 200 | 3 | 100 | 1.96/3000 | 0.8 | 0.34 | 0.053 |
| MTC1200,MTA1200,MTK1200,MTX1200 | 600-1800 | 1200 | 24 | 800 | 100 | 70 | 200 | 3 | 100 | 1.98/3000 | 0.8 | 0.29 | 0.051 |
