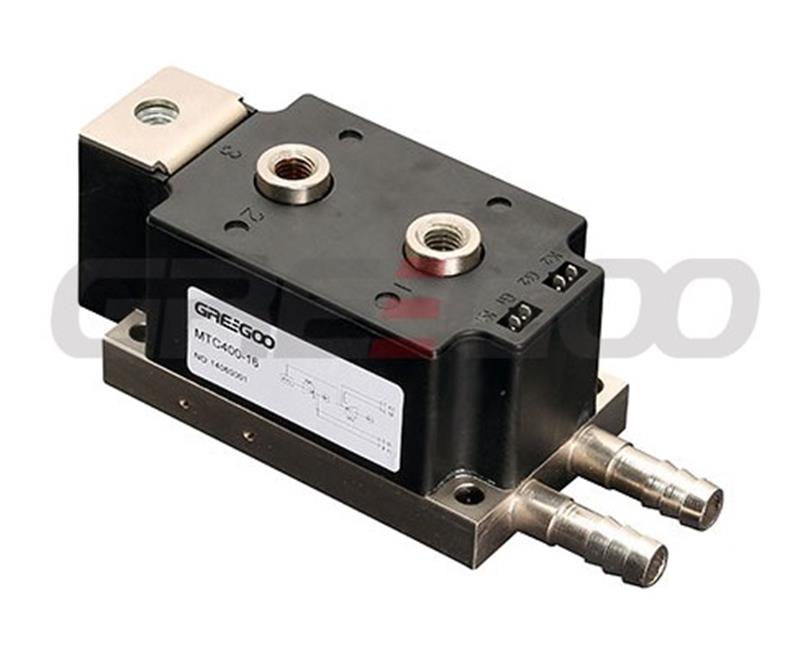

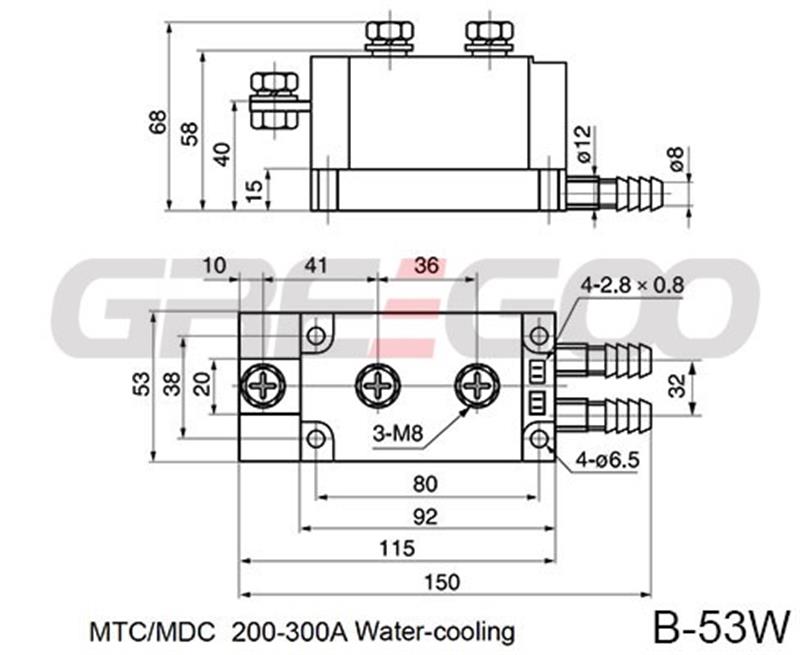

Water-cooling Dual thyristor module upto 1000A

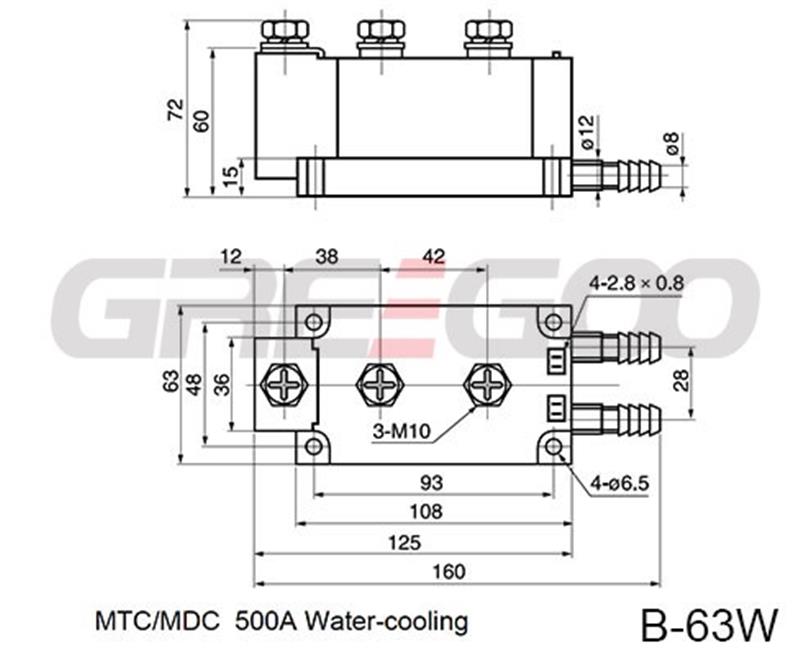

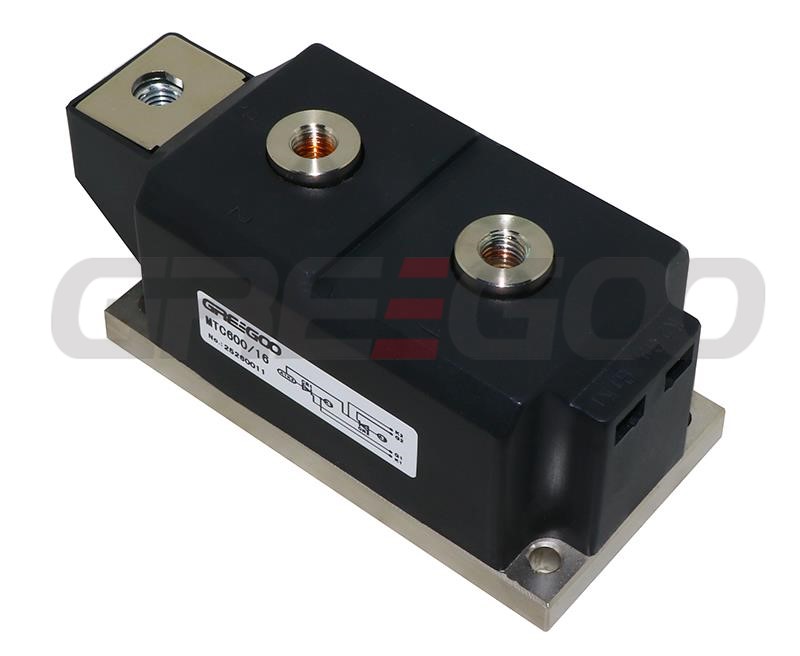

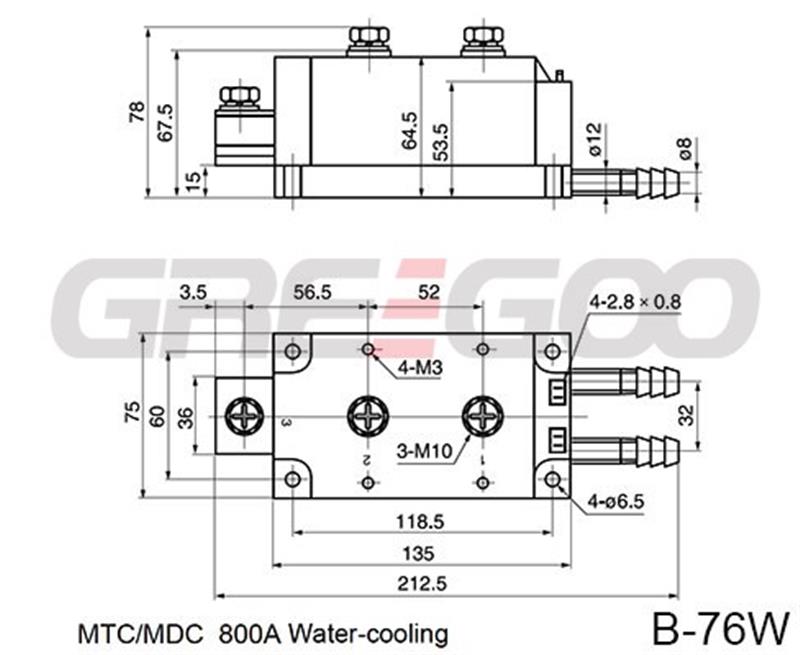

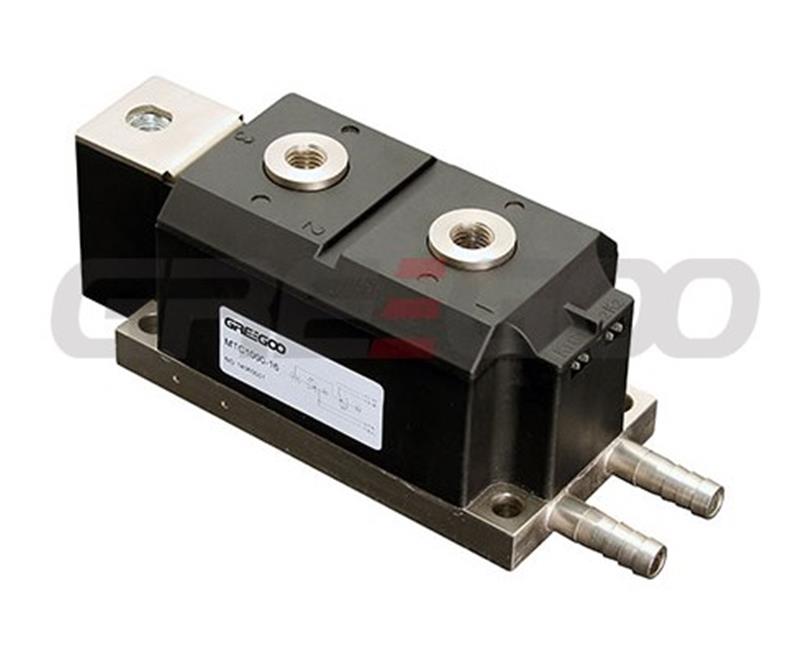

Symbol | Meaning |
M | Module |
T | Phase control thyristor |
C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
26 | Average current |
12 | Voltage code: code x 100 = VRRM |
Eg. | MTC26-12, Dual thyristor module, in series connection, 26A, 1600V. |
Type | VDRMVRRM | IT(AV) | ITSM | dv/dt | di/dt | IDRM IRRM |
IGT | VGT | IH | VTM/ITM | VTO | rT | Rjc |
V | Tc= 55℃ A |
KA | V/us | A/us | mA | mA | V | mA | V /A | V | mΩ | ℃/W | |
*MTC400,MTA400,MTK400,MTX400 | 600-1800 | 400 | 8.50 | 800 | 100 | 40 | 200 | 3.0 | 200 | 1.90/1200 | 0.80 | 0.80 | 0.110 |
*MTC500,MTA500,MTK500,MTX500 | 600-1800 | 500 | 11.0 | 800 | 100 | 40 | 200 | 3.0 | 200 | 1.90/1500 | 0.80 | 0.64 | 0.087 |
*MTC600,MTA600,MTK600,MTX600 | 600-1800 | 600 | 13.0 | 800 | 100 | 40 | 200 | 3.0 | 200 | 1.90/1800 | 0.80 | 0.53 | 0.073 |
*MTC800,MTA800,MTK800,MTX800 | 600-1800 | 800 | 16.0 | 800 | 100 | 40 | 200 | 3.0 | 200 | 1.95/2400 | 0.80 | 0.42 | 0.054 |
*MTC1000,MTA1000,MTK1000, MTX1000 | 600-1800 | 1000 | 20.0 | 800 | 100 | 50 | 200 | 3.0 | 200 | 1.95/3000 | 0.80 | 0.33 | 0.052 |
