Dual thyristor module 26-110A
Home Products Thyristor Diode ModuleDual Thyristor ModuleDual thyristor module 26-110A
Product Details
Dual thyristor module 26-110A
| Symbol | Meaning |
| M | Module |
| T | Phase control thyristor |
| C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
| 26 | Average current |
| 12 | Voltage code: code x 100 = VRRM |
| Eg. | MTC26-12, Dual thyristor module, in series connection, 26A, 1600V. |
| Model No. | IF(AV) | VRRM | Package |
| MTC26-06 | 26A | 600V | B20 |
| MTC26-10 | 26A | 1000V | B20 |
| MTC26-12 | 26A | 1200V | B20 |
| MTC26-16 | 26A | 1600V | B20 |
| MTC26-18 | 26A | 1800V | B20 |
| MTC40-06 | 40A | 600V | B20 |
| MTC40-10 | 40A | 1000V | B20 |
| MTC40-12 | 40A | 1200V | B20 |
| MTC40-16 | 40A | 1600V | B20 |
| MTC40-18 | 40A | 1800V | B20 |
| MTC55-06 | 55A | 600V | B20 |
| MTC55-10 | 55A | 1000V | B20 |
| MTC55-12 | 55A | 1200V | B20 |
| MTC55-16 | 55A | 1600V | B20 |
| MTC55-18 | 55A | 1800V | B20 |
| MTC70-06 | 70A | 600V | B20 |
| MTC70-10 | 70A | 1000V | B20 |
| MTC70-12 | 70A | 1200V | B20 |
| MTC70-16 | 70A | 1600V | B20 |
| MTC70-18 | 70A | 1800V | B20 |
| MTC90-06 | 90A | 600V | B20 |
| MTC90-10 | 90A | 1000V | B20 |
| MTC90-12 | 90A | 1200V | B20 |
| MTC90-16 | 90A | 1600V | B20 |
| MTC90-18 | 90A | 1800V | B20 |
| MTC110-06 | 110A | 600V | B20 |
| MTC110-10 | 110A | 1000V | B20 |
| MTC110-12 | 110A | 1200V | B20 |
| MTC110-16 | 110A | 1600V | B20 |
| MTC110-18 | 110A | 1800V | B20 |
| MTK26-06 | 26A | 600V | B20 |
| MTK26-10 | 26A | 1000V | B20 |
| MTK26-12 | 26A | 1200V | B20 |
| MTK26-16 | 26A | 1600V | B20 |
| MTK26-18 | 26A | 1800V | B20 |
| MTK40-06 | 40A | 600V | B20 |
| MTK40-10 | 40A | 1000V | B20 |
| MTK40-12 | 40A | 1200V | B20 |
| MTK40-16 | 40A | 1600V | B20 |
| MTK40-18 | 40A | 1800V | B20 |
| MTK55-06 | 55A | 600V | B20 |
| MTK55-10 | 55A | 1000V | B20 |
| MTK55-12 | 55A | 1200V | B20 |
| MTK55-16 | 55A | 1600V | B20 |
| MTK55-18 | 55A | 1800V | B20 |
| MTK70-06 | 70A | 600V | B20 |
| MTK70-10 | 70A | 1000V | B20 |
| MTK70-12 | 70A | 1200V | B20 |
| MTK70-16 | 70A | 1600V | B20 |
| MTK70-18 | 70A | 1800V | B20 |
| MTK90-06 | 90A | 600V | B20 |
| MTK90-10 | 90A | 1000V | B20 |
| MTK90-12 | 90A | 1200V | B20 |
| MTK90-16 | 90A | 1600V | B20 |
| MTK90-18 | 90A | 1800V | B20 |
| MTK110-06 | 110A | 600V | B20 |
| MTK110-10 | 110A | 1000V | B20 |
| MTK110-12 | 110A | 1200V | B20 |
| MTK110-16 | 110A | 1600V | B20 |
| MTK110-18 | 110A | 1800V | B20 |
| MTA26-06 | 26A | 600V | B20 |
| MTA26-10 | 26A | 1000V | B20 |
| MTA26-12 | 26A | 1200V | B20 |
| MTA26-16 | 26A | 1600V | B20 |
| MTA26-18 | 26A | 1800V | B20 |
| MTA40-06 | 40A | 600V | B20 |
| MTA40-10 | 40A | 1000V | B20 |
| MTA40-12 | 40A | 1200V | B20 |
| MTA40-16 | 40A | 1600V | B20 |
| MTA40-18 | 40A | 1800V | B20 |
| MTA55-06 | 55A | 600V | B20 |
| MTA55-10 | 55A | 1000V | B20 |
| MTA55-12 | 55A | 1200V | B20 |
| MTA55-16 | 55A | 1600V | B20 |
| MTA55-18 | 55A | 1800V | B20 |
| MTA70-06 | 70A | 600V | B20 |
| MTA70-10 | 70A | 1000V | B20 |
| MTA70-12 | 70A | 1200V | B20 |
| MTA70-16 | 70A | 1600V | B20 |
| MTA70-18 | 70A | 1800V | B20 |
| MTA90-06 | 90A | 600V | B20 |
| MTA90-10 | 90A | 1000V | B20 |
| MTA90-12 | 90A | 1200V | B20 |
| MTA90-16 | 90A | 1600V | B20 |
| MTA90-18 | 90A | 1800V | B20 |
| MTA110-06 | 110A | 600V | B20 |
| MTA110-10 | 110A | 1000V | B20 |
| MTA110-12 | 110A | 1200V | B20 |
| MTA110-16 | 110A | 1600V | B20 |
| MTA110-18 | 110A | 1800V | B20 |
| MTX26-06 | 26A | 600V | B20 |
| MTX26-10 | 26A | 1000V | B20 |
| MTX26-12 | 26A | 1200V | B20 |
| MTX26-16 | 26A | 1600V | B20 |
| MTX26-18 | 26A | 1800V | B20 |
| MTX40-06 | 40A | 600V | B20 |
| MTX40-10 | 40A | 1000V | B20 |
| MTX40-12 | 40A | 1200V | B20 |
| MTX40-16 | 40A | 1600V | B20 |
| MTX40-18 | 40A | 1800V | B20 |
| MTX55-06 | 55A | 600V | B20 |
| MTX55-10 | 55A | 1000V | B20 |
| MTX55-12 | 55A | 1200V | B20 |
| MTX55-16 | 55A | 1600V | B20 |
| MTX55-18 | 55A | 1800V | B20 |
| MTX70-06 | 70A | 600V | B20 |
| MTX70-10 | 70A | 1000V | B20 |
| MTX70-12 | 70A | 1200V | B20 |
| MTX70-16 | 70A | 1600V | B20 |
| MTX70-18 | 70A | 1800V | B20 |
| MTX90-06 | 90A | 600V | B20 |
| MTX90-10 | 90A | 1000V | B20 |
| MTX90-12 | 90A | 1200V | B20 |
| MTX90-16 | 90A | 1600V | B20 |
| MTX90-18 | 90A | 1800V | B20 |
| MTX110-06 | 110A | 600V | B20 |
| MTX110-10 | 110A | 1000V | B20 |
| MTX110-12 | 110A | 1200V | B20 |
| MTX110-16 | 110A | 1600V | B20 |
| MTX110-18 | 110A | 1800V | B20 |

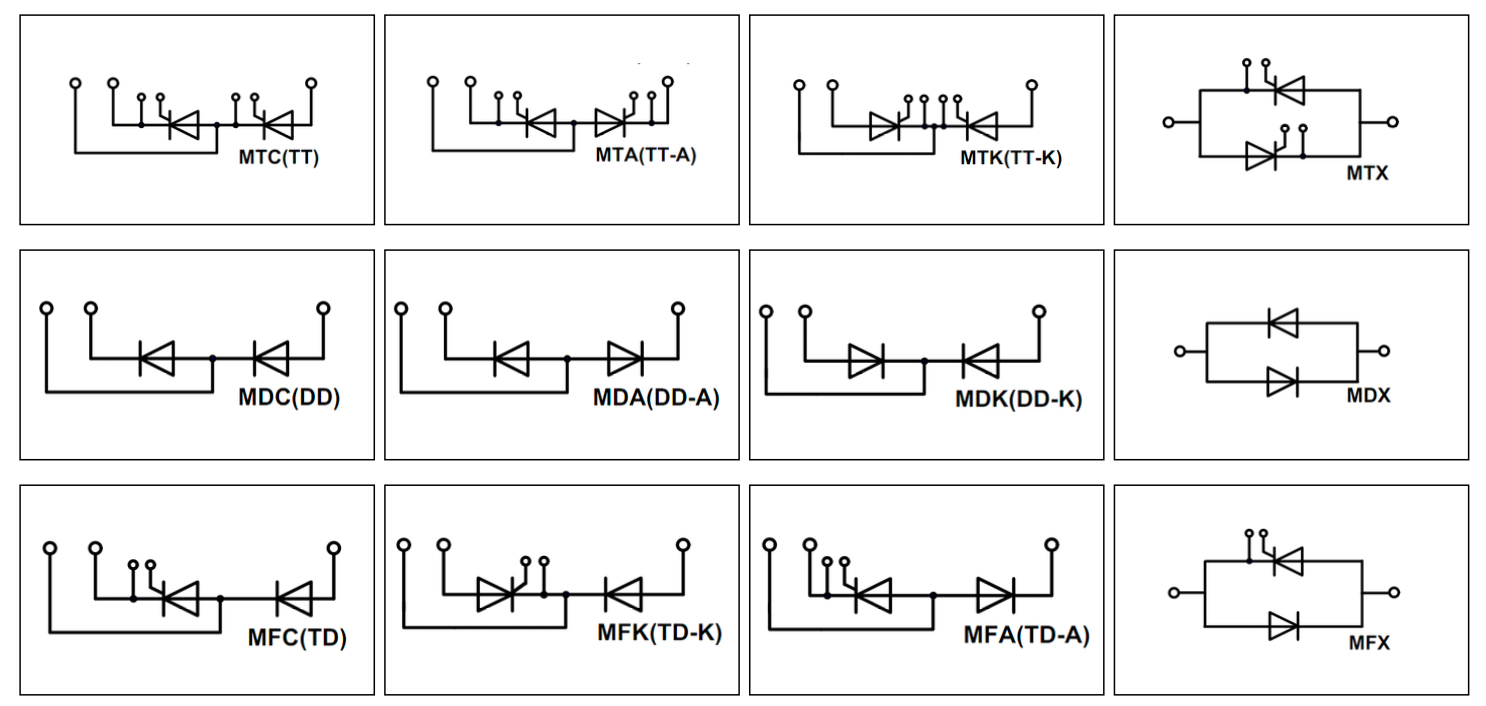

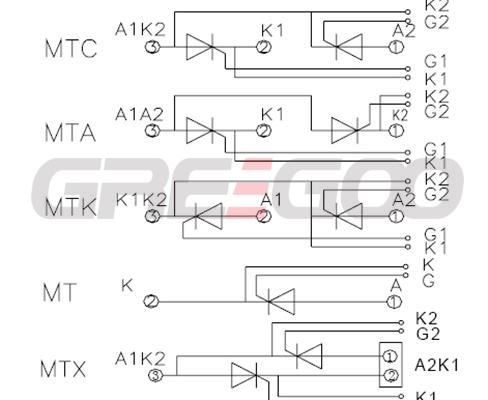

Circuit Mode
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
Related Products
High voltage thyristor diode modules (3600-4500V)
3600V to 4500V air cooling thyristor diode modules, 3600V thyristor module, 4200V thyristor module, 4500v thyristor module.
View More
MTK 2000A 600V Dual Thyristor Module
MTK 2000A 600V Thyristor Module
View More
Dual thyristor modules
1.All dataes apply to a single thyristor. 2.All values are for Tj=Tjm ,unless stated otherwise. 3.VTO:Threshold rT:Slope resistance The dataes are used to calculate conduction loss of device and heatsink at Tjm.
View More
THYRISTOR MODULE MT3-260-44-A2
Double thyristor module for phase control
View More
