Dual thyristor module 200A 250A
Home Products Thyristor Diode ModuleDual Thyristor Module (MTx series)Dual thyristor module 200A 250A
Product Details

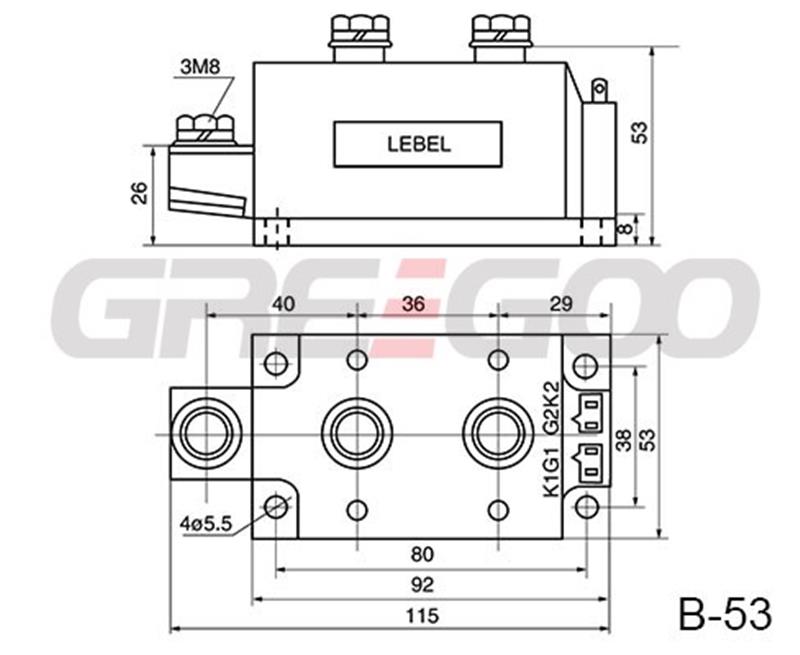

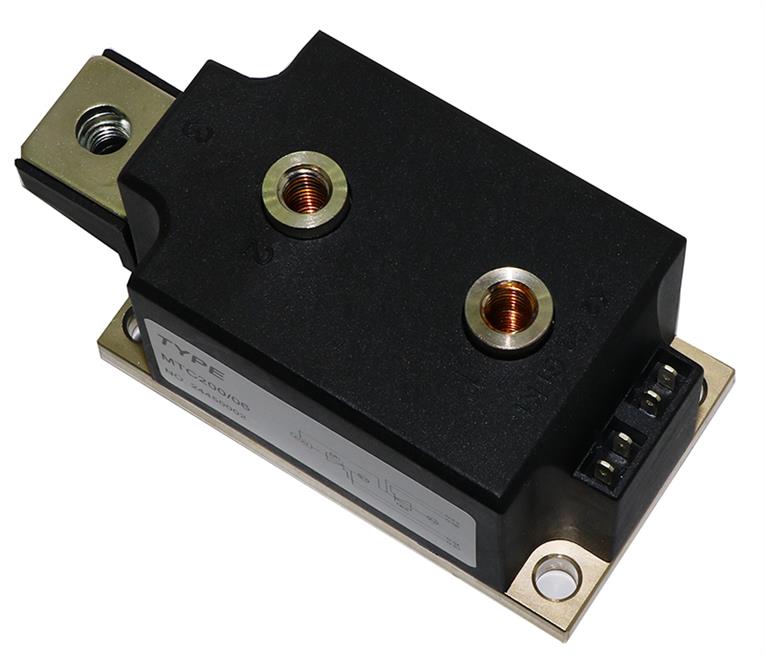

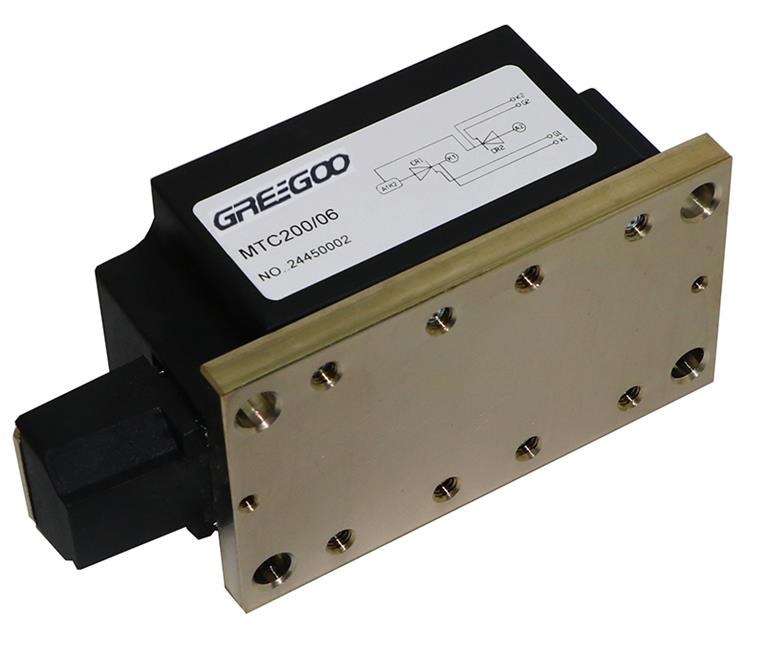

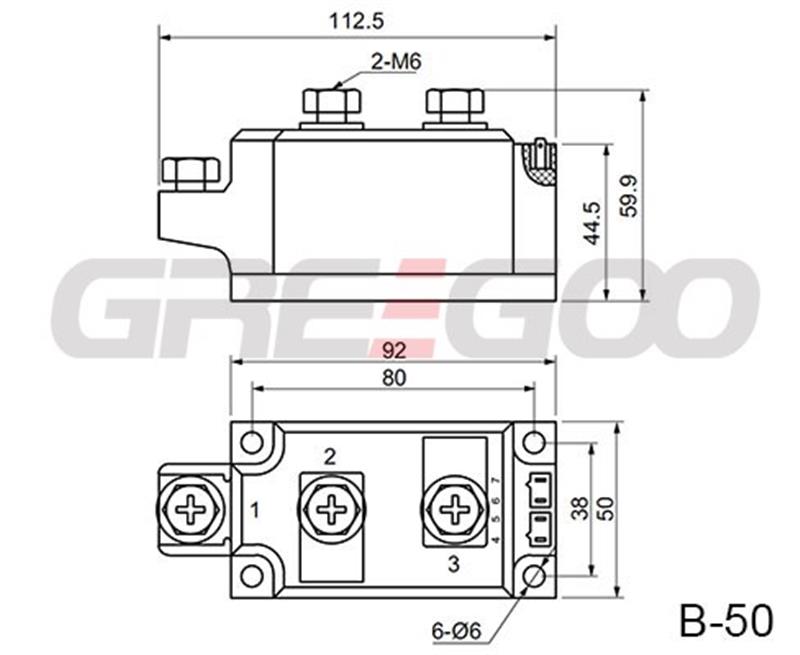

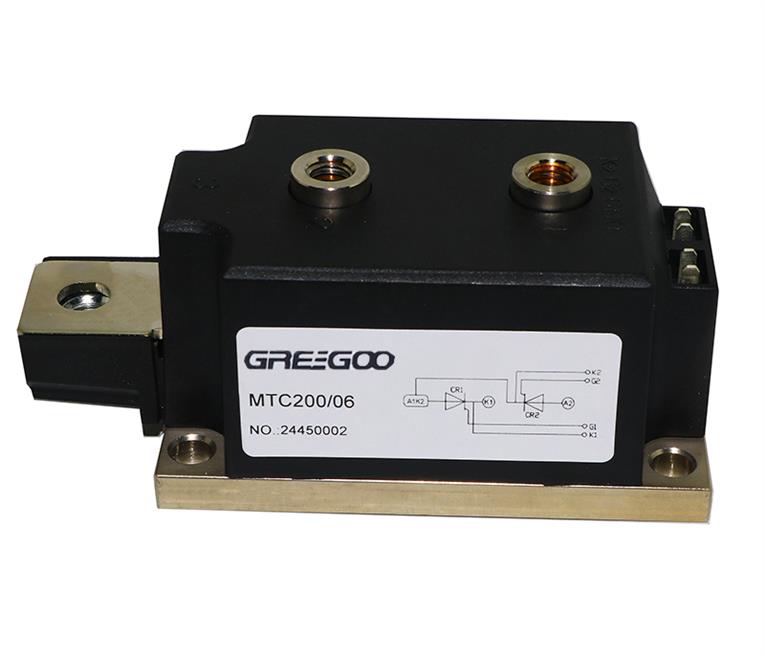

Dual thyristor module 200A 250A
Symbol | Meaning |
M | Module |
T | Phase control thyristor |
C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
26 | Average current |
12 | Voltage code: code x 100 = VRRM |
Eg. | MTC26-12, Dual thyristor module, in series connection, 26A, 1600V. |
VDRMVRRM | IT(AV) | ITSM | dv/dt | di/dt | IDRM | IGT | VGT | IH | VTM/ITM | VTO | rT | Rjc | |
IRRM | |||||||||||||
V | TC= | KA | V/us | A/us | mA | mA | V | mA | V /A | V | mΩ | ℃/W | |
85℃ A | |||||||||||||
MTC200,MTA200,MTK200,MTX200 | 600-1800 | 200 | 7.2 | 800 | 100 | 30 | 180 | 2.5 | 100 | 1.65/600 | 0.8 | 1.27 | 0.14 |
MTC250,MTA200,MTK200,MTX200 | 600-1800 | 250 | 8.5 | 800 | 100 | 30 | 180 | 2.5 | 100 | 1.57/750 | 0.8 | 0.85 | 0.12 |
Related Products
![Dual thyristor module 400A 500A](/UploadFiles/BigImages/copy-MTC500-16.jpg)
Dual thyristor module 400A 500A
Dual thyristor module 400A 500A
View More![Dual thyristor module 800A 1000A 1200A](/UploadFiles/BigImages/copy-MTC1000A-16-1.jpg)
Dual thyristor module 800A 1000A 1200A
Dual thyristor module 800A 1000A 1200A.
View More![MTK 2000A 600V Dual Thyristor Module](/UploadFiles/product/smallmtk2000a600v-thyristor-module-103.jpg)
MTK 2000A 600V Dual Thyristor Module
MTK 2000A 600V Thyristor Module
View More![Dual thyristor modules](/UploadFiles/BigImages/cut2022122216011111170.jpg)
Dual thyristor modules
1.All dataes apply to a single thyristor. 2.All values are for Tj=Tjm ,unless stated otherwise. 3.VTO:Threshold rT:Slope resistance The dataes are used to calculate conduction loss of device and heatsink at Tjm.
