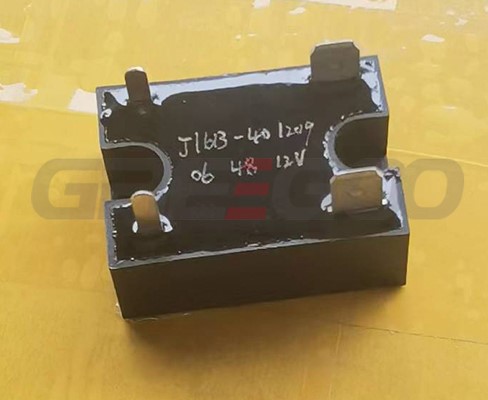

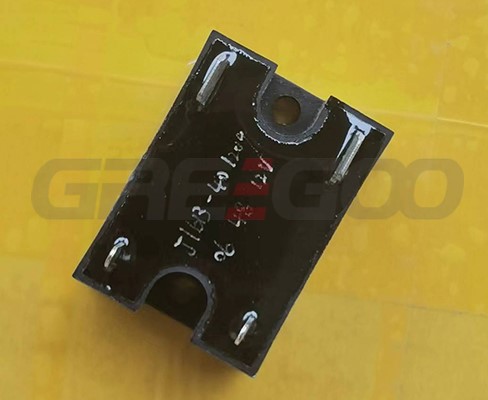

Compact solid state relay single phase 6A to 25A (spade terminals)

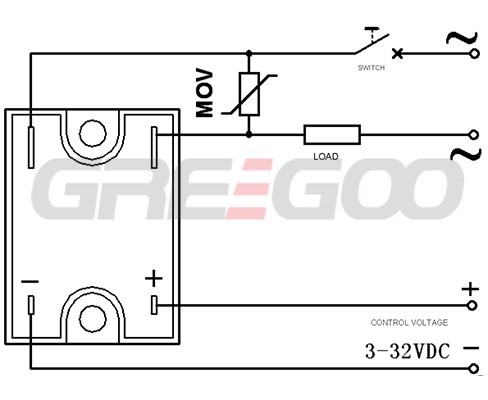

- Optical isolation between input and output circuits.
- Control signal with TTL logic interface.
- Solid-state, contactless normally open output, zero voltage turn-on, zero current turn-off.
- Plug-in soldering or mechanical fixing structure, spade terminal connection, ultra-small size, easy installation.
- The product is mainly used for isolation control between weak and strong electrical circuits in industrial automation. It can also be used as a driver stage for various high-power output devices and low-power appliances, such as motors, solenoid valves, power supplies, etc., for contactless switch control.
Specification

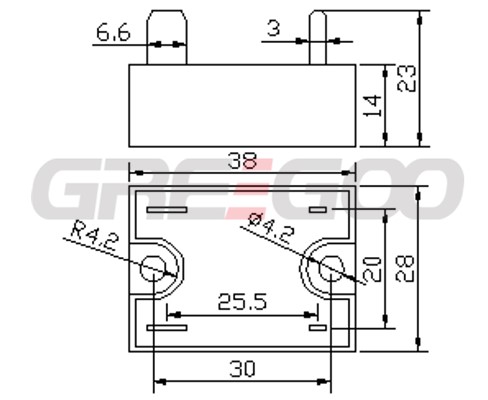

Model | GD16 |
---|---|
Control Voltage | 3~6 VDC, 5~12VDC, 15~24VDC |
Control Current | ≤30 mA |
Trigger Current | ≥ 6 mA |
Turn-off Voltage | ≤1.5 VDC |
Switching Time | ≤10 mS |
Load Voltage | 24~240VAC, 24~440VAC |
Maximum Current | 6, 8, 10, 15, 20, 25 A |
On-state Voltage Drop | ≤1.5 V |
Off-state Voltage | ≥ 400V, ≥ 800V |
Isolation Voltage | ≥ 1800 V |
Insulation Voltage | ≥ 2000 V |
Operating Temperature | -25 ~ 75 ℃ |
Power Frequency | 50/60 HZ |
Cooling Conditions | ≥10A with heat sink, ≥20A with additional fan |
Load Current Safety Factor | 2-3 times for resistive load, 3-5 times for capacitive (inductive) load |
Dimensions | 38×28×23 mm |
