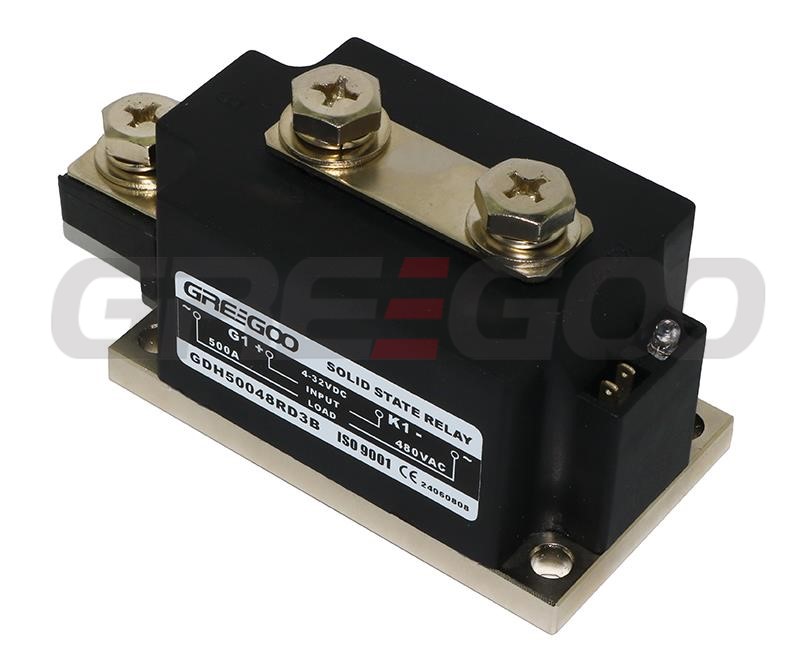

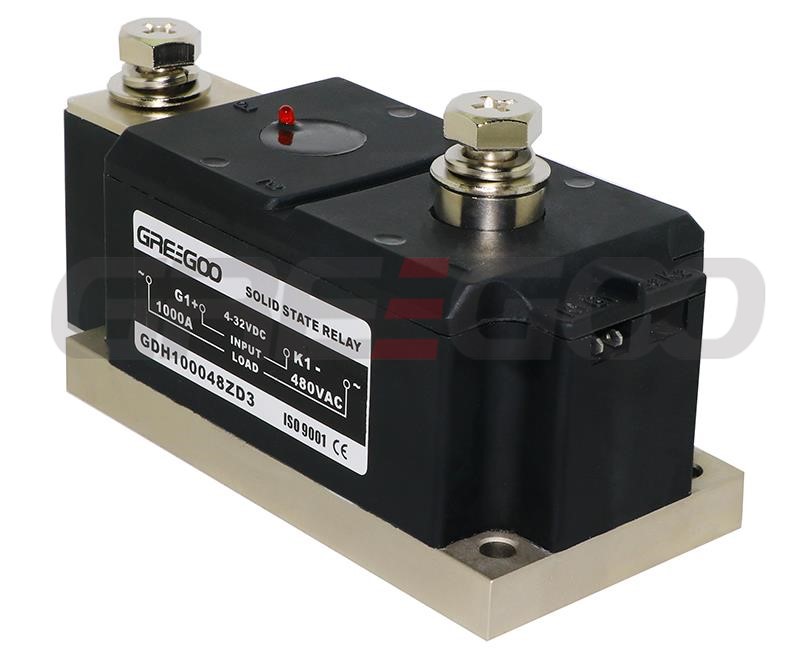

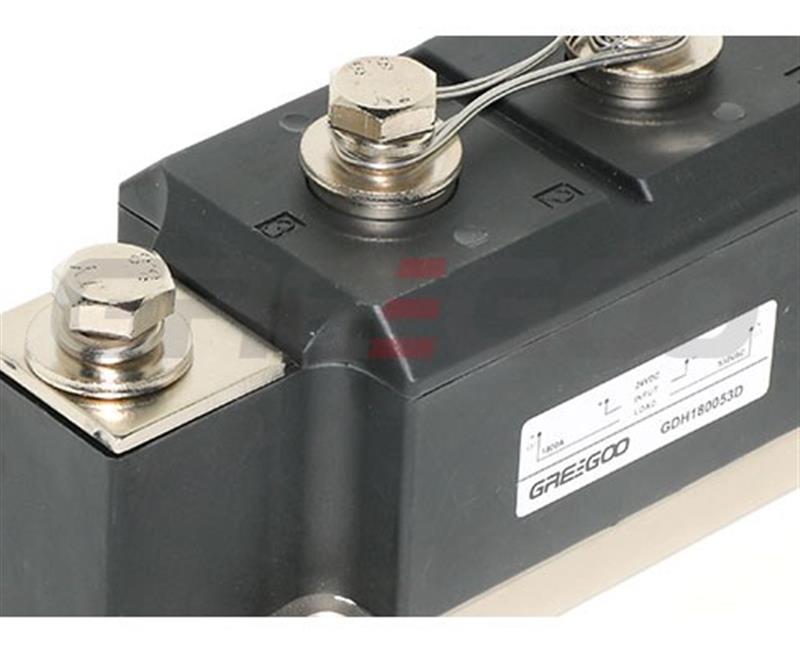

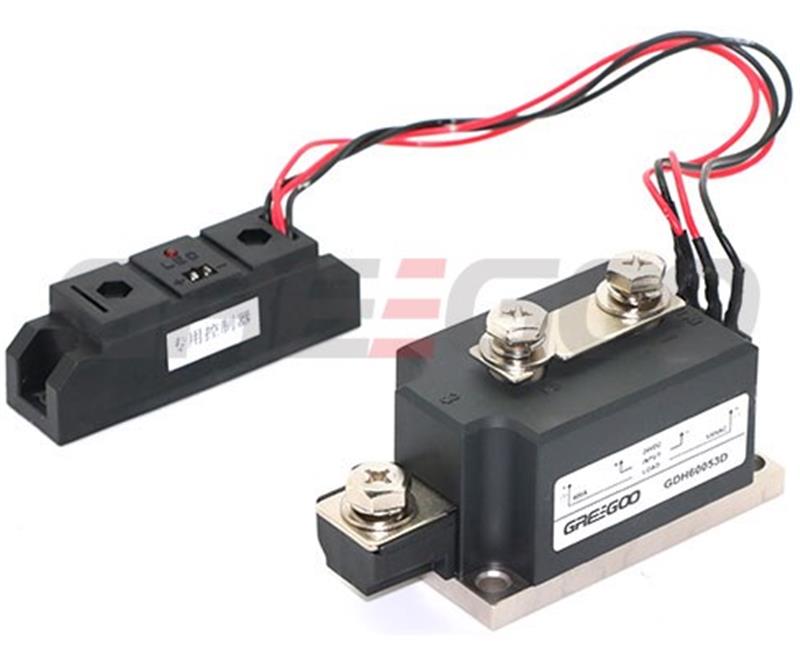

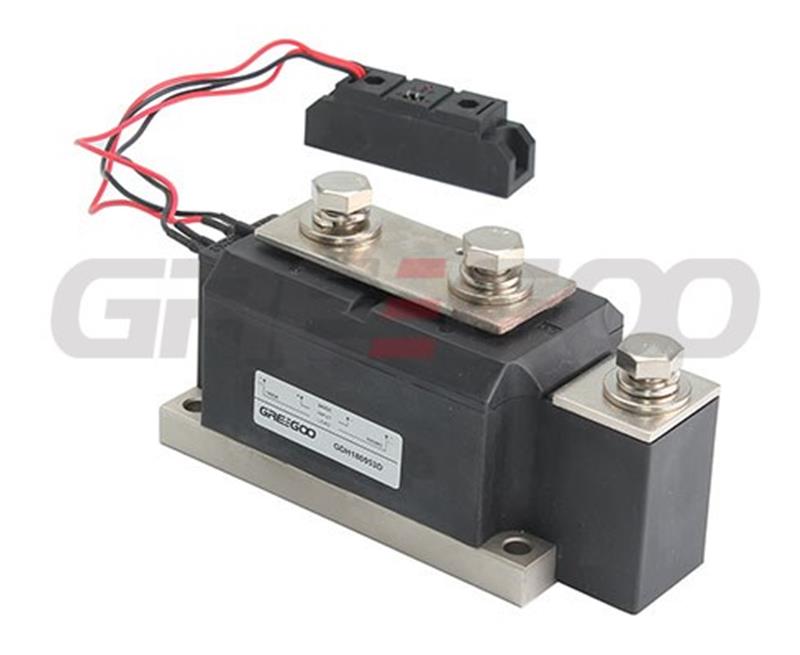

Single phase Solid State Relay (SCR output)

Series GDH are power line relays allowing 500 to 1600 Amps. switching power,with Voltage ratings from 280 to 480 Volts A.C. GDH series is Dual SCR Power Hybrid technology provides highly efficient thermal management for greatly increased cyclic life.

Features
  • High performance/low cost circuit design.
  • Logic compatible current regulated input.
  • 2500 Vrms optical isolation.
  • Both “Zero Voltage” & phase controllable “Random Switching” versions.
  • High voltage (1200 Vpk) versions for 480 Vrms service.
  • LED-indication for control input.
  • Control voltage range:4~16 Vdc ,4 to 32 Vdc or 90~280Vac.


Symbol Meaning
G Greegoo
D Single phase
H SCR output
* 500-500A, 600-600A, 800-800A, 1000-1000A
* 28-280V,48-480V
* Z-zero control, R-random control
* D1-4-16Vdc, D3-4-32Vdc, A2-90-250Vac

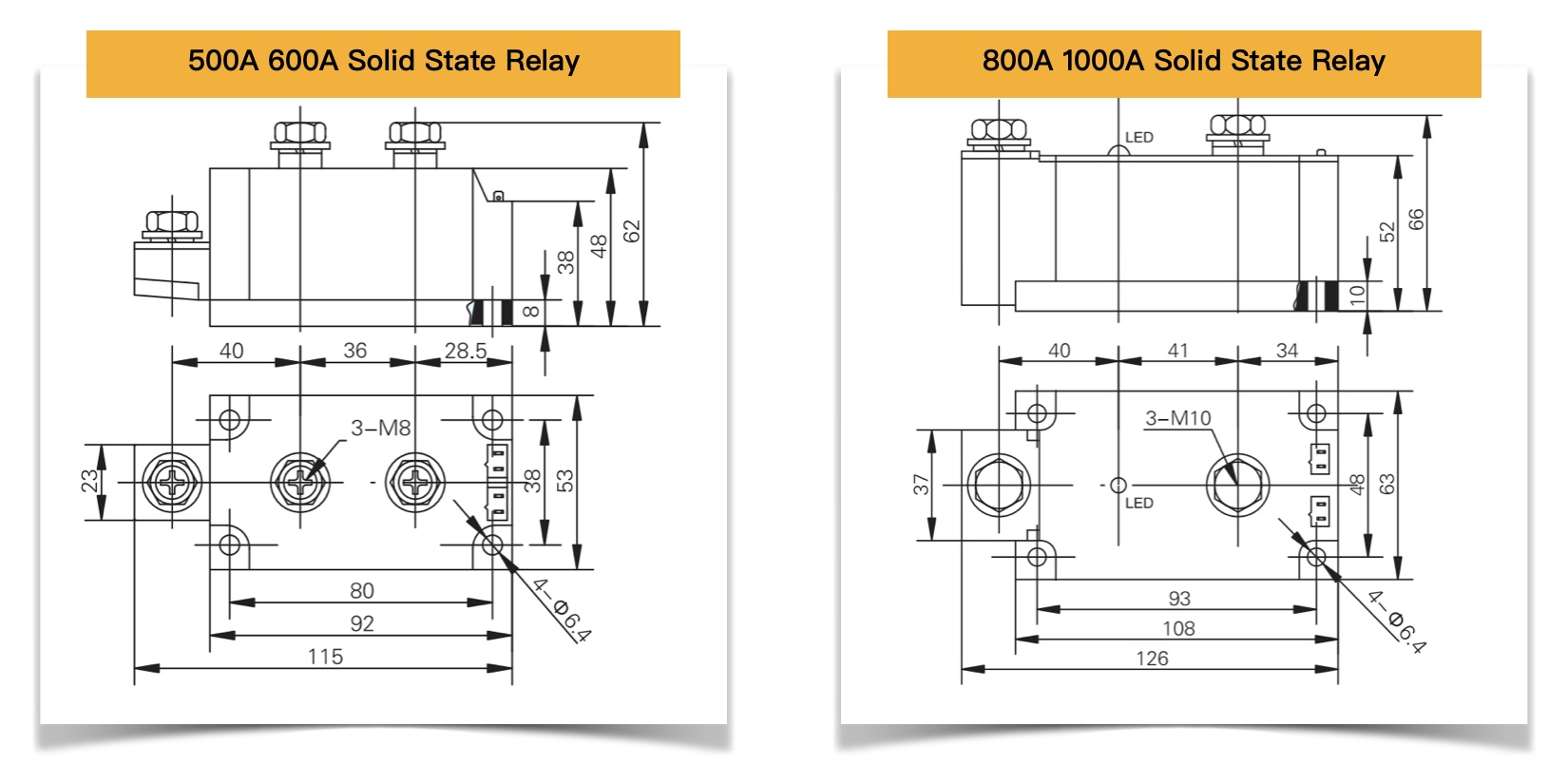

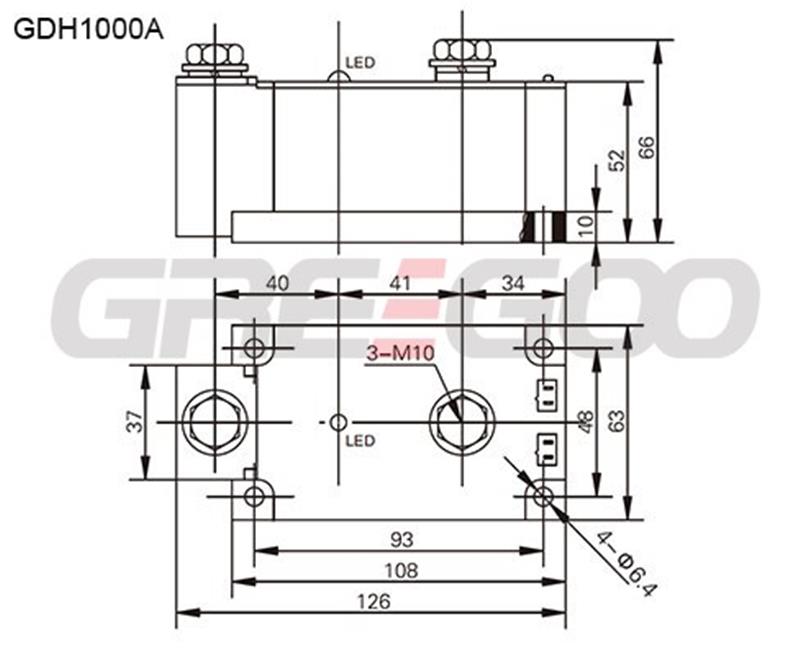

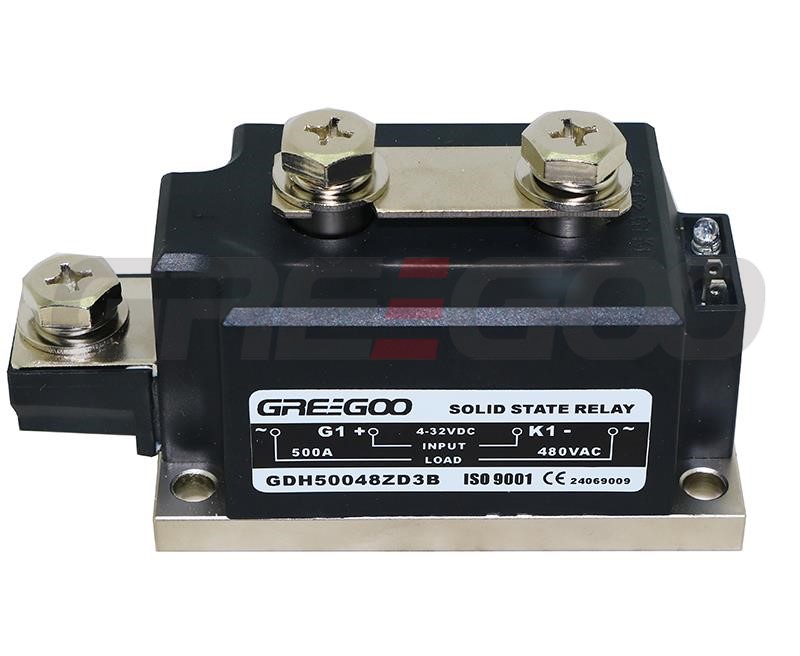

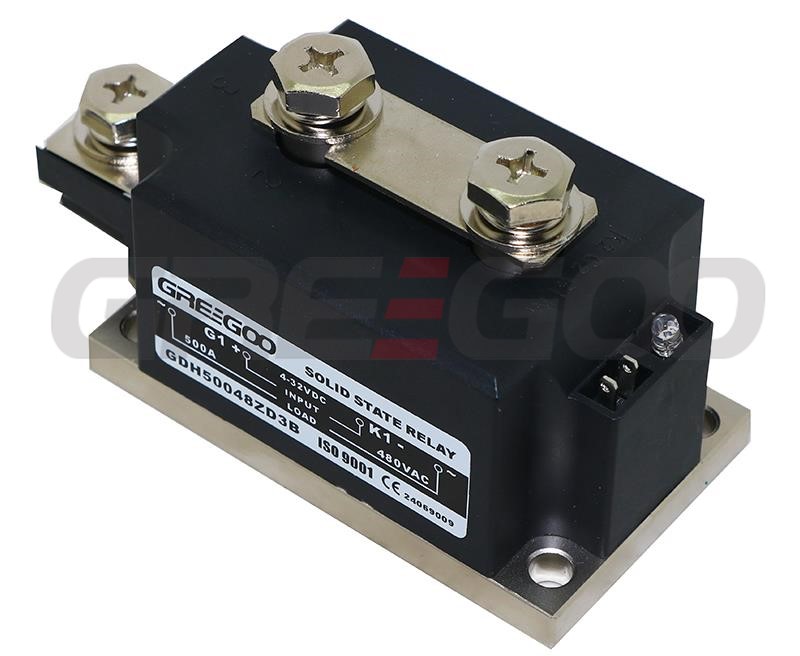

For example: GDH50048ZD3, single phase, SCR output, 500A，480Vac，4-32Vdc control


Load Voltage/Type Control Voltage Rated operational current
500Amp 600 Amp 800 Amp 1000 Amp 1200 Amp 1600 Amp

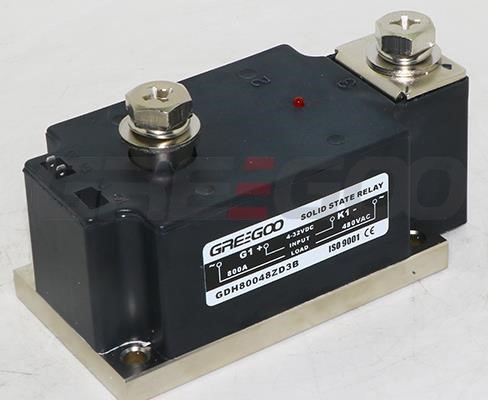

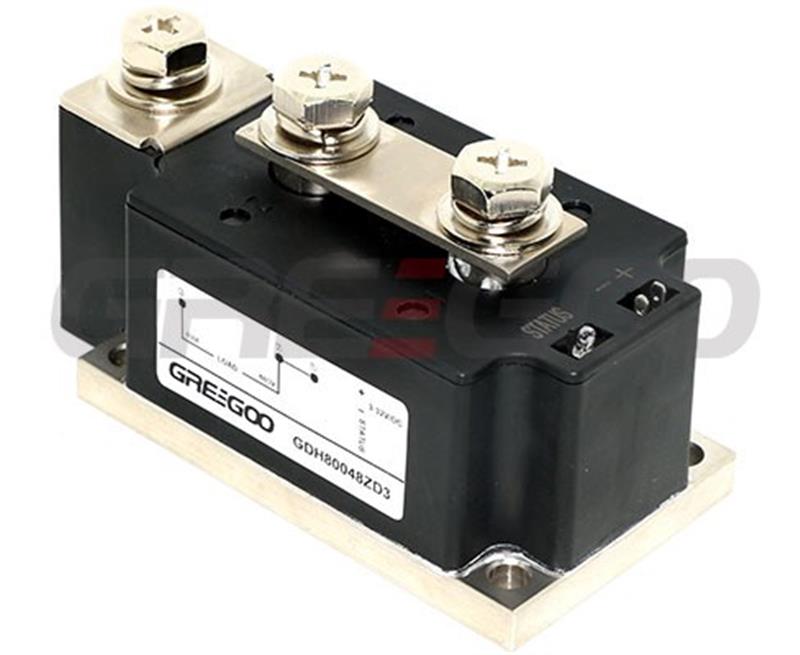

480 VAC “Zero Voltage” 4~32 Vdc GDH50048ZD3 GDH60048ZD3 GDH80048ZD3 GDH100048ZD3 GDH120048ZD3 GDH160048ZD3
480 VAC “Random Switching” 4~32 Vdc GDH50048RD3 GDH60048RD3 GDH80048RD3 GDH100048RD3 GDH120048RD3 GDH160048RD3

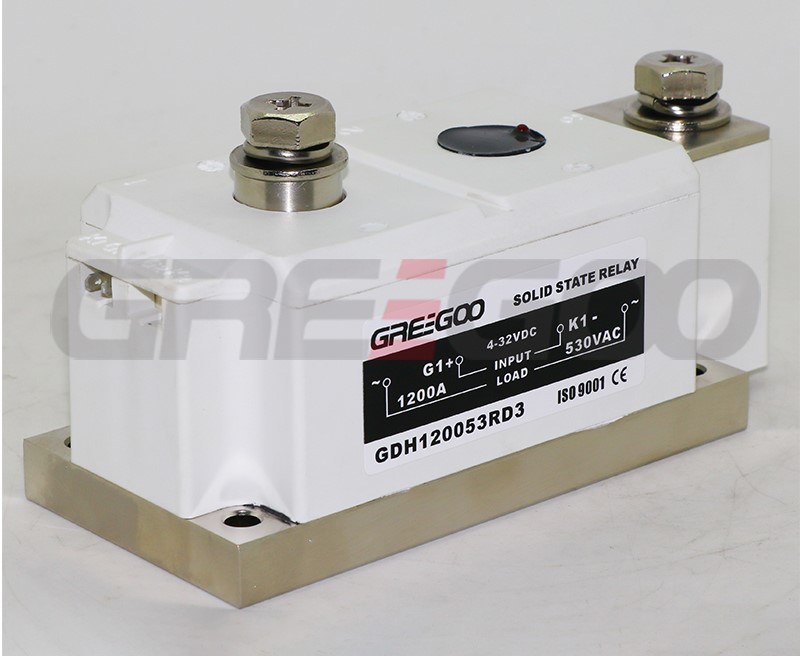

530 VAC “Zero Voltage” 4~32 Vdc GDH50053ZD3 GDH60053ZD3 GDH80053ZD3 GDH100053ZD3 GDH120053ZD3 GDH160053ZD3

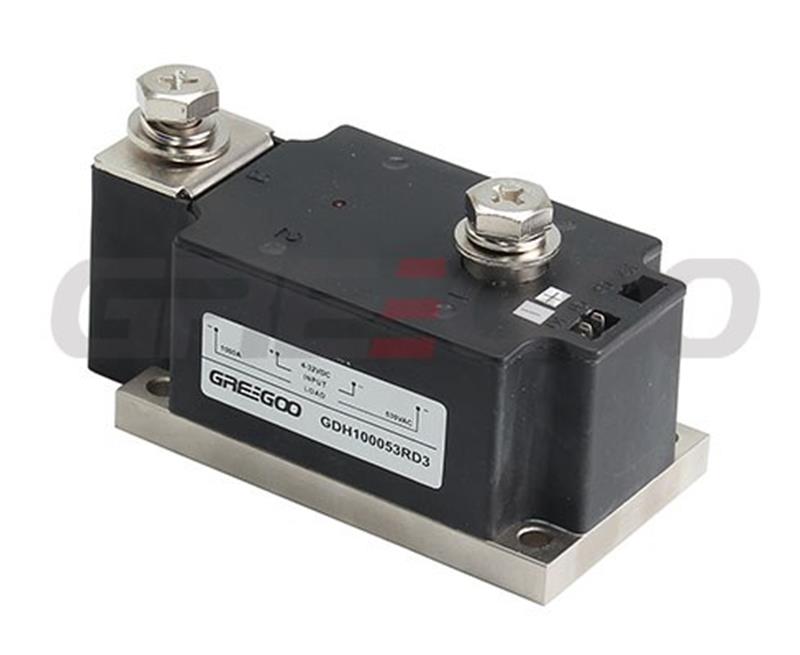

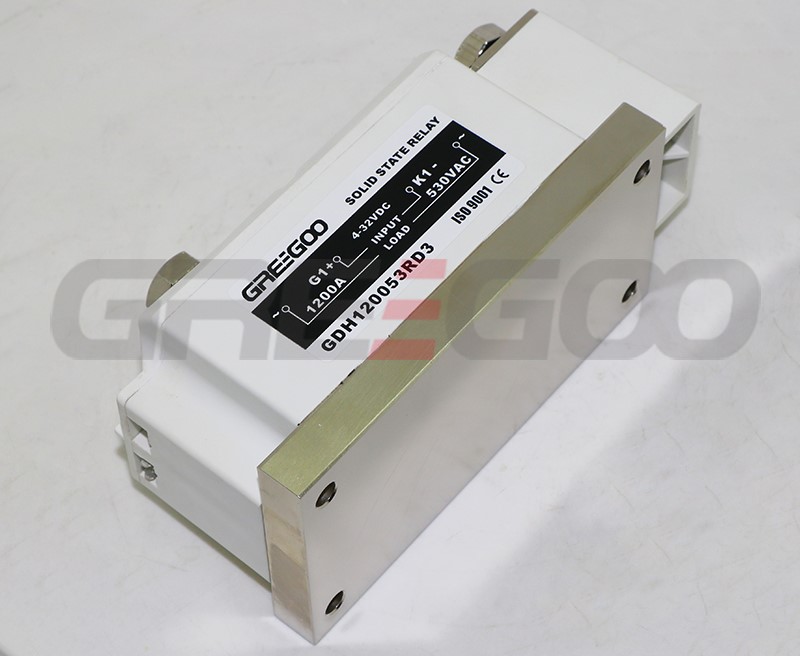

530 VAC “Random Switching” 4~32 Vdc GDH50053RD3 GDH60053RD3 GDH80053RD3 GDH100053RD3 GDH120053RD3 GDH160053RD3
