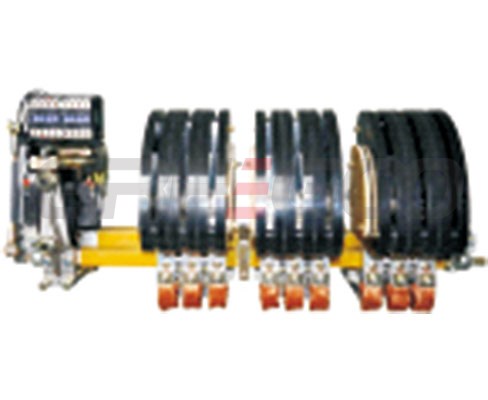

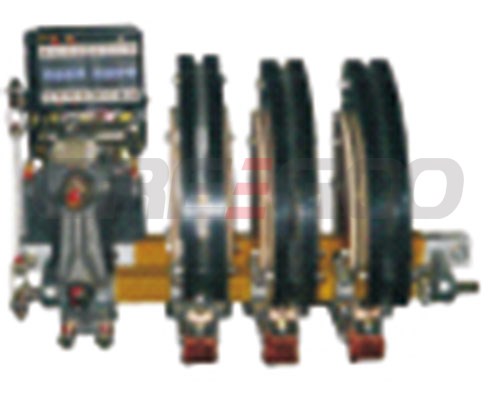

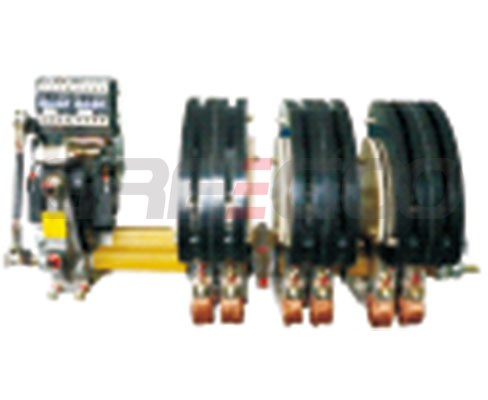

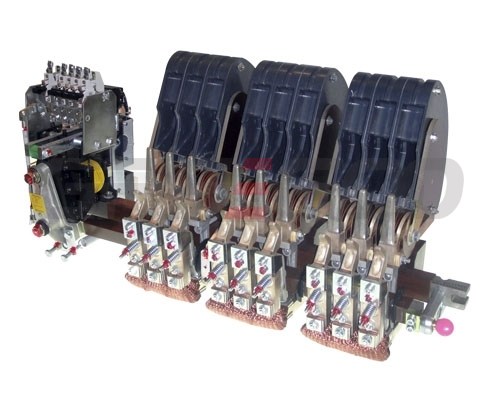

CJX2-B Power Ac Contactors 750A to 1800A
In circuit of AC 50/60Hz, voltage up to 1000V, Current up to 1800A, large capacity motor control, specially for large equipment as hoisting, construction, metallurgy etc.
| Product Type | CJX2B-750 | CJX2B-1000 | CJX2B-1500 | CJX2B-1800 | |
| Rated operational current A | Ie AC3 (Ue 380V) | 750 | 1000 | 1500 | 1800 |
| Ie AC1 (Ue 380V) | 800 | 1250 | 2000 | 2750 | |
| Rated rated operational voltage V | Max | 1000 | 1000 | 1000 | 1000 |
| Number of poles | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 | |
| Rated operational power KW 3-Phase squirrel cage motor 40°C AC3 50Hz | 220/240V | 220 | 280 | 425 | 500 |
| 380/400V | 400 | 500 | 750 | 900 | |
| 440V | 450 | 560 | 800 | 900 | |
| 500V | 500 | 600 | 800 | 900 | |
| 660/690V | 560 | 620 | 750 | 900 | |
| 1000V | 530 | 580 | 670 | 750 | |
| Rated operational power KW 3-Phase squirrel cage motor 40°C AC4 50Hz | 220/240V | 90 | 110 | 150 | 200 |
| 380/400V | 160 | 160 | 220 | 250 | |
| 440V | 160 | 200 | 250 | 315 | |
| 500V | 180 | 200 | 250 | 355 | |
| 660/690V | 200 | 250 | 315 | 450 | |
| Auxiliary parts | AC3 25A 6N/O or 4N/O 2N/C Two auxiliary contacts could be add on: Instantaneous contact: GTCF3;Time delay contact: GTCST, GTCSR; Dust and humidity proof: LADX | ||||
| Weight (3P) kg | 56 | 58 | 94 | 129 | |
