Capacitor Switching Contactors (CJ19)
| Contactor selection operating power at 50/60Hz | Thermal | Instantaneous auxi liary contacts | Reference | ||||
| θ<40℃ | θ≤50℃ | current | |||||
| 220V 240V | 400V 440V | 220V 240V | 400V 440V | Ithe in(A) | NO | NC | |
| (kVAR) | (kVAR) | (kVAR) | (kVAR) | ||||
| 6.7 | 12.5 | 5.5 | 10 | 25 | 1 | 1 | CJ19-2511 |
| 6.7 | 12.5 | 5.5 | 10 | 25 | 2 | - | CJ19-2520 |
| 6.7 | 12.5 | 5.5 | 10 | 25 | - | 2 | CJ19-2502 |
| 8.5 | 16.7 | 7.5 | 13.3 | 32 | 1 | 1 | CJ19-3211 |
| 8.5 | 16.7 | 7.5 | 13.3 | 32 | 2 | - | CJ19-3220 |
| 8.5 | 16.7 | 7.5 | 13.3 | 32 | - | 2 | CJ19-3202 |

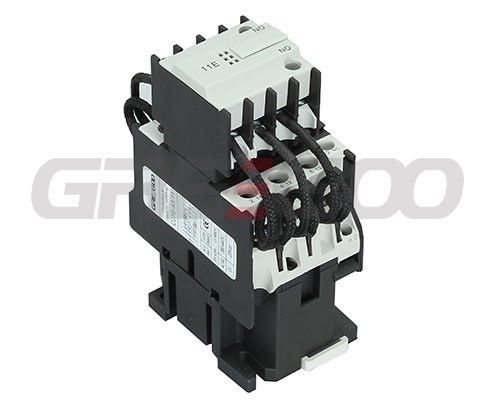

| 10 | 20 | 8.5 | 16.7 | 40 | 1 | 1 | CJ19-4311 |
| 10 | 20 | 8.5 | 16.7 | 40 | 2 | - | CJ19-4320 |
| 10 | 20 | 8.5 | 16.7 | 40 | - | 2 | CJ19-4302 |
| 15 | 25 | 10 | 20 | 50 | 1 | 2 | CJ19-5012 |
| 15 | 25 | 10 | 20 | 50 | 2 | 1 | CJ19-5021 |
| 20 | 33.3 | 15 | 25 | 60 | 2 | 1 | CJ19-6021 |
| 20 | 33.3 | 15 | 25 | 60 | 1 | 2 | CJ19-6012 |

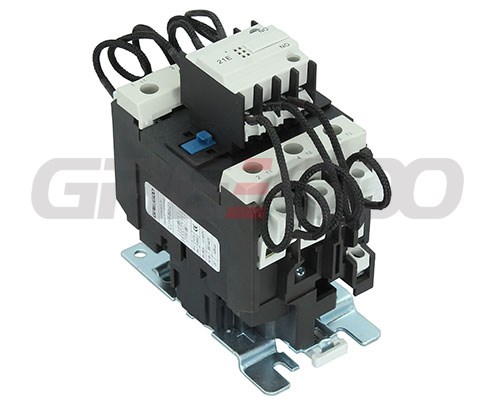

| 25 | 40 | 20 | 30 | 80 | 2 | 1 | CJ19-8021 |
| 25 | 40 | 20 | 30 | 80 | 1 | 2 | CJ19-8012 |

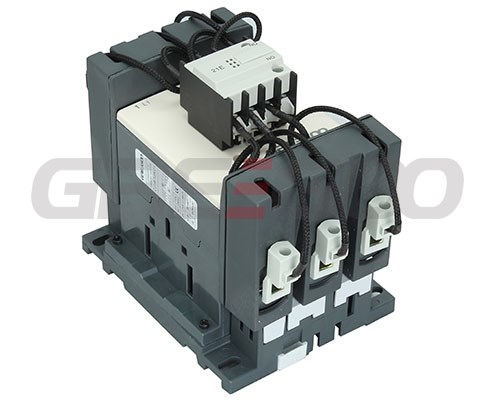

| 40 | 60 | 30 | 50 | 125 | 2 | 1 | CJ19-12521 |
| 40 | 60 | 30 | 50 | 125 | 1 | 2 | CJ19-12512 |
