AC to DC solid state relay (GDZ07)
Home Products DC Load Solid State RelayDC output solid state relayAC to DC solid state relay (GDZ07)
Specification

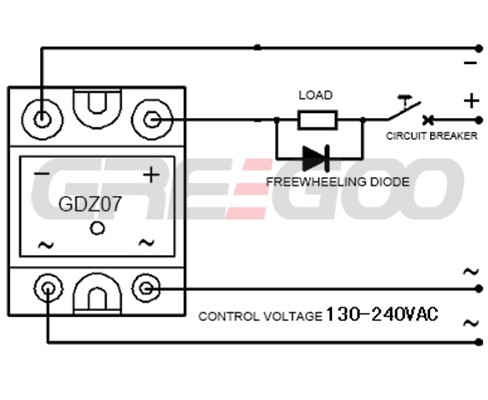

AC to DC solid state relay (GDZ07)
Model | GDZ07 |
---|---|
Control Voltage | 130-240VAC |
Control Current | 5-20 mA |
Operating Indicator | LED |
Switching Time | ≤5 mS |
Maximum Output Voltage | 100VDC, 200VDC, 400VDC, 600V, 1200VDC |
Maximum Load Current | 10, 20, 30 A; 60-200A |
On-State Voltage Drop | ≤2.5 V for 10A to 30A; 1.2-4.8VDC for 60A to 200A |
Off-State Voltage | ≥100V, ≥200V, ≥400V, 100-1200V |
Isolation Voltage | ≥1800 V |
Insulation Voltage | ≥2000 V |
Insulation Resistance | ≥100 MΩ |
Operating Temperature | -20 to 75 ℃ |
Heat Dissipation Condition | Heat sink required for ≥20A |
Load Current Safety Factor | Resistive load: 2.5-4x; Inductive load: 4-8x |
Product Details
- Optical isolation between input and output circuits.
- The control signal uses a commercial frequency 220VAC power supply.
- Transistor output with low on-state voltage drop and fast switching speed.
- Light Emitting Diode (LED) indicates the working status.
- Epoxy resin encapsulation integrates corrosion resistance and shock resistance for reliable operation.
- The product is mainly used in industrial automation, for controlling various high-power DC electrical equipment with AC 220V control, such as DC motors, solenoid valves, electric heaters, battery charging and discharging switches, etc.
