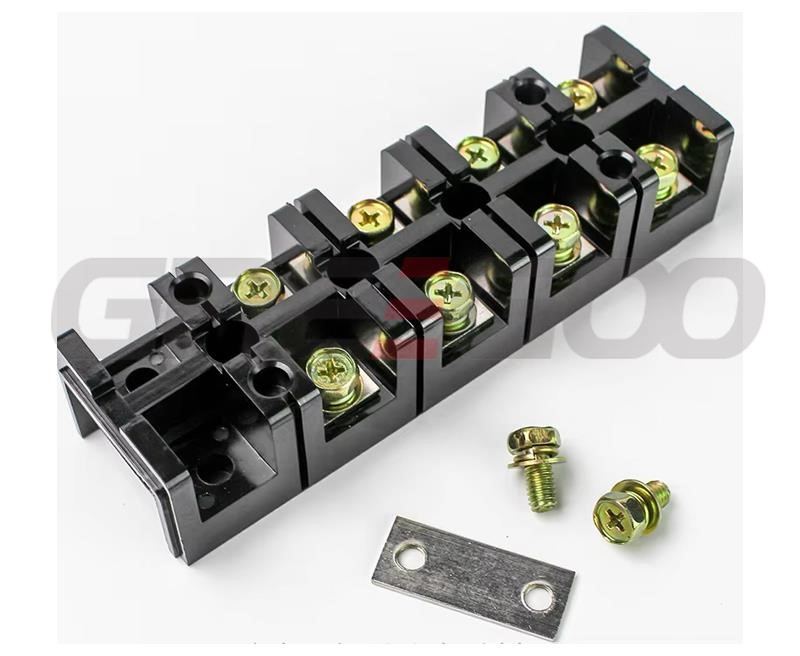

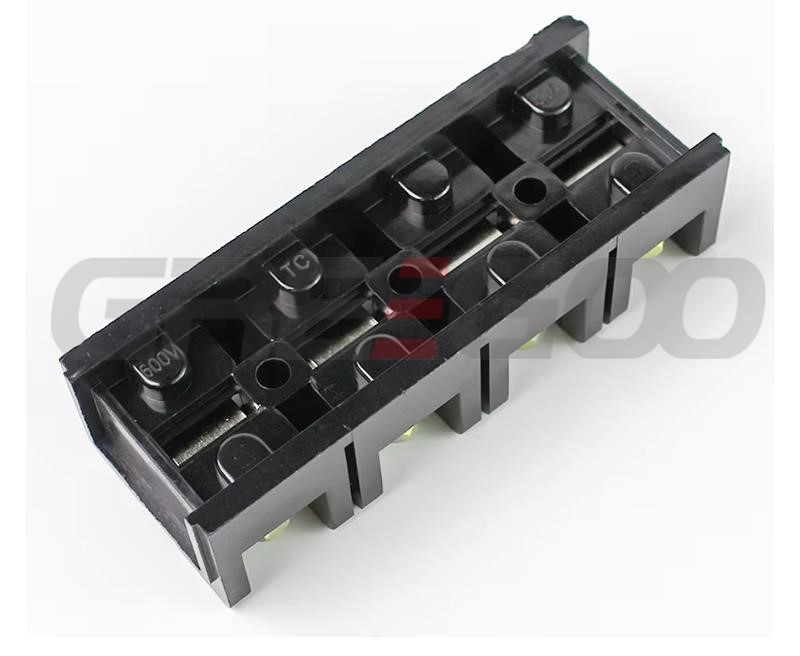

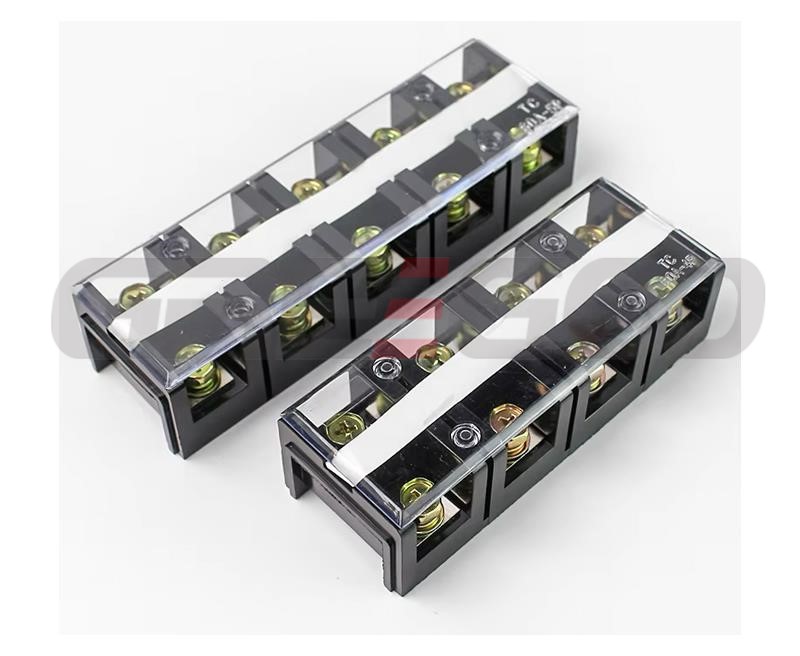

TC series Terminal Block

The TC series terminal block is an electrical connector commonly used for the connection and distribution of wires. This series offers multiple models and specifications to accommodate different wire ranges and current requirements. The feature of TC series terminal block are given as below:

Voltage and Current Ratings: The TC series terminal blocks typically have a voltage rating of 600V, with current ratings that can be 60A to 600A.
Structure and Design: These terminal blocks feature a board-type, screw-clamping, low-base, sealed, and integrated structure design to ensure connection stability and safety.
Applications: The TC series terminal blocks are widely used in various electrical equipment for power distribution and connection.

Specification

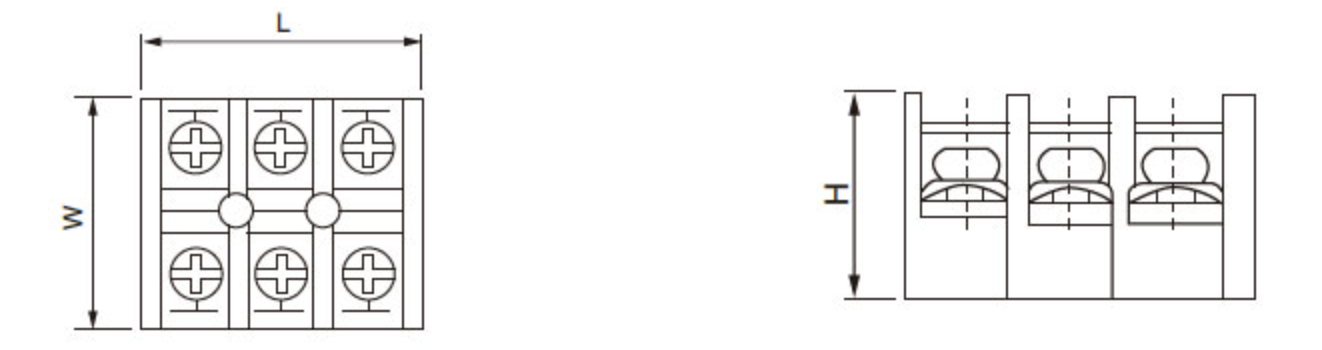

Item No .	Rating	Number of Poles	Wire Section（mm²)	Dimension(mm)
				L	W	H
TC-602	60A 600V	2	6-14	56	43	32.5
TC-603		3		85
TC-604		4		112
TC-1002	100A 600V	2	10-22	68	55.4	37.8
TC-1003		3		104
TC-1004		4		136
TC-1503	150A 600V	3	40-60	117	67	40.8
TC-1504		4		157
TC-2003	200A 600V	3	60-100	134	72	46.5
TC-2004		4		177
TC-3003	300A 600V	3	100-150	164	90.5	50.6
TC-3004		4		220
TC-4003	400A 600V	3	150-200	164	90.5	50.6
TC-4004		4		220
TC-6003	600A 600V	3	200-300	205	100	75
TC-6004		4		275
