Busbar Insulators

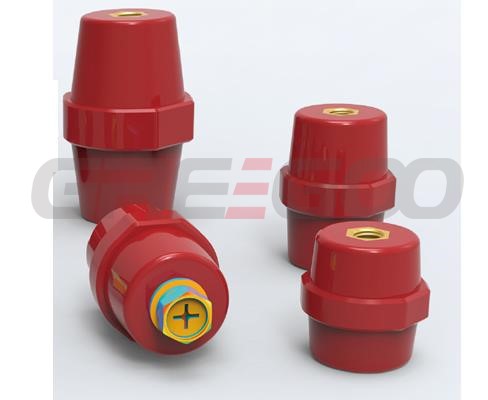

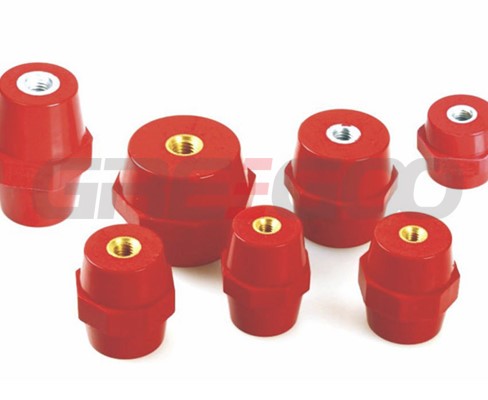

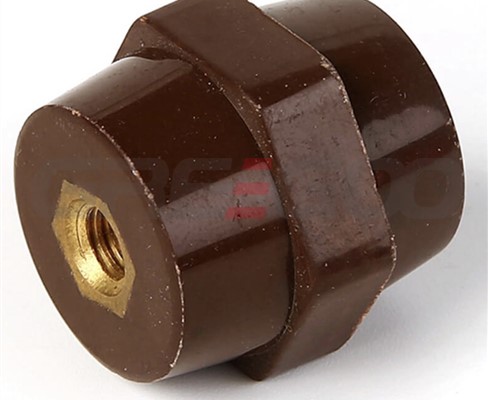

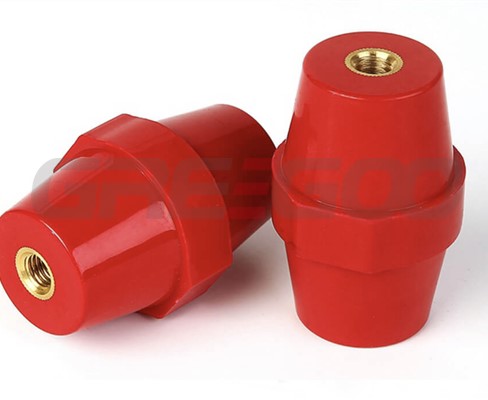

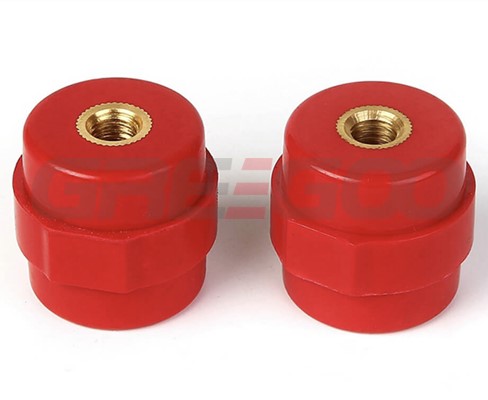

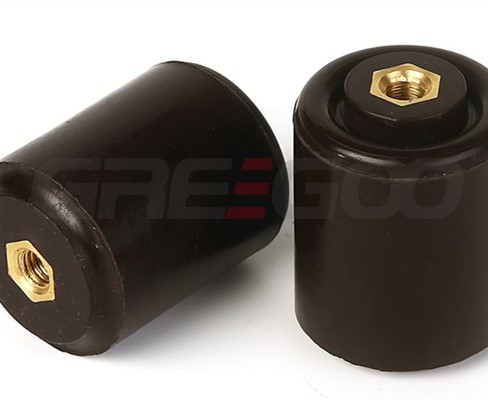

Greegoo's hexagonal busbar insulators are mainly made from bulk molding compound, unsaturated polymer with 20% fiber glass. Product itself are with good properties such as electrical resistance, hear resistance, fire resistance, low shrinkage, water resistance. Low voltage stand off insulator are mainly used in low voltage power distribution cabinets, frequency converters, switchgear and other products. By connecting the step busbar support, it plays a role of fixing, supporting and insulating. Bus bar support insulator has excellent insulation performance, high tensile strength and torque strength, high temperature resistance, reliable safety performance, and is a good choice for fixed busbar of low-voltage power distribution cabinets.

Thread Insert: Brass with Zn coating (Steel with Zn coating is alternative)
Material: DMC; SMC
Color:Red (other color can be customized)
Working Temperature: 40℃～140℃
Fire Retardant: V0
OEM/ODM are welcome

Busbar Insulators

Model	Height	Threading	Depth	Diameter	Nominal	Insulation	Tightening	Quantity
No.	H (mm)	M	mm	mm	Voltage	Voltage	Torque	Pcs
SM20-M5	20	M5	7	17	600V	3000V	8Nm	2000
SM20-M6	20	M6	7	17	600V	3000V	8Nm	2000
SM25S-M6	25	M6	9	22	600V	3000V	8Nm	1000
SM25-M6	25	M6	9	30	600V	3000V	10Nm	1000
SM30-M6	30	M6	9	32	600V	3000V	10Nm	500
SM30-M8	30	M8	10	32	600V	3000V	10Nm	500
SM35-M8	35	M8	10	32	600V	5000V	12Nm	400
SM35-M10	35	M10	12	32	600V	5000V	12Nm	400
SM40-M8	40	M8	10.5	40	600V	5000V	15Nm	400
SM40-M10	40	M10	13.5	40	600V	5000V	15Nm	300
SM45-M8	45	M8	10.5	36	600V	5000V	15Nm	300
SM51-M8	51	M8	10.5	36	600V	5000V	15Nm	200
SM51-M10	51	M10	13.5	36	600V	5000V	15Nm	200
SM51-M12	51	M12	13.5	36	600V	5000V	15Nm	200
SM60S-M8	60	M8	10.5	44	600V	5000V	15Nm	150
SM60S-M10	60	M10	13.5	44	600V	5000V	15Nm	150
SM65-M10	65	M10	13.5	44	660V	8000V	20Nm	150
SM70-M10	70	M10	13.5	44	1500V	8000V	20Nm	150
SM76-M10	76	M10	13.5	50	1500V	10000V	20Nm	150
SM80-M8	80	M8	10.5	50	1500V	10000V	20Nm	100
SM100-M10	100	M10	18	65	1500V	10000V	20Nm	100
SM7110-M8	45	M8	10	42	600V	3000V	10Nm	300
SM7110-M10	45	M10	13	42	600V	3000V	10Nm	300
SM7120-M10	50	M10	13	50	1000V	6000V	20Nm	200

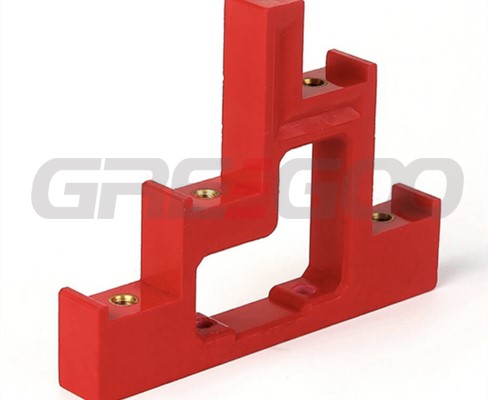

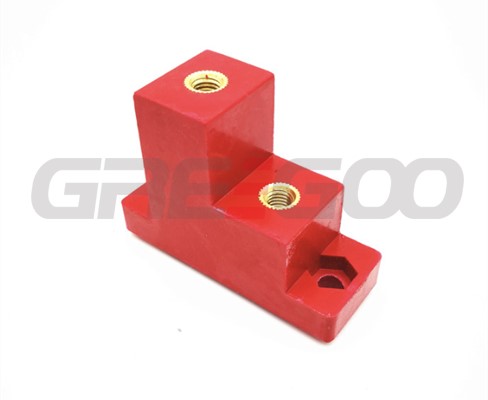

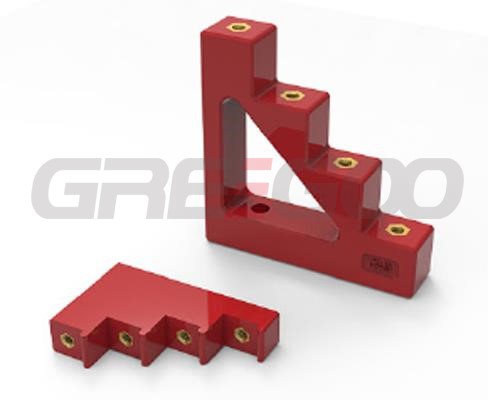

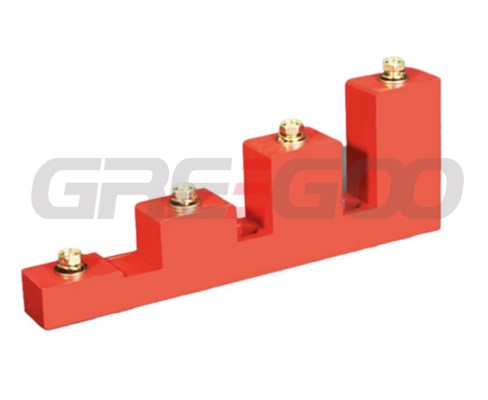

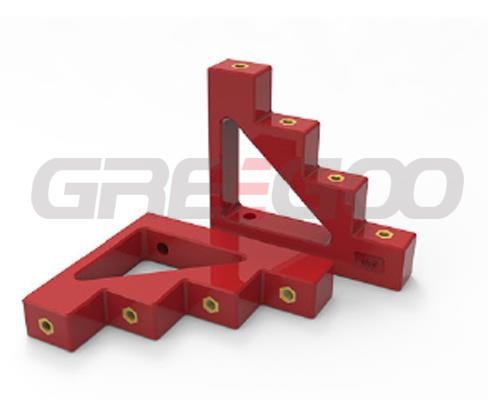

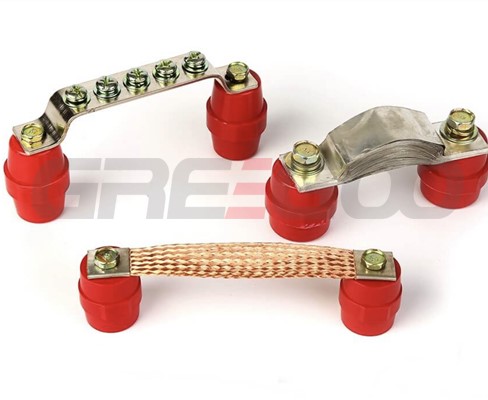

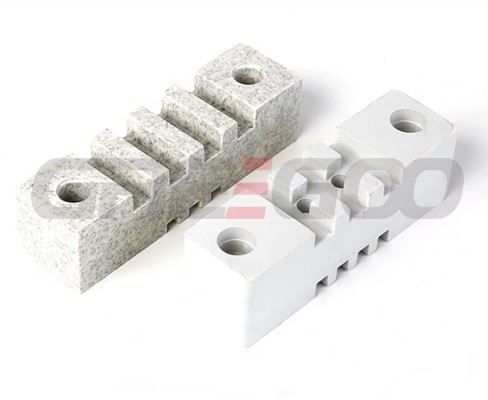

Step Insulator, Stand off insulator, Busbar Support

Model	Length (mm)	Height (mm)	Main nut	Base nut	Quantity(pcs)	Weight (kgs)
CT2-25	80	60	M8	M8	100	20
CT5-25	135	100	M6	M6	100	20
CT4-20	110	100	M8	M8	100	27.5
CT4-30	132	130	M8	M10	40	20
CT4-40	164	148	M8	M10	40	26.5
CT4-50	212	200	M10	M10	20	26.5
CJ4-30	230	100	M8	M10	40	26
CJ4-40	230	100	M10	M10	40	28
CJ4-50	275	100	M10	M10	20	26
