Stud Diode Kubara Lamina Replacement

Home Products Stud Semiconductor DeviceStud DiodeStud Diode Kubara Lamina Replacement

Rectifier Diodes, Stud Type, Kubara Lamina
Rectifier Diodes, Stud Type, Kubara Lamina
Rectifier Diodes, Stud Type, Kubara Lamina
Rectifier Diodes, Stud Type, Kubara Lamina
Rectifier Diodes, Stud Type, Kubara Lamina
Rectifier Diodes, Stud Type, Kubara Lamina
Rectifier Diodes, Stud Type, Kubara Lamina

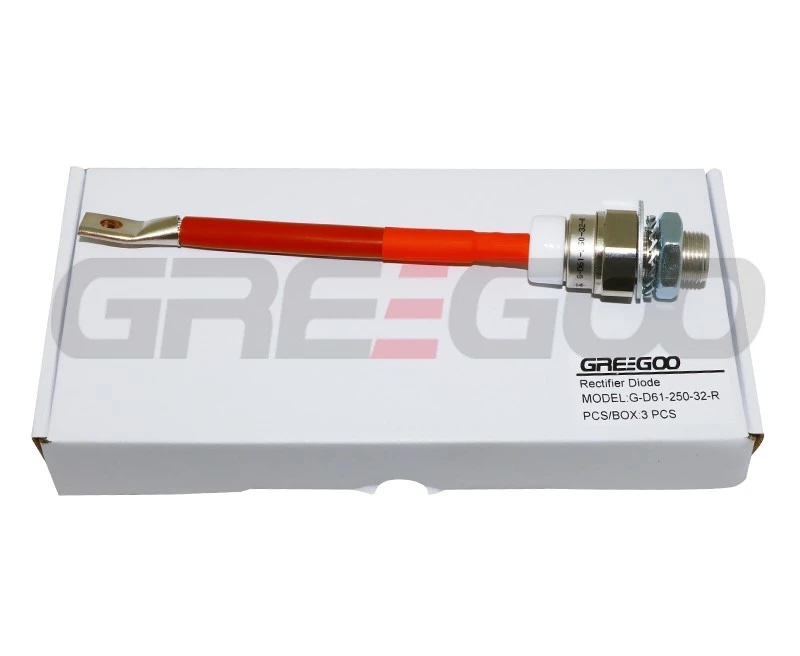

package of diode D61-250-32 stud diode

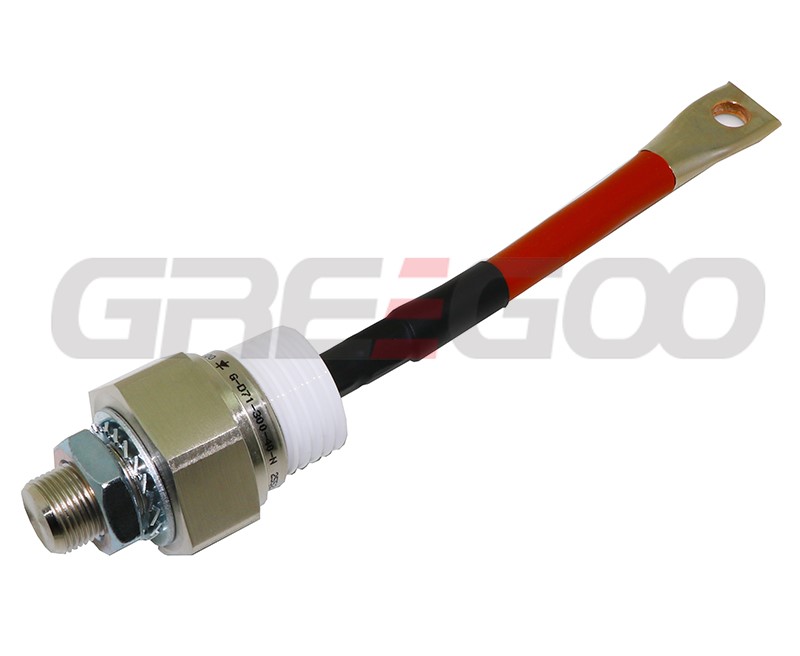

G-D71-300-40-N Stud Diode

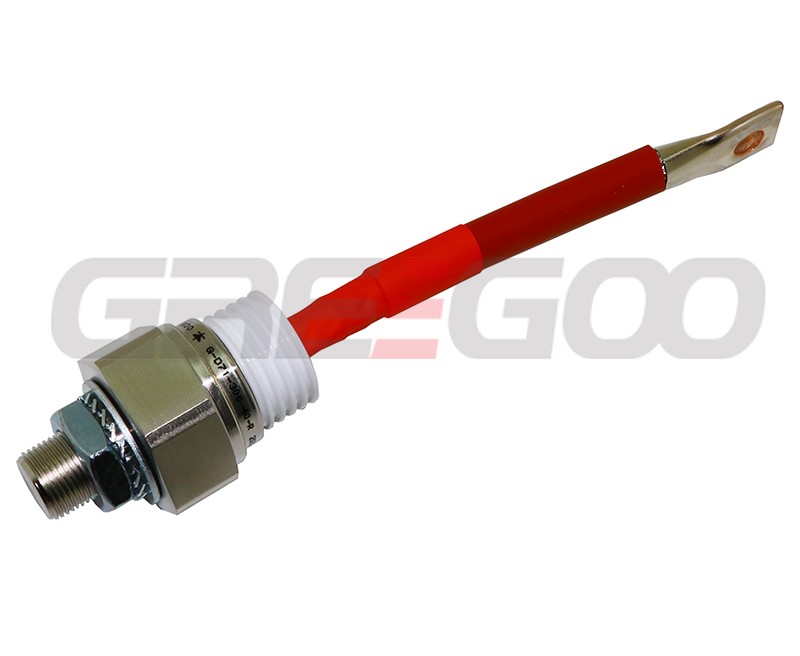

G-D71-300-40-R Stud Diode

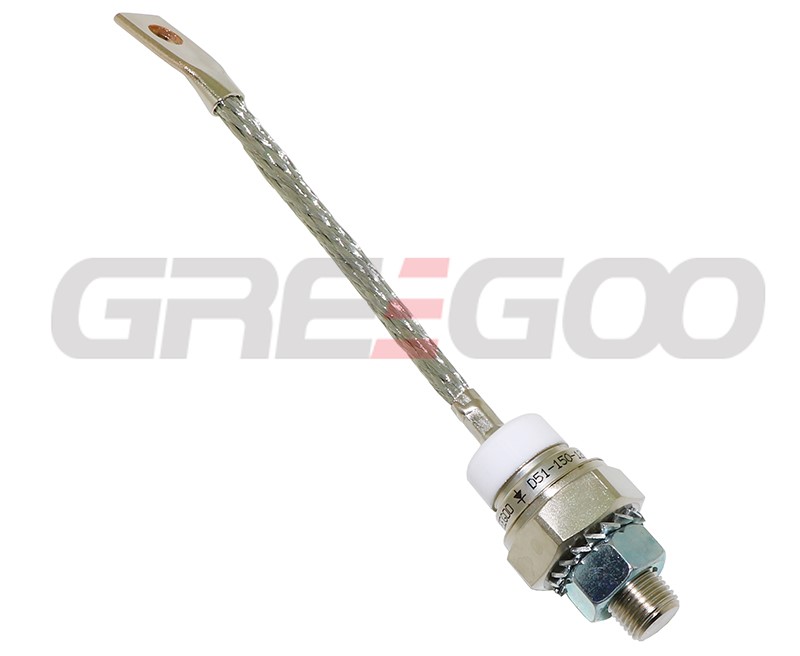

D51-150-12N-Stud Diode Kubara Lamina Replacement

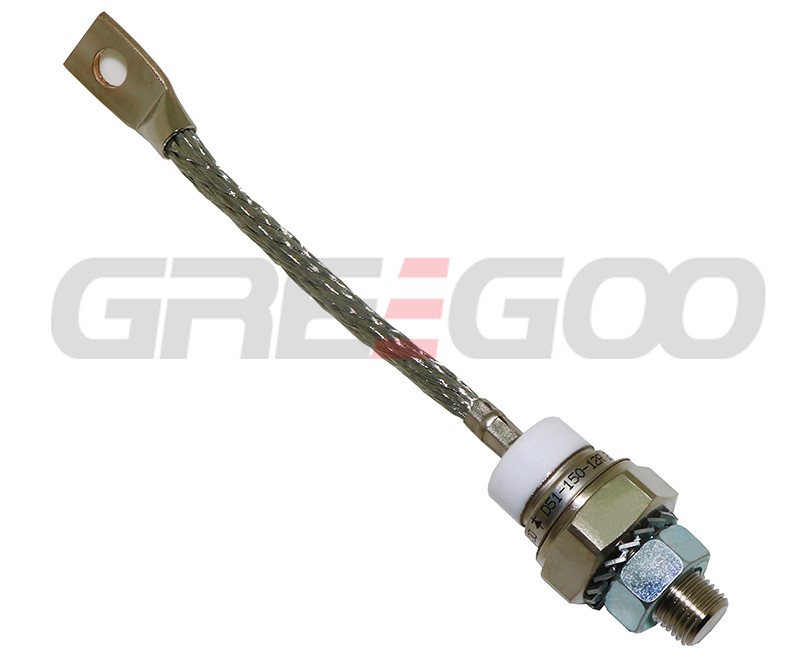

D51-150-12R-Stud Diode Kubara Lamina Replacement
Part numbers list

Stud Diode Kubara Lamina Replacement

Type IFAV (TC) VRRM/VDRM IFSM I²t VF(TO) rT Tvj max Rth(j-c) W Package
  A(℃) V A kA²·s V mΩ ℃ ℃/W g mm
D51-100-18 100 (125) 1800 2100 22 1.2 2.37 175 0.25 130 DO-205AC
D51-100-20 100 (125) 2000 2100 22 1.2 2.37 175 0.25 130 DO-205AC
D52-100-04 100 (140) 400 2100 22 1.2 2.37 190 0.25 130 DO-205AC
D52-100-06 100 (140) 600 2100 22 1.2 2.37 190 0.25 130 DO-205AC
D52-100-08 100 (140) 800 2100 22 1.2 2.37 190 0.25 130 DO-205AC
D52-100-10 100 (140) 1000 2100 22 1.2 2.37 190 0.25 130 DO-205AC
D52-100-12 100 (140) 1200 2100 22 1.2 2.37 190 0.25 130 DO-205AC
D52-100-14 100 (125) 1400 2100 22 1.2 2.37 175 0.25 130 DO-205AC
D52-100-16 100 (125) 1600 2100 22 1.2 2.37 175 0.25 130 DO-205AC
D52-150-04 150 (120) 400 2700 36 1.05 1.66 190 0.25 130 DO-205AC
D52-150-06 150 (120) 600 2700 36 1.05 1.66 190 0.25 130 DO-205AC
D52-150-08 150 (120) 800 2700 36 1.05 1.66 190 0.25 130 DO-205AC
D52-150-10 150 (120) 1000 2700 36 1.05 1.66 190 0.25 130 DO-205AC
D52-150-12 150 (120) 1200 2700 36 1.05 1.66 190 0.25 130 DO-205AC
D52-150-14 150 (105) 1400 2700 36 1.05 1.66 175 0.25 130 DO-205AC
D52-150-16 150 (105) 1600 2700 36 1.05 1.66 175 0.25 130 DO-205AC
D52-200-04 200 (110) 400 2900 42 0.9 1.07 190 0.25 130 DO-205AC
D52-200-06 200 (110) 600 2900 42 0.9 1.07 190 0.25 130 DO-205AC
D52-200-08 200 (110) 800 2900 42 0.9 1.07 190 0.25 130 DO-205AC
D52-200-10 200 (110) 1000 2900 42 0.9 1.07 190 0.25 130 DO-205AC
D52-200-12 200 (110) 1200 2900 42 0.9 1.07 190 0.25 130 DO-205AC
D52-200-14 200 (95) 1400 2900 42 0.9 1.07 175 0.25 130 DO-205AC
D52-200-16 200 (95) 1600 2900 42 0.9 1.07 175 0.25 130 DO-205AC
D61-200-18 200 (130) 1800 5000 125 0.72 1.85 175 0.12 240 DO-205AB
D61-200-20 200 (130) 2000 5000 125 0.72 1.85 175 0.12 240 DO-205AB
D61-200-22 200 (130) 2200 5000 125 0.72 1.85 175 0.12 240 DO-205AB
D61-200-24 200 (130) 2400 5000 125 0.72 1.85 175 0.12 240 DO-205AB
D61-200-26 200 (130) 2600 5000 125 0.72 1.85 175 0.12 240 DO-205AB
D61-200-28 200 (130) 2800 5000 125 0.72 1.85 175 0.12 240 DO-205AB
D61-200-30 200 (130) 3000 5000 125 0.72 1.85 175 0.12 240 DO-205AB
D61-200-32 200 (130) 3200 5000 125 0.72 1.85 175 0.12 240 DO-205AB
D64-200-18 200 (130) 1800 5000 125 0.72 1.85 175 0.12 180 10
D64-200-20 200 (130) 2000 5000 125 0.72 1.85 175 0.12 180 10
D64-200-22 200 (130) 2200 5000 125 0.72 1.85 175 0.12 180 10
D64-200-24 200 (130) 2400 5000 125 0.72 1.85 175 0.12 180 10
D64-200-26 200 (130) 2600 5000 125 0.72 1.85 175 0.12 180 10
D64-200-28 200 (130) 2800 5000 125 0.72 1.85 175 0.12 180 10
D64-200-30 200 (130) 3000 5000 125 0.72 1.85 175 0.12 180 10
D64-200-32 200 (130) 3200 5000 125 0.72 1.85 175 0.12 180 10
D61-250-18 250 (125) 1800 5500 150 0.7 1.22 175 0.12 240 DO-205AB
D61-250-20 250 (125) 2000 5500 150 0.7 1.22 175 0.12 240 DO-205AB
D61-250-22 250 (125) 2200 5500 150 0.7 1.22 175 0.12 240 DO-205AB
D61-250-24 250 (125) 2400 5500 150 0.7 1.22 175 0.12 240 DO-205AB
D61-250-26 250 (125) 2600 5500 150 0.7 1.22 175 0.12 240 DO-205AB
D61-250-28 250 (125) 2800 5500 150 0.7 1.22 175 0.12 240 DO-205AB
D61-250-30 250 (125) 3000 5500 150 0.7 1.22 175 0.12 240 DO-205AB
D61-250-32 250 (125) 3200 5500 150 0.7 1.22 175 0.12 240 DO-205AB
D64-250-18 250 (125) 1800 5500 150 0.7 1.22 175 0.12 180 10
D64-250-20 250 (125) 2000 5500 150 0.7 1.22 175 0.12 180 10
D64-250-22 250 (125) 2200 5500 150 0.7 1.22 175 0.12 180 10
D64-250-24 250 (125) 2400 5500 150 0.7 1.22 175 0.12 180 10
D64-250-26 250 (125) 2600 5500 150 0.7 1.22 175 0.12 180 10
D64-250-28 250 (125) 2800 5500 150 0.7 1.22 175 0.12 180 10
D64-250-30 250 (125) 3000 5500 150 0.7 1.22 175 0.12 180 10
D64-250-32 250 (125) 3200 5500 150 0.7 1.22 175 0.12 180 10
D61-320-18 320 (110) 1800 6300 198 0.69 0.99 175 0.12 240 DO-205AB
D61-320-20 320 (110) 2000 6300 198 0.69 0.99 175 0.12 240 DO-205AB
D61-320-22 320 (110) 2200 6300 198 0.69 0.99 175 0.12 240 DO-205AB
D61-320-24 320 (110) 2400 6300 198 0.69 0.99 175 0.12 240 DO-205AB
D61-320-26 320 (110) 2600 6300 198 0.69 0.99 175 0.12 240 DO-205AB
D64-320-18 320 (110) 1800 6300 198 0.69 0.99 175 0.12 180 10
D64-320-20 320 (110) 2000 6300 198 0.69 0.99 175 0.12 180 10
D64-320-22 320 (110) 2200 6300 198 0.69 0.99 175 0.12 180 10
D64-320-24 320 (110) 2400 6300 198 0.69 0.99 175 0.12 180 10
D64-320-26 320 (110) 2600 6300 198 0.69 0.99 175 0.12 180 10
D61-400-18 400 (110) 1800 7000 245 0.62 0.563 175 0.12 240 DO-205AB
D61-400-20 400 (110) 2000 7000 245 0.62 0.563 175 0.12 240 DO-205AB
D64-400-18 400 (110) 1800 7000 245 0.62 0.563 175 0.12 180 10
D64-400-20 400 (110) 2000 7000 245 0.62 0.563 175 0.12 180 10
D62-200-04 200 (145) 400 5000 125 0.72 1.85 190 0.12 260 DO-205AB
D62-200-06 200 (145) 600 5000 125 0.72 1.85 190 0.12 260 DO-205AB
D62-200-08 200 (145) 800 5000 125 0.72 1.85 190 0.12 260 DO-205AB
D62-200-10 200 (145) 1000 5000 125 0.72 1.85 190 0.12 260 DO-205AB
D62-200-12 200 (145) 1200 5000 125 0.72 1.85 190 0.12 260 DO-205AB
D66-200-04 200 (145) 400 5000 125 0.72 1.85 190 0.12 200 11
D66-200-06 200 (145) 600 5000 125 0.72 1.85 190 0.12 200 11
D66-200-08 200 (145) 800 5000 125 0.72 1.85 190 0.12 200 11
D66-200-10 200 (145) 1000 5000 125 0.72 1.85 190 0.12 200 11
D66-200-12 200 (145) 1200 5000 125 0.72 1.85 190 0.12 200 11
D62-200-14 200 (130) 1400 5000 125 0.72 1.85 175 0.12 260 DO-205AB
D62-200-16 200 (130) 1600 5000 125 0.72 1.85 175 0.12 260 DO-205AB
D66-200-14 200 (130) 1400 5000 125 0.72 1.85 175 0.12 200 11
D66-200-16 200 (130) 1600 5000 125 0.72 1.85 175 0.12 200 11
D62-250-04 250 (140) 400 5500 150 0.7 1.22 190 0.12 260 DO-205AB
D62-250-06 250 (140) 600 5500 150 0.7 1.22 190 0.12 260 DO-205AB
D62-250-08 250 (140) 800 5500 150 0.7 1.22 190 0.12 260 DO-205AB
D62-250-10 250 (140) 1000 5500 150 0.7 1.22 190 0.12 260 DO-205AB
D62-250-12 250 (140) 1200 5500 150 0.7 1.22 190 0.12 260 DO-205AB
D66-250-04 250 (140) 400 5500 150 0.7 1.22 190 0.12 200 11
D66-250-06 250 (140) 600 5500 150 0.7 1.22 190 0.12 200 11
D66-250-08 250 (140) 800 5500 150 0.7 1.22 190 0.12 200 11
D66-250-10 250 (140) 1000 5500 150 0.7 1.22 190 0.12 200 11
D66-250-12 250 (140) 1200 5500 150 0.7 1.22 190 0.12 200 11
D62-250-14 250 (125) 1400 5500 150 0.7 1.22 175 0.12 260 DO-205AB
D62-250-16 250 (125) 1600 5500 150 0.7 1.22 175 0.12 260 DO-205AB
D66-250-14 250 (125) 1400 5500 150 0.7 1.22 175 0.12 200 11
D66-250-16 250 (125) 1600 5500 150 0.7 1.22 175 0.12 200 11
D62-320-04 320 (125) 400 6300 198 0.69 0.99 190 0.12 260 DO-205AB
D62-320-06 320 (125) 600 6300 198 0.69 0.99 190 0.12 260 DO-205AB
D62-320-08 320 (125) 800 6300 198 0.69 0.99 190 0.12 260 DO-205AB
D62-320-10 320 (125) 1000 6300 198 0.69 0.99 190 0.12 260 DO-205AB
D62-320-12 320 (125) 1200 6300 198 0.69 0.99 190 0.12 260 DO-205AB
D66-320-04 320 (125) 400 6300 198 0.69 0.99 190 0.12 200 11
D66-320-06 320 (125) 600 6300 198 0.69 0.99 190 0.12 200 11
D66-320-08 320 (125) 800 6300 198 0.69 0.99 190 0.12 200 11
D66-320-10 320 (125) 1000 6300 198 0.69 0.99 190 0.12 200 11
D66-320-12 320 (125) 1200 6300 198 0.69 0.99 190 0.12 200 11
D62-320-14 320 (110) 1400 6300 198 0.69 0.99 175 0.12 260 DO-205AB
D62-320-16 320 (110) 1600 6300 198 0.69 0.99 175 0.12 260 DO-205AB
D66-320-14 320 (110) 1400 6300 198 0.69 0.99 175 0.12 200 11
D66-320-16 320 (110) 1600 6300 198 0.69 0.99 175 0.12 200 11
D62-400-04 400 (125) 400 7000 245 0.62 0.563 190 0.12 260 DO-205AB
D62-400-06 400 (125) 600 7000 245 0.62 0.563 190 0.12 260 DO-205AB
D62-400-08 400 (125) 800 7000 245 0.62 0.563 190 0.12 260 DO-205AB
D62-400-10 400 (125) 1000 7000 245 0.62 0.563 190 0.12 260 DO-205AB
D62-400-12 400 (125) 1200 7000 245 0.62 0.563 190 0.12 260 DO-205AB
D66-400-04 400 (125) 400 7000 245 0.62 0.563 190 0.12 200 11
D66-400-06 400 (125) 600 7000 245 0.62 0.563 190 0.12 200 11
D66-400-08 400 (125) 800 7000 245 0.62 0.563 190 0.12 200 11
D66-400-10 400 (125) 1000 7000 245 0.62 0.563 190 0.12 200 11
D66-400-12 400 (125) 1200 7000 245 0.62 0.563 190 0.12 200 11
D62-400-14 400 (110) 1400 7000 245 0.62 0.563 175 0.12 260 DO-205AB
D62-400-16 400 (110) 1600 7000 245 0.62 0.563 175 0.12 260 DO-205AB
D66-400-14 400 (110) 1400 7000 245 0.62 0.563 175 0.12 200 11
D66-400-16 400 (110) 1600 7000 245 0.62 0.563 175 0.12 200 11
D71-300-20 300 (115) 2000 6300 200 1.1 0.9 175 0.1 520 9
D71-300-22 300 (115) 2200 6300 200 1.1 0.9 175 0.1 520 9
D71-300-24 300 (115) 2400 6300 200 1.1 0.9 175 0.1 520 9
D71-300-26 300 (115) 2600 6300 200 1.1 0.9 175 0.1 520 9
D71-300-28 300 (115) 2800 6300 200 1.1 0.9 175 0.1 520 9
D71-300-30 300 (115) 3000 6300 200 1.1 0.9 175 0.1 520 9
D71-300-32 300 (115) 3200 6300 200 1.1 0.9 175 0.1 520 9
D71-300-34 300 (115) 3400 6300 200 1.1 0.9 175 0.1 520 9
D71-300-36 300 (115) 3600 6300 200 1.1 0.9 175 0.1 520 9
D71-300-38 300 (115) 3800 6300 200 1.1 0.9 175 0.1 520 9
D71-300-40 300 (115) 4000 6300 200 1.1 0.9 175 0.1 520 9
D74-300-20 300 (115) 2000 6300 200 1.1 0.9 175 0.1 450 12
D74-300-22 300 (115) 2200 6300 200 1.1 0.9 175 0.1 450 12
D74-300-24 300 (115) 2400 6300 200 1.1 0.9 175 0.1 450 12
D74-300-26 300 (115) 2600 6300 200 1.1 0.9 175 0.1 450 12
D74-300-28 300 (115) 2800 6300 200 1.1 0.9 175 0.1 450 12
D74-300-30 300 (115) 3000 6300 200 1.1 0.9 175 0.1 450 12
D74-300-32 300 (115) 3200 6300 200 1.1 0.9 175 0.1 450 12
D74-300-34 300 (115) 3400 6300 200 1.1 0.9 175 0.1 450 12
D74-300-36 300 (115) 3600 6300 200 1.1 0.9 175 0.1 450 12
D74-300-38 300 (115) 3800 6300 200 1.1 0.9 175 0.1 450 12
D74-300-40 300 (115) 4000 6300 200 1.1 0.9 175 0.1 450 12
D71-450-04 450 (125) 400 7700 300 0.72 0.51 190 0.1 520 9
D71-450-06 450 (125) 600 7700 300 0.72 0.51 190 0.1 520 9
D71-450-08 450 (125) 800 7700 300 0.72 0.51 190 0.1 520 9
D71-450-10 450 (125) 1000 7700 300 0.72 0.51 190 0.1 520 9
D71-450-12 450 (125) 1200 7700 300 0.72 0.51 190 0.1 520 9
D74-450-04 450 (125) 400 7700 300 0.72 0.51 190 0.1 450 12
D74-450-06 450 (125) 600 7700 300 0.72 0.51 190 0.1 450 12
D74-450-08 450 (125) 800 7700 300 0.72 0.51 190 0.1 450 12
D74-450-10 450 (125) 1000 7700 300 0.72 0.51 190 0.1 450 12
D74-450-12 450 (125) 1200 7700 300 0.72 0.51 190 0.1 450 12
D71-450-14 450 (110) 1400 7700 300 0.72 0.51 175 0.1 520 9
D71-450-16 450 (110) 1600 7700 300 0.72 0.51 175 0.1 520 9
D71-450-18 450 (110) 1800 7700 300 0.72 0.51 175 0.1 520 9
D71-450-20 450 (110) 2000 7700 300 0.72 0.51 175 0.1 520 9
D71-450-22 450 (110) 2200 7700 300 0.72 0.51 175 0.1 520 9
D71-450-24 450 (110) 2400 7700 300 0.72 0.51 175 0.1 520 9
D71-450-26 450 (110) 2600 7700 300 0.72 0.51 175 0.1 520 9
D71-450-28 450 (110) 2800 7700 300 0.72 0.51 175 0.1 520 9
D71-450-30 450 (110) 3000 7700 300 0.72 0.51 175 0.1 520 9
D71-450-32 450 (110) 3200 7700 300 0.72 0.51 175 0.1 520 9
D74-450-14 450 (110) 1400 7700 300 0.72 0.51 175 0.1 450 12
D74-450-16 450 (110) 1600 7700 300 0.72 0.51 175 0.1 450 12
D74-450-18 450 (110) 1800 7700 300 0.72 0.51 175 0.1 450 12
D74-450-20 450 (110) 2000 7700 300 0.72 0.51 175 0.1 450 12
D74-450-22 450 (110) 2200 7700 300 0.72 0.51 175 0.1 450 12
D74-450-24 450 (110) 2400 7700 300 0.72 0.51 175 0.1 450 12
D74-450-26 450 (110) 2600 7700 300 0.72 0.51 175 0.1 450 12
D74-450-28 450 (110) 2800 7700 300 0.72 0.51 175 0.1 450 12
D74-450-30 450 (110) 3000 7700 300 0.72 0.51 175 0.1 450 12
D74-450-32 450 (110) 3200 7700 300 0.72 0.51 175 0.1 450 12
D71-500-04 500 (125) 400 10000 500 0.62 0.45 190 0.1 520 9
D71-500-06 500 (125) 600 10000 500 0.62 0.45 190 0.1 520 9
D71-500-08 500 (125) 800 10000 500 0.62 0.45 190 0.1 520 9
D71-500-10 500 (125) 1000 10000 500 0.62 0.45 190 0.1 520 9
D71-500-12 500 (125) 1200 10000 500 0.62 0.45 190 0.1 520 9
D74-500-04 500 (125) 400 10000 500 0.62 0.45 190 0.1 450 12
D74-500-06 500 (125) 600 10000 500 0.62 0.45 190 0.1 450 12
D74-500-08 500 (125) 800 10000 500 0.62 0.45 190 0.1 450 12
D74-500-10 500 (125) 1000 10000 500 0.62 0.45 190 0.1 450 12
D74-500-12 500 (125) 1200 10000 500 0.62 0.45 190 0.1 450 12
D71-500-14 500 (110) 1400 10000 500 0.62 0.45 175 0.1 520 9
D71-500-16 500 (110) 1600 10000 500 0.62 0.45 175 0.1 520 9
D71-500-18 500 (110) 1800 10000 500 0.62 0.45 175 0.1 520 9
D71-500-20 500 (110) 2000 10000 500 0.62 0.45 175 0.1 520 9
D71-500-22 500 (110) 2200 10000 500 0.62 0.45 175 0.1 520 9
D74-500-14 500 (110) 1400 10000 500 0.62 0.45 175 0.1 450 12
D74-500-16 500 (110) 1600 10000 500 0.62 0.45 175 0.1 450 12
D74-500-18 500 (110) 1800 10000 500 0.62 0.45 175 0.1 450 12
D74-500-20 500 (110) 2000 10000 500 0.62 0.45 175 0.1 450 12
D74-500-22 500 (110) 2200 10000 500 0.62 0.45 175 0.1 450 12
D71-600-04 600 (115) 400 10500 551 0.63 0.34 190 0.1 520 9
D71-600-06 600 (115) 600 10500 551 0.63 0.34 190 0.1 520 9
D71-600-08 600 (115) 800 10500 551 0.63 0.34 190 0.1 520 9
D71-600-10 600 (115) 1000 10500 551 0.63 0.34 190 0.1 520 9
D71-600-12 600 (115) 1200 10500 551 0.63 0.34 190 0.1 520 9
D74-600-04 600 (115) 400 10500 551 0.63 0.34 190 0.1 450 12
D74-600-06 600 (115) 600 10500 551 0.63 0.34 190 0.1 450 12
D74-600-08 600 (115) 800 10500 551 0.63 0.34 190 0.1 450 12
D74-600-10 600 (115) 1000 10500 551 0.63 0.34 190 0.1 450 12
D74-600-12 600 (115) 1200 10500 551 0.63 0.34 190 0.1 450 12
Copyright © Greegoo Electric Co., Ltd.
Privacy Policy | XML
Submit

Chat through WhatsApp Now

Chat through Wechat Now

GreegooChina@Gmail.com

Send an Enquiry

We value your privacy

We use cookies to enhance your browsing experience, serve personalized ads or content, and analyze our traffic. By clicking "Accept All", you consent to our use of cookies.

Consent Preferences

Consent Preferences
