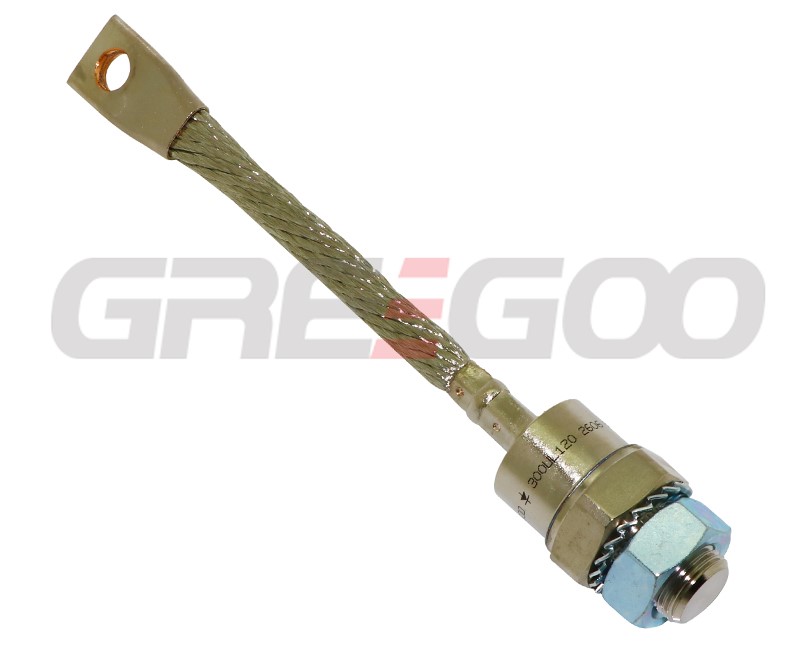

Stud Diode 6A to 600A
Home Products Stud Semiconductor DeviceStud DiodeStud Diode 6A to 600A
Cathode to stud
Stud Diode 6A to 600A
| Type | Average forward current |
Peak forward voltage drop/ Peak collector current | RMS forward current | Repetitive peak reverse voltage |
Repetitive peak reverse current |
Thermal resistance (junction to case) |
Junction Temperature | Mounting power |
Weight | Outline | |
| IF(AV) | VFM?/ IFM | IF(RMS) | VRRM | IRRM | Rth(j-c) | Tj | M2 | Wt | |||
| THS55℃ | 25℃ | ||||||||||
| A | V | A | A | V | mA | ℃/W | ℃ | N/m | kg | ||
| 6F | 6 | 1.1 | 18 | 9.0 | 200~1200 | ≤6 | ≤2.0 | -40~ 150 | ≤1.0 | 0.008 | DO-4 |
| 12F | 12 | 1.25 | 36 | 19.0 | 200~1200 | ≤6 | ≤1.2 | -40~ 150 | ≤1.0 | 0.008 | DO-4 |

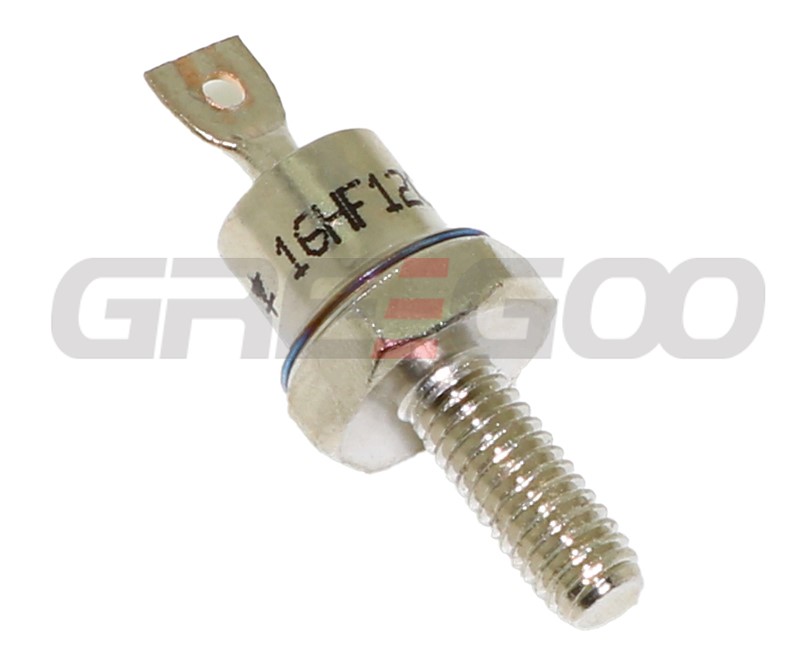

| 16F | 16 | 1.25 | 48 | 25.0 | 200~1200 | ≤12 | ≤1.2 | -40~ 150 | ≤1.0 | 0.008 | DO-4 |
| 25F | 25 | 1.1 | 75 | 40.0 | 200~1200 | ≤12 | ≤1.2 | -40~ 150 | ≤1.0 | 0.008 | DO-4 |
| 30HF | 30 | 1.3 | 90 | 48.0 | 200~1200 | ≤10 | ≤0.8 | -40~ 150 | ≤2.0 | 0.020 | DO-5 |
| 40HF | 40 | 1.3 | 120 | 64.0 | 200~1200 | ≤10 | ≤0.8 | -40~ 150 | ≤2.0 | 0.020 | DO-5 |
| 50HF | 50 | 1.4 | 150 | 80.0 | 200~1200 | ≤10 | ≤0.8 | -40~ 150 | ≤2.0 | 0.020 | DO-5 |
| 60HF | 60 | 1.4 | 180 | 96.0 | 200~1200 | ≤12 | ≤0.6 | -40~ 150 | ≤2.0 | 0.020 | DO-5 |
| 70HF | 70 | 1.45 | 210 | 112.0 | 200~1600 | ≤12 | ≤0.5 | -40~ 150 | ≤2.0 | 0.020 | DO-5 |
| 85HF | 85 | 1.45 | 255 | 136.0 | 200~1600 | ≤12 | ≤0.4 | -40~ 150 | ≤2.0 | 0.020 | DO-5 |

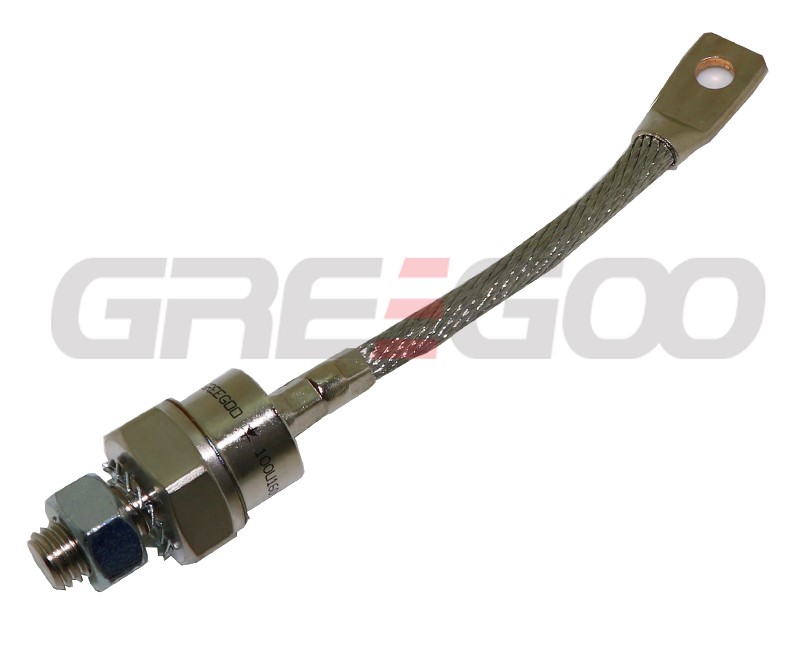

| 100U | 100 | 1.8 | 300 | 160.0 | 200~1600 | ≤15 | ≤0.3 | -40~ 150 | ≤12 | 0.120 | DO-8 |
| 150U | 150 | 1.5 | 450 | 240.0 | 200~1600 | ≤15 | ≤0.3 | -40~ 150 | ≤12 | 0.120 | DO-8 |
| 100UL | 100 | 1.8 | 300 | 160.0 | 200~1600 | ≤15 | ≤0.3 | -40~ 150 | ≤12 | 0.140 | DO-30 |

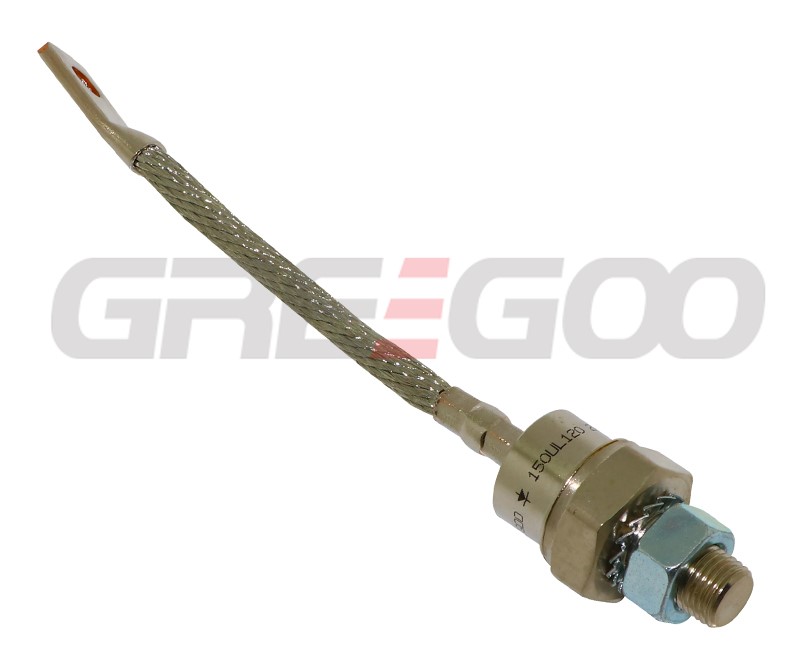

| 150UL | 150 | 1.5 | 450 | 240.0 | 200~1600 | ≤15 | ≤0.3 | -40~ 150 | ≤12 | 0.140 | DO-30 |
| 200U | 200 | 1.3 | 600 | 320.0 | 200~1800 | ≤20 | ≤0.2 | -40~ 150 | ≤12 | 0.250 | DO-9 |
| 250U | 250 | 1.35 | 750 | 400.0 | 200~1800 | ≤20 | ≤0.15 | -40~ 150 | ≤25 | 0.250 | DO-9 |
| 300U | 300 | 1.35 | 900 | 480.0 | 200~1800 | ≤20 | ≤0.15 | -40~ 150 | ≤25 | 0.250 | DO-9 |
| SD400N | 400 | 1.6 | 1200 | 640.0 | 200~2400 | ≤40 | ≤0.07 | -40~ 150 | ≤25 | 0.580 | B-8 |
| SD500N | 500 | 1.6 | 1500 | 800.0 | 200~2400 | ≤40 | ≤0.065 | -40~ 150 | ≤25 | 0.580 | B-8 |
| SD600N | 600 | 1.5 | 1800 | 960.0 | 200~2400 | ≤40 | ≤0.065 | -40~ 150 | ≤30 | 0.580 | B-8 |
Anode to stud
| Type | Average forward current |
Peak forward voltage drop/ Peak collector current | RMS forward current | Repetitive peak reverse voltage |
Repetitive peak reverse current |
Thermal resistance (junction to case) |
Junction Temperature | Mounting power |
Weight | Outline | |
| IF(AV) | VFM?/ IFM | IF(RMS) | VRRM | IRRM | Rth(j-c) | Tj | M2 | Wt | |||
| THS55℃ | 25℃ | ||||||||||
| A | V | A | A | V | mA | ℃/W | ℃ | N/m | kg | ||
| 6FR | 6 | 1.1 | 18 | 9.0 | 200~1200 | ≤6 | ≤2.0 | -40~ 150 | ≤1.0 | 0.008 | DO-4 |
| 12FR | 12 | 1.25 | 36 | 19.0 | 200~1200 | ≤6 | ≤1.2 | -40~ 150 | ≤1.0 | 0.008 | DO-4 |
| 16FR | 16 | 1.25 | 48 | 25.0 | 200~1200 | ≤12 | ≤1.2 | -40~ 150 | ≤1.0 | 0.008 | DO-4 |
| 25FR | 25 | 1.1 | 75 | 40.0 | 200~1200 | ≤12 | ≤1.2 | -40~ 150 | ≤1.0 | 0.008 | DO-4 |

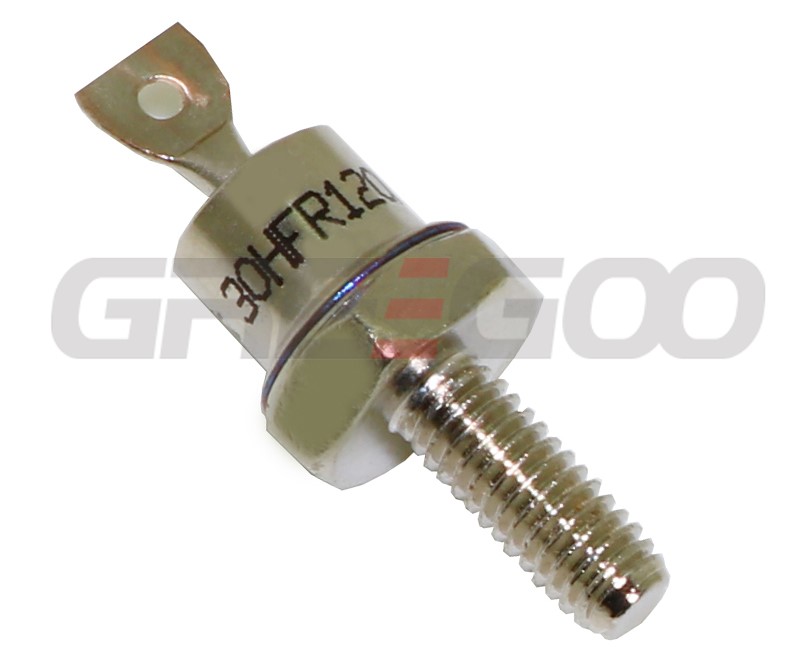

| 30HFR | 30 | 1.3 | 90 | 48.0 | 200~1200 | ≤10 | ≤0.8 | -40~ 150 | ≤2.0 | 0.020 | DO-5 |
| 40HFR | 40 | 1.3 | 120 | 64.0 | 200~1200 | ≤10 | ≤0.8 | -40~ 150 | ≤2.0 | 0.020 | DO-5 |

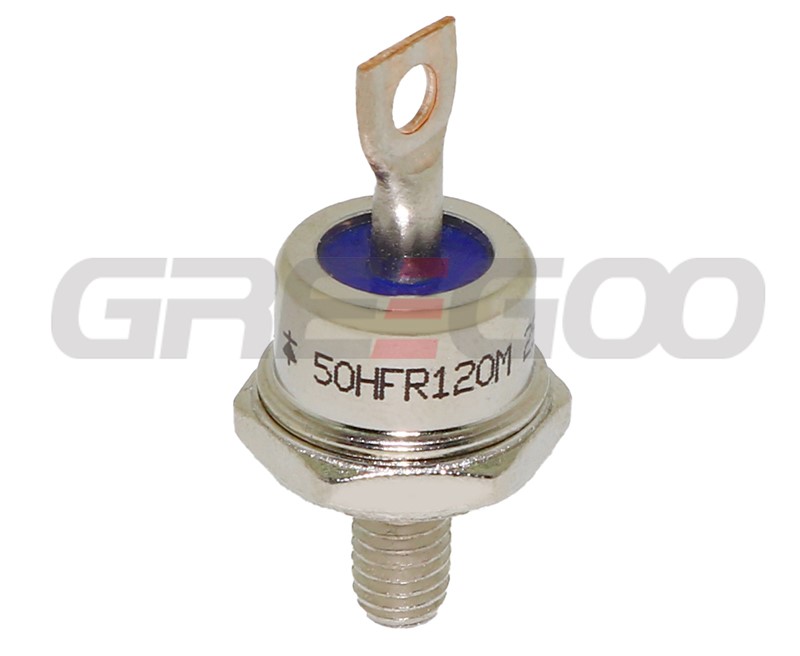

| 50HFR | 50 | 1.4 | 150 | 80.0 | 200~1200 | ≤10 | ≤0.8 | -40~ 150 | ≤2.0 | 0.020 | DO-5 |
| 60HFR | 60 | 1.4 | 180 | 96.0 | 200~1200 | ≤12 | ≤0.6 | -40~ 150 | ≤2.0 | 0.020 | DO-5 |
| 70HFR | 70 | 1.45 | 210 | 112.0 | 200~1600 | ≤12 | ≤0.5 | -40~ 150 | ≤2.0 | 0.020 | DO-5 |
| 85HFR | 85 | 1.45 | 255 | 136.0 | 200~1600 | ≤12 | ≤0.4 | -40~ 150 | ≤2.0 | 0.020 | DO-5 |
| 100UR | 100 | 1.8 | 300 | 160.0 | 200~1600 | ≤15 | ≤0.3 | -40~ 150 | ≤12 | 0.120 | DO-8 |
| 150UR | 150 | 1.5 | 450 | 240.0 | 200~1600 | ≤15 | ≤0.3 | -40~ 150 | ≤12 | 0.120 | DO-8 |

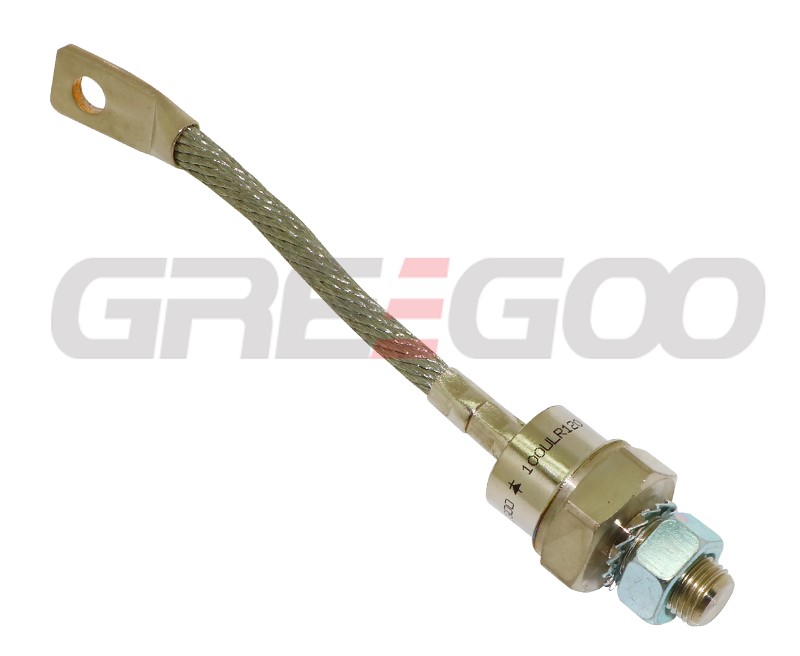

| 100URL | 100 | 1.8 | 300 | 160.0 | 200~1600 | ≤15 | ≤0.3 | -40~ 150 | ≤12 | 0.140 | DO-30 |

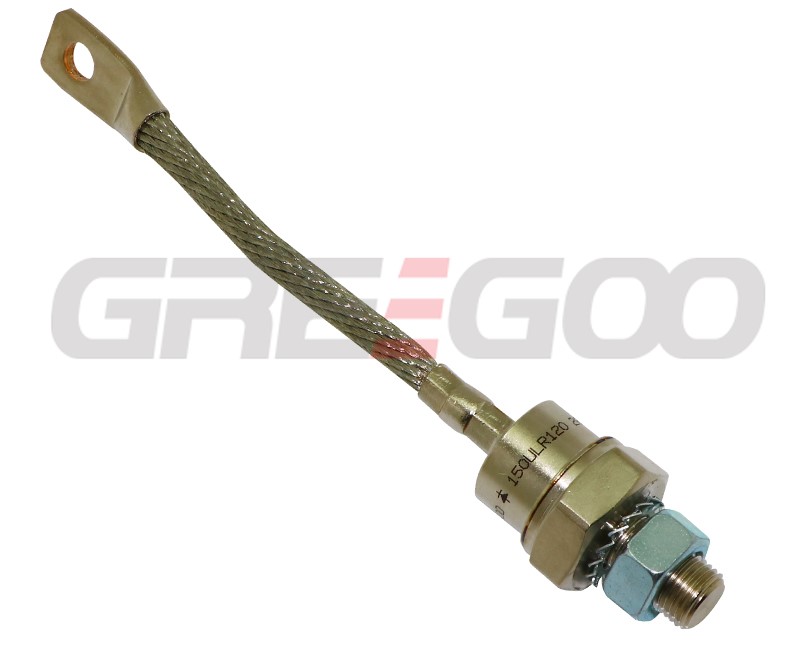

| 150URL | 150 | 1.5 | 450 | 240.0 | 200~1600 | ≤15 | ≤0.3 | -40~ 150 | ≤12 | 0.140 | DO-30 |
| 200UR | 200 | 1.3 | 600 | 320.0 | 200~1800 | ≤20 | ≤0.2 | -40~ 150 | ≤12 | 0.250 | DO-9 |
| 250UR | 250 | 1.35 | 750 | 400.0 | 200~1800 | ≤20 | ≤0.15 | -40~ 150 | ≤25 | 0.250 | DO-9 |
| 300UR | 300 | 1.35 | 900 | 480.0 | 200~1800 | ≤20 | ≤0.15 | -40~ 150 | ≤25 | 0.250 | DO-9 |
| SD400R | 400 | 1.6 | 1200 | 640.0 | 200~2400 | ≤40 | ≤0.07 | -40~ 150 | ≤25 | 0.580 | B-8 |
| SD500R | 500 | 1.6 | 1500 | 800.0 | 200~2400 | ≤40 | ≤0.065 | -40~ 150 | ≤25 | 0.580 | B-8 |
| SD600R | 600 | 1.5 | 1800 | 960.0 | 200~2400 | ≤40 | ≤0.065 | -40~ 150 | ≤30 | 0.580 | B-8 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
