Product details

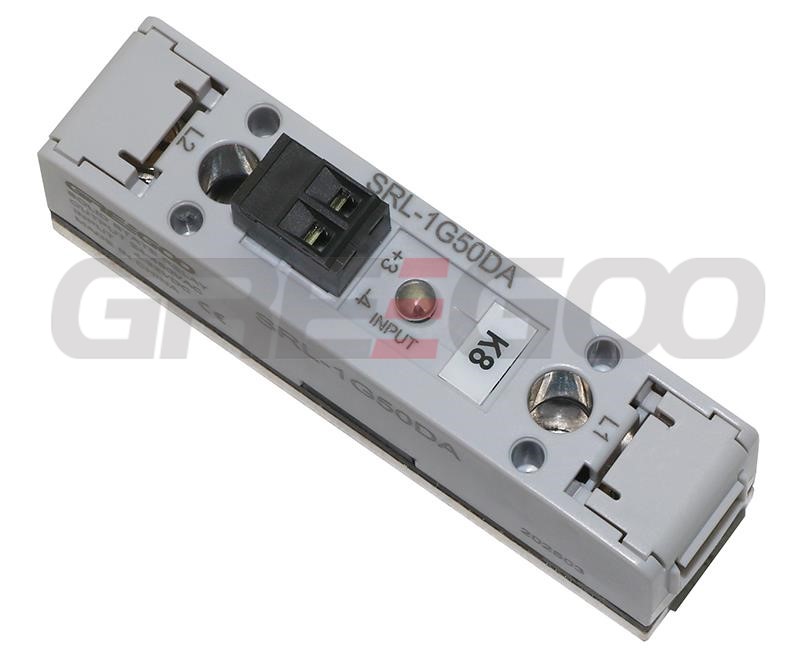

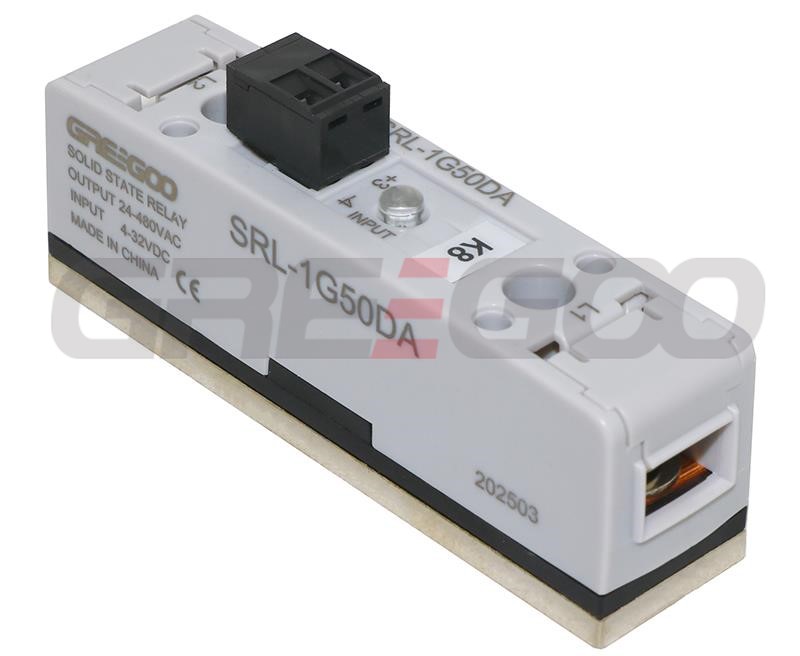

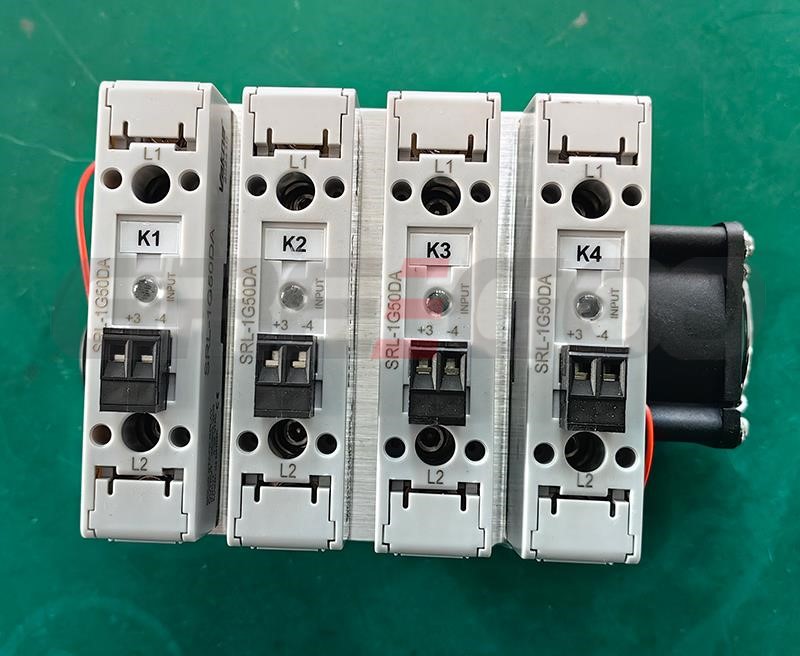

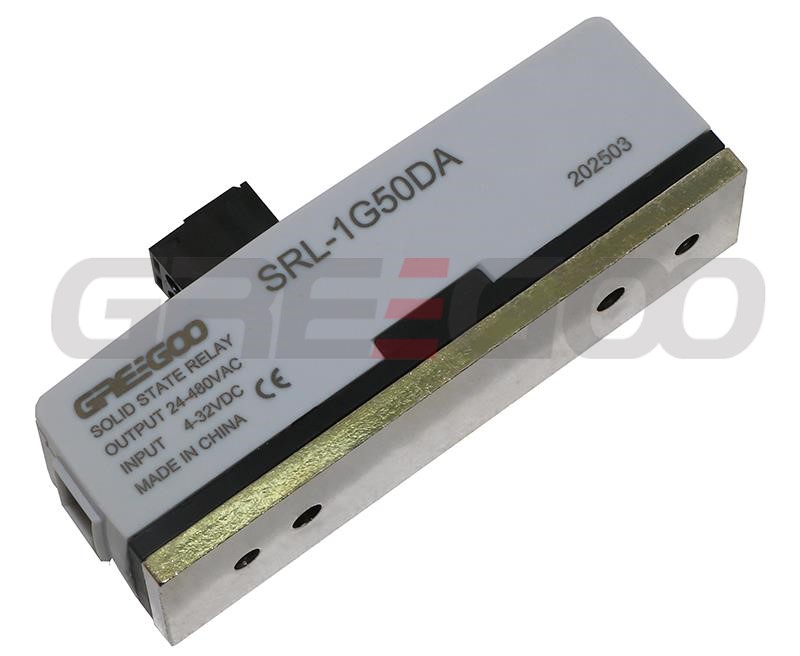

Single phase power solid state relay with removable protective flap

Single channel zero-cross solid state relays for chassis mount, with integrated IP20 protection with removable protective flap, screw connection on the power side and removable connector on the control side.

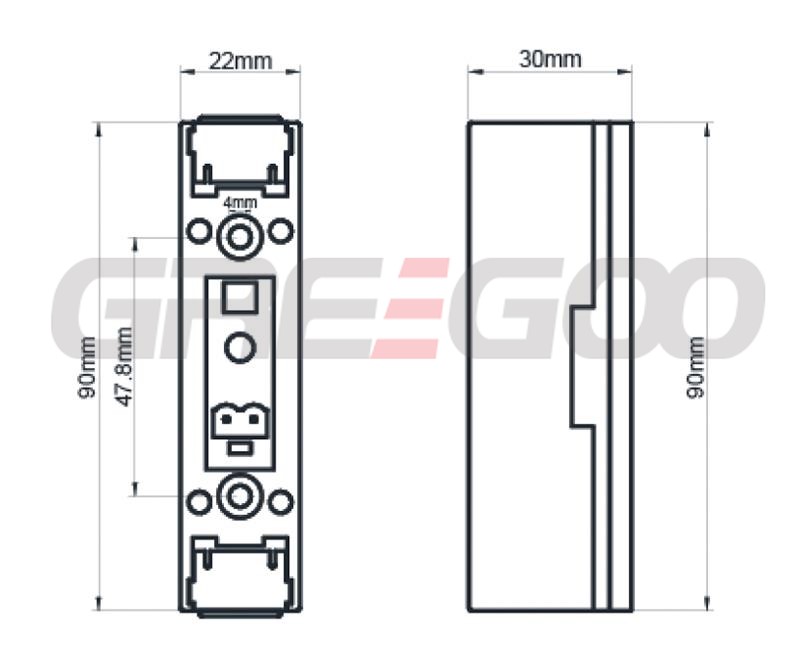

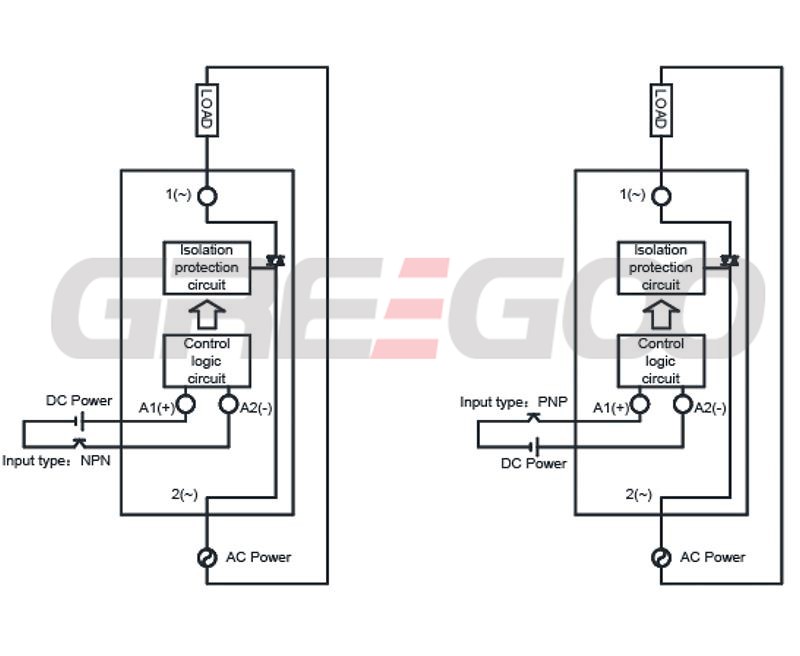

SRL series are designed for resistive loads AC-1, compact 22.0mm width package.

SRL series offers compact solutions without any impact on the performance or reliability of the solid state relays. The range offers thyristor ratings up to 100A, a large DC input voltage range, in a compact package with long life expectancy.

Specification

Model	SRL-1G40DA	SRL-1G50DA	SRL-1G80DA	SRL-1G100DA
Operating Current (Arms)	40A	50A	80A	100A
Operating Voltage (Vrms)	24 to 480	24 to 480	24 to 480	24 to 480
Surge Peak On-State Current (Apk, 10ms)	850	1350	1600	2200
Thermal Resistance (Rjc, °C/W)	0.13	0.13	0.13	0.13
I²t Value for Fusing (A²S, 10ms)	800	1800	3200	6050
Repetitive Peak Off-State Voltage (Vpk)	1200	1200	1200	1200
Peak On-State Voltage (Vpk)	≤1.2V	≤1.2V	≤1.2V	≤1.2V
Off-State Leakage Current (mA)	≤1	≤1	≤1	≤1
Critical Rate of Rise of Voltage (V/µs)	≥1000	≥1000	≥1000	≥1000
Maximum Turn-On Time	1/2 period	1/2 period	1/2 period	1/2 period
Maximum Turn-Off Time	1/2 period	1/2 period	1/2 period	1/2 period
Input Voltage (Vdc)	4 to 32V	4 to 32V	4 to 32V	4 to 32V
Pick-Up Voltage (Vdc)	≥4V	≥4V	≥4V	≥4V
Drop-Out Voltage (Vdc)	≤1V	≤1V	≤1V	≤1V
Input Current (@12Vdc)	≤10mA	≤10mA	≤10mA	≤10mA
Insulation (Terminals to Case)	≥4000VACrms	≥4000VACrms	≥4000VACrms	≥4000VACrms
Operating Temperature	-20 to 70°C	-20 to 70°C	-20 to 70°C	-20 to 70°C
Storage Temperature	-40 to 100°C	-40 to 100°C	-40 to 100°C	-40 to 100°C
Weight	70g	70g	70g	70g
