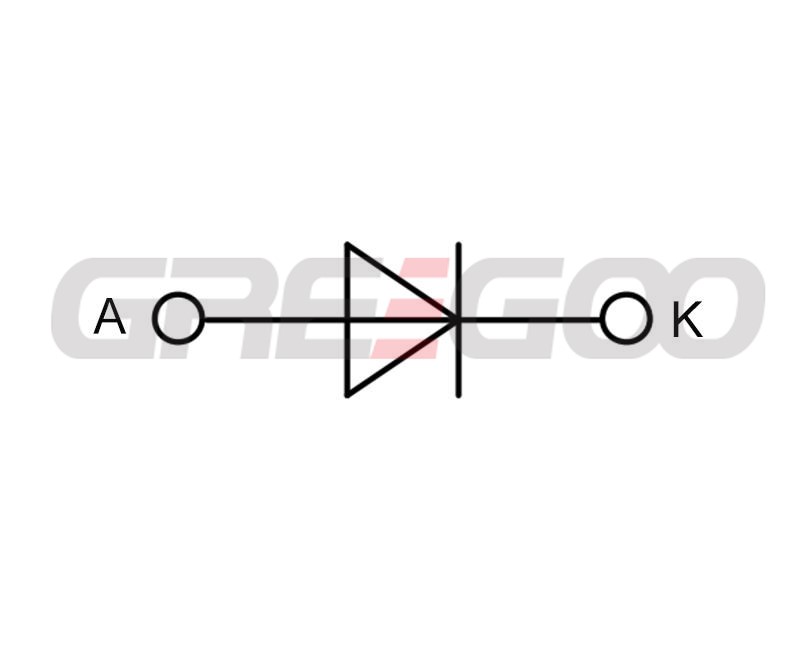

Fast Recovery Epitaxial Diode Module - Single Diode
| Product | VRRM | lFAV | lFSM | VFM@IFM | trr | RthJC | Housing | Equivalent | ||
| d=0.5 | 10ms Tvj=45℃ | typ | Per Chip | |||||||
| V | A | A | V | A | ns | ℃/W | MACMIC | IXYS/SEMIKRON | ||
| GF300MBA50D | 500 | 300 | 3800 | 1.20 | 300 | 160 | 0.11 | MBA | MMF300YB050U | |
| GF300RBA50D | 500 | 300 | 3800 | 1.20 | 300 | 160 | 0.11 | RBA | FRS300BA50 | |
| GF300MBA70D | 700 | 300 | 5000 | 1.20 | 300 | 180 | 0.12 | MBA | MMF300YB070U | |
| GF300STB60D | 600 | 300 | 4800 | 1.35 | 300 | 125 | 0.11 | STB | MMF300S060U | SKKE290F06 |
| GF400STB120D | 1200 | 400 | 3600 | 2.75 | 300 | 150 | 0.14 | STB | MMF300S120U | SKKE310F12 |
| GF450XTB120D | 1200 | 450 | 4800 | 1.76 | 520 | 450 | 0.07 | XTB | MMF400S120U | MEO450-12DA |
| GF500XTB60D | 600 | 500 | 4800 | 1.41 | 520 | 250 | 0.07 | XTB | MMF600S060U | MEO500-06DA |
| GF550XTB20D | 200 | 550 | 4800 | 1.08 | 520 | 150 | 0.07 | XTB | MEO550-02DA | |
| GF600STH120D | 1200 | 600 | 5800 | 2.50 | 600 | 200 | 0.1 | STH | SKKE600F12 | |
| GF150STB170D | 1700 | 150 | 1800 | 1.50 | 150 | 1020 | 0.09 | STB | SKKE120F17 | |
| GF400STH170D | 1700 | 400 | 5200 | 1.50 | 400 | 990 | 0.09 | STH | SKKE330F17 | |
| GF600ITH170D | 1700 | 600 | 6500 | 2.00 | 600 | 990 | 0.09 | ITH | BYM600A170DN2 | |
