Product	VRRM	lFAV	lFSM	VFM@IFM		trr	RthJC	Housing	Equivalent
		d=0.5	10ms Tvj=45℃			typ	Per Chip		Equivalent
	V	A	A	V	A	ns	℃/W		MACMIC	IXYS/SEMIKRON
GF200N70DK	700	200	700	1.2	100	140	0.34	N	MMF200N070DK	DAC2F100N6S
GF200N120DK	1200	200	1200	1.77	100	150	0.44	N	MMF200N120DK	DA2F100N12S
GF150STB60DK2	600	150	1500	1.25	150	95	0.3	STB	MMF150S060DK
GF200STB60DK2	600	200	2000	1.15	200	140	0.18	STB	MMF200S060DK	SKMD205F06
GF300STB60DK2	600	300	3000	1.1	300	165	0.15	STB	MMF300S060DK
GF150STB60DK1	600	150	1500	1.25	150	95	0.3	STB	MMF150S060DK2B
GF200STB60DK1	600	200	2000	1.15	200	140	0.18	STB	MMF200S060DK2B
GF300STB60DK1	600	300	3000	1.1	300	165	0.15	STB	MMF300S060DK2B
GF400STB60DK1	600	400	4000	1.3	400	162	0.11	STB	MMF400S060DK2B
MZK150TS60S	600	150	1500	1.25	150	95	0.3	TS		MZK150TS60S
MZK200TS60S	600	200	2000	1.15	200	140	0.18	TS		MZK200TS60S
MZK300TS60S	600	300	3000	1.1	300	165	0.15	TS		MZK300TS60S
MZK400TS60S	600	400	4000	1.3	400	200	0.11	TS		MZK400TS60S
GF150STB120DK2	1200	150	1500	1.6	150	145	0.22	STB	MMF150S120DK
GF200STB120DK2	1200	200	1800	2.3	200	110	0.22	STB	MMF200S120DK	SKMD150F12
GF300STB120DK2	1200	300	2700	2.8	300	135	0.14	STB	MMF300S120DK
GF150STB120DK1	1200	150	1500	1.6	150	145	0.22	STB	MMF150S120DK2B
GF200STB120DK1	1200	200	1800	2.3	200	110	0.22	STB	MMF200S120DK2B
GF300STB120DK1	1200	300	2700	2.8	300	135	0.14	STB	MMF300S120DK2B
MZK150TS120S	1200	150	1500	1.6	150	145	0.22	TS		MZK150TS120S
MZK200TS120S	1200	200	1800	2.3	200	110	0.22	TS		MZK200TS120S
MZK300TS120S	1200	300	2700	2.8	300	135	0.14	TS		MZK300TS120S
MZK400TS120S	1200	400	3800	3	400	180	0.14	TS		MZK400TS120S
GF150XTA40DK1	400	150	1200	1.4	150	300	0.35	XTA		MEK150-04DA
GF100XTA60DK1	600	100	1200	1.36	100	250	0.45	XTA		MEK95-06DA
GF100XTA120DK1	1200	100	1200	1.85	100	250	0.45	XTA		MEK75-12DA
GF300XTB60DK2	600	300	2400	1.19	300	250	0.14	XTB		MEK300-06DA
GF300XTB120DK2	1200	300	2400	1.54	300	450	0.14	XTB		MEK250-12DA
GF400XTB20DK2	200	400	2400	0.92	400	150	0.14	XTB		MEK350-02DA
GF600XTB40DK2	400	600	3000	1.1	400	220	0.14	XTB		MEK600-04DA
GF200XFA12DK	1200	200	1800	2.3	200	110	0.22	XFA		PSMD200E12
GF100STB170DK2	1700	100	1000	1.8	100	500	0.22	STB	MMF100S170DK
GF200STB170DK2	1700	200	2000	1.8	200	750	0.14	STB	MMF200S170DK
GF200N70DA	700	200	700	1.2	100	140	0.34	N	MMF200N070DA	DAC2F100P6S
GF200N120DA	1200	200	1200	1.77	100	150	0.44	N	MMF200N120DA	DA2F100P12S
GF150STB60DA2	600	150	1500	1.25	150	95	0.3	STB	MMF150S060DA
GF200STB60DA2	600	200	2000	1.15	200	140	0.18	STB	MMF200S060DA	SKND205F06
GF300STB60DA2	600	300	3000	1.1	300	165	0.15	STB	MMF300S060DA
GF150STB120DA2	1200	150	1500	1.6	150	145	0.22	STB	MMF150S120DA	SKND150F12
GF200STB120DA2	1200	200	1800	2.3	200	110	0.22	STB	MMF200S120DA
GF300STB120DA2	1200	300	2700	2.8	300	135	0.14	STB	MMF300S120DA
GF300STB120DA1	1200	300	2700	2.8	300	135	0.14	STB	MMF300S120DA2B
GF100XTA60DAl	600	100	1200	1.36	100	250	0.45	XTA		MEA95-06DA
GF100XTA120DAl	1200	100	1200	1.85	100	250	0.45	XTA		MEA75-12DA
GF300XTB60DA2	600	300	2400	1.19	300	250	0.14	XTB		MEA300-06DA
GF300XTB120DA2	1200	300	2400	1.54	300	450	0.14	XTB		MEA250-12DA
GF200XFA12DA	1200	200	1800	2.3	200	110	0.22	XFA		PSND200E12
GF100STB170DA2	1700	100	1000	1.8	100	500	0.22	STB	MMF100S170DA
GF200STB170DA2	1700	200	2000	1.8	200	750	0.14	STB	MMF200S170DA
GF100STB170DAl	1700	100	1000	1.8	100	500	0.14	STB	MMF100S170DA2B
GF200STB170DA1	1700	200	2000	1.8	200	750	0.22	STB	MMF200S170DA2B
GF300STB170DAl	1700	300	2700	1.8	300	135	0.14	STB	MMF300S170DA2B
MZC150TS60S	600	150	1500	1.25	150	95	0.3	TS		MZC150TS60S
MZC200TS60S	600	200	2000	1.15	200	140	0.18	TS		MZC200TS60S
MZC300TS60S	600	300	3000	1.1	300	165	0.15	TS		MZC300TS60S
MZC400TS60S	600	400	4000	1.3	400	200	0.11	TS		MZC400TS60S
GF150STB60DC1	600	150	1500	1.25	150	95	0.3	STB	MMF150S060B
GF200STB60DC1	600	200	2000	1.15	200	140	0.18	STB	MMF200S060B	SKKD205F06
GF300STB60DC1	600	300	3000	1.1	300	165	0.15	STB	MMF300S060B
GF150STB120DC1	1200	150	1500	1.6	150	145	0.22	STB	MMF150S120B	SKKD150F12
GF200STB120DC1	1200	200	1800	2.3	200	110	0.22	STB	MMF200S120B	SKKD170F12
GF300STB120DC1	1200	300	2700	2.8	300	135	0.14	STB	MMF300S120B
GF300MBA50D	500	300	3800	1.2	300	160	0.11	MBA	MMF300YB050U
GF300RBA50D	500	300	3800	1.2	300	160	0.11	RBA	FRS300BA50
GF300MBA70D	700	300	5000	1.2	300	180	0.12	MBA	MMF300YB070U
GF300STB60D	600	300	4800	1.35	300	125	0.11	STB	MMF300S060U	SKKE290F06
GF400STB120D	1200	400	3600	2.75	300	150	0.14	STB	MMF300S120U	SKKE310F12
GF450XTB120D	1200	450	4800	1.76	520	450	0.07	XTB	MMF400S120U	MEO450-12DA
GF500XTB60D	600	500	4800	1.41	520	250	0.07	XTB	MMF600S060U	MEO500-06DA
GF550XTB20D	200	550	4800	1.08	520	150	0.07	XTB		MEO550-02DA
GF600STH120D	1200	600	5800	2.5	600	200	0.1	STH		SKKE600F12
GF150STB170D	1700	150	1800	1.5	150	1020	0.09	STB		SKKE120F17
GF400STH170D	1700	400	5200	1.5	400	990	0.09	STH		SKKE330F17
GF600ITH170D	1700	600	6500	2	600	990	0.09	ITH	BYM600A170DN2

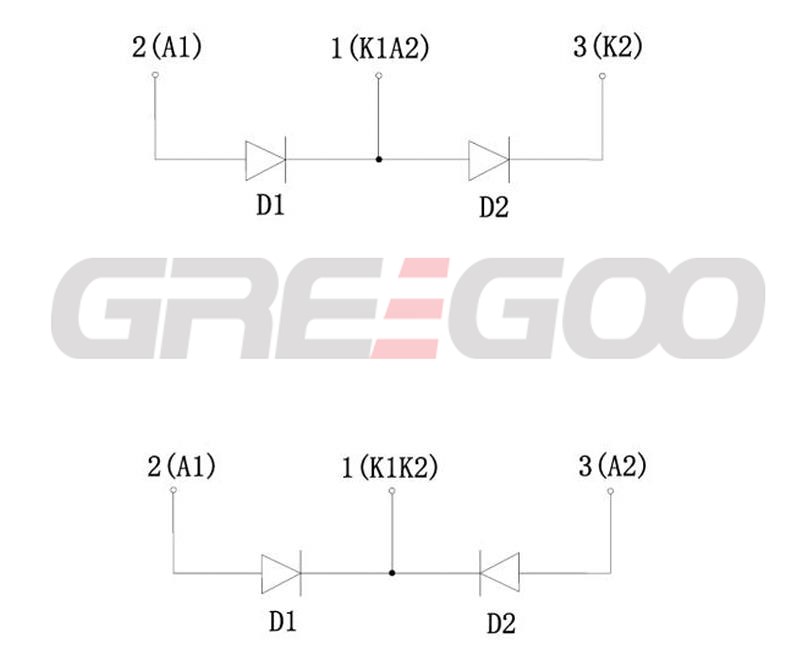

FRED Module - Dual Diode in Series

FRED Module - Dual Diode in Series
