Dual Diode Module MD3/MD4/MD5
Home Products Thyristor Diode ModuleThyristor Diode Module Basic VersionDual Diode Module MD3/MD4/MD5

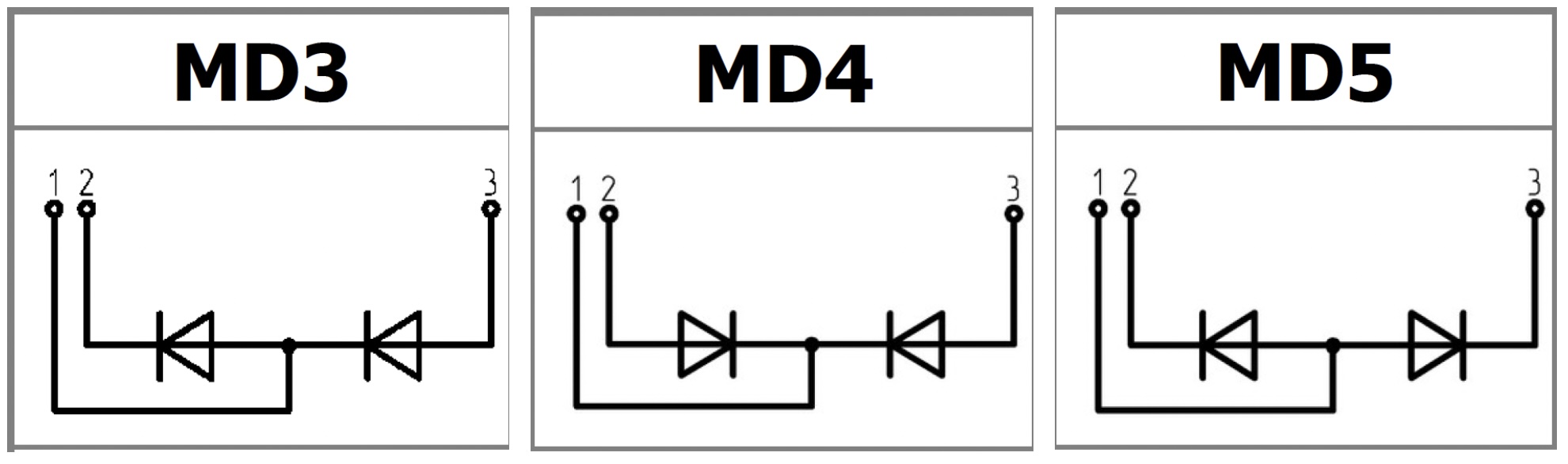

Circuit Drawing
Dual Diode Module MD3/MD4/MD5
Part numbers list
| Series |
Average forward current, IT(AV)? |
Voltage, VRRM? | Package | Dimensions |
| MD3-155 | 155A | 3000 - 3600V | F | 94x34x30 |
| MD4-155 | 155A | 3000 - 3600V | F | 94x34x30 |
| MD5-155 | 155A | 3000 - 3600V | F | 94x34x30 |
| MD3-160 | 160A | 3000 - 3600V | F | 94x34x30 |
| MD4-160 | 160A | 3000 - 3600V | F | 94x34x30 |
| MD5-160 | 160A | 3000 - 3600V | F | 94x34x30 |
| MD3-175 | 175A | 2400 - 2800V | F | 94x34x30 |
| MD4-175 | 175A | 2600 - 2800V | F | 94x34x30 |
| MD5-175 | 175A | 2400 - 2800V | F | 94x34x30 |
| MD3-200 | 200A | 2000 - 2800V | F | 94x34x30 |
| MD4-200 | 200A | 2000 - 2800V | F | 94x34x30 |
| MD5-200 | 200A | 2000 - 2800V | F | 94x34x30 |
| MD3-215 | 215A | 2000 - 2200V | F | 94x34x30 |
| MD4-215 | 215A | 2000 - 2200V | F | 94x34x30 |
| MD5-215 | 215A | 2000 - 2200V | F | 94x34x30 |
| MD3-245 | 245A | 1000 - 1800V | F | 94x34x30 |
| MD4-245 | 245A | 1000 - 1800V | F | 94x34x30 |
| MD5-245 | 245A | 1000 - 1800V | F | 94x34x30 |
| MD3-250 | 250A | 1000 - 1800V | F | 94x34x30 |
| MD4-250 | 250A | 1000 - 1800V | F | 94x34x30 |
| MD5-250 | 250A | 1000 - 1800V | F | 94x34x30 |
| MD3-250 | 250A | 3000 - 3600V | C1 | 92x52x50 |
| MD4-250 | 250A | 3000 - 3600V | C1 | 92x52x50 |
| MD5-250 | 250A | 3000 - 3600V | C1 | 92x52x50 |
| MD3-320 | 320A | 2000 - 2800V | C1 | 92x52x50 |
| MD4-320 | 320A | 2000 - 2800V | C1 | 92x52x50 |
| MD5-320 | 320A | 2000 - 2800V | C1 | 92x52x50 |
| MD3-320 | 320A | 4600 - 6500V | А2 | 124x60x52 |
| MD4-320 | 320A | 4600 - 6500V | А2 | 124x60x52 |
| MD5-320 | 320A | 4600 - 6500V | А2 | 124x60x52 |
| MD3-400 | 400A | 1000 - 1800V | C1 | 92x52x50 |
| MD4-400 | 400A | 1000 - 1800V | C1 | 92x52x50 |
| MD5-400 | 400A | 1000 - 1800V | C1 | 92x52x50 |
| MD3-400 | 400A | 4600 - 5200V | А2 | 124x60x52 |
| MD4-400 | 400A | 4600 - 5200V | А2 | 124x60x52 |
| MD5-400 | 400A | 4600 - 5200V | А2 | 124x60x52 |
| MD3-470 | 470A | 3800 - 4400V | А2 | 124x60x52 |
| MD4-470 | 470A | 3800 - 4400V | А2 | 124x60x52 |
| MD5-470 | 470A | 3800 - 4400V | А2 | 124x60x52 |
| MD3-500 | 500A | 3000 - 3600V | А2 | 124x60x52 |
| MD4-500 | 500A | 3000 - 3600V | А2 | 124x60x52 |
| MD5-500 | 500A | 3000 - 3600V | А2 | 124x60x52 |
| MD3-515 | 515A | 3000 - 3600V | А2 | 124x60x52 |
| MD4-515 | 515A | 3000 - 3600V | А2 | 124x60x52 |
| MD5-515 | 515A | 3000 - 3600V | А2 | 124x60x52 |
| MD3-580 | 580A | 2000 - 2600V | А2 | 124x60x52 |
| MD4-580 | 580A | 2000 - 2600V | А2 | 124x60x52 |
| MD5-580 | 580A | 2000 - 2600V | А2 | 124x60x52 |
| MD3-630 | 630A | 1000 - 1800V | А2 | 124x60x52 |
| MD4-630 | 630A | 1000 - 1800V | А2 | 124x60x52 |
| MD5-630 | 630A | 1000 - 1800V | А2 | 124x60x52 |
| MD3-660 | 660A | 1000 - 1800V | А2 | 124x60x52 |
| MD4-660 | 660A | 1000 - 1800V | А2 | 124x60x52 |
| MD5-660 | 660A | 1000 - 1800V | А2 | 124x60x52 |
| MD3-800 | 800A | 3800 - 4400V | D | 150x77x84 |
| MD4-800 | 800A | 3800 - 4400V | D | 150x77x84 |
| MD5-800 | 800A | 3800 - 4400V | D | 150x77x84 |
| MD3-1000 | 1000A | 2000 - 2800V | D | 150x77x84 |
| MD4-1000 | 1000A | 2000 - 2800V | D | 150x77x84 |
| MD5-1000 | 1000A | 2000 - 2800V | D | 150x77x84 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
