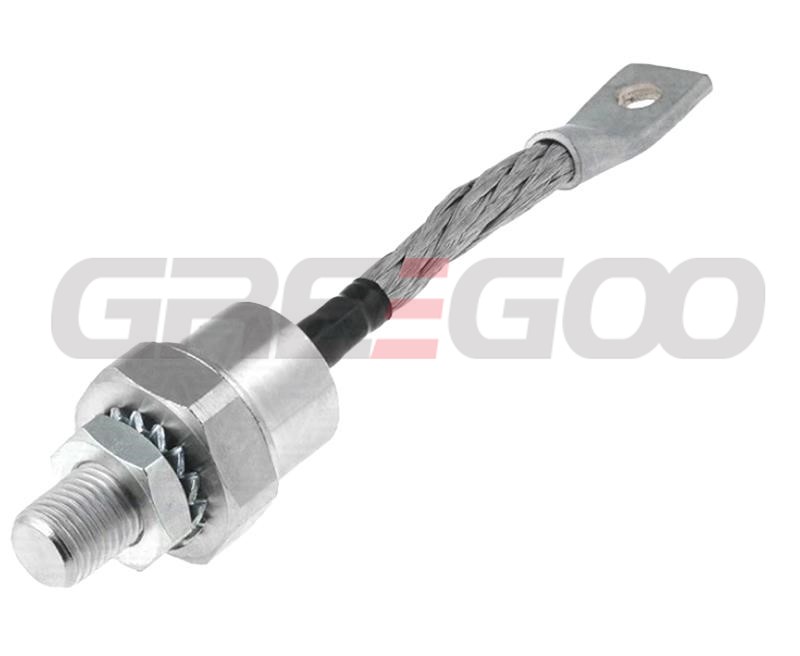

D52-100 Stud Diode
D52-100 Diode are of modern design with internal spring loaded contacts and pressure welded glassto-metal seal. Designed for use in power electronic circuits and equipment under normal operating conditions.
FEATURES
All diffused design
High current capabilities
High surge current capabilities
High rates voltages
Low thermal impedance
Tested according to IEC standards
Compact size and small weight
APPLICATION
High Voltage Power Supplies
Motor Control
Battery Chargers
Free Wheeling Diode Resistance Welding

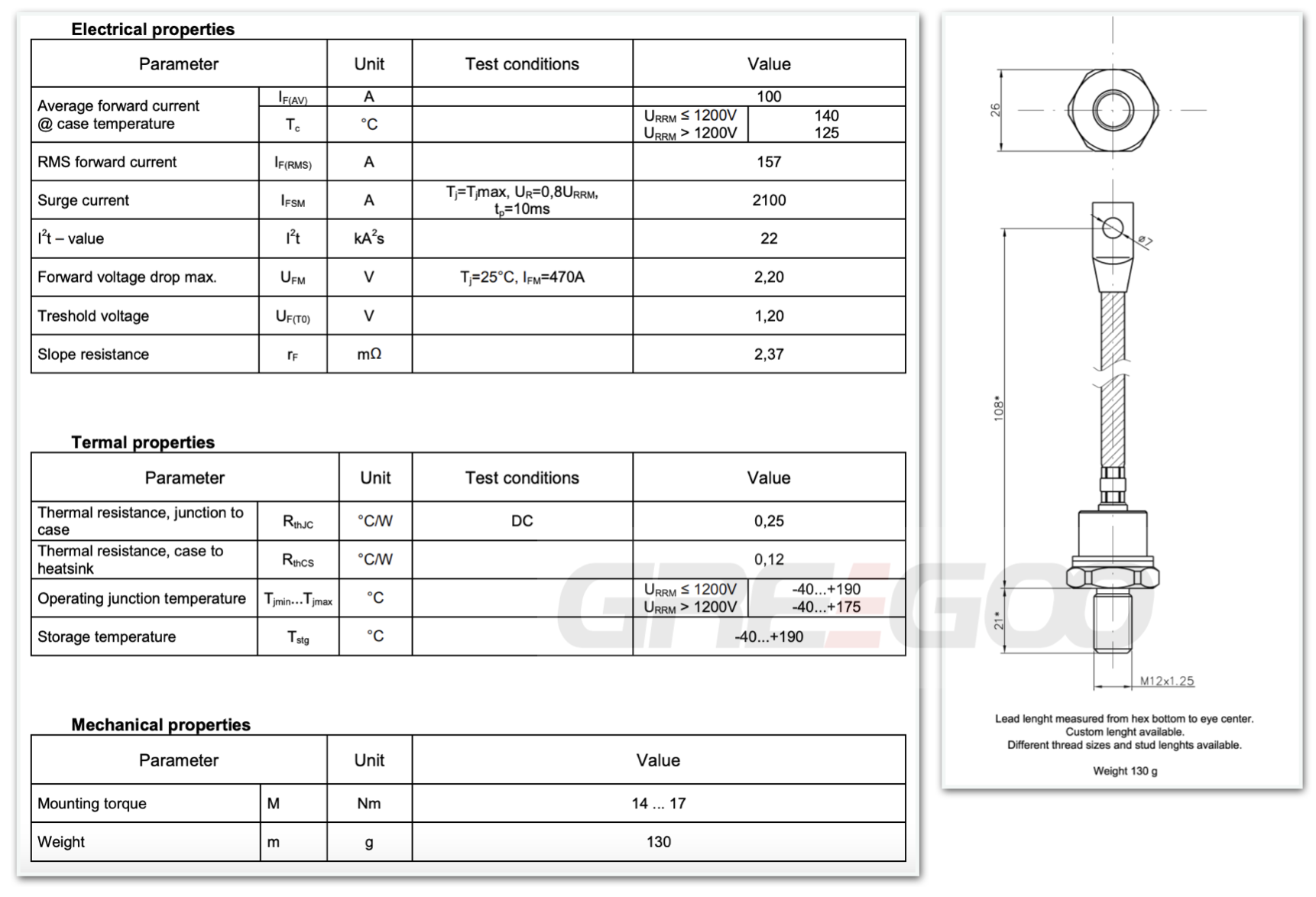

Specification
Part Numbers
| Part | Voltage class | URRM | URSM | IRRM |
| Numbers | V | V | mA | |
| D52-100-04-N0 | 4 | 400 | 500 | 20 |
| D52-100-06-N0 | 6 | 600 | 700 | |
| D52-100-08-N0 | 8 | 800 | 900 | |
| D52-100-10-N0 | 10 | 1000 | 1100 | |
| D52-100-12-N0 | 12 | 1200 | 1300 | |
| D52-100-14-N0 | 14 | 1400 | 1500 | |
| D52-100-16-N0 | 16 | 1600 | 1700 | |
| D52-100-04-R0 | 4 | 400 | 500 | 20 |
| D52-100-06-R0 | 6 | 600 | 700 | |
| D52-100-08-R0 | 8 | 800 | 900 | |
| D52-100-10-R0 | 10 | 1000 | 1100 | |
| D52-100-12-R0 | 12 | 1200 | 1300 | |
| D52-100-14-R0 | 14 | 1400 | 1500 | |
| D52-100-16-R0 | 16 | 1600 | 1700 |
