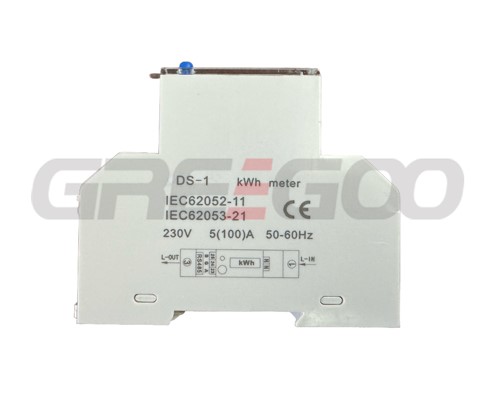

1 Phase LCD Energy Meter DS-1
Current: 5(100) A
Rated voltage: 230VAC
Accuracy class: 1.0
Standard: IEC62052-11, IEC62053-21
Frequency: 50-60Hz
Impulse constant:1000imp/kWh
Display:LCD 5 1 = 99999.9kW
Power consumption:≤8VA ≤0.4Wh
Starting current:0.004lb
Temperature range:-20 ~ 65°C

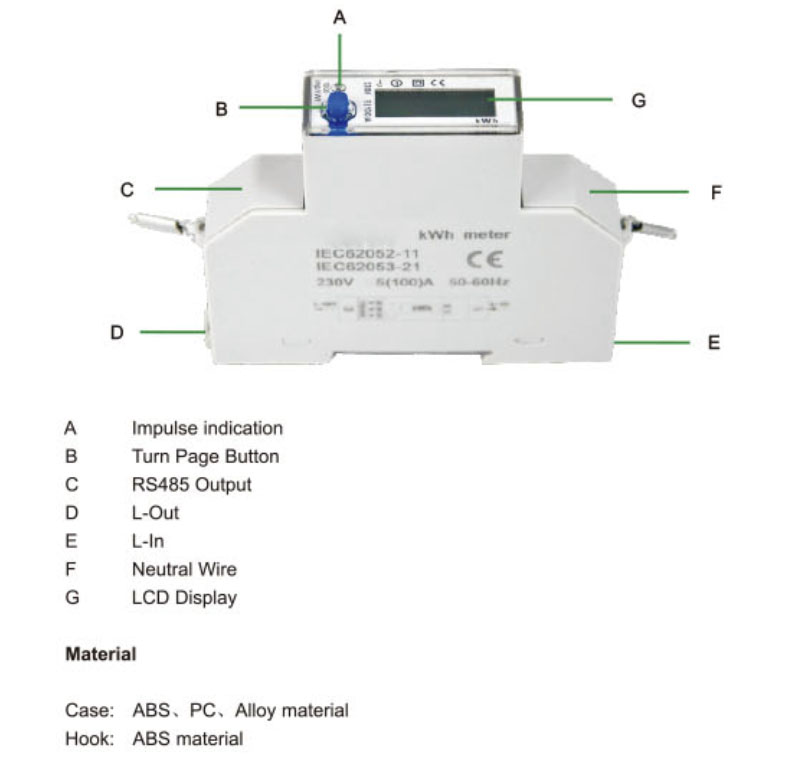

Flashing red:Impulse indication, width=90ms
Average humidity value of year:75%
Maximal value:95%
It's the smallest AMR meter in the world with multifunction. It is popular in West European as its standard installation with DIN EN 50022, small size, RS485 as well as multi-functional, which is the ideal solution for residential and commercial installations.
Features
- The meter can read these data during the definite time period and analysis the quality and load condition of user's grid.
- DIN RAIL standard installation size.

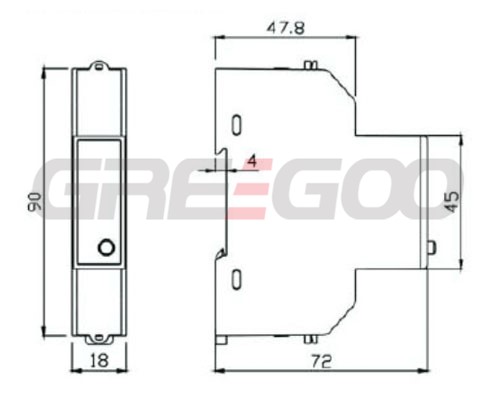

- Only 18mm wide, can up to 100A.
- RS485 communication, Protocol: IEC1107 or Modbus-RTU Mode.
- Multi-tariff function. The user can set time period through RS485 communication, then the meter will measure the energy of each different time period.
- Meter has 3.6V Lithium battery, which is used to support multi-tariff function. And the precision of RTC is better than 0.5s/day.
- Blue LCD backlight allows the meter to be read in low light conditions.
- Display current and voltage.
- Accurately measure forward and reverse energy.
- Reactive energy can be measured.
- The data can be displayed through 2 methods:
- Display data automatically by page and the time interval is 5s.
- Check data through the external button.
- Material of Meter housing: ABS fire resistant.
- Degree of Protection: IP51 (indoor meter).
