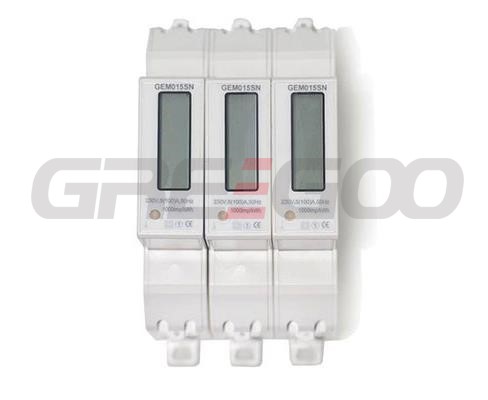

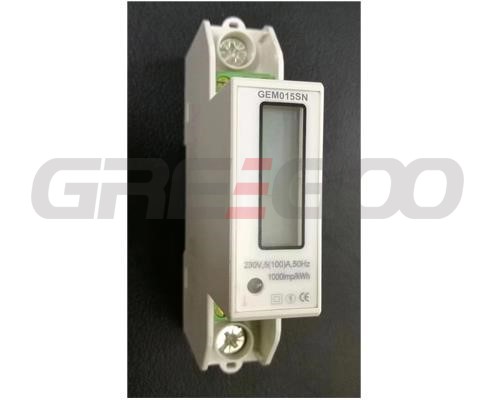

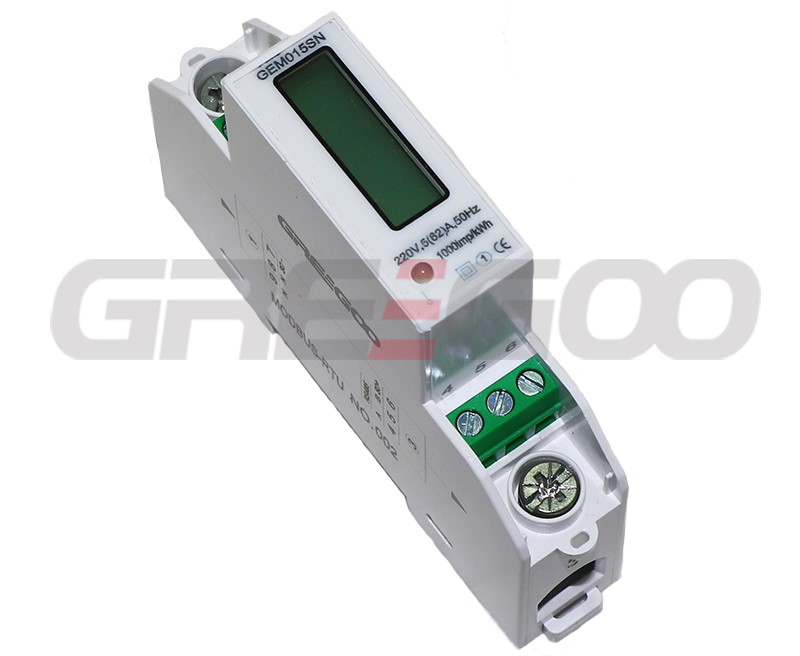

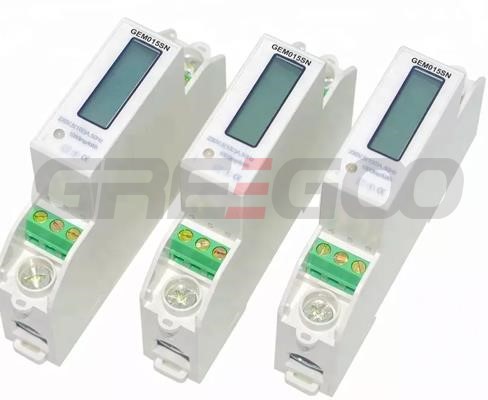

GEM015SN single phase din rail active energy meter

GEM015SN single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter,it adopt micro-electronics technique,and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. It has its completely independent intellectual property rights and minimum size. It has already passed the test of the international authority KEMA. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consump tion from single phase AC electricity net. This meter has white backlight source eight digits LCD displays shows the active energy consumpti on. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.


Technical parameters

Accuracy: Class I

Reference Voltage(V): 127/230

Current specifications(A):5(100)

Starting current: 0.02A

Insulation performance: AC voltage 4kv for 1 minute, 1.2/50us waveform impulse voltage 6kv

International standard: IEC 62053-21

Dustproof and Waterproof: IP 51

Protective Insulation Encapsulation Type: Ⅱ


Model Rated current Output voltage Accuracy Frequency Module Width Type
GEM015SN1 5(100)A 127VAC Class I 60Hz 1MW=18mm General
GEM015SN2 5(100)A 230VAC Class I 50Hz 1MW=18mm General
GEM015SN1S 5(100)A 127VAC Class I 60Hz 1MW=18mm RS485/MODBUS-RTU
GEM015SN2S 5(100)A 230VAC Class I 50Hz 1MW=18mm RS485/MODBUS-RTU

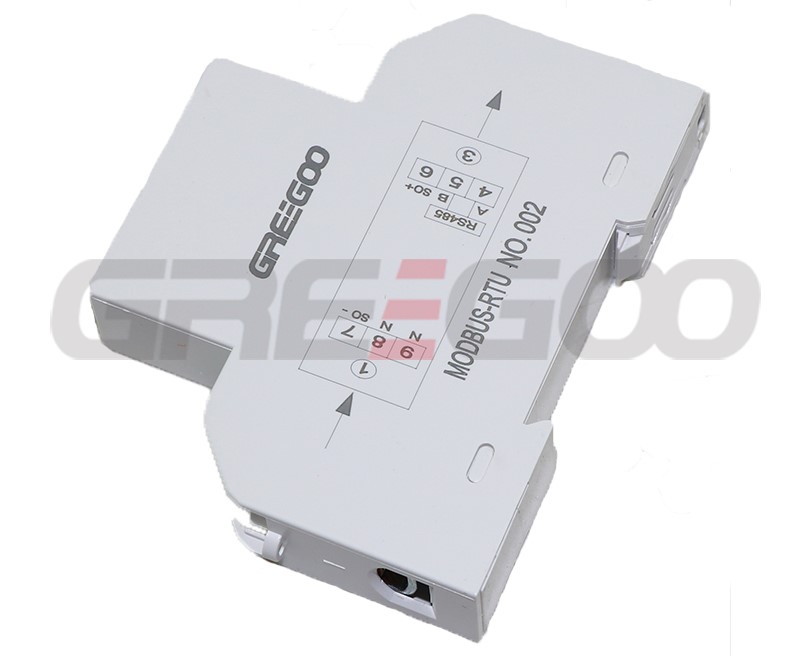

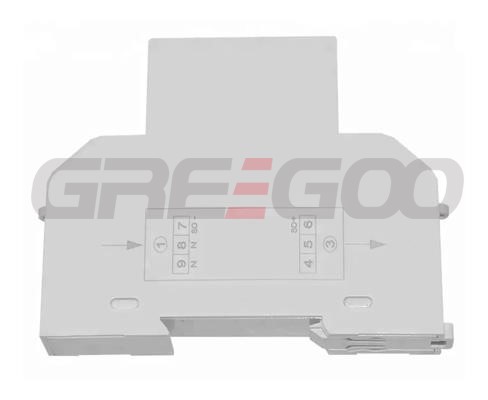

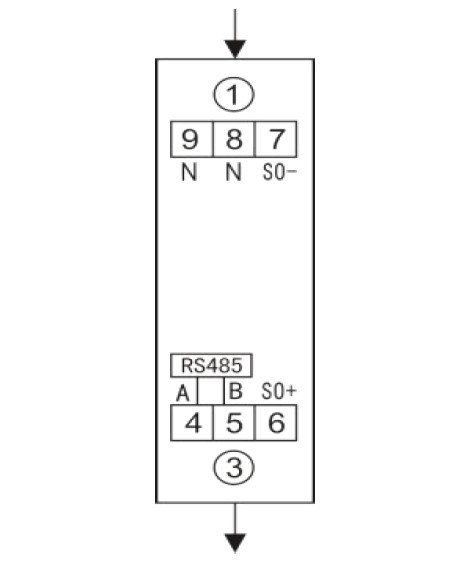

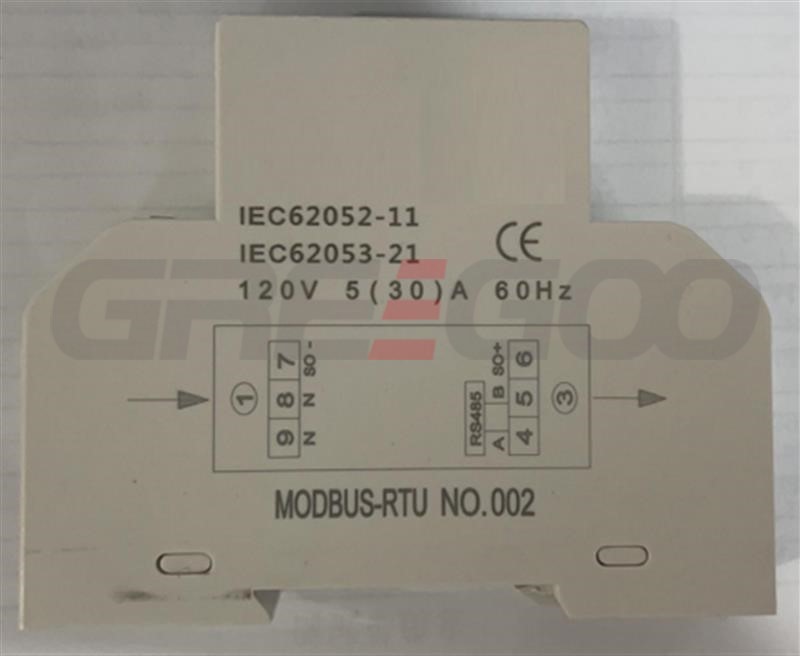

Terminal Notice


1/3
Input/output
4/5
RS485 port
L/9
Pulse output
8/9
Neutral line
