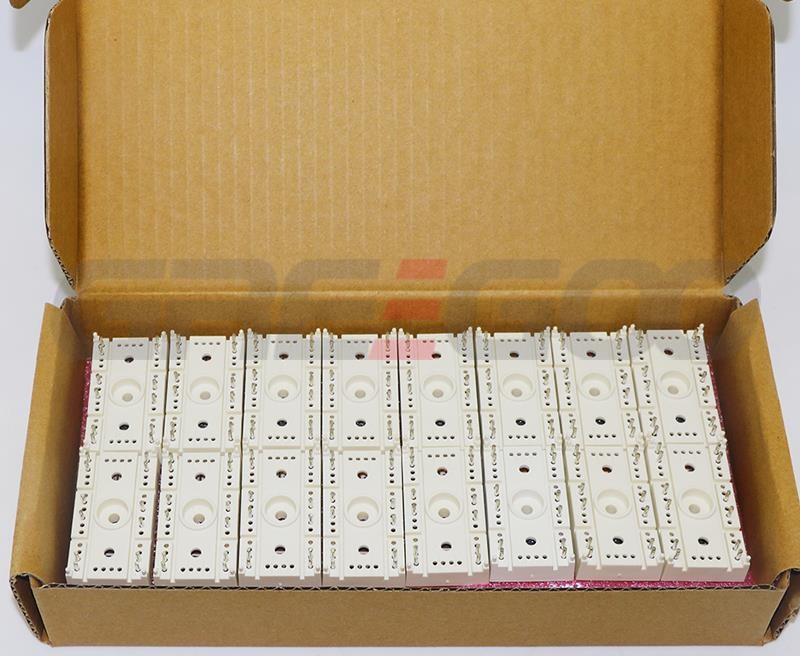

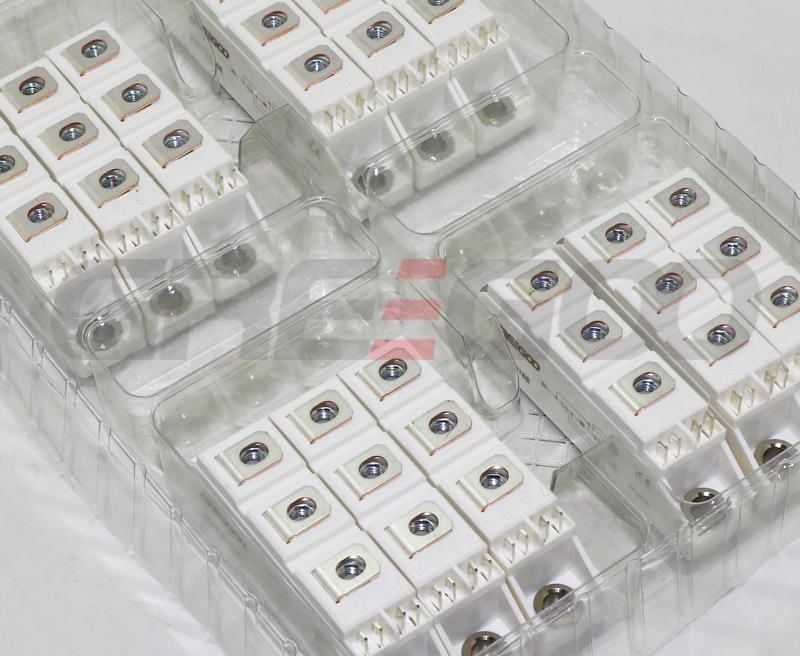

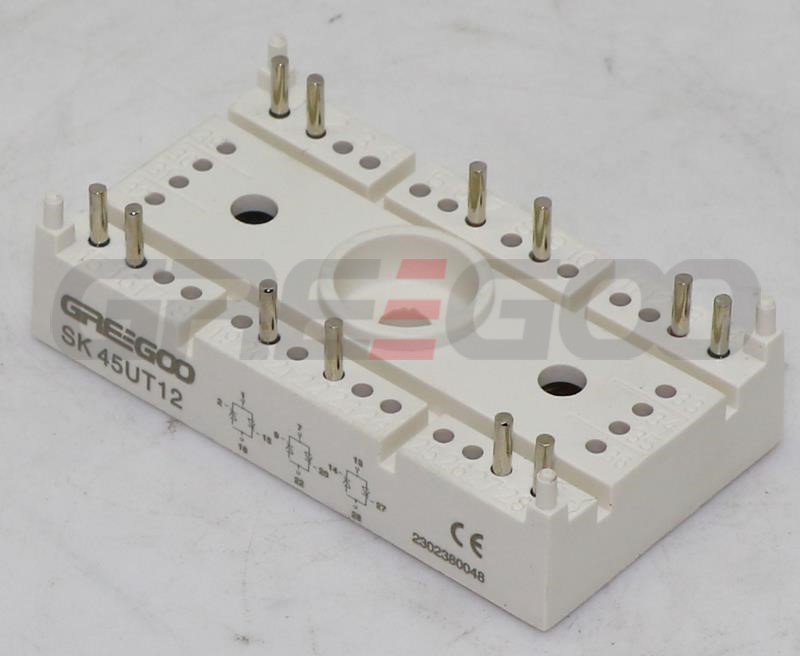

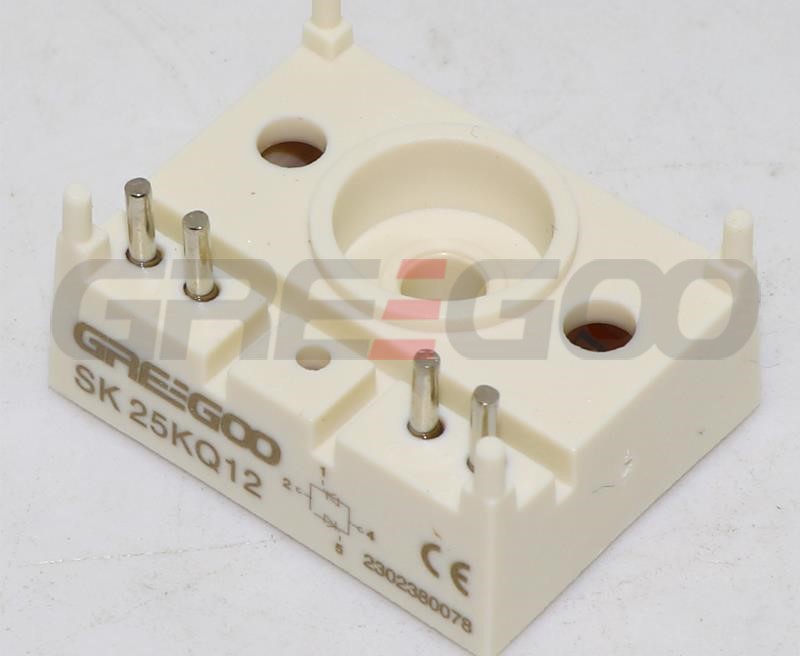

Anti-parallel Thyristor Modules
Features
- Compact Design
- One screw mounting
- Glass passived thyristor chips
- Up to 1600V reverse voltage
- Heat transfer and isolation through direct
- copper bonded aluminium oxide ceramic(DBC)
Typical Applications
- Soft starters
- Light control (studios, theaters..)
- Temperature control
 |
 |
 |
 |
