Three phase bridge rectifier SQL 15/25/35/50A
Home Products Diode Bridge Rectifier3 phase bridge rectifier (Fast on type)Three phase bridge rectifier SQL 15/25/35/50A
Product Details

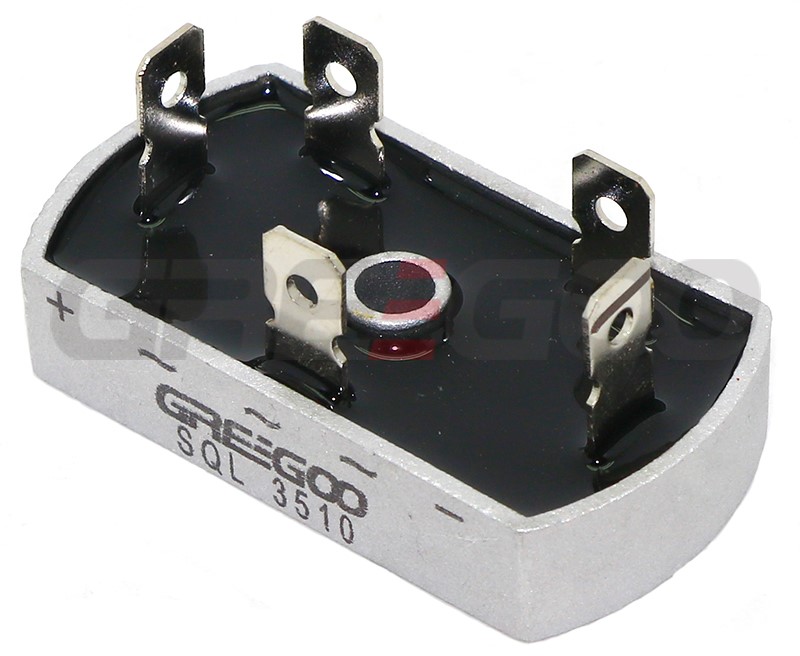

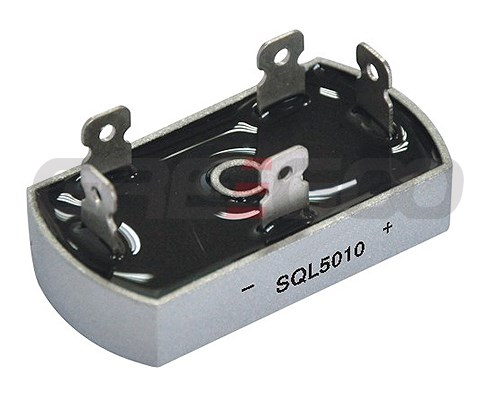

Three phase bridge rectifier SQL 15/25/35/50A
| Order # | V RRM | I O | @T | I FSM |
| V | A | ℃ | A | |
| SQL1506 | 600 | 15 | 55 | 180 |
| SQL1510 | 1000 | 15 | 55 | 180 |
| SQL2506 | 600 | 25 | 55 | 250 |
| SQL2510 | 1000 | 25 | 55 | 250 |
| SQL3506 | 600 | 35 | 55 | 320 |
| SQL3510 | 1000 | 35 | 55 | 320 |
| SQL5006 | 600 | 50 | 55 | 420 |
| SQL5010 | 1000 | 50 | 55 | 420 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
