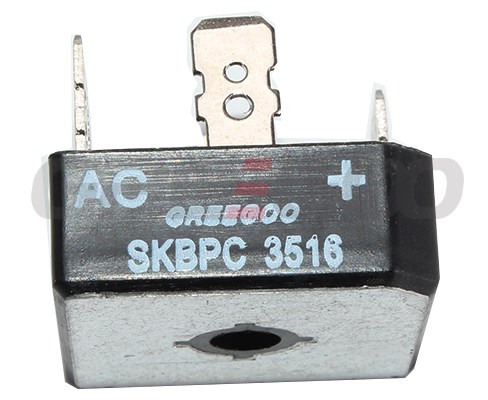

Three phase bridge rectifier SKBPC 15/25/35A
| Type | V RRM | I O | @T | I FSM | I R | V FM | @I FM |
| V | A | ℃ | A | uA | V | A | |
| SKBPC1508 | 800 | 15 | 55 | 300 | 10 | 1.1 | 5 |
| SKBPC1510 | 1000 | 15 | 55 | 300 | 10 | 1.1 | 5 |
| SKBPC1512 | 1200 | 15 | 55 | 300 | 10 | 1.1 | 5 |
| SKBPC1516 | 1600 | 15 | 55 | 300 | 10 | 1.2 | 5 |
| SKBPC2508 | 800 | 25 | 55 | 300 | 10 | 1.1 | 8.5 |
| SKBPC2510 | 1000 | 25 | 55 | 300 | 10 | 1.1 | 8.5 |
| SKBPC2512 | 1200 | 25 | 55 | 300 | 10 | 1.1 | 8.5 |
| SKBPC2516 | 1600 | 25 | 55 | 300 | 10 | 1.2 | 8.5 |
| SKBPC3508 | 800 | 35 | 55 | 400 | 10 | 1.1 | 12.5 |
| SKBPC3510 | 1000 | 35 | 55 | 400 | 10 | 1.1 | 12.5 |
| SKBPC3512 | 1200 | 25 | 55 | 400 | 10 | 1.1 | 12.5 |
| SKBPC3516 | 1600 | 35 | 55 | 400 | 10 | 1.2 | 12.5 |
