Solid state voltage regulator with external resistor
| Model # | Load voltage range | Load current | External voltage regulating resistor | Insulation voltage | Minimum voltage drop at load terminal | Ambient temperature |
| GVR3810 | 0-380VAC | 10A | 680K | ≥2500VAC | ≤2V | -40～80℃ |
| GVR3820 | 0-380VAC | 20A | 680K | ≥2500VAC | ≤2V | -40～80℃ |
| GVR3825 | 0-380VAC | 25A | 680K | ≥2500VAC | ≤2V | -40～80℃ |
| GVR3840 | 0-380VAC | 40 | 680K | ≥2500VAC | ≤2V | -40～80℃ |

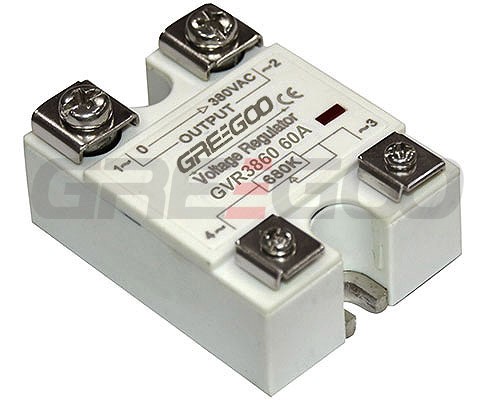

| GVR3860 | 0-380VAC | 60 | 680K | ≥2500VAC | ≤2V | -40～80℃ |
| GVR3880 | 0-380VAC | 80 | 680K | ≥2500VAC | ≤2V | -40～80℃ |
| GVR2210 | 0-220VAC | 10A | 470K | ≥2500VAC | ≤2V | -40～80℃ |
| GVR2220 | 0-220VAC | 20A | 470K | ≥2500VAC | ≤2V | -40～80℃ |

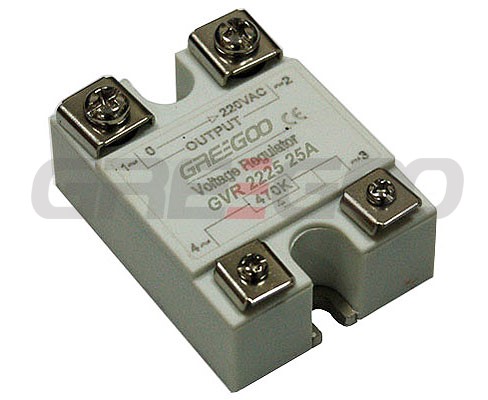

| GVR2225 | 0-220VAC | 25A | 470K | ≥2500VAC | ≤2V | -40～80℃ |
| GVR2240 | 0-220VAC | 40A | 470K | ≥2500VAC | ≤2V | -40～80℃ |
| GVR2260 | 0-220VAC | 60A | 470K | ≥2500VAC | ≤2V | -40～80℃ |
| GVR2280 | 0-220VAC | 80A | 470K | ≥2500VAC | ≤2V | -40～80℃ |
