SKKT 273/16E Thyristor Modules
Home Products Thyristor Diode ModuleSemikron Thyristor Diode ModuleSKKT 273/16E Thyristor Modules
Product Details

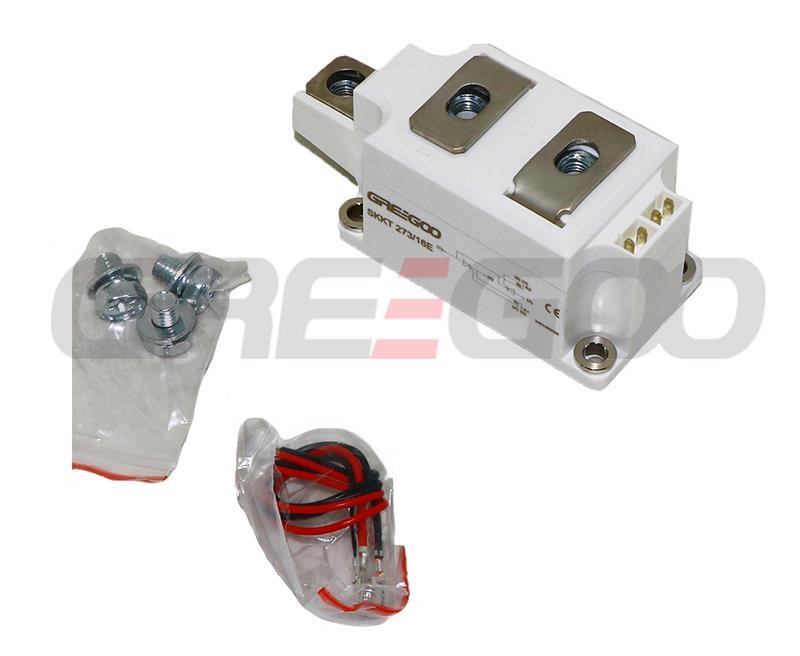

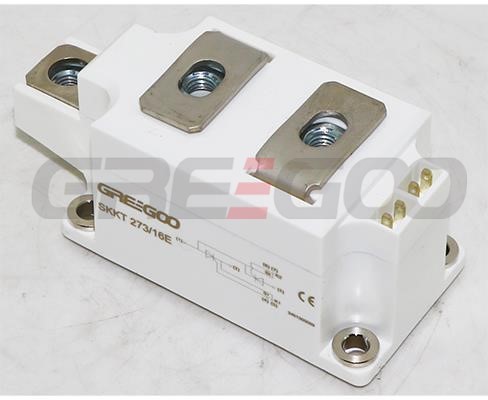

SKKT 273/16E Thyristor Modules
Features
- Industrial standard package
- Electrically insulated base plate
- Heat transfer through aluminum oxide ceramic insulated metal base plate
- Chip soldered on direct copper bonded Al2O3 ceramic
- Thyristor with center gate
Typical Applications
- DC motor control (e. g. for machine tools)
- Temperature control (e. g. for ovens, chemical processes)
- Professional light dimming (studios, theaters)
|
IT(AV) |
sinus 180° |
Tc = 85 °C |
274 |
A |
|
|
Tc = 100 °C |
204 |
A |
|
|
ITSM |
10 ms |
Tj = 25 °C |
9000 |
A |
|
|
Tj = 130 °C |
8000 |
A |
|
|
i2t |
10 ms |
Tj = 25 °C |
405000 |
A²s |
|
|
Tj = 130 °C |
320000 |
A²s |
|
|
VRSM |
|
1700 |
V |
|
|
VRRM |
|
1600 |
V |
|
|
VDRM |
|
1600 |
V |
|
|
(di/dt)cr |
Tj = 130 °C |
130 |
A/µs |
|
|
(dv/dt)cr |
Tj = 130 °C |
1000 |
V/µs |
|
|
Tj |
|
-40 ... 130 |
°C |
|
|
Module |
||||
|
Tstg |
|
-40 ... 125 |
°C |
|
|
Visol |
a.c.; 50 Hz; r.m.s. |
1 min |
3000 |
V |
|
|
1 s |
3600 |
V |
|
