Product Details

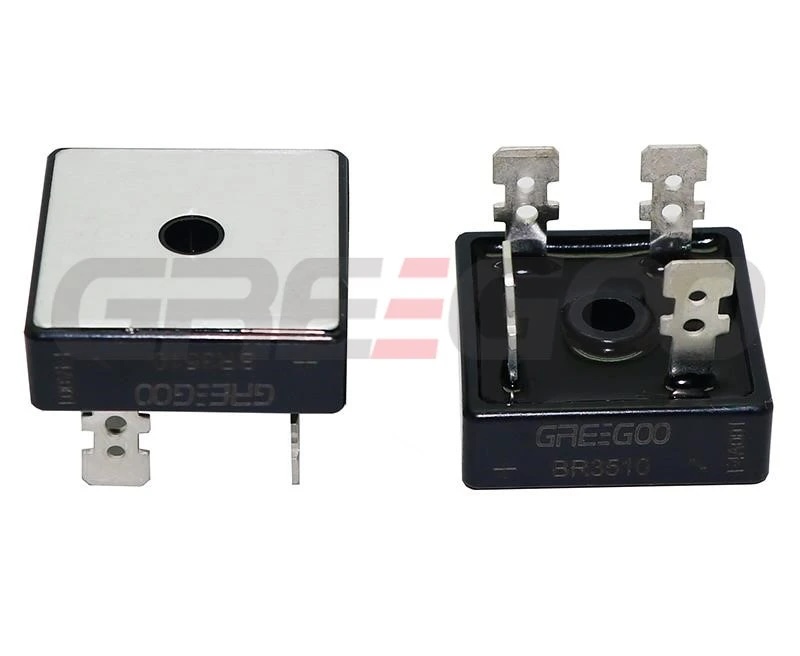

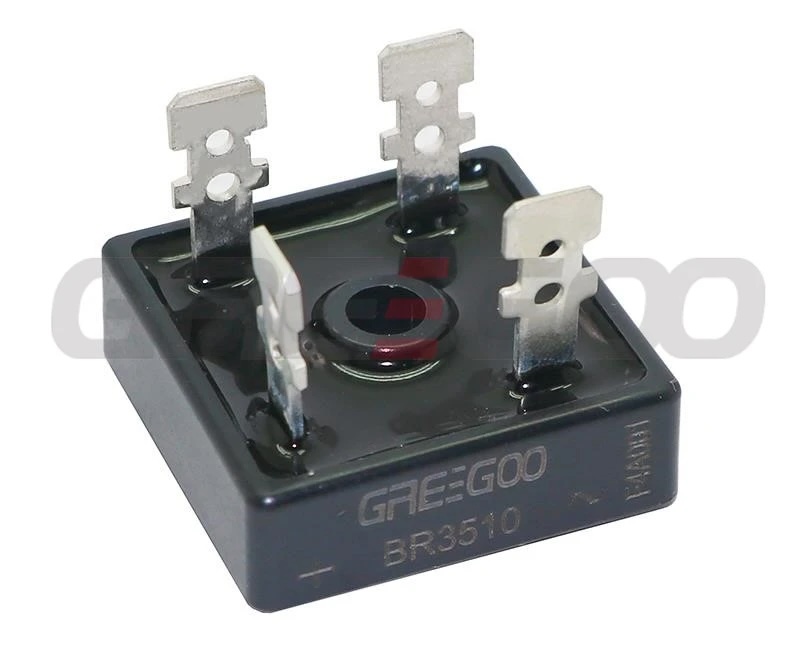

Single phase bridge rectifier BR 10/15/25/35A
| Type | V RRM | I O | @T | I FSM | I R | V FM | @I FM |
| V | A | ℃ | A | uA | V | A | |
| BR102 | 200 | 10 | 55 | 200 | 10 | 1.1 | 5 |
| BR106 | 600 | 10 | 55 | 200 | 10 | 1.1 | 5 |
| BR1010 | 1000 | 10 | 55 | 200 | 10 | 1.1 | 5 |
| BR1502 | 200 | 15 | 55 | 300 | 10 | 1.1 | 7.5 |
| BR1506 | 600 | 15 | 55 | 300 | 10 | 1.1 | 7.5 |
| BR1510 | 1000 | 15 | 55 | 300 | 10 | 1.1 | 7.5 |
| BR2502 | 200 | 25 | 55 | 300 | 10 | 1.1 | 12.5 |
| BR2506 | 600 | 25 | 55 | 300 | 10 | 1.1 | 12.5 |
| BR2510 | 1000 | 25 | 55 | 300 | 10 | 1.1 | 12.5 |
| BR3502 | 200 | 35 | 55 | 400 | 10 | 1.1 | 17.5 |
| BR3506 | 600 | 35 | 55 | 400 | 10 | 1.1 | 17.5 |
| BR3510 | 1000 | 35 | 55 | 400 | 10 | 1.1 | 17.5 |
