Single phase bridge rectifier QL series
| Type | ID | VRRM VDRM |

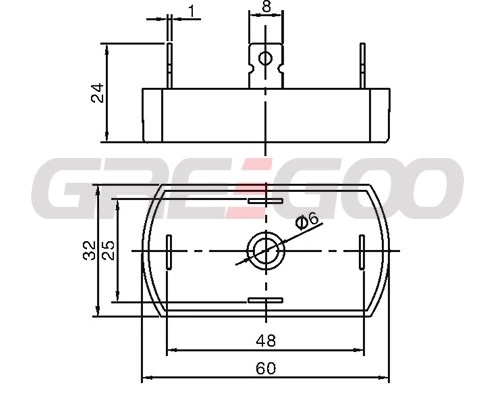

IFSM | IFAV | IRRM | VISOL | TVj max | Rth(j-c) | W | Package, Dimensions L×B×H |
| A | V | A | A | mA | V | °C | °C/W | g | mm | |
| QL5 | ||||||||||
| QL0501 | 5 | 100 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL0502 | 5 | 200 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL0504 | 5 | 400 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL0506 | 5 | 600 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL0508 | 5 | 800 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL0510 | 5 | 1000 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL0512 | 5 | 1200 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL0514 | 5 | 1400 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL0516 | 5 | 1600 | 175 | 2.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL10 | ||||||||||
| QL1001 | 10 | 100 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL1002 | 10 | 200 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL1004 | 10 | 400 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL1006 | 10 | 600 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL1008 | 10 | 800 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL1010 | 10 | 1000 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL1012 | 10 | 1200 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL1014 | 10 | 1400 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL1016 | 10 | 1600 | 175 | 5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL15 | ||||||||||
| QL1501 | 15 | 100 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL1502 | 15 | 200 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL1504 | 15 | 400 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL1506 | 15 | 600 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL1508 | 15 | 800 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL1510 | 15 | 1000 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL1512 | 15 | 1200 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL1514 | 15 | 1400 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL1516 | 15 | 1600 | 175 | 7.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL20 | ||||||||||
| QL2001 | 20 | 100 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL2002 | 20 | 200 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL2004 | 20 | 400 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL2006 | 20 | 600 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL2008 | 20 | 800 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL2010 | 20 | 1000 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL2012 | 20 | 1200 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL2014 | 20 | 1400 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL2016 | 20 | 1600 | 175 | 10 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL25 | ||||||||||
| QL2501 | 25 | 100 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL2502 | 25 | 200 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL2504 | 25 | 400 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL2506 | 25 | 600 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL2508 | 25 | 800 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL2510 | 25 | 1000 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL2512 | 25 | 1200 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL2514 | 25 | 1400 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL2516 | 25 | 1600 | 175 | 12.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL30 | ||||||||||
| QL3001 | 30 | 100 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL3002 | 30 | 200 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL3004 | 30 | 400 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL3006 | 30 | 600 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL3008 | 30 | 800 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL3010 | 30 | 1000 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL3012 | 30 | 1200 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL3014 | 30 | 1400 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL3016 | 30 | 1600 | 175 | 15 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL35 | ||||||||||
| QL3501 | 35 | 100 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL3502 | 35 | 200 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL3504 | 35 | 400 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL3506 | 35 | 600 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL3508 | 35 | 800 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |

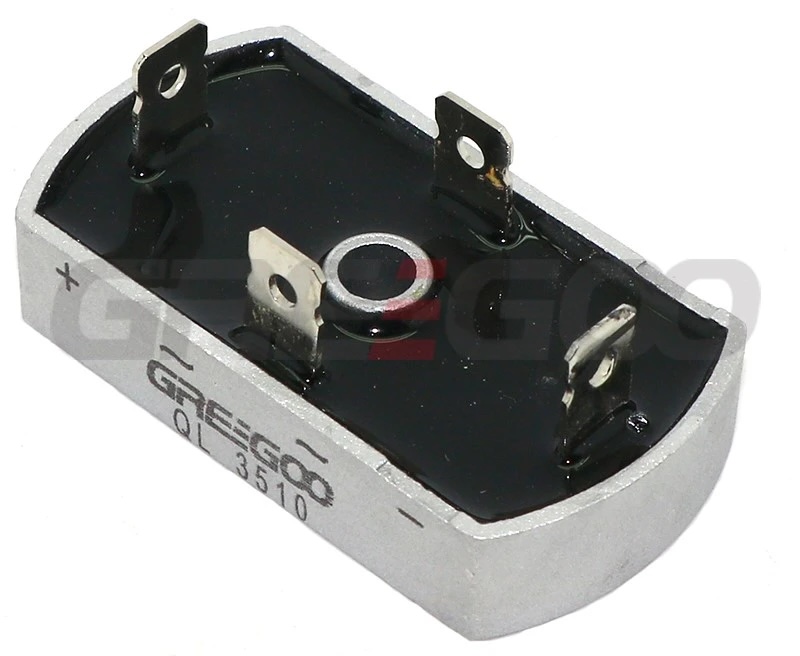

| QL3510 | 35 | 1000 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL3512 | 35 | 1200 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL3514 | 35 | 1400 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL3516 | 35 | 1600 | 175 | 17.5 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL40 | ||||||||||
| QL4001 | 40 | 100 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL4002 | 40 | 200 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL4004 | 40 | 400 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL4006 | 40 | 600 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL4008 | 40 | 800 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL4010 | 40 | 1000 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL4012 | 40 | 1200 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL4014 | 40 | 1400 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL4016 | 40 | 1600 | 175 | 20 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL50 | ||||||||||
| QL5001 | 50 | 100 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL5002 | 50 | 200 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL5004 | 50 | 400 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL5006 | 50 | 600 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL5008 | 50 | 800 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |

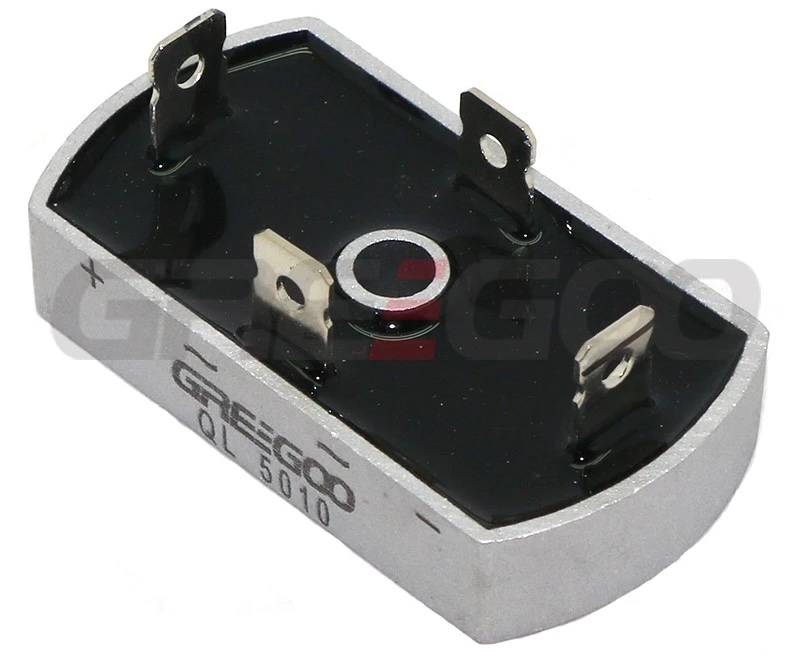

| QL5010 | 50 | 1000 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL5012 | 50 | 1200 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL5014 | 50 | 1400 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL5016 | 50 | 1600 | 175 | 25 | 5 | 2500 | 125 | 5.0 | 47 | 60x32x25 |
| QL60 | ||||||||||
| QL6001 | 60 | 100 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL6002 | 60 | 200 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL6004 | 60 | 400 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL6006 | 60 | 600 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL6008 | 60 | 800 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL6010 | 60 | 1000 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL6012 | 60 | 1200 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL6014 | 60 | 1400 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL6016 | 60 | 1600 | 400 | 30 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL100 | ||||||||||
| QL10001 | 100 | 100 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL10002 | 100 | 200 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL10004 | 100 | 400 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL10006 | 100 | 600 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL10008 | 100 | 800 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL10010 | 100 | 1000 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL10012 | 100 | 1200 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL10014 | 100 | 1400 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL10016 | 100 | 1600 | 400 | 50 | 7 | 2500 | 125 | 5.0 | 315 | 100x60x55 |
| QL150 | ||||||||||
| QL15001 | 150 | 100 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL15002 | 150 | 200 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL15004 | 150 | 400 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL15006 | 150 | 600 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL15008 | 150 | 800 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL15010 | 150 | 1000 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL15012 | 150 | 1200 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL15014 | 150 | 1400 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL15016 | 150 | 1600 | 400 | 75 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL200 | ||||||||||
| QL20001 | 200 | 100 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL20002 | 200 | 200 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL20004 | 200 | 400 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL20006 | 200 | 600 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL20008 | 200 | 800 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL20010 | 200 | 1000 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL20012 | 200 | 1200 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL20014 | 200 | 1400 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL20016 | 200 | 1600 | 400 | 100 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL250 | ||||||||||
| QL25001 | 250 | 100 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL25002 | 250 | 200 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL25004 | 250 | 400 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL25006 | 250 | 600 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL25008 | 250 | 800 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL25010 | 250 | 1000 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL25012 | 250 | 1200 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL25014 | 250 | 1400 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
| QL25016 | 250 | 1600 | 400 | 125 | 10 | 2500 | 125 | 5.0 | 1200 | 145x132x75 |
