Three Phase Rectifier Bridge (Glass Passivated MD50S)
Home Products Diode Bridge ModuleSingle and 3 phase Diode Bridge moduleThree Phase Rectifier Bridge (Glass Passivated MD50S)
Product details

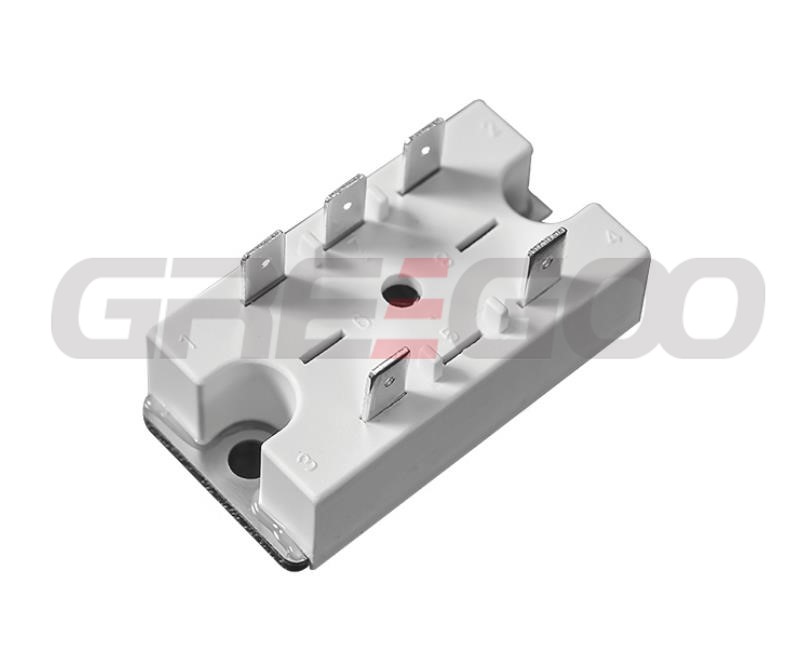

Three Phase Rectifier Bridge (Glass Passivated MD50S)
Applications
Three phase rectifiers for power supplies
Rectifiers for DC motor field supplies
Battery charger rectifiers
Input rectifiers for variable frequency drives
Features
Three phase bridge rectifier
Blocking voltage:800 to1800V
Heat transfer through aluminum oxide DBC ceramic isolated metal baseplate
Glass passivated chip

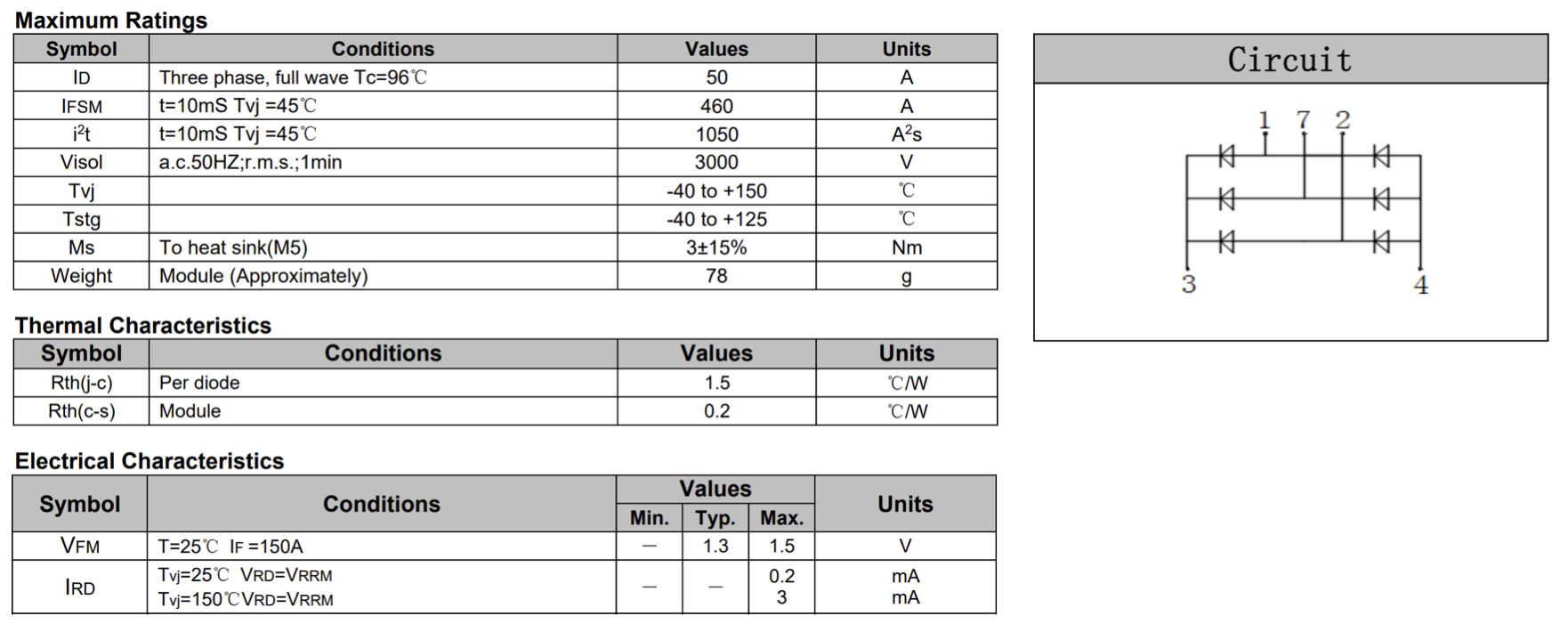

Specification
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
