Phase Control Thyristor Vishay 10A to 50A
| Type | ITAV/IFAV (TC) | VRRM/VDRM | ITSM IFSM |
I²t | VT(TO) | rT | Tvj max | Rth(j-c) | Package |
| A (ºC) | V | A | A²·s | V | mΩ | ºC | K/W | type | |
| 10RIA10 | 10 (85) | 100 | 225 | 255 | 1.39 | 16.7 | 125 | 1.85 | TO-48 (TO-208AA) |
| 10RIA20 | 10 (85) | 200 | 225 | 255 | 1.39 | 16.7 | 125 | 1.85 | TO-48 (TO-208AA) |
| 10RIA40 | 10 (85) | 400 | 225 | 255 | 1.39 | 16.7 | 125 | 1.85 | TO-48 (TO-208AA) |
| 10RIA40M | 10 (85) | 400 | 225 | 255 | 1.39 | 16.7 | 125 | 1.85 | TO-48 (TO-208AA) |
| 10RIA60 | 10 (85) | 600 | 225 | 255 | 1.39 | 16.7 | 125 | 1.85 | TO-48 (TO-208AA) |
| 10RIA80 | 10 (85) | 800 | 225 | 255 | 1.39 | 16.7 | 125 | 1.85 | TO-48 (TO-208AA) |
| 10RIA80M | 10 (85) | 800 | 225 | 255 | 1.39 | 16.7 | 125 | 1.85 | TO-48 (TO-208AA) |
| 10RIA100 | 10 (85) | 1000 | 225 | 255 | 1.39 | 16.7 | 125 | 1.85 | TO-48 (TO-208AA) |
| 10RIA100M | 10 (85) | 1000 | 225 | 255 | 1.39 | 16.7 | 125 | 1.85 | TO-48 (TO-208AA) |
| 10RIA120 | 10 (85) | 1200 | 225 | 255 | 1.39 | 16.7 | 125 | 1.85 | TO-48 (TO-208AA) |
| 10RIA120M | 10 (85) | 1200 | 225 | 255 | 1.39 | 16.7 | 125 | 1.85 | TO-48 (TO-208AA) |
| 16RIA10 | 16 (85) | 100 | 340 | 574 | 1.24 | 13.6 | 125 | 0.86 | TO-48 (TO-208AA) |
| 16RIA10M | 16 (85) | 100 | 340 | 574 | 1.24 | 13.6 | 125 | 0.86 | TO-48 (TO-208AA) |
| 16RIA20 | 16 (85) | 200 | 340 | 574 | 1.24 | 13.6 | 125 | 0.86 | TO-48 (TO-208AA) |
| 16RIA20M | 16 (85) | 200 | 340 | 574 | 1.24 | 13.6 | 125 | 0.86 | TO-48 (TO-208AA) |
| 16RIA40 | 16 (85) | 400 | 340 | 574 | 1.24 | 13.6 | 125 | 0.86 | TO-48 (TO-208AA) |
| 16RIA40M | 16 (85) | 400 | 340 | 574 | 1.24 | 13.6 | 125 | 0.86 | TO-48 (TO-208AA) |
| 16RIA60 | 16 (85) | 600 | 340 | 574 | 1.24 | 13.6 | 125 | 0.86 | TO-48 (TO-208AA) |
| 16RIA60M | 16 (85) | 600 | 340 | 574 | 1.24 | 13.6 | 125 | 0.86 | TO-48 (TO-208AA) |
| 16RIA80 | 16 (85) | 800 | 340 | 574 | 1.24 | 13.6 | 125 | 0.86 | TO-48 (TO-208AA) |
| 16RIA80M | 16 (85) | 800 | 340 | 574 | 1.24 | 13.6 | 125 | 0.86 | TO-48 (TO-208AA) |
| 16RIA100 | 16 (85) | 1000 | 340 | 574 | 1.24 | 13.6 | 125 | 0.86 | TO-48 (TO-208AA) |
| 16RIA100M | 16 (85) | 1000 | 340 | 574 | 1.24 | 13.6 | 125 | 0.86 | TO-48 (TO-208AA) |
| 16RIA120 | 16 (85) | 1200 | 340 | 574 | 1.24 | 13.6 | 125 | 0.86 | TO-48 (TO-208AA) |
| 16RIA120M | 16 (85) | 1200 | 340 | 574 | 1.24 | 13.6 | 125 | 0.86 | TO-48 (TO-208AA) |
| 16RIA120S90 | 16 (85) | 1200 | 340 | 574 | 1.24 | 13.6 | 125 | 0.86 | TO-48 (TO-208AA) |
| 16RIA120MS90 | 16 (85) | 1200 | 340 | 574 | 1.24 | 13.6 | 125 | 0.86 | TO-48 (TO-208AA) |
| 22RIA10 | 22 (85) | 100 | 400 | 793 | 0.95 | 13.4 | 125 | 0.86 | TO-48 (TO-208AA) |
| 22RIA20 | 22 (85) | 200 | 400 | 793 | 0.95 | 13.4 | 125 | 0.86 | TO-48 (TO-208AA) |
| 22RIA20M | 22 (85) | 200 | 400 | 793 | 0.95 | 13.4 | 125 | 0.86 | TO-48 (TO-208AA) |
| 22RIA40 | 22 (85) | 400 | 400 | 793 | 0.95 | 13.4 | 125 | 0.86 | TO-48 (TO-208AA) |
| 22RIA40M | 22 (85) | 400 | 400 | 793 | 0.95 | 13.4 | 125 | 0.86 | TO-48 (TO-208AA) |
| 22RIA60 | 22 (85) | 600 | 400 | 793 | 0.95 | 13.4 | 125 | 0.86 | TO-48 (TO-208AA) |
| 22RIA60M | 22 (85) | 600 | 400 | 793 | 0.95 | 13.4 | 125 | 0.86 | TO-48 (TO-208AA) |
| 22RIA80 | 22 (85) | 800 | 400 | 793 | 0.95 | 13.4 | 125 | 0.86 | TO-48 (TO-208AA) |
| 22RIA80M | 22 (85) | 800 | 400 | 793 | 0.95 | 13.4 | 125 | 0.86 | TO-48 (TO-208AA) |
| 22RIA100 | 22 (85) | 1000 | 400 | 793 | 0.95 | 13.4 | 125 | 0.86 | TO-48 (TO-208AA) |
| 22RIA100M | 22 (85) | 1000 | 400 | 793 | 0.95 | 13.4 | 125 | 0.86 | TO-48 (TO-208AA) |
| 22RIA120 | 22 (85) | 1200 | 400 | 793 | 0.95 | 13.4 | 125 | 0.86 | TO-48 (TO-208AA) |
| 22RIA120M | 22 (85) | 1200 | 400 | 793 | 0.95 | 13.4 | 125 | 0.86 | TO-48 (TO-208AA) |
| 22RIA120S90 | 22 (85) | 1200 | 400 | 793 | 0.95 | 13.4 | 125 | 0.86 | TO-48 (TO-208AA) |
| 25RIA10 | 25 (85) | 100 | 420 | 867 | 1.40 | 10.1 | 125 | 0.75 | TO-48 (TO-208AA) |
| 25RIA20 | 25 (85) | 200 | 420 | 867 | 1.40 | 10.1 | 125 | 0.75 | TO-48 (TO-208AA) |
| 25RIA20M | 25 (85) | 200 | 420 | 867 | 1.40 | 10.1 | 125 | 0.75 | TO-48 (TO-208AA) |
| 25RIA40 | 25 (85) | 400 | 420 | 867 | 1.40 | 10.1 | 125 | 0.75 | TO-48 (TO-208AA) |
| 25RIA40M | 25 (85) | 400 | 420 | 867 | 1.40 | 10.1 | 125 | 0.75 | TO-48 (TO-208AA) |
| 25RIA60 | 25 (85) | 600 | 420 | 867 | 1.40 | 10.1 | 125 | 0.75 | TO-48 (TO-208AA) |
| 25RIA60M | 25 (85) | 600 | 420 | 867 | 1.40 | 10.1 | 125 | 0.75 | TO-48 (TO-208AA) |
| 25RIA80 | 25 (85) | 800 | 420 | 867 | 1.40 | 10.1 | 125 | 0.75 | TO-48 (TO-208AA) |
| 25RIA80M | 25 (85) | 800 | 420 | 867 | 1.40 | 10.1 | 125 | 0.75 | TO-48 (TO-208AA) |
| 25RIA100 | 25 (85) | 1000 | 420 | 867 | 1.40 | 10.1 | 125 | 0.75 | TO-48 (TO-208AA) |
| 25RIA100M | 25 (85) | 1000 | 420 | 867 | 1.40 | 10.1 | 125 | 0.75 | TO-48 (TO-208AA) |
| 25RIA120 | 25 (85) | 1200 | 420 | 867 | 1.40 | 10.1 | 125 | 0.75 | TO-48 (TO-208AA) |
| 25RIA120M | 25 (85) | 1200 | 420 | 867 | 1.40 | 10.1 | 125 | 0.75 | TO-48 (TO-208AA) |
| 25RIA120S90 | 25 (85) | 1200 | 420 | 867 | 1.40 | 10.1 | 125 | 0.75 | TO-48 (TO-208AA) |
| 25RIA120MS90 | 25 (85) | 1200 | 420 | 867 | 1.40 | 10.1 | 125 | 0.75 | TO-48 (TO-208AA) |
| 50RIA10 | 50 (94) | 100 | 1430 | 10180 | 1.08 | 3.34 | 125 | 0.35 | TO-65 (TO-208AC) |

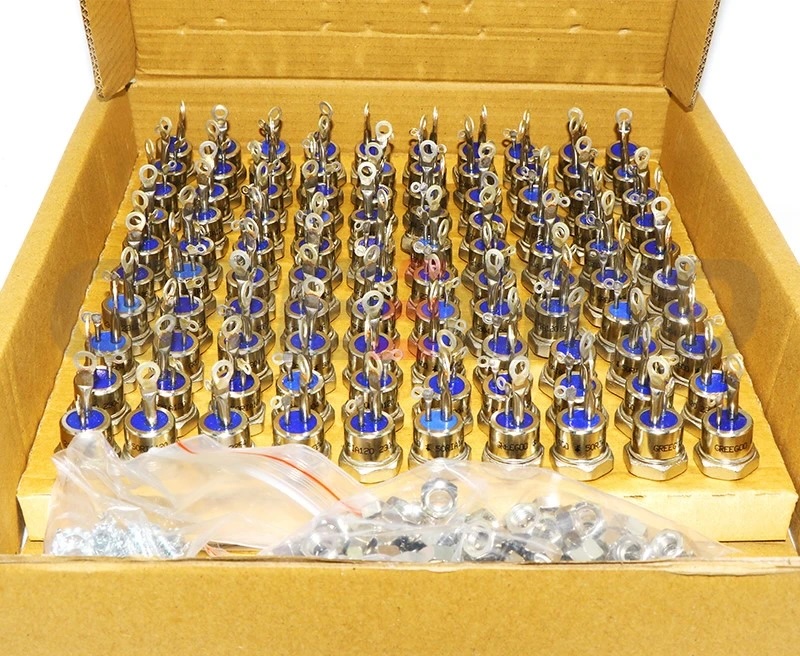

| 50RIA20 | 50 (94) | 200 | 1430 | 10180 | 1.08 | 3.34 | 125 | 0.35 | TO-65 (TO-208AC) |
| 50RIA20M | 50 (94) | 200 | 1430 | 10180 | 1.08 | 3.34 | 125 | 0.35 | TO-65 (TO-208AC) |
| 50RIA40 | 50 (94) | 400 | 1430 | 10180 | 1.08 | 3.34 | 125 | 0.35 | TO-65 (TO-208AC) |
| 50RIA40M | 50 (94) | 400 | 1430 | 10180 | 1.08 | 3.34 | 125 | 0.35 | TO-65 (TO-208AC) |
| 50RIA60 | 50 (94) | 600 | 1430 | 10180 | 1.08 | 3.34 | 125 | 0.35 | TO-65 (TO-208AC) |
| 50RIA60M | 50 (94) | 600 | 1430 | 10180 | 1.08 | 3.34 | 125 | 0.35 | TO-65 (TO-208AC) |
| 50RIA80 | 50 (94) | 800 | 1430 | 10180 | 1.08 | 3.34 | 125 | 0.35 | TO-65 (TO-208AC) |
| 50RIA80M | 50 (94) | 800 | 1430 | 10180 | 1.08 | 3.34 | 125 | 0.35 | TO-65 (TO-208AC) |
| 50RIA100 | 50 (94) | 1000 | 1430 | 10180 | 1.08 | 3.34 | 125 | 0.35 | TO-65 (TO-208AC) |
| 50RIA100M | 50 (94) | 1000 | 1430 | 10180 | 1.08 | 3.34 | 125 | 0.35 | TO-65 (TO-208AC) |

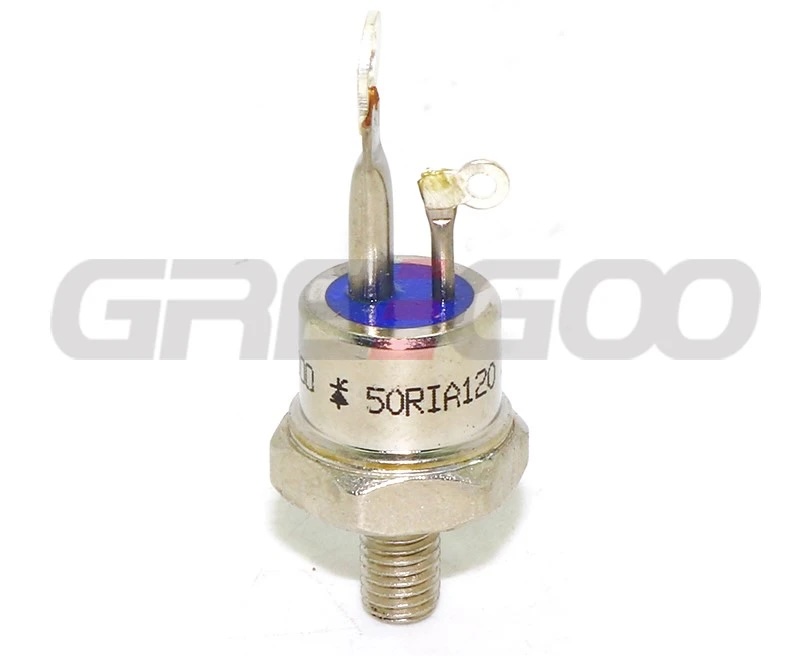

| 50RIA120 | 50 (94) | 1200 | 1430 | 10180 | 1.08 | 3.34 | 125 | 0.35 | TO-65 (TO-208AC) |
| 50RIA120M | 50 (94) | 1200 | 1430 | 10180 | 1.08 | 3.34 | 125 | 0.35 | TO-65 (TO-208AC) |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
Related Products
Stud Thyristor 10A to 125A

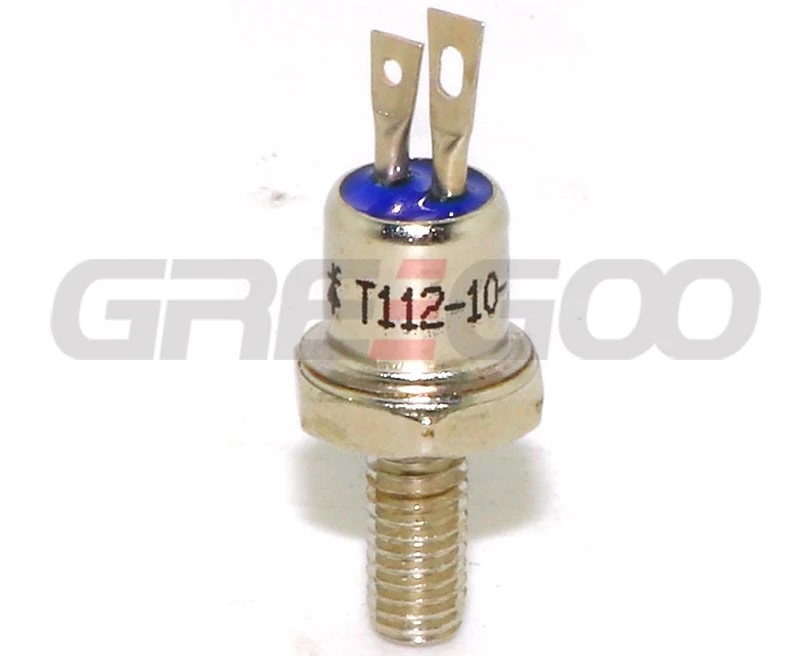

Phase Control Thyristor, Stud type, T112, T122, T132, T142 and T152 casing.

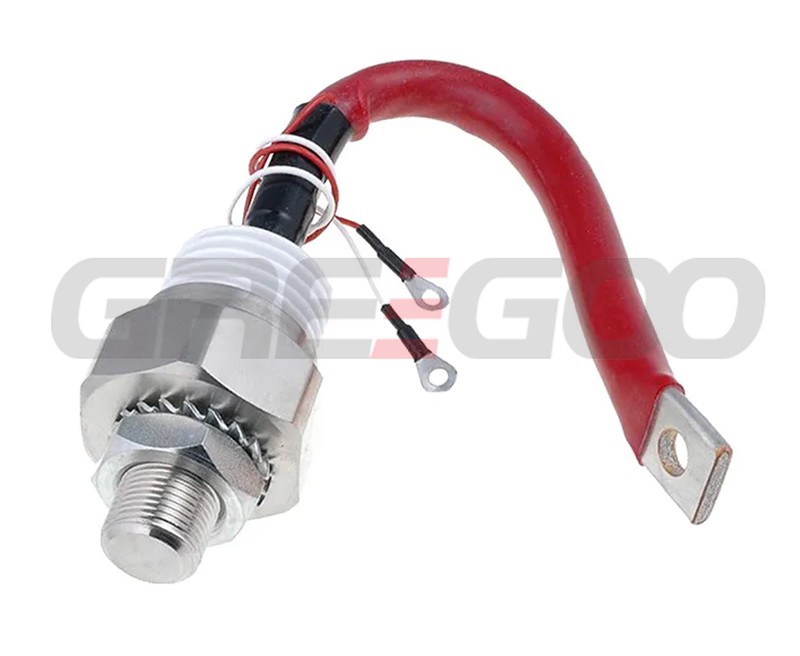

Stud Thyristor Kubara Lamina Replacement
