Stud Thyristor 10A to 320A Russia Version
Home Products Stud Semiconductor DeviceStud ThyristorStud Thyristor 10A to 320A Russia Version
Part numbers list
Stud Thyristor 10A to 320A Russia Version
| Type | VRRM | IRRM | IT(AV) | IT(RSM) | IT(SM) | VTM/ITM | di/dt | dv/dt | VGT | IGT | IH | Tj | Rth(j-c) | Tq | M2 | Wt | |
| Tc55℃ | 10ms | 25℃ | |||||||||||||||
| V | mA | A | A | kA | V/A | A/μs | V/μs | V | mA | mA | ℃ | ℃/W | μs | N/m | kg | ||
| T212-10 | 100-1300 | 3 | 10 | 15.7 | 0.15 | 1.93/31 | 125 | 50-500 | 3.0 | 40 | 5-50 | -40 ~ 125 | 1.80 | 63 | 0.9-1.1 | 0.006 | RST1 |
| T212-16 | 100-1300 | 3 | 15 | 25.2 | 0.24 | 1.80/50 | 125 | 50-500 | 3.0 | 40 | 5-50 | -40 ~ 125 | 1.50 | 63 | 0.9-1.1 | 0.006 | RST1 |

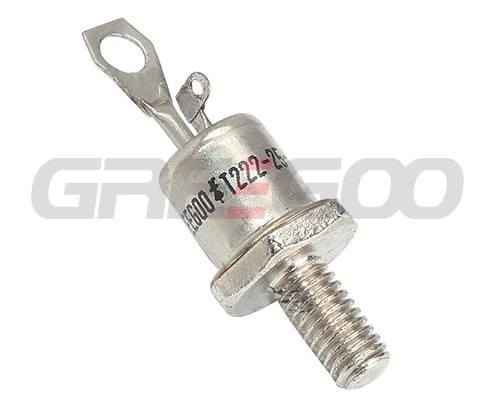

| T222-20 | 100-1300 | 3.5 | 20 | 31.4 | 0.30 | 1.75/63 | 125 | 50-500 | 3.0 | 60 | 5-50 | -40 ~ 125 | 0.90 | 63 | 1.4-1.8 | 0.015 | RST2 |
| T222-25 | 100-1300 | 3.5 | 25 | 39.2 | 0.35 | 1.75/78 | 125 | 50-500 | 3.0 | 60 | 5-50 | -40 ~ 125 | 0.80 | 63 | 1.4-1.8 | 0.015 | RST2 |
| T232-25 | 1200-1600 | 9 | 25 | 30.2 | 0.33 | 2.20/78 | 125 | 50-500 | 3.5 | 100 | 5-100 | -40 ~ 125 | 0.80 | 160 | 5.0-6.2 | 0.023 | RST3 |

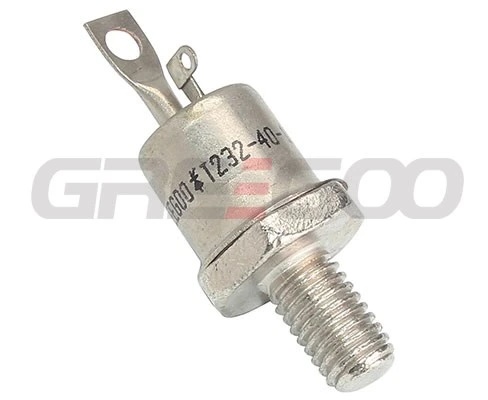

| T232-40 | 100-1300 | 5 | 40 | 62.8 | 0.75 | 1.75/125 | 125 | 50-500 | 4.0 | 100 | 5-100 | -40 ~ 125 | 0.62 | 63 | 5.0-6.2 | 0.023 | RST3 |
| T232-50 | 100-1300 | 5 | 50 | 70.5 | 0.80 | 1.75/157 | 125 | 50-500 | 4.0 | 100 | 5-100 | -40 ~ 125 | 0.50 | 63 | 5.0-6.2 | 0.023 | RST3 |
| T242-50 | 1200-1600 | 15 | 50 | 78.5 | 0.85 | 2.10/157 | 125 | 50-500 | 3.5 | 120 | 5-100 | -40 ~ 125 | 0.40 | 160 | 9.0-11 | 0.050 | RST4 |

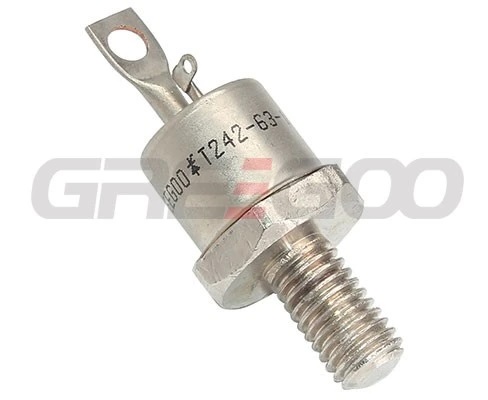

| T242-63 | 100-1300 | 7 | 63 | 90.9 | 1.30 | 1.65/108 | 125 | 50-500 | 4.0 | 150 | 5-100 | -40 ~ 125 | 0.40 | 63 | 9.0-11 | 0.050 | RST4 |
| T242-80 | 100-1300 | 7 | 80 | 125.8 | 1.50 | 1.63/250 | 125 | 50-500 | 4.0 | 150 | 5-100 | -40 ~ 125 | 0.30 | 63 | 9.0-11 | 0.050 | RST4 |

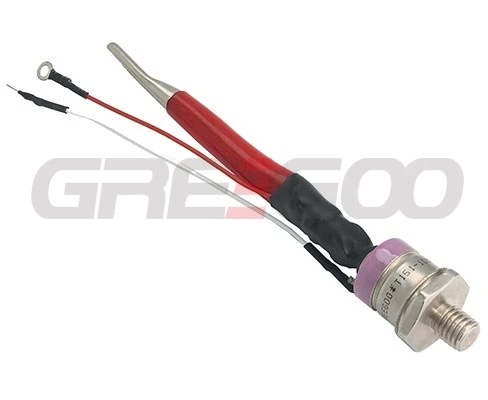

| T151-100 | 300-1600 | 15 | 100 | 160 | 2.0 | 1.80/314 | 160 | 200-1000 | 3.5 | 200 | 5-200 | -40 ~ 125 | 0.30 | 160 | 10-20 | 0.165 | RST5 |
| T151-125 | 300-1600 | 15 | 125 | 200 | 2.5 | 1.75/392 | 125 | 200-1000 | 3.5 | 200 | 5-200 | -40 ~ 125 | 0.15 | 160 | 20-30 | 0.165 | RST5 |

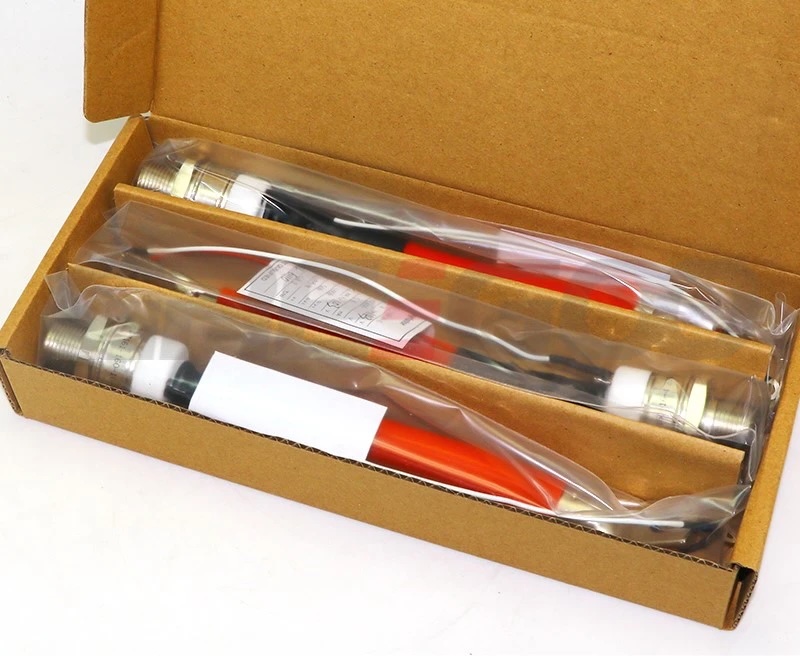

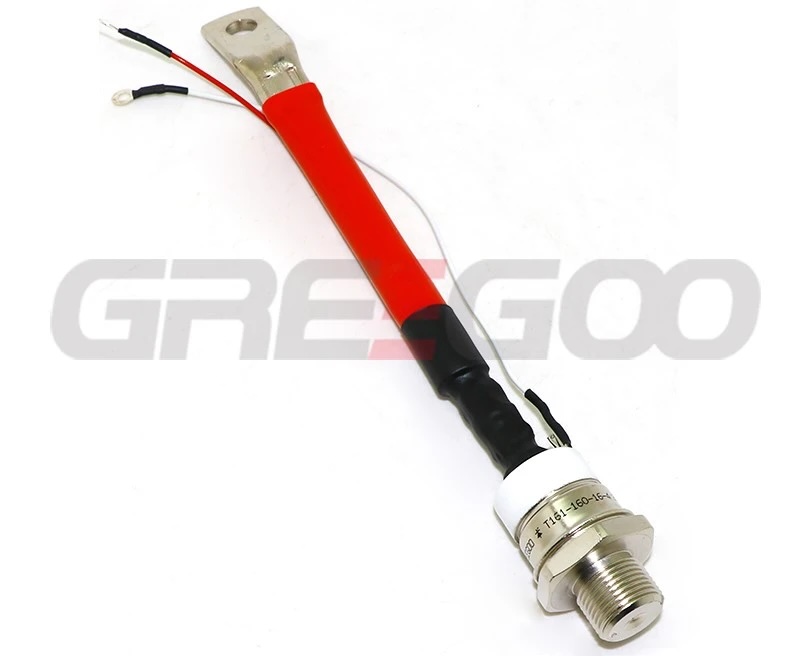

| T161-160 | 300-1800 | 15 | 160 | 260 | 4.0 | 1.70/502 | 125 | 200-1000 | 3.5 | 200 | 5-200 | -40 ~ 125 | 0.15 | 160 | 20-30 | 0.250 | RST6 |

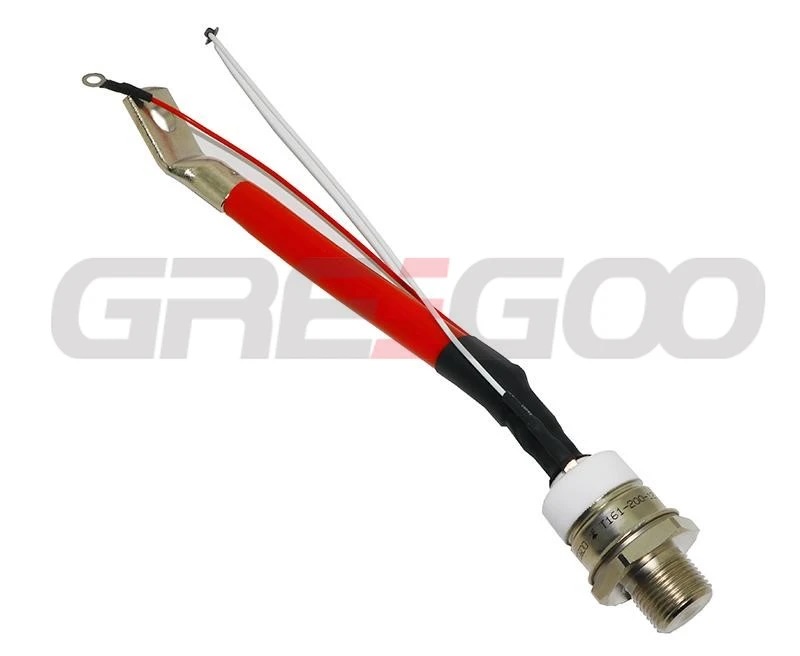

| T161-200 | 300-1800 | 15 | 200 | 315 | 5.0 | 1.80/628 | 160 | 200-1000 | 3.5 | 200 | 5-200 | -40 ~ 125 | 0.13 | 250 | 20-30 | 0.250 | RST6 |
| T161-250 | 300-1600 | 30 | 250 | 390 | 5.0 | 1.85/780 | 125 | 200-1000 | 3.5 | 200 | 5-200 | -40 ~ 125 | 0.10 | 160 | 20-30 | 0.250 | RST6 |
| T171-250 | 300-1800 | 30 | 250 | 393 | 6.0 | 1.75/785 | 125 | 200-1000 | 3.5 | 200 | 5-200 | -40 ~ 125 | 0.10 | 160 | 25-35 | 0.440 | RST7 |

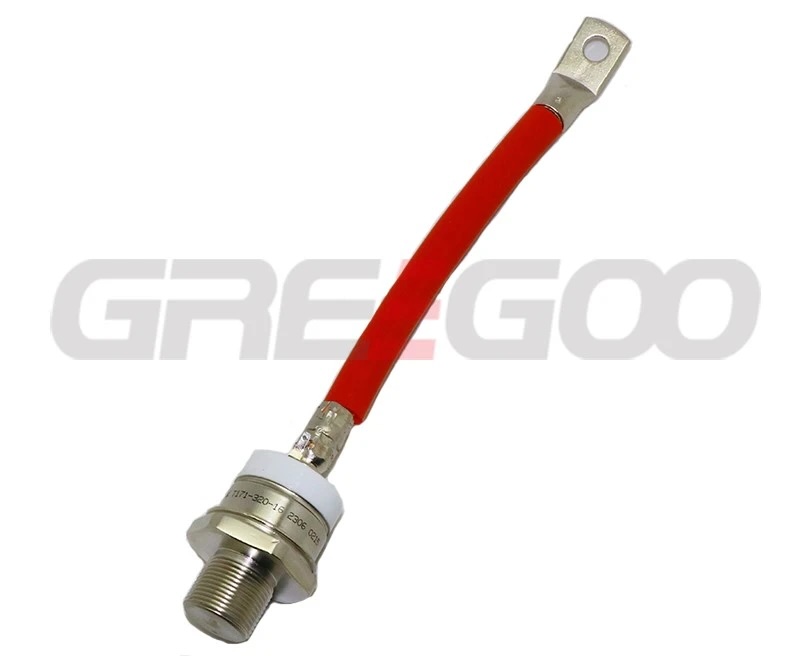

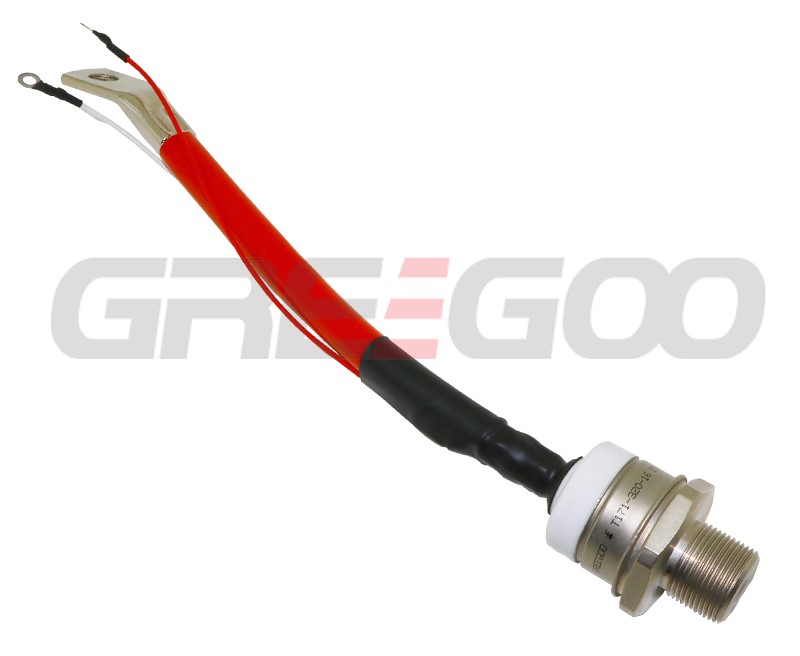

| T171-320 | 300-1800 | 30 | 320 | 500 | 8.5 | 1.60/1005 | 320 | 200-1000 | 3.5 | 200 | 5-200 | -40 ~ 125 | 0.85 | 160 | 25-35 | 0.440 | RST7 |
